IP65 recessed downlight Cut out 55mm 70mm | Model: GR-DL-K02
GR-DL-K02 Series is our adjustable & anti-glare IP65 recessed downlight. The LED chips are set back 50mm to reduce the glare with deep reflectors. And available to be the tilt of 20° Max. The IP65 degree of protection allows it to be used in a dry room or embedded in a humid environment. Small size but with big power, very suitable for replacement of GU10/CFL Waterproof downlight.
Material & Finished
- Heat sink (housing): aluminum body with Silicone sealing kit for water and dust protection, anodizing treatment, black powdered finished. 15° tilt.
- Outer frame: Aluminum body, white ring. Slim design.
- Reflectors: deep design with low glare. matt black, matt white, gold, silver (Chrome) options.
- Transformer: Non-dimmable constant current driver as the standard version, free flicker, low THD. Triac/0-10V/DALI dimmable driver can be selected if needed.
- Light source: Bridgelux or CREE COB, RA90, 90-100lm/W output.
- Mounting Clips: Metal body, strongest strength. Easy to do the recessed installation
- Cables & wiring: cable with DC connector as standard, waterproof connectors available if needed.

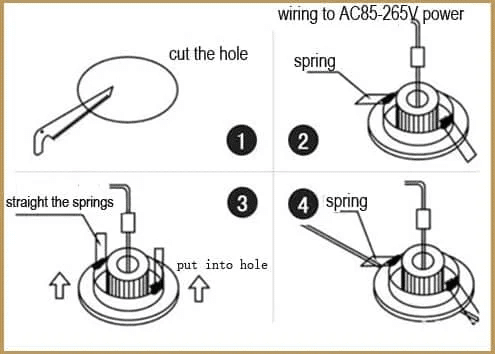

Installation & Mounting
Tool-free installation after opening a hole in the ceiling. Just cut off electricity before you do the installation, avoiding any safety issues.
Electrical & Optical
- Working voltage:100-265VAC 50/60Hz
- Power Factor:>0.5
- CRI(Ra):>90
- Lumens:90lm-100lm/W output.
- SDCM:<3
- Efficiency:>86%
- UGR:<19 low glare
- IP Rating: IP65 waterproof
- IK Rating: IK08
- Surge protection:1-2KV
- Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
- Beam angle: 24° narrow distribution
- Lifetime:>50000Hrs
- Working temperature:-25℃/+55℃
- Compliance: CE RoHS Certified
- Warranty:2/3/5Years.
Additional Options
- Zigbee Smart
- Dimming (PWM/0-10V/DALI Dimmable)
- AC/DC12V/DC24V/DC36V/DC48W/60
- Emergency backup (30% wattage with 1hours 2hours 3hours duration)
GRNLED offers the best price in the market.
Models and Details
| Order model | Wattage | Dimension | Cut out | Lumens | Color temperature | UGR | CRI | Input voltage | DATASHEET |
| GR-DL-7WK02 | 7W±5% | Ø72*H78mm | Φ55-60mm | 630-700lm | 3000K;4000K;6500K | <19 | >90 | 100-265VAC 50/60Hz | Download |
| GR-DL-9WK02 | 9W±5% | Ø72*H78mm | Φ55-60mm | 800-900lm | 3000K;4000K;6500K | <19 | >90 | 100-265VAC 50/60Hz | Download |
| GR-DL-12WK02 | 12W±5% | Ø92*H91mm | Φ70-75mm | 1000-1200mm | 3000K;4000K;6500K | <19 | >90 | 100-265VAC 50/60Hz | Download |
| GR-DL-15WK02 | 15W±5% | Ø92*H91mm | Φ70mm-75mm | 1300-1500lm | 3000K;4000K;6500K | <19 | >90 | 100-265VAC 50/60Hz | Download |
