Long Recessed Cylindrial Downlight | Model: GR-DL-CL

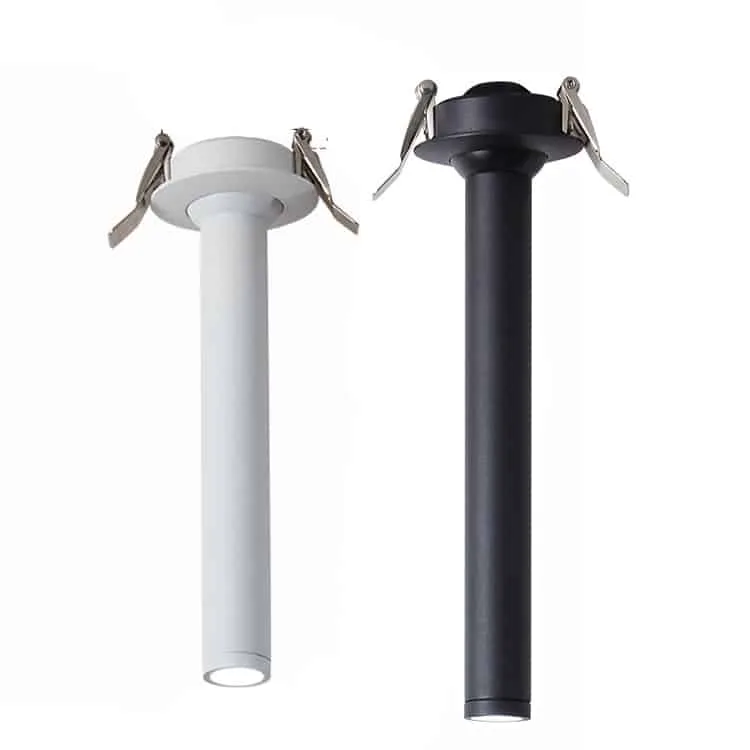

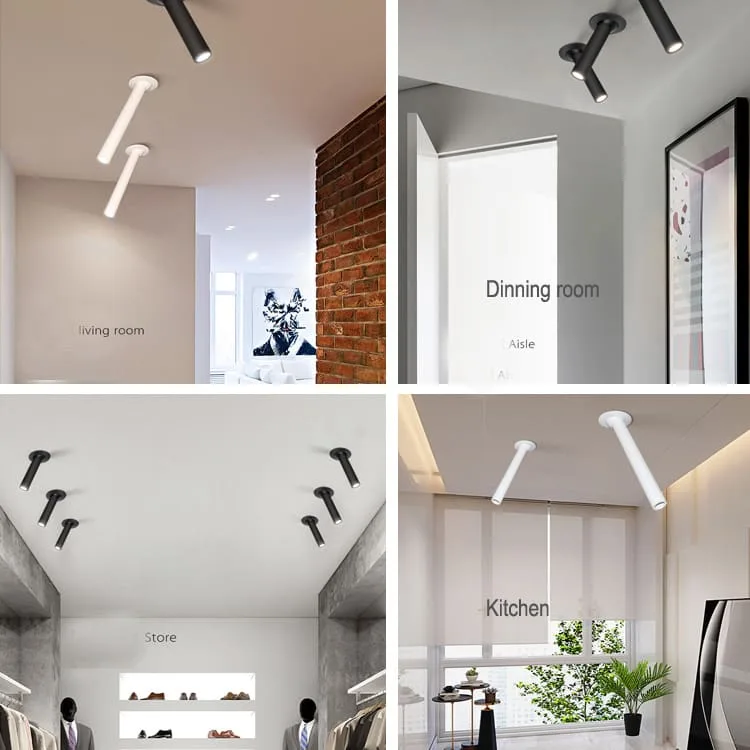

GR-DL-CL series long cylindrical downlight features an adjustable head and recessed installation, allowing it to be rotated 360 degrees. Made of a die-cast aluminum body (available in white or black), Bridgelux CRI90 COB chip and an external isolated constant current driver for long-lasting performance. The modern and directional design enables it to seamlessly blend into various architectural styles. We can see this recessed cylindrial lighting fixtures are widely used in interior spaces like hotels, supermarkets, museums, clothes stores, living rooms, study rooms, etc.
GRNLED offers the best price in the market.
| Order model | Wattage | Dimension | Cut out | Lumens | CCT | Beam angle | Light source | Input voltage | Specification |
| GR-DL-5WCL100 | 5w ± 5% | Ø67*L100mm | Ø60mm | 450-550lm | 3000K;4000K;6000K | 24° | COB | 110/220-240VAC 50/60Hz | Download |
| GR-DL-5WCL200 | 5w ± 5% | Ø67*L200mm | Ø60mm | 450-550lm | 3000K;4000K;6000K | 24° | COB | 110/220-240VAC 50/60Hz | Download |
| GR-DL-5WCL300 | 5w ± 5% | Ø67*L300mm | Ø60mm | 450-550lm | 3000K;4000K;6000K | 24° | COB | 110/220-240VAC 50/60Hz | Download |
Materials & Finished
- Recessed type, easy-to-do the installation

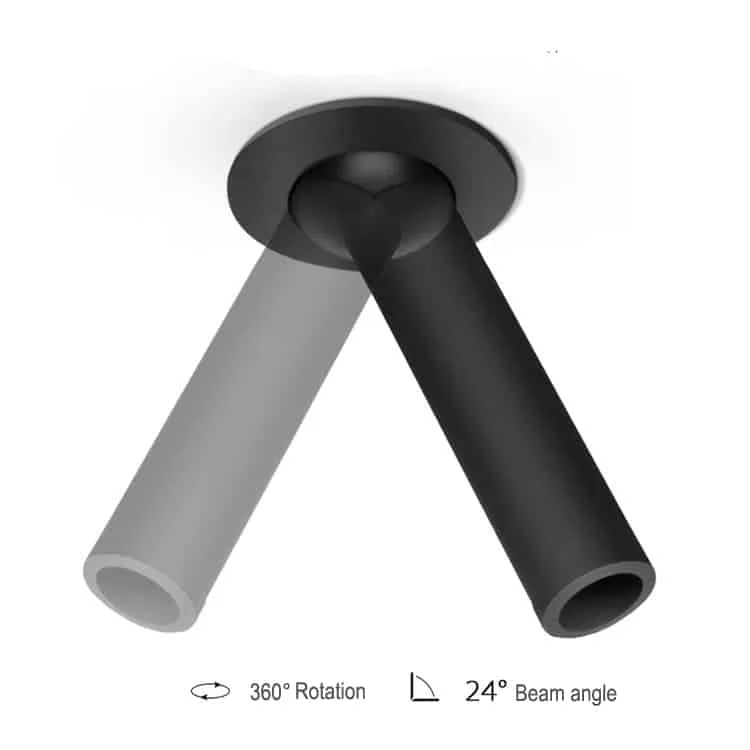

- Rotation 360°, easy to adjust lighting direction
- Low glare value design, UGR<19.
- Die-cast aluminum body, black/White finished options. long lifetime.
Electrical & Optical
- Input voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.5
- CRI(Ra):>90
- SDCM:<5
- Efficiency:>88%
- IP Rating: IP22 Indoor use
- IK Rating: IK07
- UGR:<19
- Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
- Beam angle: 24°
- Lifetime:>50000Hrs
- Working temperature:-25℃/+55℃
- Compliance: CE RoHS Certified
- Warranty:3/5Years.
- PWM/0-10V/DALI Dimmable
- Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
- Emergency battery with 2W 1.5hours duration
Q: What are the long cylinder lights called ?
A: Long cylinder lights are ofen referred to cylindrial downlights or cylinder spotlights. The specific name can vary depending on the country and preference.
