Ultra-Thin Flush Mount LED Ceiling Light | Model: GR-CD-A

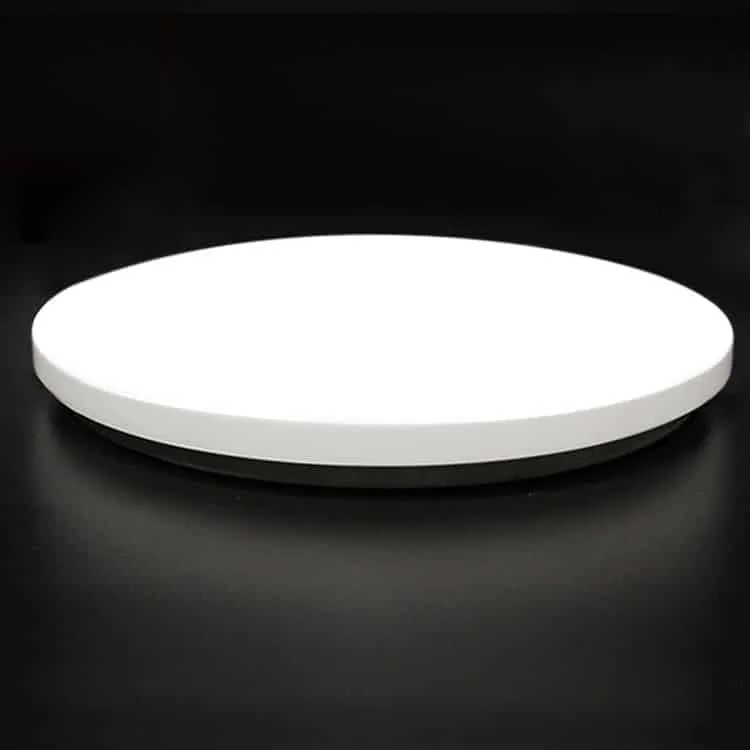

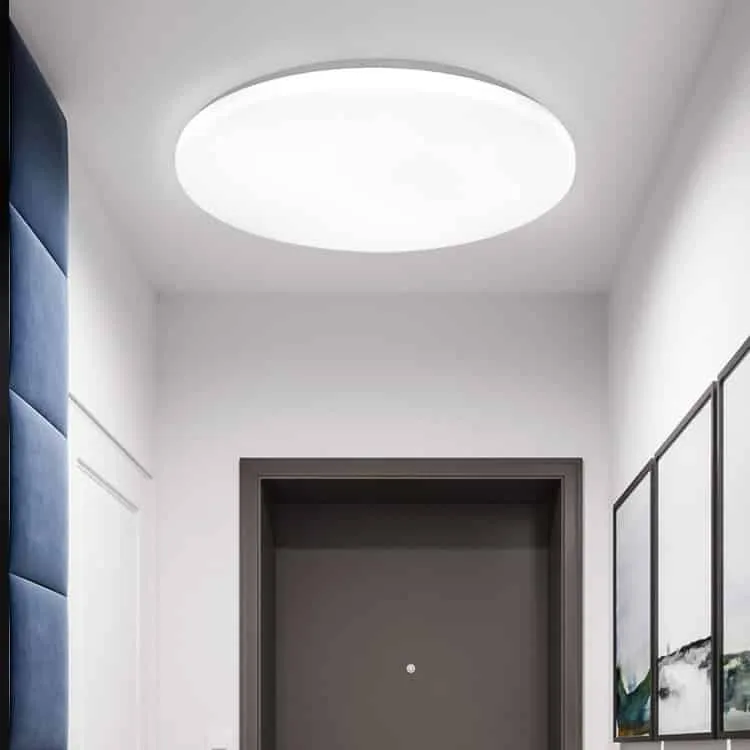

GR-CD-A Series is our ultra-thin flush mount ceiling lights, mainly do surface ceiling installation. Slim design with only 60mm thickness, very modern and stylish. Adopting a large-angle light-emitting lens solution, the entire light-emitting surface has no black spots or shadows, and the light efficiency is very high and very uniform. Widely used for residential places such as living room, bedroom, kitchen room or commercial lighting.

Material & Finished

  • Heat sink (Bottom): Metal body, 3mm thickness, white painted.
  • Cover: Acrylic PC cover, light transmittance up to 90%, uniform light effect, no dark spots.
  • PCB with lens: High thermal conductivity aluminum substrate with SMD LED Chips with Lens cover.
  • Transformer: high quality constant current driver, free flicker, long life.
  • Light source: EPISTAR SMD LED Chips as standard. The Osram SMD available.
  • Cables & wiring: cable with DC connector as standard, fast connection.

Installation & Mounting

Suitable for installation directly to walls or ceilings, indoors or outdoors. Loop-in, loop-out is possible for cables up to 2.5mm².

Electrical & Optical

  • Working voltage:100-265VAC 50/60Hz/ 220-240VAC 50/60Hz
  • Power Factor:>0.9
  • CRI(Ra):>80
  • Lumens:80lm-100lm/W output.
  • SDCM:<5
  • Efficiency:>83%
  • IP Rated: IP22 indoor use

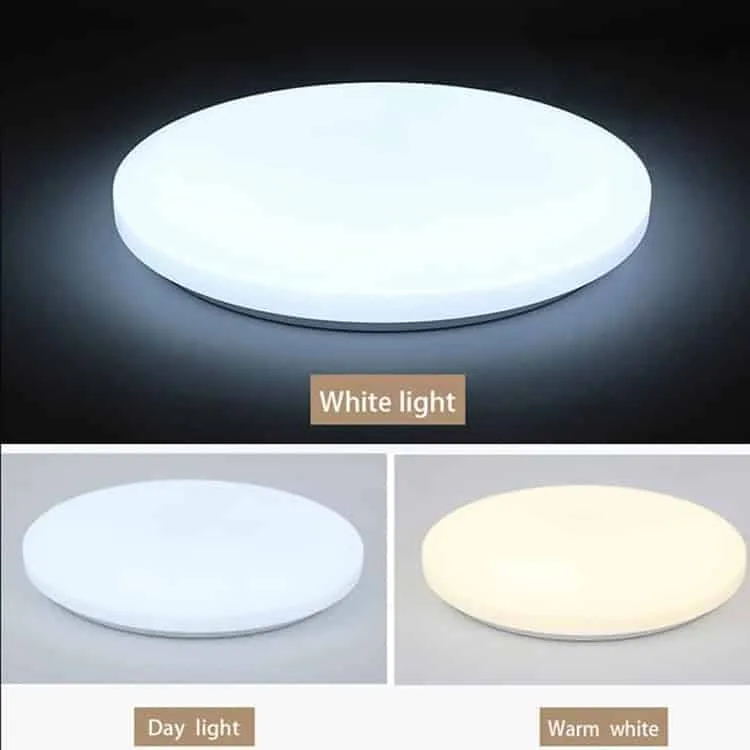

  • Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
  • Beam angle: 120° Wide distribution
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3/5Years.

Additional Options

  • AC/DC12V/DC24V/DC36V/DC48V/60V low voltage

GRNLED offers the best price in the market.

Models and Details

Order modelWattageDimensionLumensColor temperatureIP GradeCRIBeam angleInput voltageDATASHEET
GR-CD-12WA12W±5%Ø275×H60mm1000-1200lm3000K;4000K;6500KIP22>80120°100-265VAC 50/60HzDownload
GR-CD-18WA18W±5%Ø335×H60mm1600-1800lm3000K;4000K;6500KIP22>80120°100-265VAC  50/60HzDownload
GR-CD-24WA24W±5%Ø385×H60mm2000-2400mm3000K;4000K;6500KIP22>80120°100-265VAC 50/60HzDownload
GR-CD-32WA32W±5%Ø485×H60mm2800-3200lm3000K;4000K;6500KIP22>80120°100-265VAC 50/60HzDownload
