LEADING LED BATTEN LIGHTS MANUFACTURER IN CHINA

GRNLED (Greenriy Technology Co., Ltd) is the best LED batten light manufacturer, factory, supplier in China. Provides a full range of high-quality indoor, outdoor, industrial, commercial and residential led batten fitting for different consumer groups and different markets.

We fully implement ISO9001: 2015 International quality management system, and adopt advanced testing equipment and strict quality control methods to ensure that high-quality products are provided to customers. Our LED batten lights have passed CE, RoHS and other certifications, and are exported to more than 30 countries and regions around the world. We also are engaged in OEM production and processing for many well-known domestic and foreign brands.

TypeLED Batten Lights
Body MaterialPC or Aluminum
Length1ft (300mm), 2ft (600mm), 3ft (900mm), 4ft (1200mm), 5ft (1500mm), 8ft (2400mm), and more.
Power(Wattage)9W,10W, 12W,14W,18W, 20W, 24W, 36W, 40W, 50W, 60W,72W, Customizable.
Lumens100 – 110lm/W, the higher lumens output can be customized
VoltageAC110V, AC220V-230V, AC/DC12V, 24V, 36V, 48V, 60V, Customizable
IP GradeIP20, IP44, IP65, IP66, IP67
ProtectionWaterproof, Dustproof, Tri-proof, Customizable.
Applicationgarage, Kitchen, Bathroom, Subway, Train Stations, Warehouses, Factories, Mines, Supermarkets, Hospitals, Tunnels, Laboratories.
Option/AttachmentEmergency backup kits, Sensor( motion sensor, PIR Sensor, or microwave sensor), reflector, diffuser, on off switch, connector with plug, dimmable(PWM / 0-10V/ DALI dimmable)
InstallationCeiling surface mounted installation / Suspension(hanging) installation
Color temperature3000K Warm white; 4000K-4500K Natural white, 5500-6500K Cool white (daylight)

Need a Customization service? Move to bottom, fill out the customization request form.

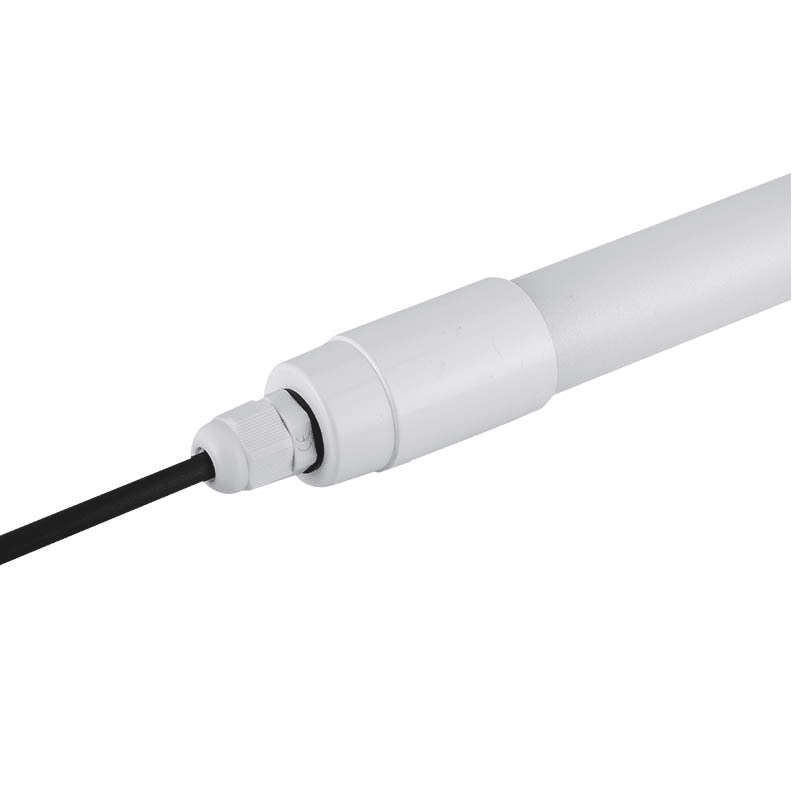

LED Tube Batten

  • Three types optional
  • T5: W23*H34mm
  • T8: W30mm*H38mm
  • T20: W65*H50mm
  • Integrates the LED tube into the fitting. Installation without extra stand.
  • Linkable in series
  • Available to be with on off switch, PIR Sensor, Microwave sensor, reflector.
  • UK, Australia, European Plug available

LED Batten Fitting

  • T8 LED Tube light with fixture
  • Single/twin optional
  • Reflector available, increasing brightness and anti-glare effects.
  • Easier to do replacement when the led tube lights are not working.
  • Motion sensor, emergency kits available.

Plastic

  • Whole plastic body for batten lights, Anti-UV.
  • IP65 Waterproof
  • Most competitive in price for strict budgets projects.
  • High lumens output without dark spots.
  • DC12Volt, 24Volt,36Volt,48Volt available.

Aluminum

  • Pure aluminum as body, the best heat performance.
  • Higher protection grade, IP65 IP66 IP67 and IK07,IK08
  • Anti-corrosion, anti-rust and anti-aging
  • Emergency kits, Microwave sensor, dimmable available.
  • Surface mounted, hanging installation optional.

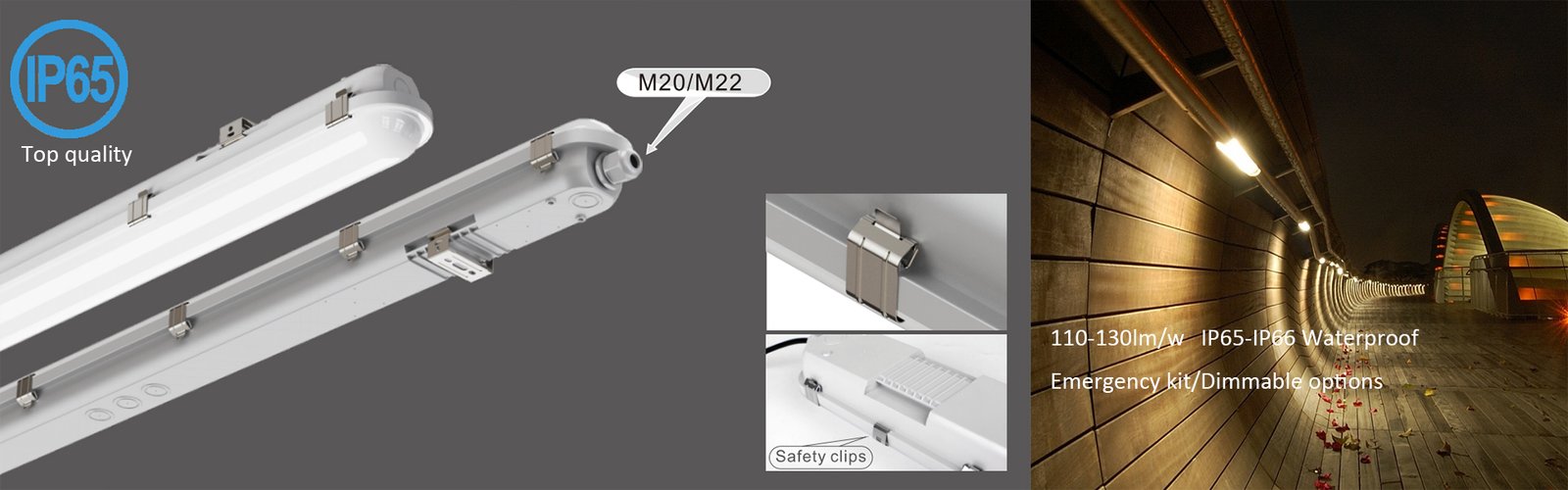

Tri-proof

  • Explosion-proof, corrosion-proof and waterproof, suitable for outdoor use.
  • IP65 IK07 or higher.
  • SMD type, or with T8 LED Tube (single or twin led tube) optional.
  • Emergency kits, dimmable available
  • Stainless steel mounting clips.
  • Surface, suspension installation.
  • 6ft (1800mm), 8ft (2400mm) can be customized.

Dustproof Batten

  • IP44 IP54, dust-proof, moisture-proof.
  • Slim design, its thickness less than 30mm.
  • Cheaper price, mainly for indoor projects such as bathroom, kitchen, workshops.

2ft, 4ft, 5ft

  • They are very popular length, especially 4ft
  • Stocks available for these lengths, fastest delivery time
  • Best solution to replace fluorescent lamp fixtures

1ft, 3ft,6ft, 8ft or more

  • These sizes are not often used.
  • 1ft 3ft generally used for cabinets, freezers
  • 6ft 8ft is long linear batten, only for wide spaces like supermarkets, warehouses.

Colour temperature

  • 3000K: Warm white. Which looks yellow, makes people feel warm and relaxing. It is suitable for installation in bedrooms, restaurants, and guest rooms.
  • 4000-4500K: Natural white. Which is the closest to sunlight. This color temperature helps people keep their heads clear, concentrate, and improve work efficiency. Suitable for use in offices, classrooms, hospitals etc.
  • 5500-6500K: Cold white. Which is a little bluish, it makes people feel deserted, and the illuminance is the highest. Suitable for processing workshops and places requiring high illumination.

Other optional Attachments

We only list commonly used attachments, if you have special needs, please contact us.

Dimmable

  • PWM, 0/1-10V, DALI dimmable optional
  • Free flicker during dimming

Sensor

  • Motion sensor, PIR Sensor, Microwave sensor optional
  • Sensor distance 10-14meter
  • 100% power when there is any motion or somebody, then only 30% power if no any motion.

Emergency Kit

  • Li-battery backup, stable quality.
  • Duration 1 hour, 2 hours, 3 hours optional

Have a Special Requirement?

Generally, we have common LED products and raw materials in stock. For your special demand, we offer you our customization service. We accept OEM/ODM. We could print your Logo or brand name on light body and color boxes. For an accurate quotation, you need to tell us the following information:

Specification

Please tell us requirements for length; IP Grade; and if need to add extra function such as dimmable, emergency backup, or motion sensor etc.

Quantity

No MOQ limit. But for the Max quantities, it will help you get the cheaper price. More quantity ordered, the lower price you could get.

Warranty periods

Mostly, our guarantee periods for our LED lights is 2 years, 3 Years or 5 Years. Different guarantee periods will be with different solutions in raw materials.

Application

Tell us your application or detail information for your projects. We can offer you the best choice, meanwhile, our engineers can give you more suggestions under your budget.

What we can offer you…

Best Quality

We have rich experience in the manufacture, design and application of LED lights, and served more than 210 customers from worldwide.

Competitive Price

we have an absolute advantage in the cost of raw materials. Under the same quality, our price is generally 10%-30% lower than the market.

Testing Service

We can do IES Testing, and provide IES files, which is key to do DIALux for projects.

After-sale

We provide 3-5 years guarantees policy. And all cost by us will be on our account.

Shipping

We have best shipping forwarder, available to do Shipping by Air express, sea, and even door to door service.

Our Certificates

As a professional manufacturer for LED lights, our factory have passed latest ISO9001:2015, CE, RoHS, LVD, EMC certificates.

Frequently Asked Questions

LED batten light is a batten shape luminaire, generally, it is linear type, some people also called it linear lights or led tri-proof lighting. From the structure point of view, generally, some PCBs are placed in a base and then a PC material cover is assembled. Usually, they are surface mounted onto the ceiling, some styles can also be pendant mounted. They have a wide range of categories, including waterproof batten light and dust-proof led light batten. Most of the lengths are 2foot, 4foot, and 5foot. The 4foot led batten is the most popular in markets.

Generally, it is not dimmable. But it is available to do dimmable solutions for it, Triac dimmable,0-10V dimmable, DALI dimmable optional.

Our led batten has the following feature:
1.Strong design: waterproof, dustproof, and anticorrosive IP65, impact Ik07. It can be used in a humid and complex environment.2.Light effect of the product. Using Samsung SMD chips, the light efficiency reaches 100 LM / W, which can save more than 60% energy than the traditional tri-proof fixture.A led batten 40W can do replacement of traditional tri-proof light 2x36W at least

3.Reliable quality. 30000 hrs aging test. The life span is more than 10 years

4.Convenient installation: support surface installation and suspension installation

5.The cover is  PC stripe diffusion or frosted, Anti-glare, with high light transmittance, V0 fire resistance, UV resistance, and no radiation.

Just switch off all before you change the lights. Then take down the led tube lights directly, then install the new one.

Just check where you will install these batten light fixtures before you choose them. You should choose IP65 led batten if they will be installed in close moisture environments. Maybe you should choose T5 or T8 LED batten if they will be only installed in a residential house because their cost is the cheapest among other types of batten lights.

There are mainly following types for led batten light:

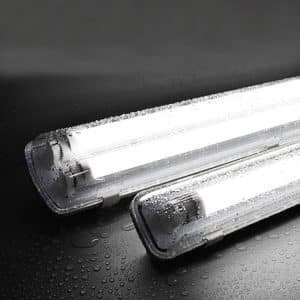

  • IP65 LED Tri-proof batten lights;
  • T5/T8 LED Tube batten lights;
  • Slim dust-proof batten light fixtures.

What is more, sometimes, the linear lighting is also called batten lights.

Generally, for 4ft led batten, it is 18W or 36Watt.the lumens is about 1800-2000lm, or 3600-3800lm.

2ft 3ft 4ft 5ft,these length is standard.But it is ok to customize other different length such as 1ft 6ft or 8ft.
