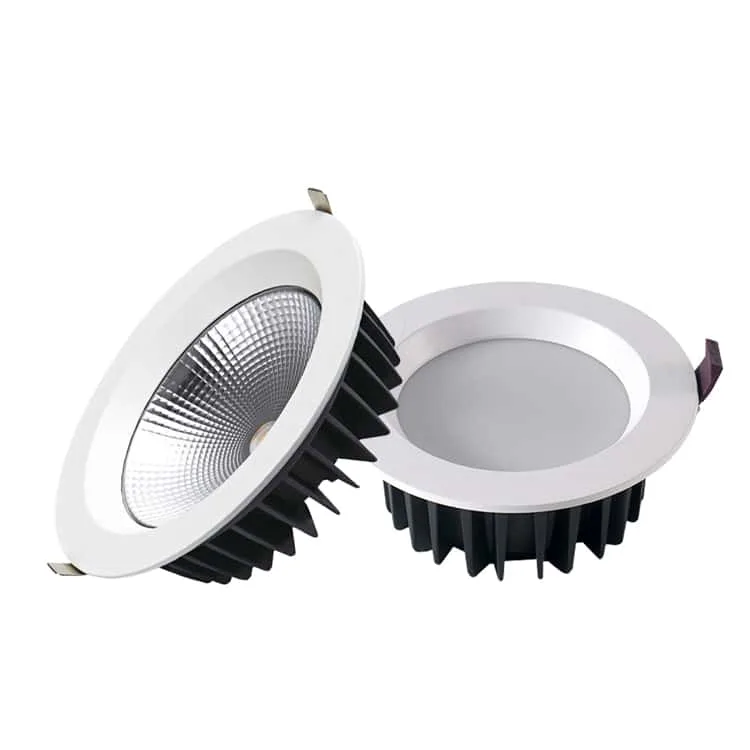

Recessed Led Downlights 70W-200W | Model: GR-DL-T
This is a specially designed large downlight for recessed installation, available in power wattages of 70W, 80W, 100W, 120W, 150W, 180W, and 200W, and sizes of 6 inches, 8 inches, 10 inches, and 14 inches. It offers beam angle options of 60°, 90°, and 120°. The high power LED downlight features a pure aluminum cold-forged integrated heat sink with a thermal conductivity of 226W/m·K, ensuring efficient heat dissipation to meet the high standard requirements of engineering luminaires.
GRNLED focuses on project lighting and offers the best price in the market.
Order Model | Wattage | Diameter | Inch | Lumens | Color temperature | Light source | Ra | Specification |
GR-DL-70WT | 70W±5% | Ø195mm or 235mm | 6-inch or 8 inch | 7000-7700lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-80WT | 80W±5% | Ø195mm or 235mm | 6-inch or 8 inch | 8000-8800lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-100WT | 100W±5% | Ø195mm or 235mm or 270mm | 6 inch or 8 inch or 10inch | 10000-1100lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-120WT | 120W±5% | Ø235mm or 270mm | 8-inch or 10inch | 12000-13000lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-150WT | 150W±5% | Ø270mm or 340mm | 8-inch or 10inch | 15000-16500lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-180WT | 180W±5% | Ø270mm or 340mm | 10inch | 18000-20000lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
GR-DL-200WT | 200W±5% | Ø270mm or 340mm | 10inch | 20000-22000lm | 3000K/4000K/6500K | Lumileds | >80 | Download |
Materials & Finished
- Housing: Aluminum heat sink
- Diffuser: PC cover, Anti-UV. High light transmittance reaches more than 90%.
- Reflector: Silver reflector.
- Spring Clips: Iron body, strongest strength. Easy to do the recessed ceiling installation
Control Gear & Led driver
- Led driver brand: Isolated driver as standard; Osram/Philips/Meanwell brand as optional.
- Input voltage: 110/220-240VAC 50/60Hz.
- Power Factor:>0.95
- Efficiency:>89%
- IP Grade: IP65
- THD:<10%
- Surge protection: 4-6KV
- Working temp: -25℃/+55℃
- Certificate: TUV CE RoHS ENEC CB
- Warranty: 3/5 years.
Optical
- Light source brand: Lumileds
- Chips lumens:110-130lm/W
- CRI: >80
- UGR:<19
- Color temperature: 2700-3000K, 4000-4500K, 5700-6500K
- SDCM:<5
- Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80)
- Emergency battery packs. ( Emergency 1-2hours with 7-20Watt)
- 0-10V dimmable / DALI dimmable downlights
- Industrial downlights for warehouses, railway stations, airports’ hall
- Commercial downlights for shopping malls, hotel halls, etc.
