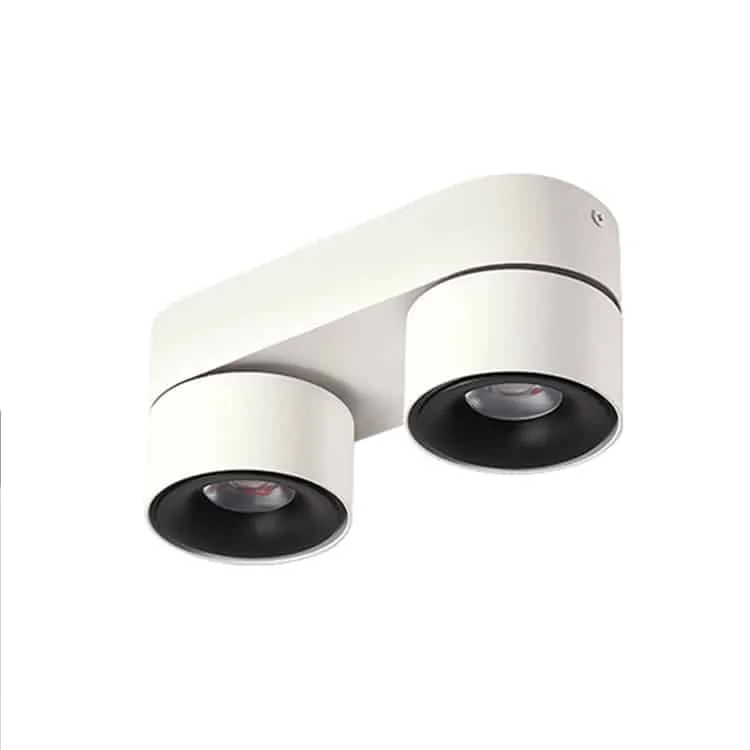

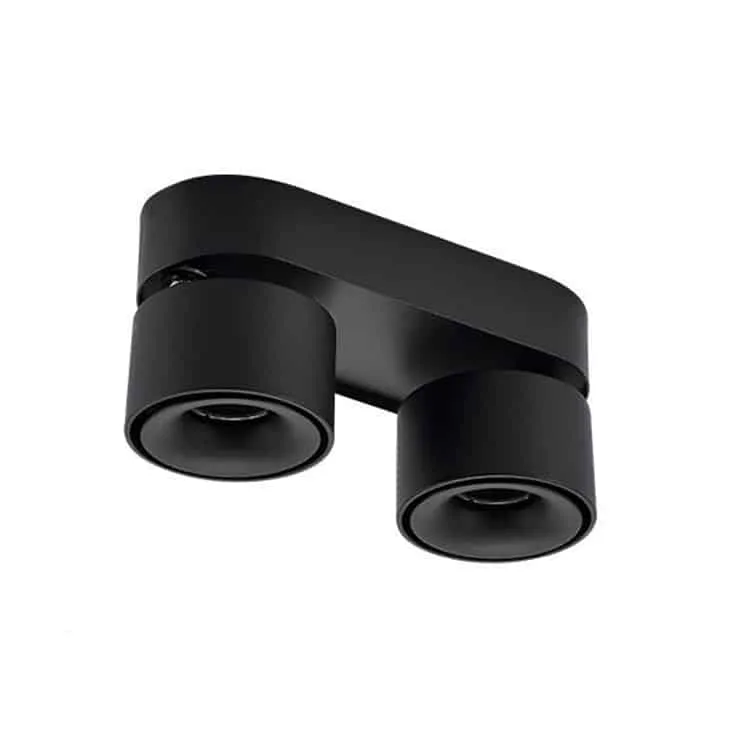

Adjustable Surface Twin Downlights

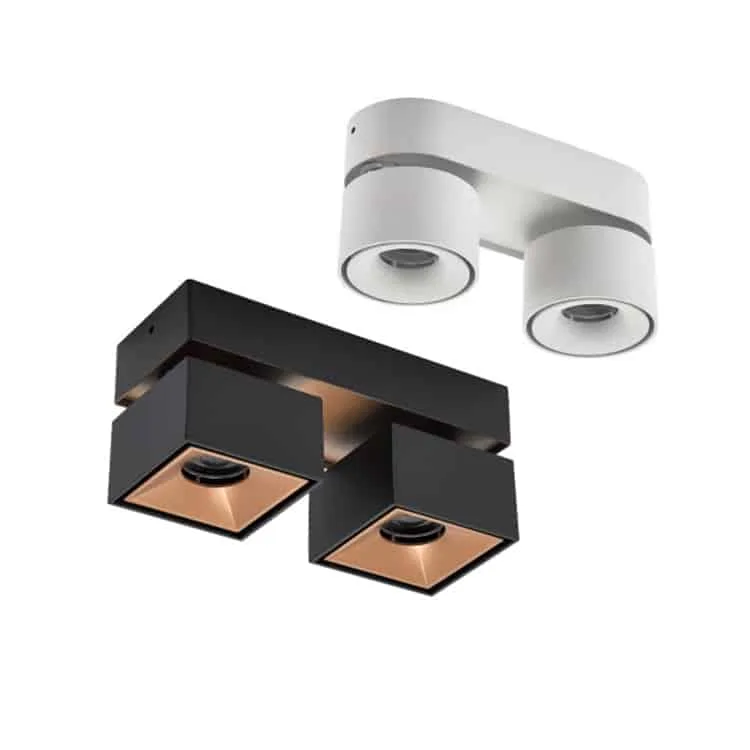

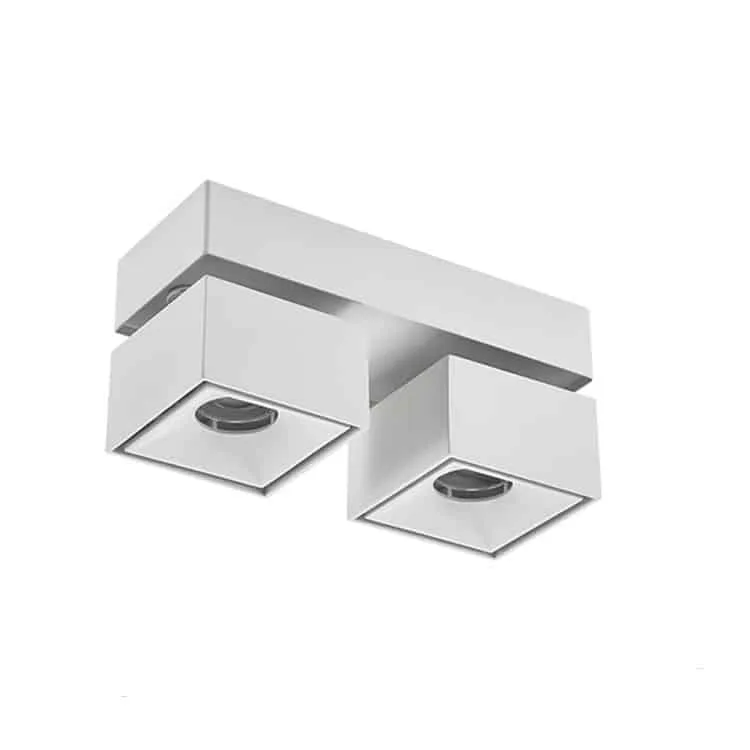

This is a surface-mounted twin gimbal downlight, each spotlight allowing for a complete 350° rotation and 90° up-down adjustment. It is very stylish with black, white, silver, and gold reflector, available in round and square shapes. This design enables a wide range of lighting adjustments for focused illumination and makes it suitable for spaces without the capacity for recessed fixtures.

  • Ref Model: GR-DL-G-04 Series
  • Wattage: 2x12W
  • Free flicker: Yes
  • UGR:<17
  • IK Rate: IK07
  • IP Rate: IP22 indoor use
  • Installation: Surface mounted.
  • Certificates: CE RoHS
  • Warranty: 3/5 years
  • Origin: Made in China
  • Lead time: 3-15days
  • MOQ: 50PCS/model

GRNLED offers the best price in the market.


Order modelWattageDimensionShapeLumensColor temperatureBeam angleUGRCRIInput voltageDATASHEET
GR-DL-2x12WG-04 (round)24W±5%L220*W85*H90mmRound230-2500lm3000K,400K,6500K15°/24°/38°< 17>90110/220-240VAC 50/60HzDownload
GR-DL-2x12WG-04 (square)24W±5%L220*w85*H90mmSquare2300-2500lm3000K,400K,6500K15°/24°/38°< 17>90110/220-240VAC 50/60HzDownload

Body & Finished

  • Heat sink: die-cast aluminum body, matt white/black optional
  • Reflector: Polycarbonate reflectors, chrome, gold, matt white, and black colors option, low glare rate of less than 17.

Control Gear /Led driver

  • Power supply brand: LiFud/Eagleries as standard, the other Osram/Philips or other isolated drivers optional
  • Input voltage:110/220-240VAC
  • Frequency: 50/60Hz
  • THD:<15%
  • Efficiency:>87%
  • Power factor: >0.5 as standard; >0.9 optional with higher cost
  • Certificates: TUV CE EMC ENEC
  • Warranty: 5 Years

Optical

  • Brand: Bridgelux COB as standard, Osram/CREE COB optional
  • SDCM:<5
  • Lumens:120-140lm/W
  • LM80
  • Color temperature: 2700-2800K yellow, 3000-3200K warm white, 4000-4500k daylight, 6000-6500K cold white.
  • Zigbee smart controller for Phone APP, Google home, AMAZON Alexa.
  • PWM/0-10V/DALI Dimmable
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V

Serving both as a general light source and an accent spotlight, this double downlight is versatile. It suits a range of environments, including residential areas, retail spaces, galleries, and commercial offices.
