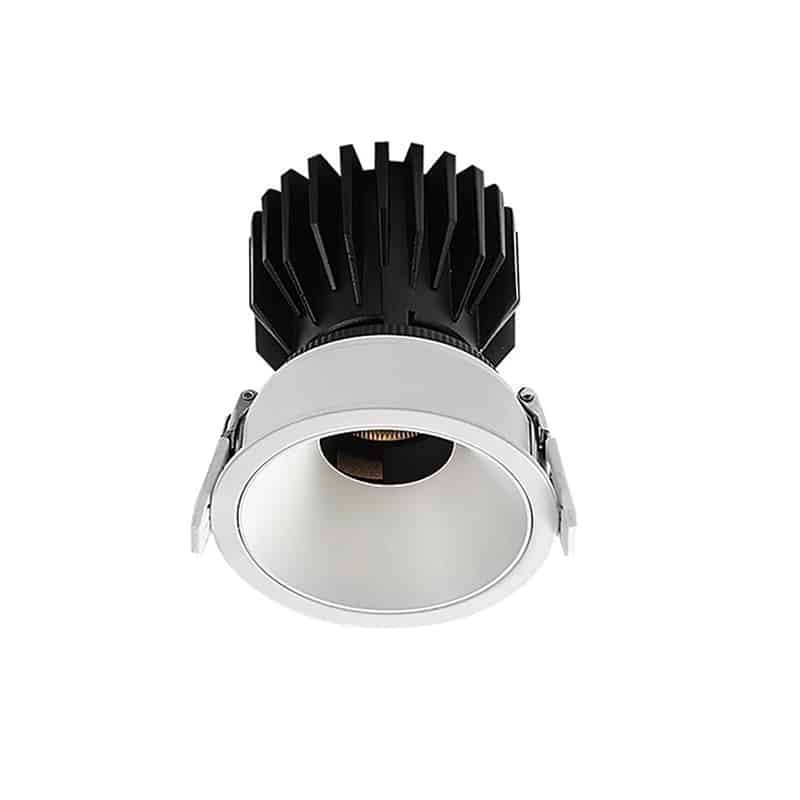

Pull-Out Tiltable LED Downlight | Model: GR-DLG-F

This pull out downlight boasts a 360° horizontal rotation and a 90° vertical adjustment for directional lighting. Its innovative design allows you to tilt the light direction to suit your preferences. The lamp body can be pulled out for localized lighting or hidden in the housing. When fully hidden, it functions like recessed square spotlights. When pulled out, it works as an adjustable spotlight. This retractable downlight is available in round and rectangular shapes to fit various settings. Widely used for both commercial and home lighting projects.

  • Order model: GR-DLG-F Series
  • Shape: Square or round
  • Control way: ON/OFF, dimmable options if needed
  • Free flicker: Yes
  • Working life:>50000Hrs
  • Warranty: 3/5 years
  • Working temp: -25/+50℃
  • Storage temp: -30/+55 ℃
  • MOQ: 30pcs/model
  • Payment way: Paypal, Western Union, Bank transfer.
  • Lead time: 5-15days
  • Certificates: CE RoHS

GRNLED offers the best price in the market.

Order modelWattageDimensionCut outLumensColor temperatureLight SourceCRISDCMInput voltageDATASHEET
GR-DLG-7WF7W±5%Φ90*H80mmΦ80mm630-700lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-15WF15W±5%Φ115*H105mmΦ100mm1300-1500lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-20WF20W±5%Φ135*H125mmΦ125mm1700-2000mm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-25WF25W±5%Φ160*H125mmΦ145mm2300-2600lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-7WF*214W±5%L170*W90mmL155*W75mm1150-1400lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-15WF*230W±5%L210*W115mmL190*W95mm2650-3000lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload
GR-DLG-20WF*240W±5%L250*W140mmL230*W120mm3500-4000lm3000K; 4000K;6500KCOB>90 <5110V/220-240VAC 50/60HzDownload
GR-DLG-25WF*250W±5%L303*W160mmL285*W145mm4800-5500lm3000K; 4000K;6500KCOB>90<5110V/220-240VAC 50/60HzDownload

Body & Finished

  • Trim: Die-cast aluminum,
  • Heat box: Plastic
  • Lens: Polycarbonate

Control Gear/LED Driver

  • brand: Eagleries as standard; LiFud/Euchips/Osram/Philips/Letch/Sunricher optional.
  • Input voltage: 110/220-240VAC 50/60Hz
  • Output Voltage: 36VDC
  • Power factor:>0.5 as standard; >0.9 optional
  • Surge protection:1KV
  • THD:<15%
  • Efficiency:>88%
  • IP Rating: IP22
  • Certificates: TUV CE RoHS ENEC CB
  • Warranty: 5Years

Optical

  • Light source brand: Bridgelux as standard, Osram available
  • Color rendering index:>90
  • Lumens:100lm-120lm/W output.
  • SDCM:<5
  • Beam angle: 24°,36° optional.
  • Lifetime:>50000Hrs
  • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
  • One-head, double-heads, triple-heads
  • Round and rectangular shape
  • Dimmable ( Triac /0-10V/DALI Dimmable)
  • Emergency battery backup (30% power with 1hours 2hours 3hours last)

This retractable downlight is designed for recessed lighting. So the installation is simple.

  • Shopping Mall
  • Hotels
  • Offices
  • Museums
  • Exhibition halls
  • Living room/dining room
