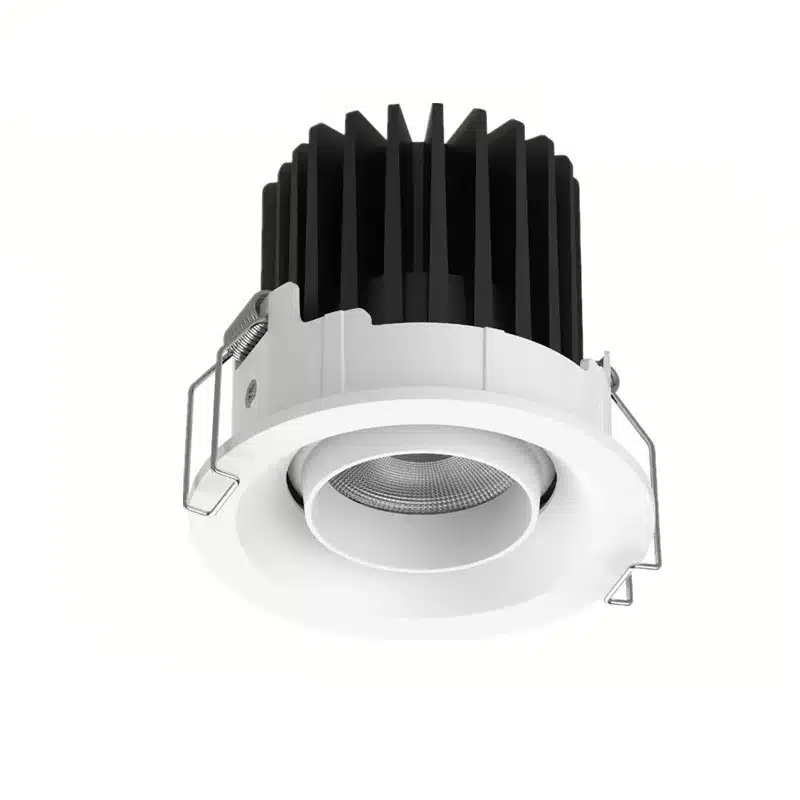

Gimbal LED Downlight 3/4/5/6 INCH

The standout feature of Gimbal LED Downlight is its adjustable head. This flexibility offers 360° horizontal rotation and can be adjusted up to 70° vertically. You can either hide the lights within the outer ring for vertical directional lighting or extend them for wall-washing spotlights. With the ability to direct light precisely make it a popular choice for a wide range of lighting applications in both residential and commercial settings. This downlight is availabe with 2.5/3/4/5/6 inches in size and 7W-30W in wattage.

  • Order Model: GR-DL-G-02 Series
  • Color: Matt white/ black
  • Installation: recessed mounted
  • Wattage: 10W 15W 20W 25W 30W
  • Beam angle: 24°/15°/36°
  • Rotation: 360° rotation
  • Control way: ON/OFF as standard, Dimmable optional
  • Free flicker: Yes
  • Working life: >50000Hrs
  • Manufacturer warranty: 3/5 years
  • Origin: Made in China
  • Lead time: 5-15days
  • MOQ: 50pcs/model

GRNLED offers the best price in the market.


Order modelWattageInchDimensionCut outLumensColor temperatureCRIInput voltageDATASHEET
GR-DL-10WG-0210W±5%3inchΦ90*H100mmΦ70-75mm930-1100lm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload
GR-DL-15WG-0215W±5%4inchØ110*H135mmΦ90-95mm1300-1600lm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload
GR-DL-20WG-0220W±5%5inchØ130*H135mmΦ110-120mm1800-2100mm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload
GR-DL-25WG-0225W±5%5inchØ130*H135mmΦ110-120mm1350-2600lm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload
GR-DL-30WG–230W±5%6inchØ165*H170mmΦ145mm2800-3200lm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload
GR-DL-35WG-0235W±5%6 inchØ165*H170mmΦ145mm3300-3600lm3000K; 4000K; 6500K>90100/220-240VAC 50/60HzDownload

Body & Finished

  • Radiator (housing): aluminum body, White/black powdered finished options.
  • Lens/Diffuser: Polycarbonate lens. The good condensing effect, uniform light.
  • Led driver: Isolated driver, stable quality with plastic box, it is working for 16 hours each day for commercial area.
  • Light source: Bridgelux COB as standard, CREE/CITIZEN available if needed.
  • Spring Clips: Metal body, strongest strength. Easy to do the recessed installation
  • Cables & wiring: UL approval #22AWG electrical cables with DC Female or male connectors, very easy to be wiring. It is ok to be an extra junction box if needed.

Electrical & Optical

  • Working voltage:100/220-265VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.6 or >0.9
  • CRI(Ra):>90
  • Lumens:90lm-100lm/W output.
  • SDCM:<5
  • Efficiency:>88%
  • IP Rating: IP22 Indoor use
  • IK Rating: IK07
  • Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
  • Beam angle: 24° Narrow distribution
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Zigbee smart controller for Phone APP, Google Home, and AMAZON Alexa.
  • Dimming (Triac /0-10V/DALI Dimmable)
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48W
  • Emergency (30% power with 1hours 2hours 3hours last)

This gimble downlight can be installed directly from the box into a wide range of ceiling types including thicknesses from 5mm-40mm. please refer to the hole size of the specific luminaire and make a round hole in the ceiling. Then use clips to fix it.

residential areas like kitchens, living rooms, bedrooms, and bathrooms, as well as commercial spaces like retail stores, galleries, or offices for accent lighting, task lighting, or general illumination

Q: What is a gimbal in lighting?

A: Gimbal means LED lamp structure can adjust the irradiation angle horizontally and vertically, and is often matched with adjustable or eyeball trim. This gimble design can be used as basic lighting, or as a wall washer downlight for focus lighting.

Q: When should I use gimbal recessed led downlight?

A: It is very suitable for residential use in bedrooms, kitchens, living rooms, and dining rooms, or commercial spaces to be clothing stores lighting, and hotels lighting, offices lighting.
