Top Quality LED Panel Light Manufacturer

GRNLED is the best led panel light factory, manufacturer and supplier, CE RoHS approval for 8years in china. Factory passes ISO9001:2015 quality management system.

We have spent a lot of energy on the production and research and development of panel lights: complete product categories (edge-lit and back-lit panel light, various sizes (small panel lights such as 300x300mm, hot-selling size 600*600mm and 1200x300mm, large panel light such as 1200x600mm). Flexible installation methods (embedded installation, suspension installation, ceiling surface-mounted installation, buckle clip installation). Multiple product functions are optional (PWM / 0-10V / DALI dimmable, Emergency backup). Under the premise of high quality, all price is very competitive. We accept both OEM, ODM, and SKD orders.

LED PANEL LIGHT

BEST FLAT LED PANEL LIGHT IN CHINA


  • Back-lit Panel LED light and Edge-lit ultra slim led panel light options.
  • High lumens 100lm-120lm/W output.
  • 300*300mm, 600*300mm(2ft*1ft), 600*600mm(2ft*2ft), 1200*300mm, 1200*600mm(2ft*4ft).
  • Recessed, suspended installation, surface mounted installation options

CUSTOMIZED SERVICE


  • Triac dimmable/0-10V/DALI Dimmable and Emergency backup kits.
  • Color changing 3CCT or two colors changing
  • Waterproof IP65 panel light
  • 1200*200mm, 1200*150mm, 1200*1000mm can be customized.
  • 2.4G remote controller

Edgelit LED Panel Light Manufacturer

As the best china edgelit led panel light manufacturer, factory,supplier since 2014, We have mature production technology and stable raw material suppliers. Our use of anti-UV yellowing silk-printed light guide plate and PMMA laser light guide plate can well avoid the main quality problem of side-emitting panel lights on the market – yellow changing, and at the same time, with high-quality constant current drive, to ensure that our side The life of the luminous panel light is 50000Hrs. Our panel light has obtained CE RoHS quality certification and meets most of the engineering requirements.


Backlit LED Panel Light Manufacturer

We are a professional backlit flat led ceiling panel light manufacturer, supplier, and factory, having rich experiences in production, exporting. The Backlit led light panel is the main trend in markets for the cost. It is much cheaper than edge-lit panel lights, thanks to the lack of LGP. In this case, The biggest advantage of the backlight panel light is that the lamp will not turn yellow, and the price is low. The backlit panel light mainly consists of frame, iron bottom, PS diffuser plates, and Aluminum strip(PCB) and lens. The light source (led chips) is posted on the bottom instead of the edge sides. Our back lit panel lights can be 100-120lm/W outputs, CE RoHS approval, 2/3/5years warranty options. Recessed, Surface mounted, suspended installation available by different accessories.


China LED Panel Lights manufacturer,factory and supplier

We can provide IES Files to do Dialux for commercial projects

LED PANEL LIGHT DETAILS

LED panel lights are mainly divided into two types, slim side-emitting, and back-emitting, and their components are different. The structure is as follows

Edge lit panel light
Edgelit Panel Lights component
Back lit panel light
Backlit Panel light component
ModelDimension(mm)Optional dimension(mm) Shape & category
GR-PL3030 295*295 (1ft*1ft) 300*300small square panel
GR-PL6030 595*295 (2ft*1ft) 600*300Rectangle
GR-PL6060 595*595 (2ft*2ft) 600*600, 603*603, 620*620 Standard square
GR-PL12030 1195*295 (4ft*2ft) 1200*300Long light panel
GR-PL12015 1195*145 (4ft*0.5ft) 1200*150Long ceiling
GR-PL12060 1195*595 (4ft*2ft) 1200*600 Large panel light
The other dimension such as 600*150mm, 1200*200mm, 1200*1000mm, 1200*1200mm, 1200*800mm can be customized
Materials Aluminum frame, white/silver/black finished+ Anti-UV LGP without any yellowing issues
Input voltage 110V-220VAC 50/60Hz as standard, but the low voltage like DC12V 24V 36V 48V 60V is available
LED Chips Epistar/Bridgelux/Philips/OSRAM/Samsung SMD LED Chips
Lumens output 90-100lm/W, 100-120lm/W, 120-140lm/W solution optoins
CRI(RA) >80, or >90
SDCM<5 or <3
Power factor>0.9
Color temperature 2700-3000K warm white, 4000-4500K daylight, 5000-5500k natural white, 6000-6500k cold white
THD <20% as standard, but <15% or <10% available
Surge protection 1KV-2KV, 4KV available
Working life >50000Hrs. lifetime up to 10years
Working temperature -25℃/+55℃
Storage temperature -30℃/+60℃
Manufacturer warranty 2/3/5/7/10Years options

Totally 4 different installation ways for led ceiling panel light as follows: (You can check the step drawing or download the guide PDF file)

led panel light recessed installation drawing
suspended installation for panel light
surface mounted drawing for panel light
Clips installation for light panel

Used for home lighting, commercial lighting like offices and hotel, and industrial lighting

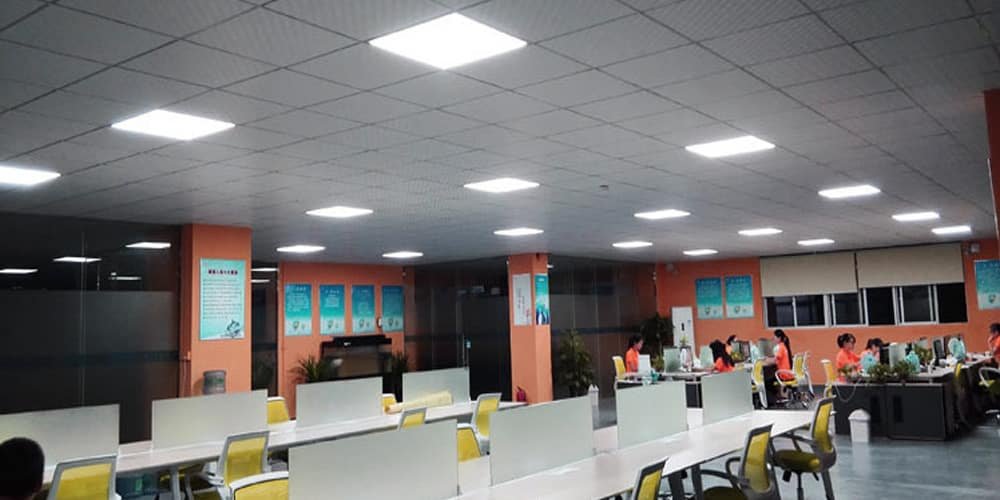

  • Offices
  • Supermarkets
  • Hospitals
  • Subway Stations
  • Classrooms
  • Shopping Malls
  • Kitchen
  • Bathroom
  • Meeting rooms
  • Exhibition hall
  • Hotels
  • Restaurant
  • gymnasium

Frequently Asked Questions

LED panel edge lit vs direct-lit

TypeEdge-lit panel lightBacklit panel light
led Source Most of edge-lit panel lights is with SMD2835 0.2W/PCS Back lit light panel generally with SMD2835 1.5W/pcs
Light theory Refraction through the light guide Lighting through lens directly
Thickness 8mm 9mm 10mm 12mm option 30mm,45mm,55mm thickness optional
Material Including frame+PS Diffuser plate+PMMA LGP+reflector paper+back cover Only frame+PS diffuser plate+baseplate. NO LGP
Lumens 80-140lm/W 80-120lm/W
SKDHardEasy
CostHigherCompetitive
Main complaint Yellowing change for bad LGP easy to drop off for lens
difference between edgelit and backlit panel light

It is important for everyone to know the materials for led panel light, which are basic requirements to know how to choose a high-quality product.

Frame(shell).The original led panel light solutions are only with 6063 aluminum frame, It is usually anodized, the surface is very flat, the conventional color is silver, usually many customers on the market will need a white frame. The black frame can also be customized, but often the price will be more expensive than the other two colors. and the frame thickness is 8-12mm.

Light Guide plate and diffuser plate. The quality of the light guide plate is one of the most important factors to determine the quality of LED flat panel light. The use of a high-quality light guide plate can make the finished light panel emitting more evenly. There will be no dark spots, water ripples, etc. The light guide plate on the market is mainly divided into three categories, laser dot light guide plate, ink printing light guide plate, structure light guide plate. The difference between price and quality is the laser dot light guide plate > ink light guide plate > structure light guide plate. and the thickness of the light guide plate is 1.0mm,1.2mm,1.5mm,2.0mm,3.0mm. The diffuser plate generally is PS materials, the thickness is 1.0mm 1.2mm,1.5mm optional thicker, the more expensive the price, the better the effect. Under the condition of budget permission, the light guide plate with laser point shall be selected as far as possible. On the market prone to yellowing panel lights are generally used with the structure of the light guide plate. Our ultra-thin led panel lights never use a structure light guide plate. some special light Guide plates are Anti-glare, it is a key material to do Anti-glare led panel lights UGR<19.

LED chips on PCB.PCB is aluminum materials with a copper circuit. and the led chips generally are SMD2835, SMD4014, SMD5630. Most of the led ceiling light panel is with 2835SMD chips, and SMD5630 chips are popular if customers request to do higher lumens output. These led chips price is also much different from different manufacturers, We just use the high quality led chips from Epistar, Samsung Stable performance, good brightness, small light attenuation, and good color rendering index.

Led reflective paper, which is only used on the side light-emitting panel lamp, is used to reflect light and increase light efficiency.

Backplate. for slim led panel light, the backplate is a thin iron plate, it is also ok to do an aluminum plate for it if requested. for a backlit panel led light, the backplate and lamp body is integrated, generally, it is iron materials.

LED driver for a led office panel light. It is the key to the quality of led ceiling panel light. The quality issues for led lamps are led driver’s issues. There are many cheap led panel lights in markets, they are generally with Non-isolated driver, it is simple and easy to blinking or burn. We only use high quality&famous brand-led drivers for our led panel light like DONE, LiFud, Meanwell, GS, Boke, Eaglerise which are all up to real 50000Hrs lifetime and free flicker, it is very suitable for different commercial projects. We have used these brand driver for 5years, the fault rate is very low, about 0.3% within 5years.

There are mainly 4different installation types for led ceiling panel lighting as following

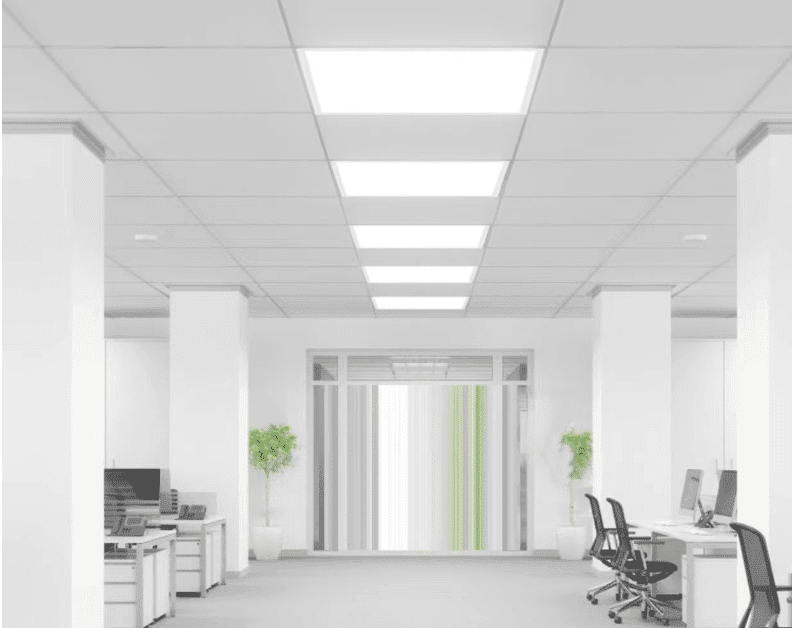

1.Recessed led panel lights

This installation method is often used in offices, shops, kitchens, and bathrooms, etc. It is also the most common installation method. First, remove a ceiling, put the LED panel light driver on the ceiling next to it, then connect the power cord, and then put it on Panel lights are sufficient, and the installation method is relatively simple.

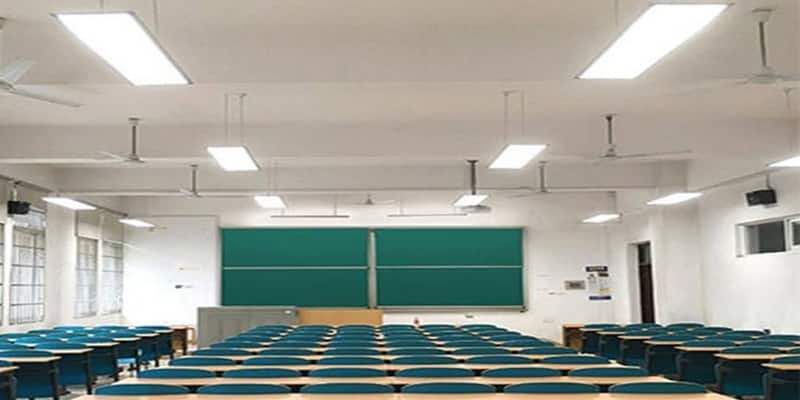

2.Suspension flat panel led light

You need to prepare a set of steel ropes firstly, Hang the lighting from the ceiling with steel ropes. First fix the 4 hanging wire bases on the lighting fixture on the roof, then tie the 4 hanging wires to the LED panel light, connect the light’s driving power cord, and pull the wire to adjust the height of the panel light. The installation method is more flexible

3.Surface mounted led panel light

Use screws to fix 3sides of the frame onto proof, Then connect the led driver, inserting the led light panels into frames, finally, screws the last frame.

4.Clip installation

Generally, this is clips led ceiling panel lights, it looks like a recessed led downlights. Then the installation way is the same.

There are full of different dimensions for ceiling panel lights in markets, someone is standard like 600x600mm, but someone is the non-standard size which generally can be customized. Different dimension is also with some power consumption option as following:

Small round led panel light. this type looks like slim led downlights, generally, from 2inch to 10inch, the power is 5W 7W 9W 12W 15W 18W 24W 30W.

Big Square led flat panel lights, this mainly includes 600x600mm which is 595*595mm in actual size, and to be with 40W, This is the most popular in markets. What is more, for some special markets, like Germany, there is a 620x620mm type instead of 600x600mm.

Rectangle led Panel lights.This type is with 1200x300mm 40W,1200x600mm 60W troffer light.Of course, The power consumptions generally can be customized according to customer’s requirement, for example, sometimes, led panel light 2×2 can be with 60Watt Max.

Like all LED lamps, the color temperature choice of panel lights also includes warm light, natural light, and cool white light. The use of lamps is closely related to our life and work. Different color temperatures often have different effects on us

♦. In places with low illumination requirements, low color temperature light makes people feel comfortable; high color temperature makes people feel cold; high illumination needs places, low color temperature light makes people feel stuffy; high color temperature makes people feel comfortable and happy.

♦. The workplace needs a high illuminance and high color temperature environment, and the resting place needs a low illuminance and low color temperature environment.

Like a thermal processing workshop, the use of cold light sources can make people feel cool, psychologically suggest and relieve irritability, thereby improving the safety and pass rate of production.

♦. People in different climates and different cultures have different preferences for light and color. Most people in tropical and subtropical climates prefer white light or daylight, while people in cold regions mostly like warm light sources with low color temperatures.

3000-3200K warm white is good for the living room. 4000-4500k natural white is better for offices,6000-6500K is suitable for workshops which make people awake
