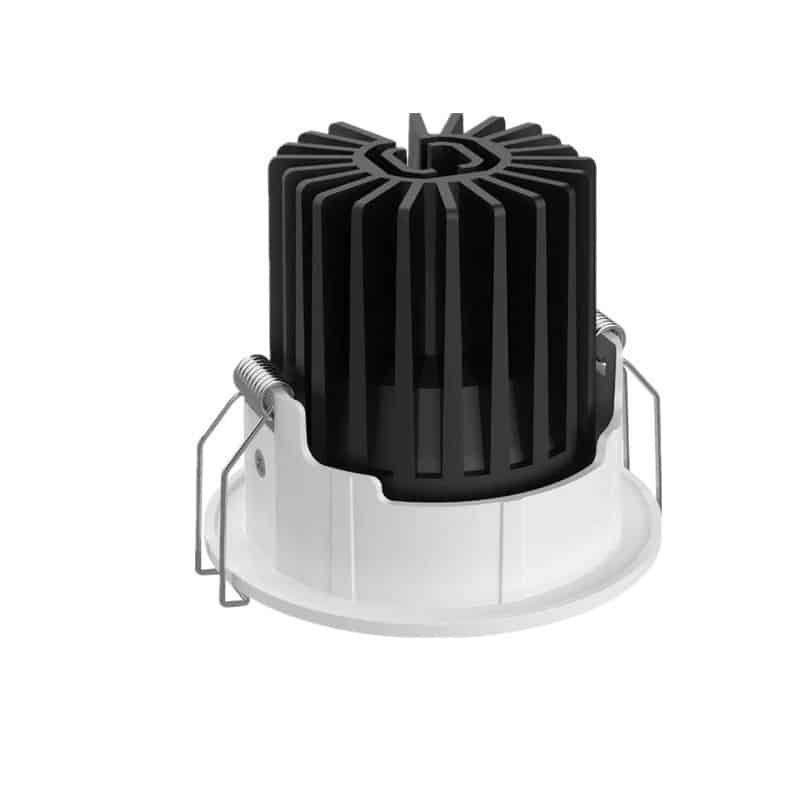

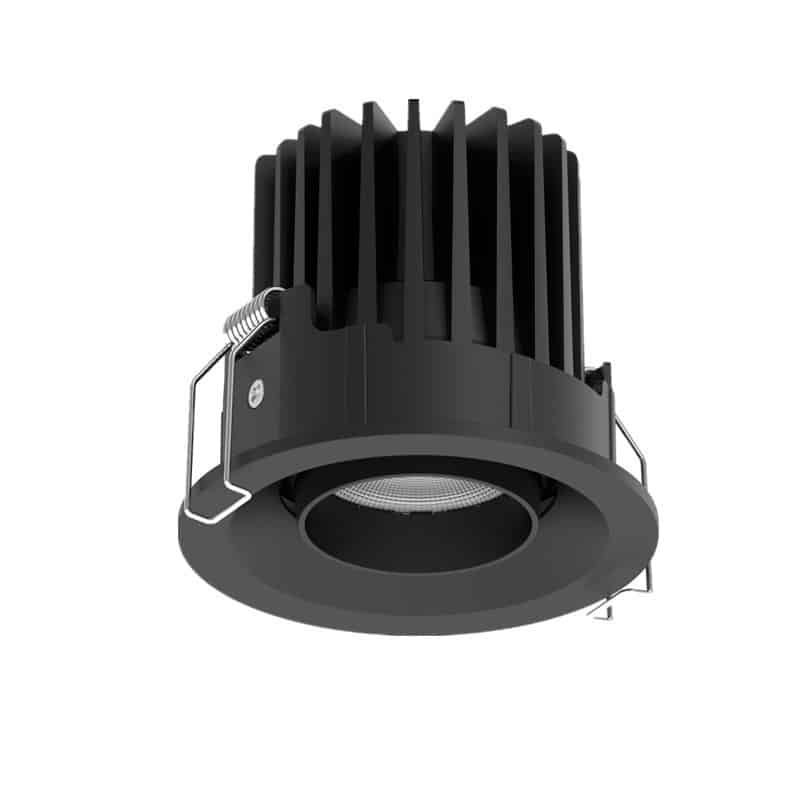

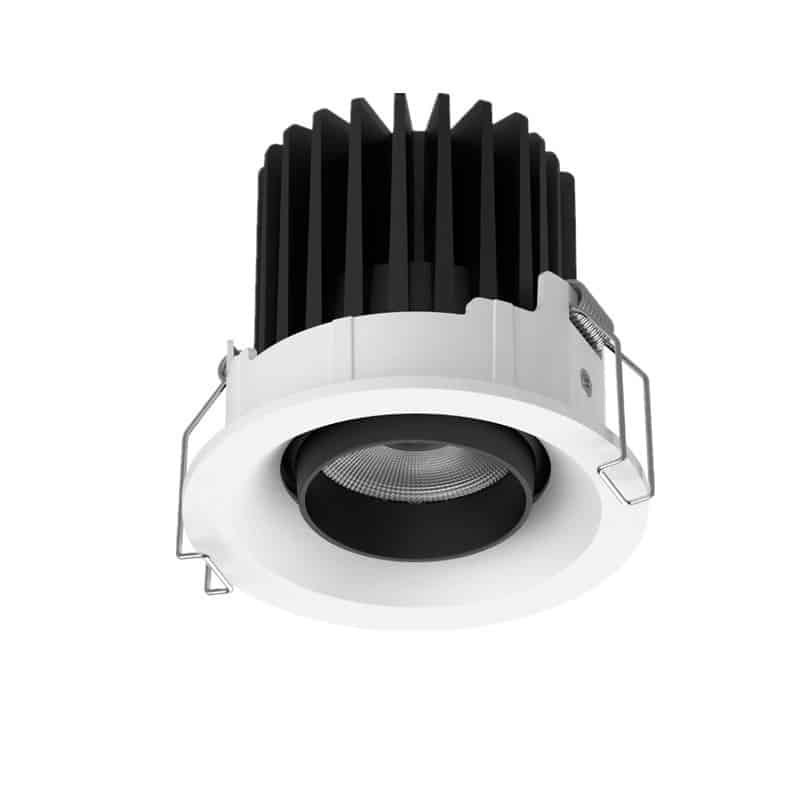

Eyeball Downlight 10W-30W
This eyeball downlight is designed with an adjustable lighting direction structure, 350° rotation horizontally (gimbal), and 25° adjustment up and down. it is good recessed lighting for commercial areas.
GRNLED offers the best price in the market.
Order model | Wattage | Dimension | Cut out | Lumens | Color temperature | CRI | Input voltage | DATASHEET |
GR-DL-10WP-02 | 10W±5% | Φ90*98mm | Φ70-75mm | 930-1100lm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
GR-DL-15WP-02 | 15W±5% | Ø109*107mm | Φ95mm | 1300-1600lm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
GR-DL-20WP-02 | 20W±5% | Ø109*107mm | Φ95mm | 1800-2100mm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
GR-DL-25WP-02 | 25W±5% | Ø134*130mm | Φ110-120mm | 2350-2600lm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
GR-DL-30WP-2 | 30W±5% | Ø134*130mm | Φ110-120mm | 2800-3200lm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
GR-DL-35WP-02 | 35W±5% | Ø134*130mm | Φ110-120mm | 3300-3600lm | 3000K; 4000K; 6500K | >92 | 100/220-240VAC 50/60Hz | Download |
Body & Finished
- Housing: Die-cast aluminum body
- Lens/Diffuser: Polycarbonate lens. 15/24/36/50° design
- Clips: steel
- Trim: Aluminum
Control Gear & Led driver
- Led driver brand: LiFud/ Eagleries as standard, Osram, Philips driver can be optional
- Working voltage:100/220-265VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.5 as standard, 0.9 as an option
- Efficiency:>88%
- IP Rating: IP20
- Surge protection: 1-2KV
- Working temperature:-25℃/+50℃
- Compliance: CE RoHS CB CCC ENEC TUV SAA
- Warranty:3/5Years.
Optical
- Led chips: Bridgelux as a standard, Osram/Philips COB options
- CRI:>92
- Color temp: 3000K-3500K, 4000-4500K, 5000-5700K, 6000-6500K
- Lumens: 110-140LM/W
- LM80 reports
- Dimming (Triac /0-10V/DALI Dimmable)
- Emergency battery backup (30% power with 1hours 2hours 3hours last)

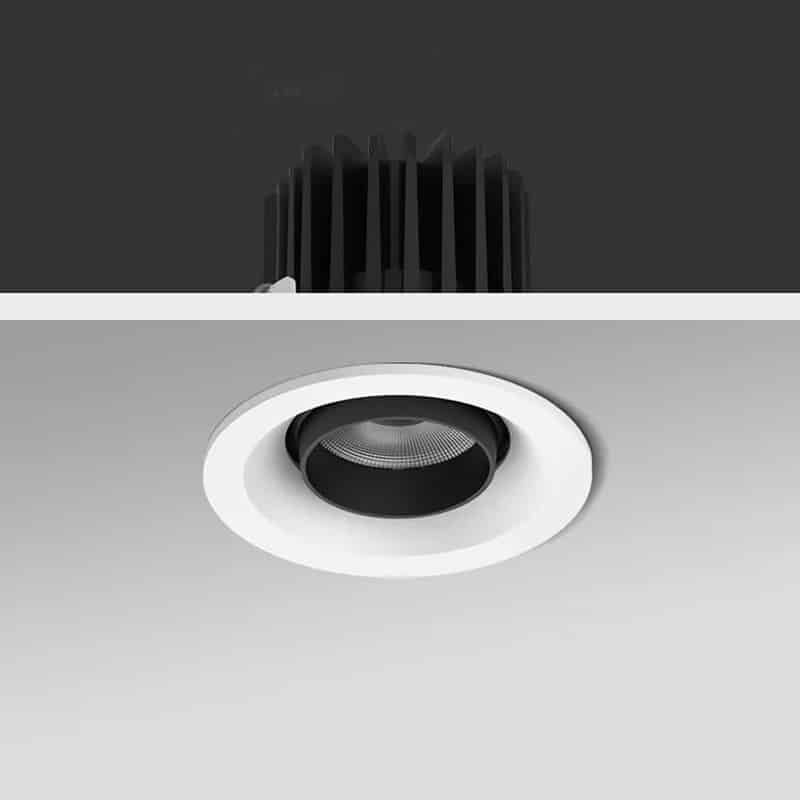

Downlight can be installed directly from the box into a wide range of ceiling types including thicknesses from 5mm-40mm. please refer to the hole size of the specific luminaire and make a round hole in the ceiling. Then use clips to fix it.
