Waterproof LED Ceiling Mounted Light | Model: GR-CD-E

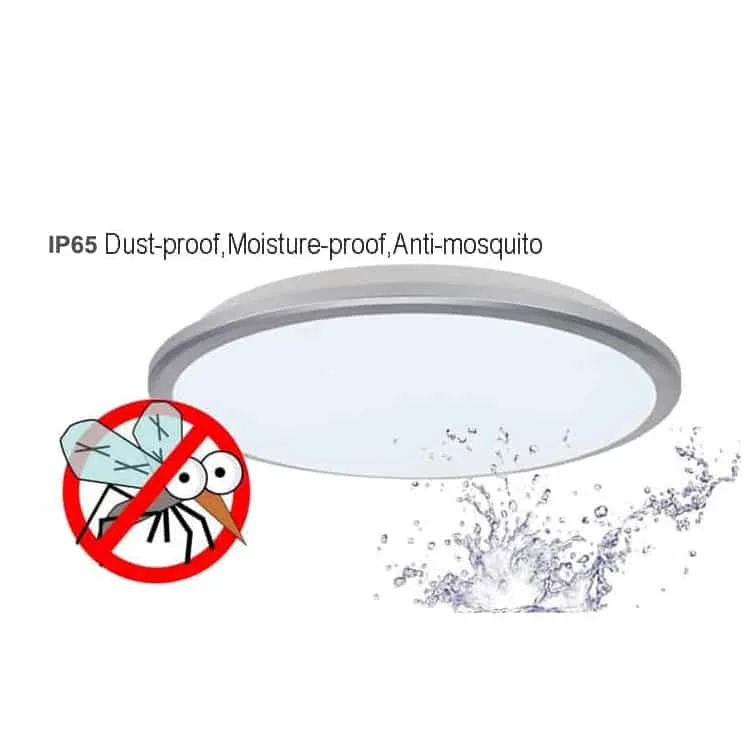

GR-CD-E Series is a round waterproof ceiling light, we do have square and cylindrical styles for your choice, and the ceiling light has slim housing, including a waterproof rubber ring, to improve the protection grade (IP65 rated). It can be Dust-proof, waterproof, and insect-proof, suitable for wet environments or outdoor places such as open-air balconies, aisles, bathrooms, kitchens, toilets, etc. The frame can be white/black/chrome/gold options. Available 12W 18W 24W 32W in power consumption.

  • Model: GR-CD-E Series
  • Working voltage:100-265VAC 50/60Hz/ 220-240VAC 50/60Hz
  • Power: 12W 18W 24W 32W
  • Installation: Surface-mounted
  • Certificates: CE RoHS
  • Delivery time: sample 3-7days, order 15-30days
  • Lifetime: 50000hours
  • Manufacturer warranty: 3/5Years
  • Origin: Made in China

GRNLED offers the best price in the market.

Order modelWattageDimensionLumensColor temperatureIP GradeCRIPower FactorBeam angleInput voltageDATASHEET
GR-CD-12WE12W±5%Ø240×H60mm1000-1200lm3000K;4000K;6500KIP65>80>0.9120°100-265VAC 50/60HzDownload
GR-CD-18WE18W±5%Ø300×H60mm1600-1800lm3000K;4000K;6500KIP65>80>0.9120°100-265VAC  50/60HzDownload
GR-CD-24WE24W±5%Ø400×H60mm2000-2400mm3000K;4000K;6500KIP65>80>0.9120°100-265VAC 50/60HzDownload
GR-CD-32WE32W±5%Ø500×H60mm2800-3200lm3000K;4000K;6500KIP65>80>0.9120°100-265VAC 50/60HzDownload

Materials & Finished

  • Heat sink (Bottom): Flame-retardant ABS chassis. White spraying process. No yellowing after a long time use. With waterproof rubber ring.

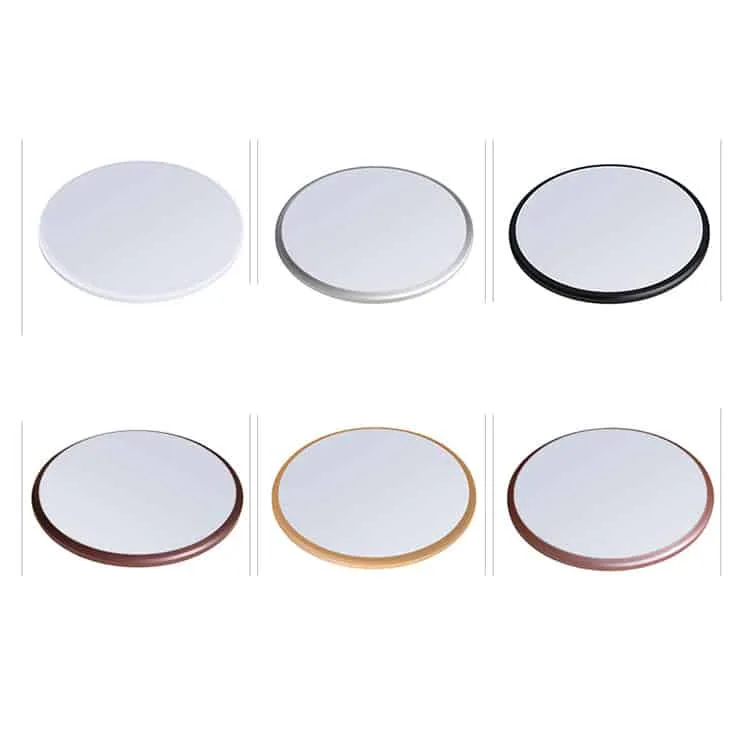

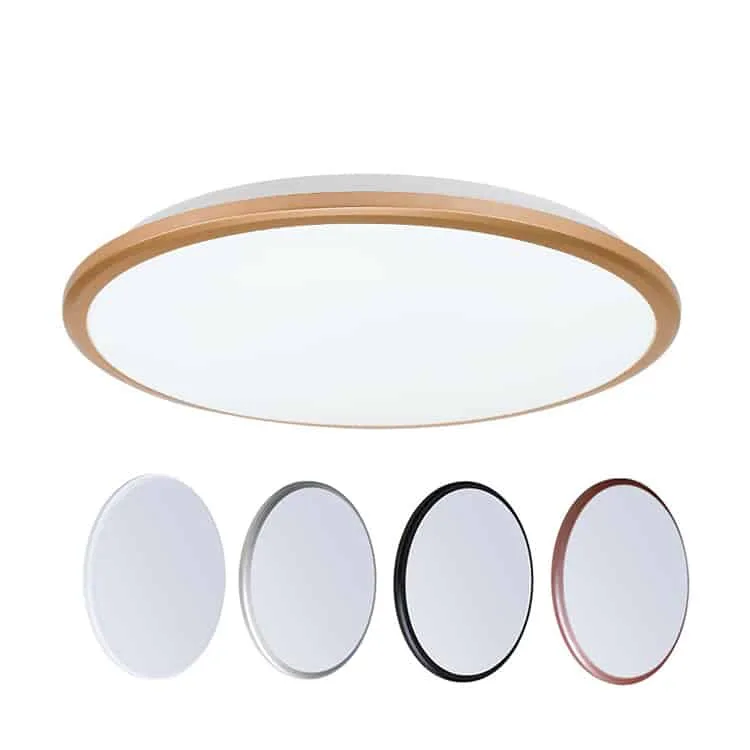

  • Outer ring: Frame is plastic, different colors-gold/black/Chrome(silver)/white finished options.
  • Cover: Acrylic PMMA cover, light transmittance up to 90%, uniform light effect, no dark spots. Slim design.
  • PCB with lens: High thermal conductivity aluminum substrate with SMD LED Chips with Lens cover.
  • LED Driver: high quality constant current driver, free flicker, long life.
  • Light source: EPISTAR SMD LED Chips as standard. The Osram SMD available.
  • Cables & wiring: cable with DC connector as standard, fast connection.

Photometric Data

  • Working voltage:100-265VAC 50/60Hz/ 220-240VAC 50/60Hz
  • Power Factor:>0.5 or >0.9
  • CRI(Ra):>80
  • Lumens:80lm-100lm/W output.
  • SDCM:<5
  • Efficiency:>83%
  • IP Rating: IP65 Dust-proof, waterproof, and insect-proof.
  • Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
  • Beam angle: 120° Wide distribution
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3/5Years.

AC/DC12V/DC24V/DC36V/DC48V/60V low voltage

Suitable for installation directly to walls or ceilings, indoors or outdoors. There are separate surface wall accessories from light body, it is very easy to do the surface installation.

bathrooms, kitchens, outdoor patios, and even commercial settings where need lights withstand moisture and humidity

Q: What is the best type of ceiling light in a bathroom?

A: For a small bathroom, the best light is a recessed waterproof spotlight, it is easier to integrate with the building. And if there is no ceiling, it is not available to open hole, then just select the surface-mounted type.
