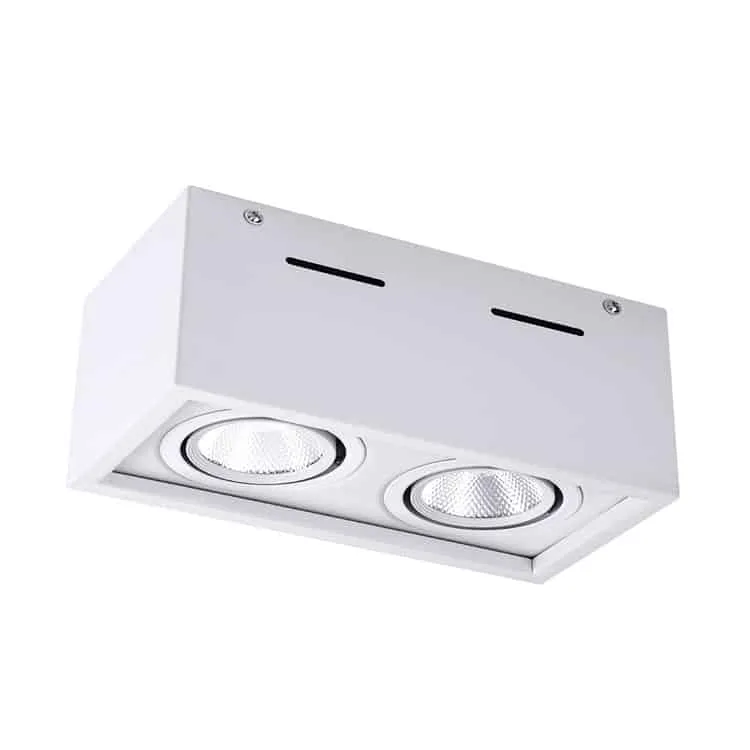

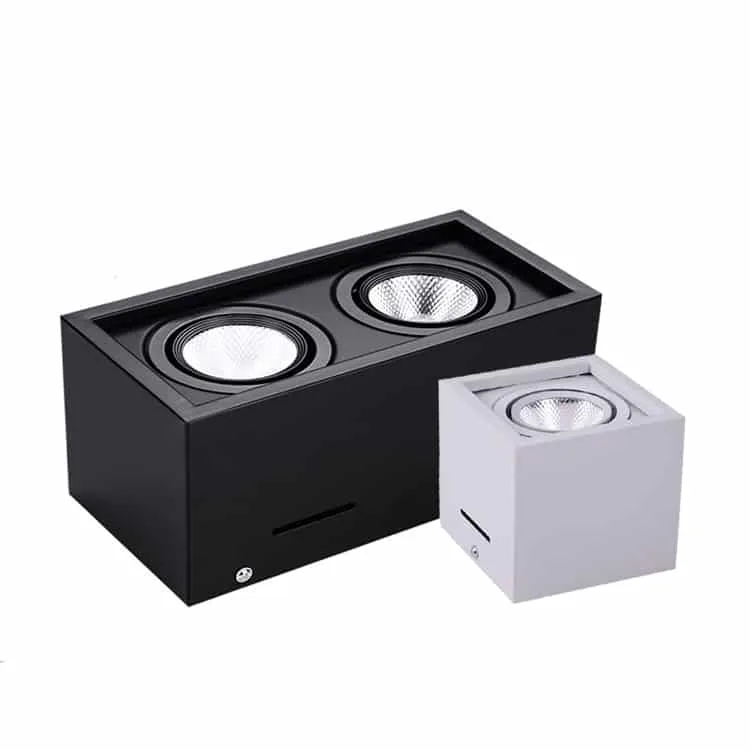

Twin surface mounted downlights | Model: GR-DL-SM
GR-DL-SM Series is our surface-mounted downlight, which is with single or twin heads as a light source. Available adjustable beam angle 25° and rotation 360°. And It provides a soft white light, making it ideal for general room lightings such as entrances, living rooms, bedrooms, kitchens, and commercial lighting like offices, meeting rooms, hotels, etc.
Material and finished
- Outer Housing: The cold-rolled plate is integrally stamped and formed, and the high-temperature paint process is safe and firm. Available in black and white
- Lens: Acrylic optical lens, good light transmittance, can make the light shine evenly on the object.
- Heat sink: Die-cast aluminum, integrated design, black electrophoresis, or spray coating. Fast heat dissipation, fire and corrosion protection.
- Transformer: Isolated driver.
- Light sources: COB Led chips, RA90, various color temperature options. long life.

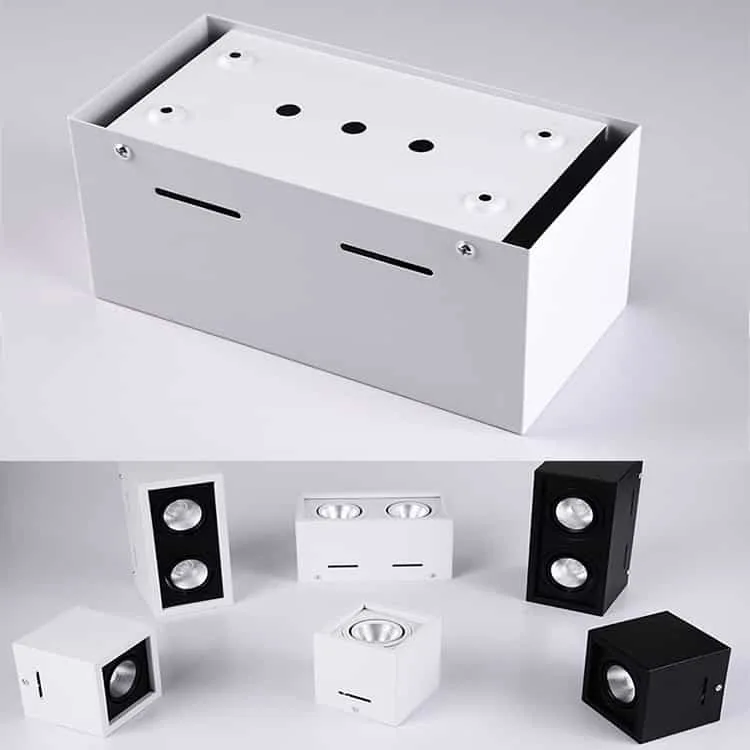

- Installation plate: Metal body, black/white finished, there is some hole for fixing by screws, the surface-mounted installation as standard
Installation & Mounting
There is a surface aluminum plate, taken out from the package, fixed onto the ceiling. Then connect the led driver, after that, just use screws to fix it onto a surface plate.
Electrical & Optical
- Working voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.5 or >0.9
- CRI:>90
- Lumens:90lm-100lm/W output.
- SDCM:<5
- Efficiency:>87%
- IP Grade: IP22 Indoor use
- Beam angle: 15°/24°/38°
- Working temperature:-25℃/+55℃
- Working life:>50000Hrs
- Compliance: CE RoHS Certified
- Warranty:2/3/5 Years on demands.
Additional Options
- Zigbee/ WIFI Mesh smart control by Phone APP, Google home, AMAZON Alexa.
- Dimming (PWM/0-10V/DALI Dimmable)
- Low voltage input voltage DC12V/DC24V/DC36V/DC48W
- Emergency backup (30% power with 1hours 2hours 3hours last)
GRNLED offers the best price in the market.
Models and Details
| Order model | Wattage | Dimension | Heads | Lumens | Color temperature | Light Source | CRI | Power factor | Input voltage | DATASHEET |
| GR-DL-10WSM*1 | 10W±5% | L100*W100*H100mm | One head | 900-1000lm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.5 | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-10WSM*2 | 20W±5% | W100*L200*H100mm | Double heads | 1800-2000lm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.9 | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-15WSH*1 | 15W±5% | L115*L115*H140mm | Single | 1300-1500lm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.9 | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-15WSH*2 | 30W±5% | W115*L230*H140mm | Twin | 2700-3000mm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.9 | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-20WSM*1 | 20W±5% | L115*L115*H140mm | One head | 1800-2000lm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.9 | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-20WSM*2 | 40W±5% | W115*L230*H140mm | Dual | 3600-4000lm | 3000K Warm white; 4000K Daylight;6500K Cool white | COB | >90 | >0.9 | 110-120VAC/220-240VAC 50/60Hz | Download |
