IP65 Waterproof Surface-mounted LED Downlight | Model: GR-FM-F

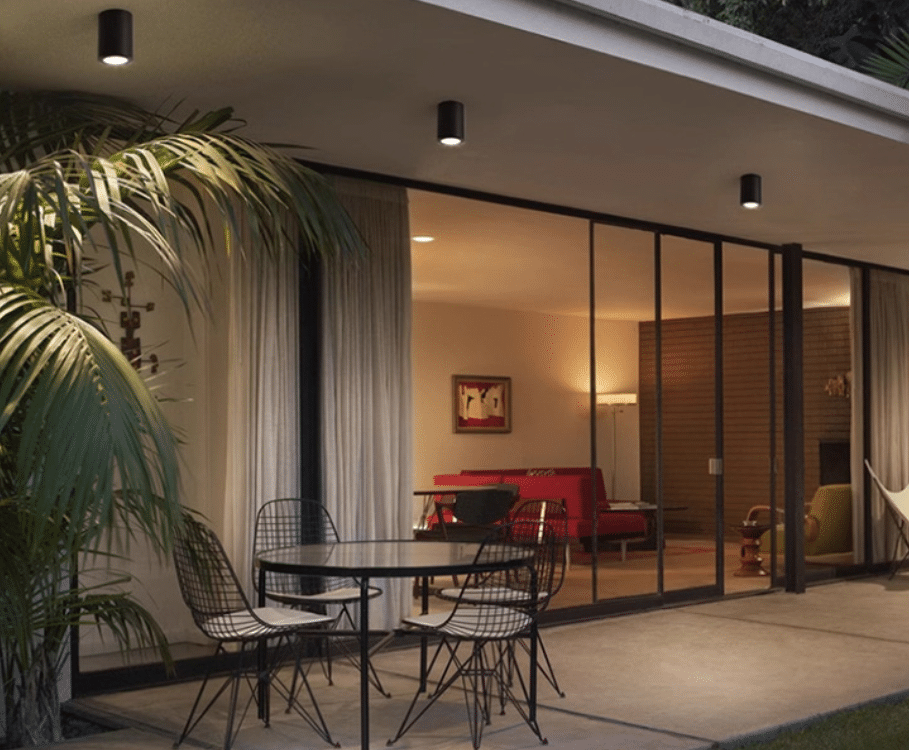

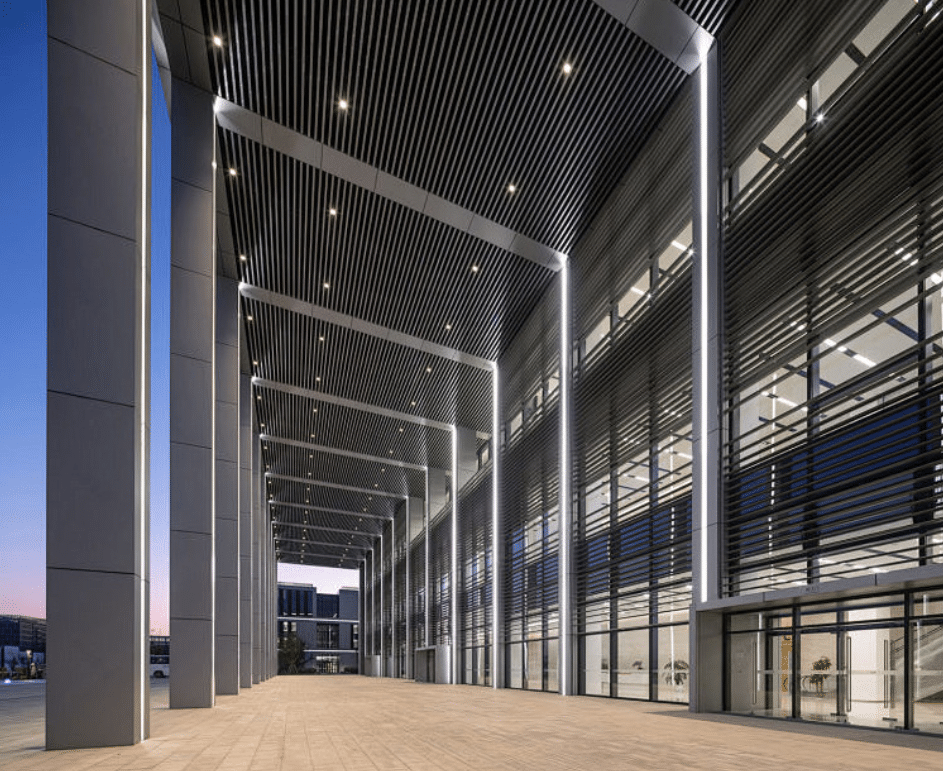

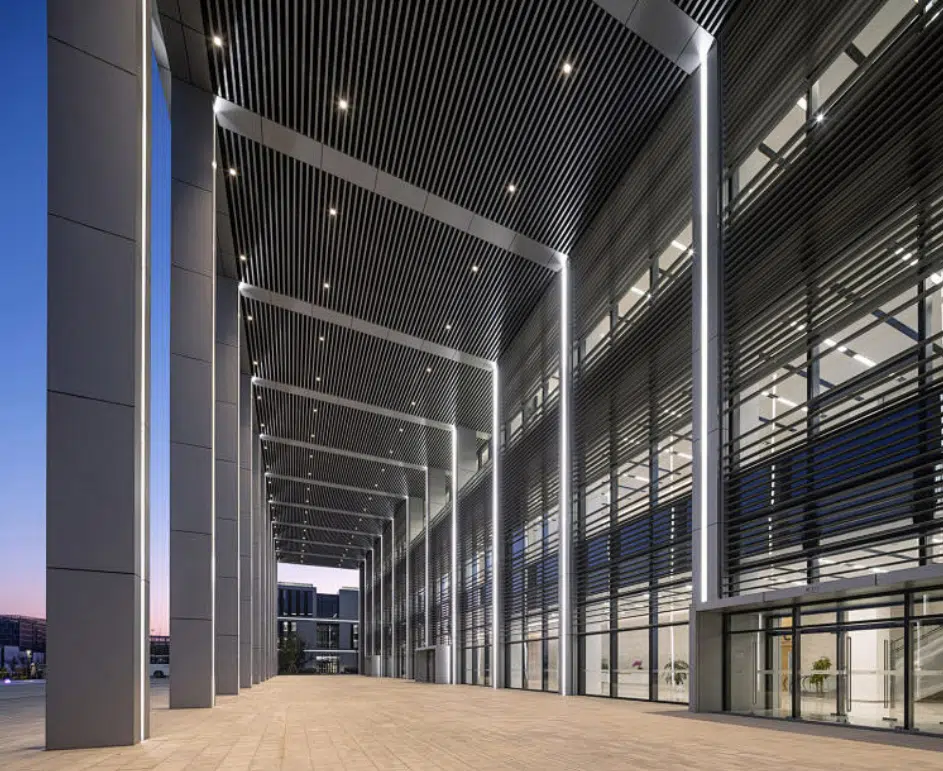

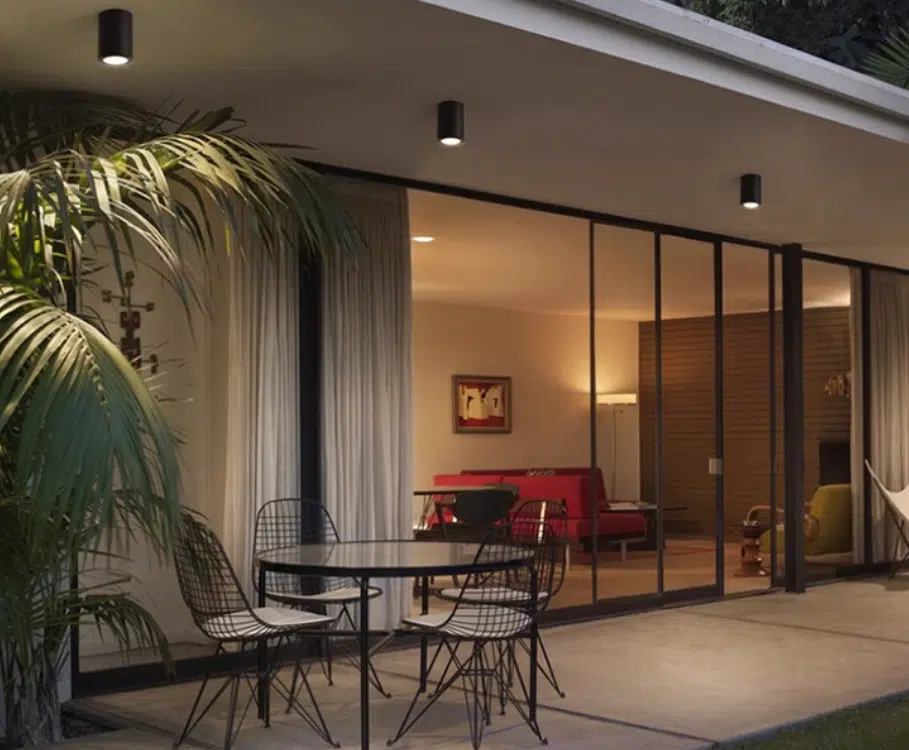

GR-FM-F Series is an IP65 waterproof surface downlight. There is a special waterproof rubber ring on the glass cover of the cylinder downlight fixture, and the input line on the back has a waterproof connector, which can prevent any water vapor from entering the lamp body. The waterproof effect is very obvious, it is ideal for corridors, building eaves, or other outdoor projects where is not suitable for recessed installation.

Material & Finished

  • Housing: Aluminum body with high corrosion resistance and powdered painted. Matte white/black/ grey colors available.
  • Lens/Reflector: Thermoplastic reflector, high temperature resistance, no deformation, uniform luminescence, and good light transmission effect.
  • Cover: Toughed clear glass cover, 3-4mm thickness. It is ok to do frosted cover if needed.
  • Led driver: Included internal waterproof isolated driver, surge protection.
  • Led chips: Bridgelux COB led chips as standard, with CRI90 or more. Available 10W 15W 20W 25W 30W in power.
  • Surface fitting: Metal materials. It is surface installation by screws, and also available to do pendant installation by rope.

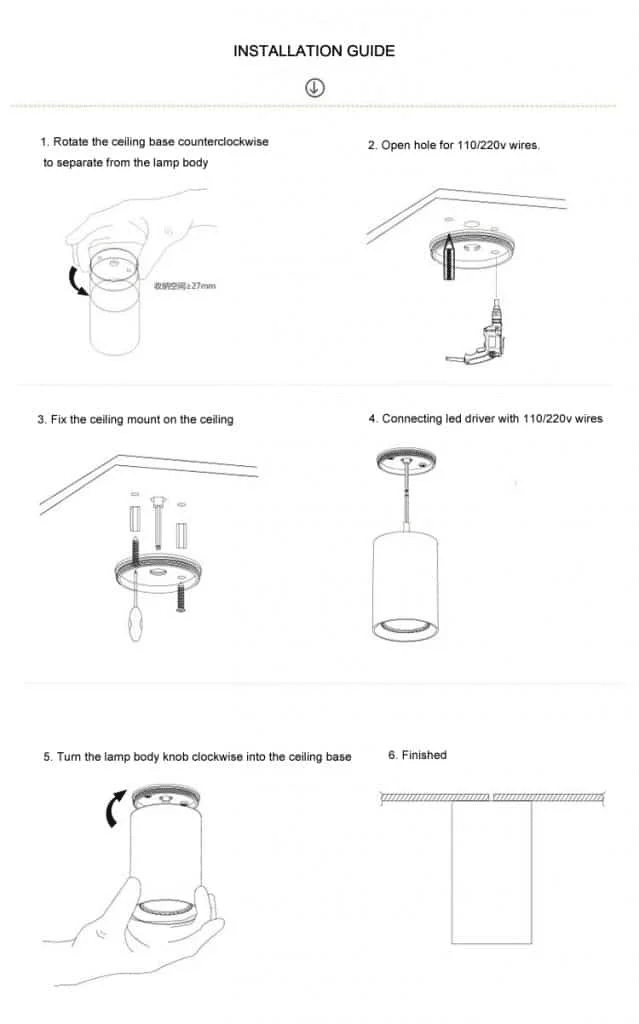

Installation and Mounting

Fix the plate to the ceiling with screws (not supplied). Connect the supply cable to the fast connector, then the lamp body rotates clockwise and is fixed on the ceiling fittings.

Electrical & Optical

  • Input voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.5 or >0.9
  • CRI(Ra):>90 (>97 Max available)
  • Lumens:90lm-100lm/W output.
  • SDCM:<5(<3 available)
  • Efficiency:>87%
  • Surge protection:1-2KV
  • THD:<20%
  • IP Rating: IP65 Outside use
  • IK Rating: IK07
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 30°/45°
  • Surge protection:1KV-2KV
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3/5Years.

Additional Options

  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V

GRNLED offers the best price in the market.

Models and Details

Order modelWattageDimensionLumensColor temperatureBeam anglePower FactorLight SourceCRIIP GradeInput voltageDATASHEET
GR-FM-10WF10W±5%Φ90XH130mm800-1000lm3000K,4000K,6500K30°/60°>0.9COB>90IP65110-120V/220-240VAC 50/60HzDownload
GR-FM-15WF15W±5%Φ110*H160mm1200-1500lm3000K,4000K,6500K30°/60°>0.9COB>90IP65110-120V/220-240VAC 50/60HzDownload
GR-FM-20WF20W±5%Φ145*H200mm1300-1500mm3000K,4000K,6500K30°/60°>0.9COB>90IP65110-120V/220-240VAC 50/60HzDownload
GR-FM-25WF25W±5%Φ145*H200mm1800-2000lm3000K,4000K,6500K30°/60°>0.9COB>90IP65110-120V/220-240VAC 50/60HzDownload
GR-FM-30WF30W±5%Φ180*H160mm2500-3000lm3000K,4000K,6500K30°/60°>0.9COB>90IP65110-120V/220-240VAC 50/60HzDownload
