Surface Mounted Led Cylinder Ceiling Downlight

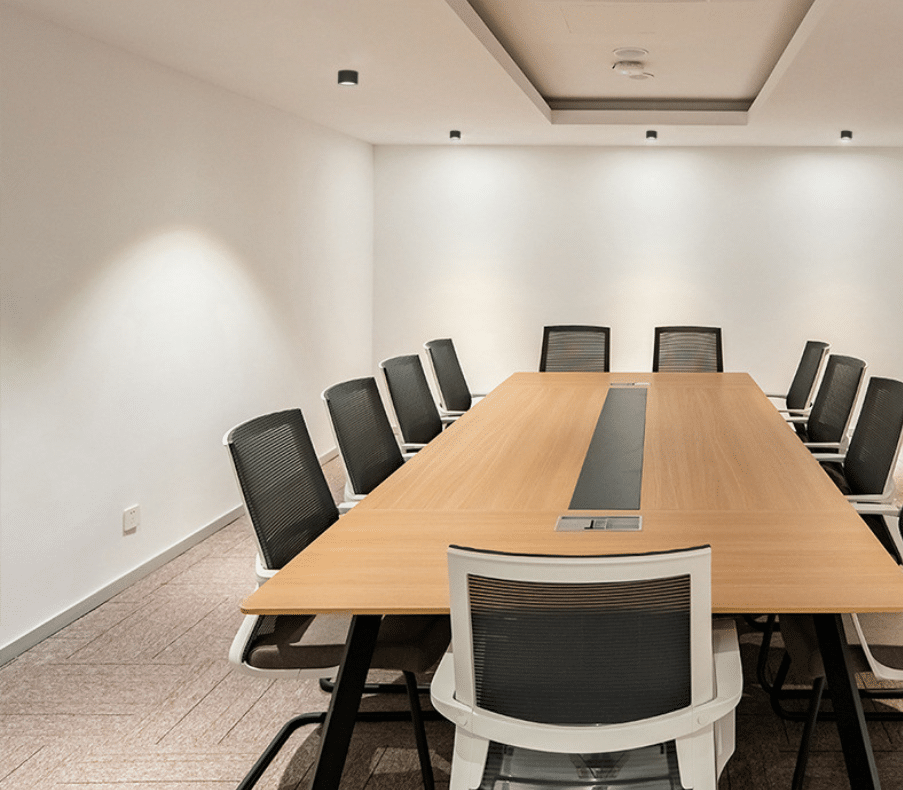

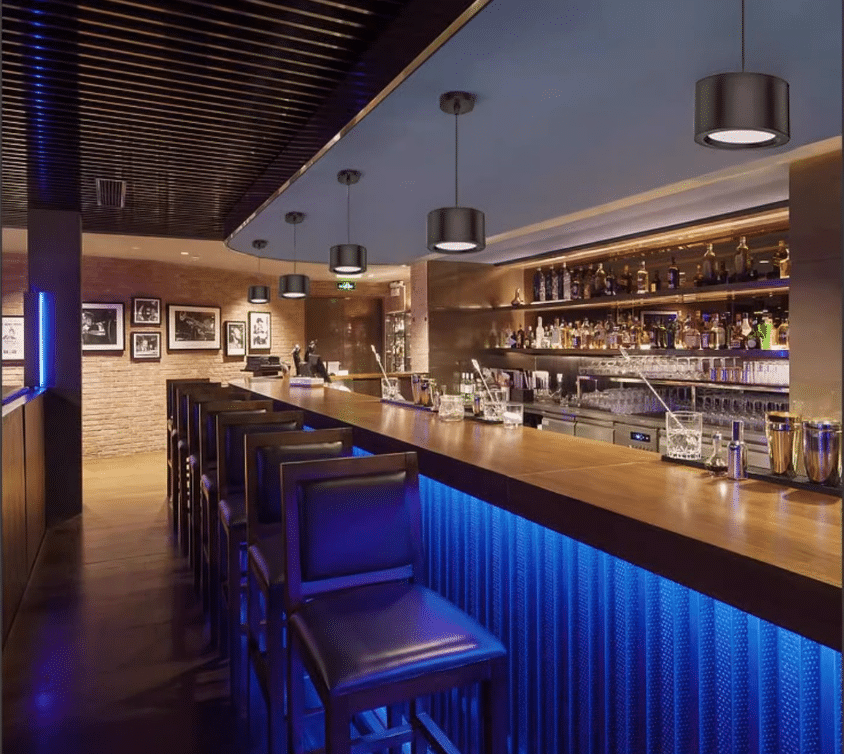

This is a led cylinder downlight, working for both ceiling surface mounted and pendant installation, including 3.5inch, 4inch, 5inch, 6inch, and 8inch sizes. Available 10W 15W 20W 30W 40W 50W 60W 70W in power with CRI90 COB LED Chips, high lumens output. It is the ideal solution to do replacement of old cylinder GU10/E27/PL downlight fixtures with globe bulbs or commercial/industrial lighting for supermarkets, train stations, subway stations, and warehouses where is a high ceiling.

  • Ref Mode: GR-FM-E Series
  • Wattage: 10W 15W 20W 25W 30W

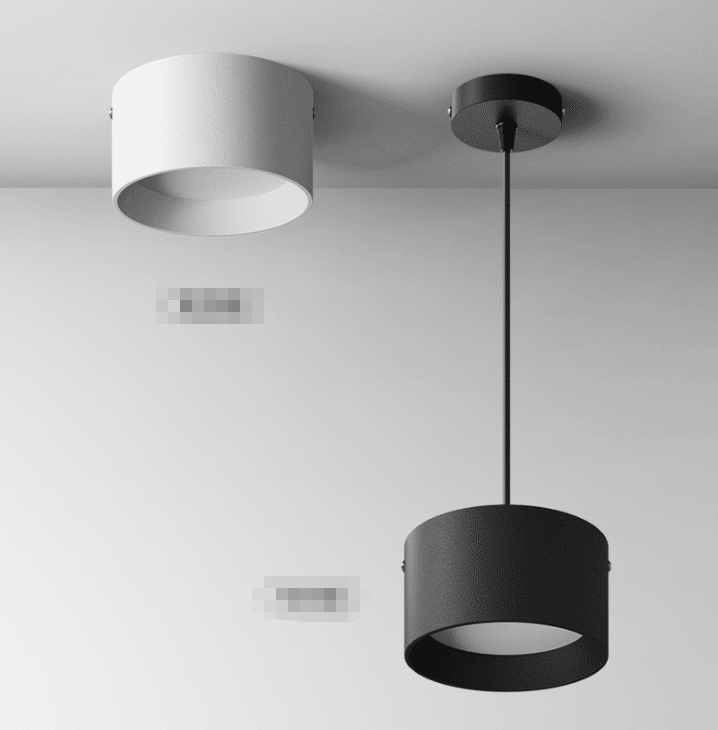

  • Installation: Surface mounted or hanging installation
  • Finished color: Matt white, matt black
  • Lumens: 90-110lm/W
  • Beam angle: 60°
  • Working life: 50000Hrs
  • Manufacturer warranty: 3/5 years
  • Origin: Made in China
  • Lead time: 5-15days
  • Package: 20pcs/CTNS
  • MOQ:40pcs/Model

GRNLED offers the best price in the market.


Order modelWattageInchDimensionLumensColor temperatureChipsCRI(Ra)Power FactorInput voltageDATASHEET
GR-FM-10WE10W±5%3.5inchØ108*H128mm1000-1200mm3000K 4000K 6500KCOB>90>0.5110VAC/220-240VAC 50/60HzDownload
GR-FM-15WE15W±5%4inchØ140*H155mm1350-1500lm3000K 4000K 6500KCOB>90>0.5110VAC/220-240VAC 50/60HzDownload
GR-FM-20WE20W±5%5inchØ170*H178mm1850-2100lm3000K 4000K 6500KCOB>90>0.5110VAC/220-240VAC 50/60HzDownload
GR-FM-30WE30W±5%6inchØ190*H190mm2750-3200lm3000K 4000K 6500KCOB>90>0.9110VAC/220-240VAC 50/60HzDownload

Body & Finished

  • Housing: metal iron round body, matte white/black powder-coated.
  • Heat sink: Pure aluminum radiator, ACDC12 Aluminum, fast heat dissipation.
  • Front glass: toughened glass cover, thickness 3mm
  • Ceiling surface part: metal surface mounted parts, the surface is a standard installation, it is ok to use an extra rope to be a hanging cylinder downlight.
  • Cables & wires: #22AWG-24AWG, 600V, 105℃ with fast connector.

Control Gear / Optical

  • Control Gear brand: Eagleries/LiFud as standard.
  • Working voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.5 for small wattage or >0.9.
  • THD:<15%
  • Surge protection:1-2KV
  • Color rendering index:>90 as standard, it is ok to do CRI97.
  • Lumens:90lm-100lm/W output.
  • SDCM:<3
  • Efficiency:>87%
  • IP Rating: IP22 Indoor use
  • IK Rating: IK07
  • Beam angle: 60° Medium distribution
  • Working life:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty: 3/5 Years.
  • Zigbee/ WIFI smart downlighting
  • Dimming (Triac/0-10V/DALI Dimmable)
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V
  • Emergency kits with 2W & 1.5hrs

For surface-mounted installation: Fix the plate to the ceiling with screws (not supplied). Connect the supply cable to the fast connector. And use screws to fix the cylinder downlight’s body onto surface plates.

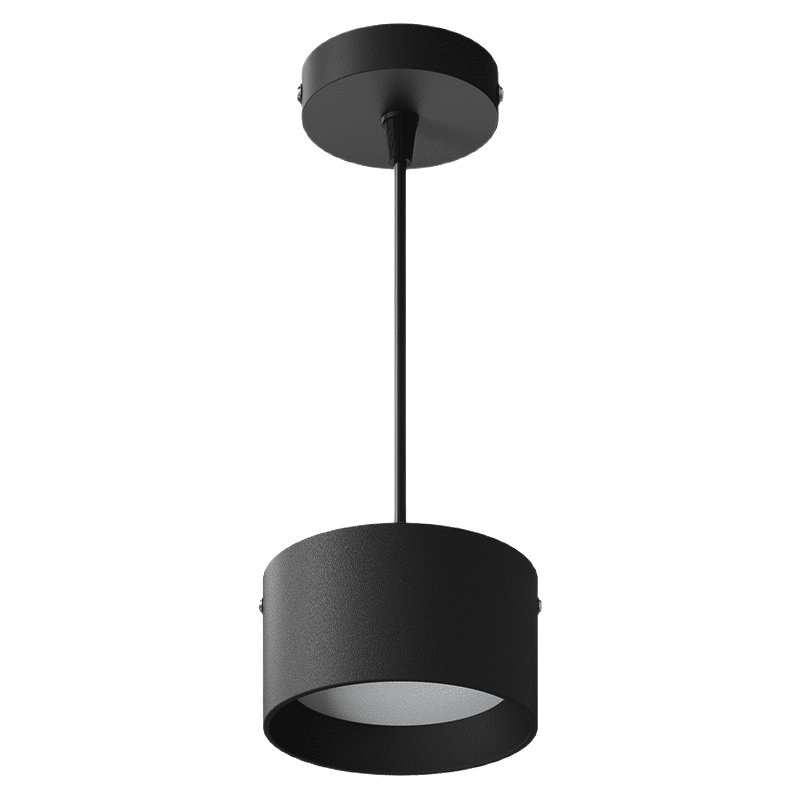

For hanging installation: Just fix the ropes onto light body, and using the screws to fix the surface hardware onto ceiling.

The installation steps are as follows:
