magnetic track light system

BEST LED MAGNETIC TRACK LIGHT MANUFACTURER,FACTORY IN CHINA


The magnetic track light is the latest lighting solution, there is a magnet on the track head of the lamp body, which can be adsorbed on the aluminum magnetic attraction rail track with an iron sheet, and can be removed, installed, and moved freely without tools. Generally, the whole system is consists of the magnetic track, magnetic led light luminaries, and accessories. It is available to do DIY track lighting system by above magnet lamps.

GRNLED (Golumen) is the best magnetic track lighting manufacturer, factory, and supplier in china since 2018, with ISO9001:2015, providing high-quality magnet track light with Osram, Philips chips, and 2.4G TUYA WIFI, BLUETOOTH, ZIGBEE smart magnetic track lighting system with low voltage DC48V or 110V/220-240VAC input voltage at a competitive price. Our magnetic linear track lights have been CE RoHS approved. It is ok to do ETL, UL, CSA, SAA, and CB magnetic track lights if needed.

MAGNETIC LIGHT TRACK

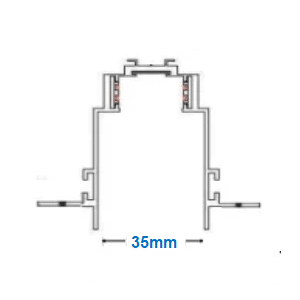

  • Magnetic track dimensions: 20mm and 35mm width available, length 500mm, 1000mm, 1500mm, 2000mm, 3000mm options.
  • Magnetic track channel types: Recessed, Trimless, Surface mounted, Suspended. Here is a video for 4 in 1 installation magnetic track rail.
  • Matt Black/ Matt White magnetic track options.

MAGNET TRACK LIGHT ACCESSORIES


The whole magnetic led lighting system should be connected by these accessories.

  • Power input adapter

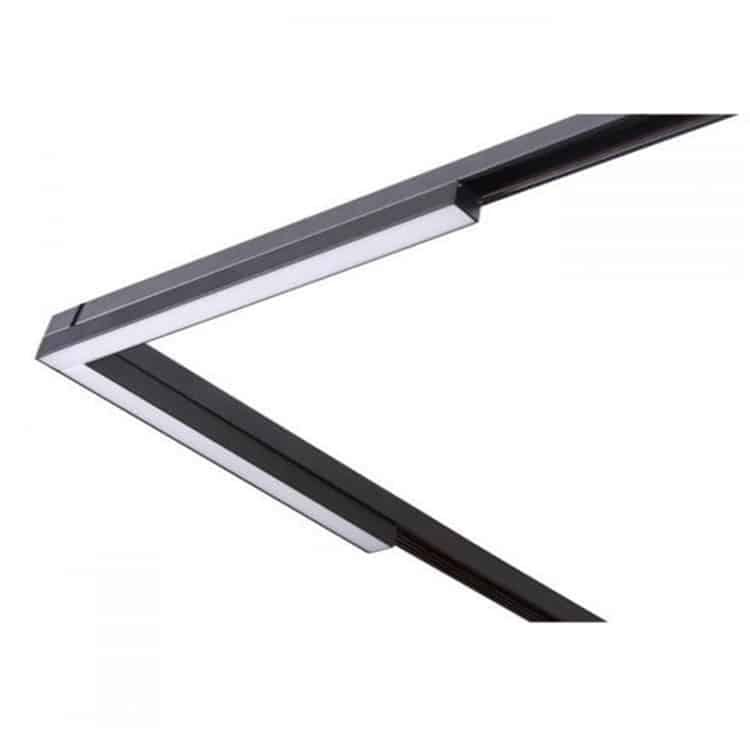

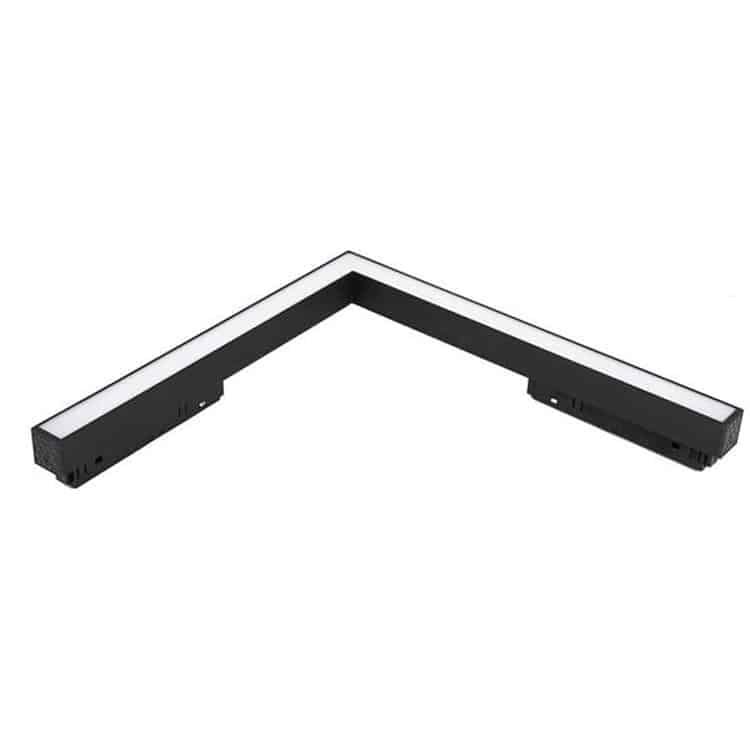

  • Vertical/Horizontal 90° L Adapters and Connectors
  • Horizontal 180° Connector
  • DC48V external driver or Built-in power supply (integrated)

Just download the PDF to know how to use these accessories.


SMART MAGNETIC TRACK LIGHT


All the magnetic linear track light systems can be with a smart solution.

  • 0-10V dimmable / DALI dimmable

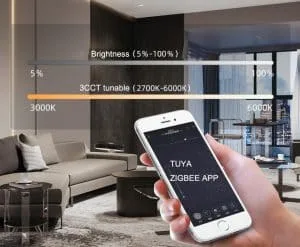

  • 2.4G WIFI, Bluetooth mesh, Zigbee smart magnet track lighting. Through a smart gateway(hub), they will be 3CCT color-changing and tunable in brightness by TUYA APP in a smartphone, and it is also available controlled by a remote controller, smart control panel, or smart speaker like Google Home, Amazon Alexa, etc.

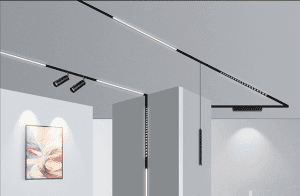

MAGNETIC TRACK LIGHT SYSTEM


Magnetic Grid Spotlights

The magnetic grid spotlight is a directional lighting fixture with PMMA reflector and OSRAM chips with high CRI 90. Narrow beam angle 24°/36° optional. Suitable for use with magnetic line lights as basic lighting in the living room, dining room, corridor, etc.

Order ModelWattageDimension(mm) LumensDatasheet
GR-ML-6WGS6WattL112*20/35mm 540-600lmDownload
GR-ML-12WGS12WattL220*20/35mm1080-1200lmDownload
GR-ML-18WGS18WattL328*20/35mm 1600-1800lmDownload
GR-ML-24WGS24WattL435*20/35mm 2100-2400lmDownload
GR-ML-30WGS30WattL543*20/35mm 2700-3000lmDownload

Magnetic Linear flood Lights

The magnetic linear lights also called magnetic linear floodlights, it is wide distribution 120° beam angle to be general lighting in large spaces like living rooms, offices, etc. Available 1ft/2ft/3ft/4ft in length. 3000K/4000K/6500K color temperature or 3CCT dimmable available.

Order ModelWattageDimension(mm) LumensDatasheet
GR-ML-10WML10Watt L300*W22/35mm 900-1000lmDownload
GR-ML-20WML20Watt L600*W22/35mm 1800-2000lmDownload
GR-ML-30WML30Watt L900*W22/35mm 2700-3000lmDownload
GR-ML-40WML40Watt L1200*W22/35mm 3600-4000lmDownload

Fold Adjustable Magnetic Grille Spotlights

The adjustable magnet spotlight is improved on the base of the magnetic grid spotlight, but it is available to be 90° adjustment as non-directional lighting, what is more, its beam angle is 24°/36° narrow distribution, generally, widely used for accent lighting for wall washer, background wall, painting, etc. 0-10V/DALI/Smart dimmable available, matt black/matt white body option.

Order ModelWattage Dimension(mm)AdjustableDatasheet
GR-ML-6WFS6Watt L118*H87*W22 or W35mm 90°Download
GR-ML-12WFS12Watt L230*H87*W22 or W35mm 90°Download

Magnetic Track Spotlights

The Magnetic track spotlights are based on traditional LED track lights with track heads with magnets. At the same time, the low-voltage DC48V input scheme is adopted. Other parameters and specifications are almost the same, CRI90 Philips Osram CREE COB chips, power includes 10W 15W 20W 30W. Mainly application for kitchen room, dining room, and wall washer lighting as accent light fixtures.

Order ModelWattageDimension(mm)LumensDatasheet
GR-ML-10WTL10Watt Φ50*120mm90-100lm/WDownload
GR-ML-15WTL15WattΦ60*135mm90-100lm/WDownload
GR-ML-20WTL20Watt Φ70*145mm 90-100lm/WDownload
GR-ML-30WTL30Watt Φ80*160mm 90-100lm/WDownload

Magnetic Pendant Lights

The magnetic pendant light is a cylinder downlight with hanging ropes for suspended installation as decorative lighting, It is generally used as auxiliary lighting and is mostly used in the study room, bedside table, above the dining table. The CREE/OSRAM/PHILIPS COB chip brings a perfect lighting performance

Order ModelWattageDimension(mm) LumensDatasheet
GR-ML-5WPL5Watt Φ30*H300mm 450-500lmDownload
GR-ML-10WPL7-10Watt Φ60*H300mm 450-500lmDownload

Installation guide

4 different magnetic tracks with 4 different ways to do the installation for a system

  • Recessed installation-Popular way, it is suitable for a new construction
  • Surface-mounted. It is easy to do an installation without any outcut.
  • Suspension installation is perfect for the dining room, meeting offices, etc.
  • Trimless recessed installation. It is ok to do for existing ceiling plasterboard.

You can download the following PDF file for each installation guide.

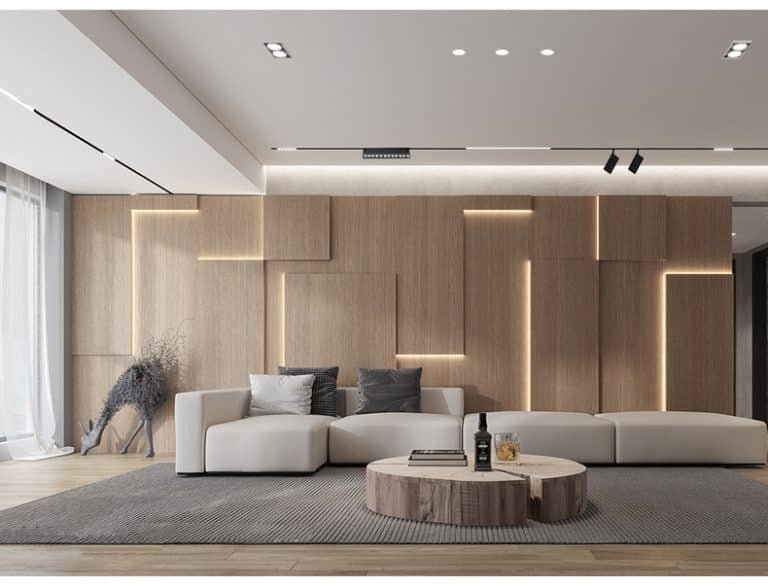

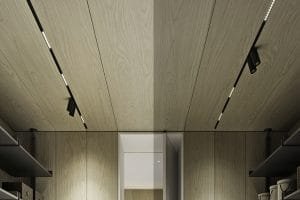

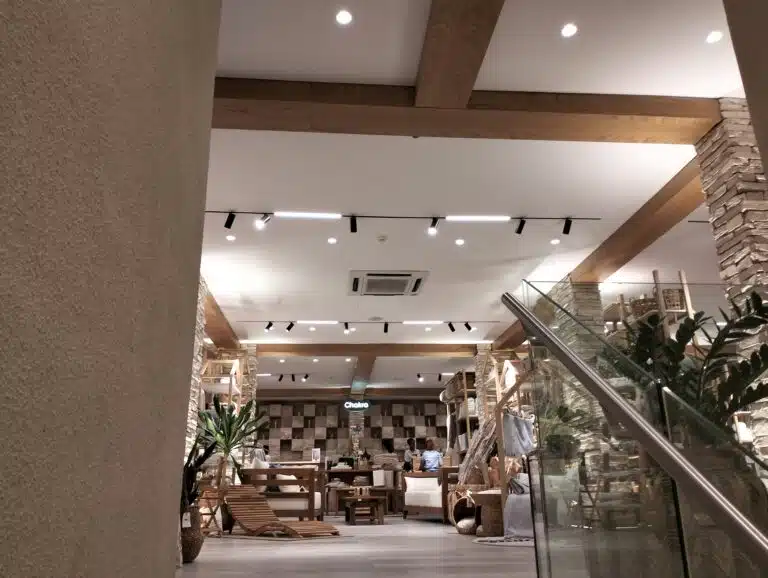

DESIGN CASES OF MAGNETIC LINEAR TRACK LIGHT SYSTEM

If you don’t know how to and what you need to buy , just INQUIRY US NOW

WHY CHOOSE US AS YOUR MAGNETIC TRACK LIGHT SUPPLIER IN CHINA


  • GRNLED is the best magnetic track light manufacturer, supplier, and factory since 2017. We provide all types of magnetic track systems.
  • Our Magnetic linear track light luminaries have passed CE RoHS. We also can do ETL, UL, SAA, and CB for American, and Australian markets if needed.
  • Our magnetic track can be compatible with common magnetic track lamps from other different suppliers.
  • OEM/ ODM/ SKD order acceptable. It is free to print LOGO, or color boxes for bulk orders.
  • Our magnetic track lights have been exported to Indonesia, Italy, Nigeria, Oman, and Singapore at cheap prices & 2/3/5years warranty.

Frequently Asked Questions

Magnetic track lighting is a linear track system with magnetic rail and removable magnetic lights, the entire magnetic track lighting system is driven by low-voltage DC24V or DC48V.On the low-voltage magnetic guide rail, various types of lamps such as magnetic line lights, magnetic spotlights, and magnetic chandeliers can be safely combined, freely moved and disassembled. Just read this blog to know the details about it if needed.

Generally, we advise installing 1 or 2pcs magnetic light fixture onto every 1meter magnetic rail.

Not exactly. There are mainly two types the magnetic track lighting system with different widths, one is a 20mm width track, and the other is a 35mm width rail. So the 20mm track light must be installed onto 20mm magnetic tracks, it is not compatible with 35mm magnetic track and vice versa.

Yes, our track can be mounted on a wall.

It is ok to be 40-60cm away from the wall.

Firstly, Just decide which magnetic tracks you request, wall mounted, recessed, suspended, or frameless magnet rail. Then you need to know how many magnetic track channels are for your whole construction, after that choose modular magnetic light luminaires and accessories. For detailed steps, please refer to this article.

For TUYA WIFI gateway(hub), the luminaires will be less than 20pcs, for Bluetooth mesh smart hub, it is available to connect about 30-50pcs. And for wireless Zigbee smart gateway, it is a connection of 30-50pcs, for Wired Smart Gateway, it can be with 80-100pcs at the same time.

There are 4 different installation ways for the whole magnetic track system, you can check this pdf file for the installation guide, the surface/suspended installation is easy, but for the recessed type, maybe you need to pay more attention. The following videos maybe will be helpful.

You can check this blog about it

Or check this video.

Have a Special Requirement?

Generally, we have common LED products and raw materials in stock. For your special demand, we offer you our customization service. We accept OEM/ODM. We could print your Logo or brand name on light body and color boxes. For an accurate quotation, you need to tell us the following information:

Specification

Please tell us requirements for length; IP Grade; and if need to add extra function such as dimmable, emergency backup, or motion sensor etc.

Quantity

No MOQ limit. But for the Max quantities, it will help you get the cheaper price. More quantity ordered, the lower price you could get.

Warranty periods

Mostly, our guarantee periods for our LED lights is 2 years, 3 Years or 5 Years. Different guarantee periods will be with different solutions in raw materials.

Application

Tell us your application or detail information for your projects. We can offer you the best choice, meanwhile, our engineers can give you more suggestions under your budget.
