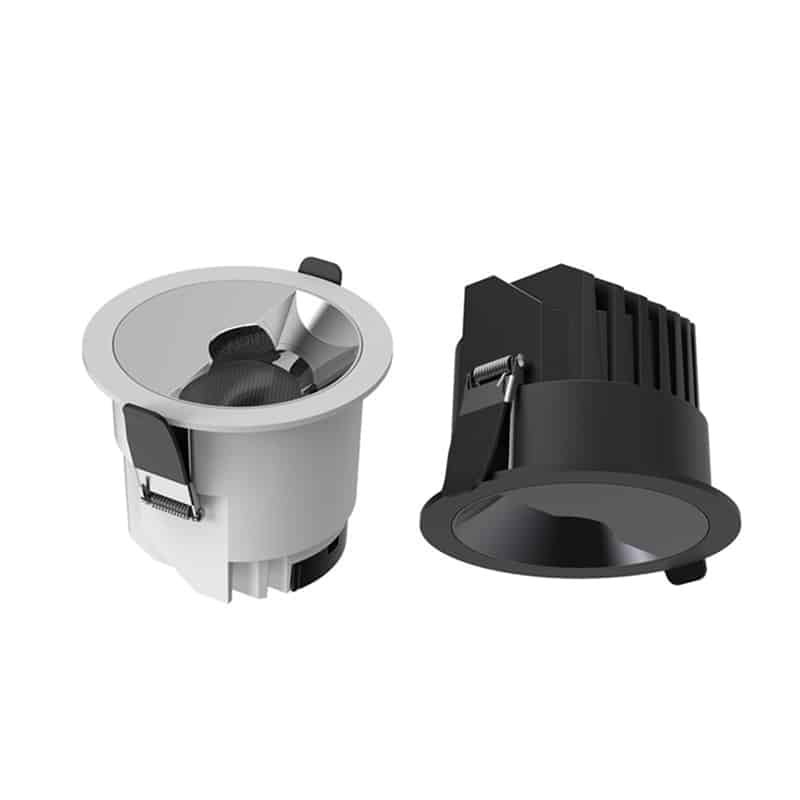

Recessed Wall Washer Downlight 5W-30W | Model: GR-DL-G

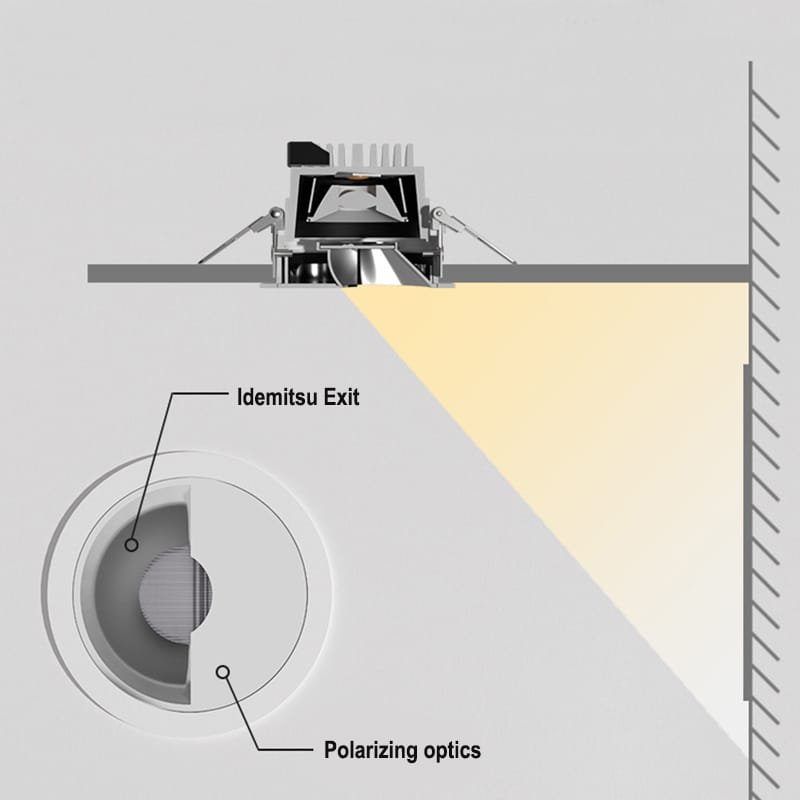

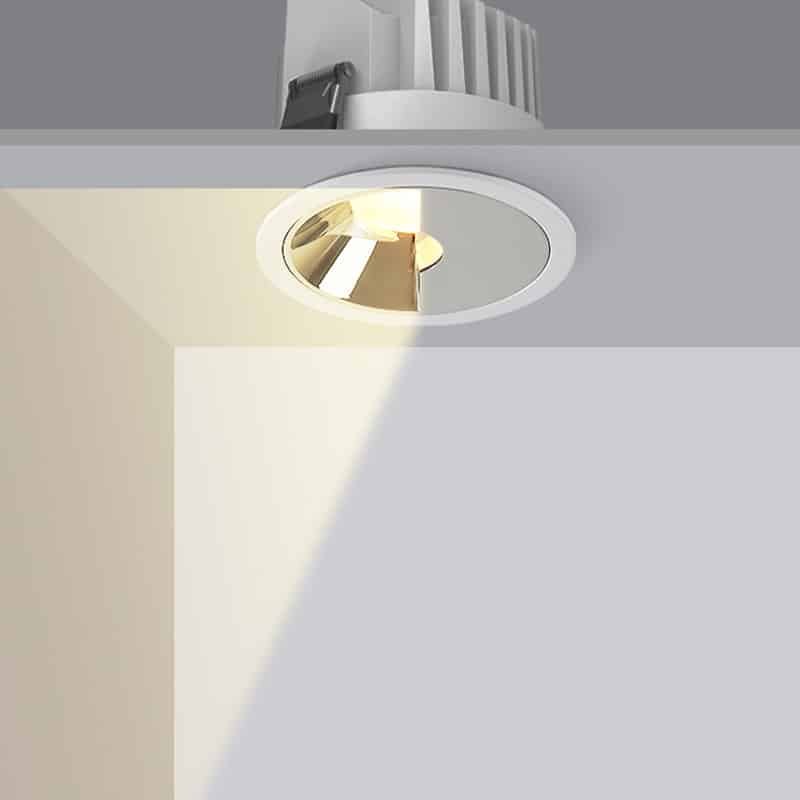

The recessed wall washer downlight is an adjustable LED downlight fixture that offers a 25° adjustable beam. Available 3 reflectors color-black/white/gun black. Anti-glare design with UGR less than 15. This adjustable wall washer is the perfect solution for accent lighting in museums, living rooms, offices, supermarkets, hospitals, hotels, etc.

  • Ref Model: GR-DL-G Series
  • Wattages: 5W 7W 10W 15W
  • Cut out: Φ50/Φ70/Φ95mm
  • Installation: Recessed
  • Control way: ON/OFF, DALI/0-10V dimmable optional
  • Beam angle: 15/24/36°
  • Free flicker: yes
  • Working temp: -25/+55℃
  • Origin: Made in China
  • Certificate: CE LVD EMC RoHs
  • Warranty: 3/5Years
  • MOQ: 50pcs/model

GRNLED offers the best price in the market.

Order ModelWattagesDimensionCut outLumensUGRCRIColor temperatureInput voltageDatasheets
GR-DL-7WG(55)5W/7WΦ63*H68mmΦ50-55mm500-700lm<17>903000K, 4000K, 6500K110/220-240VACDownload
GR-DL-7WG(75)7WΦ85*80mmΦ70-75mm630-770lm<17>903000K, 4000K, 6500K110/220-240VACDownload
GR-DL-10WG10WΦ85*80mmΦ70-75mm900-1100lm<17>903000K, 4000K, 6500K110/220-240VACDownload
GR-DL-15WG15WΦ107*85mmΦ95mm1400-1600lm<17>903000K, 4000K, 6500K110/220-240VACDownload

Materials & Finished

  • Trim: aluminum, matt white as standard
  • Heat sink: Die-cast aluminum, black powder coated.
  • Reflector: PMMA materials, white/black reflectors as standard, bright silver/ bright black reflectors optional.
  • Springs/Clips: Steel, high strength to fix onto the ceiling.

Control Gear / Led driver

  • Driver brand: Eagleries as standard; LiFud/Euchips/Osram/Philips/Letch/Sunricher optional.
  • Input voltage: 110/220-240VAC 50/60Hz
  • Output Voltage: 36VDC
  • Free flicker: Yes
  • Power factor:>0.5 or >0.9
  • Dimmable: No.
  • THD:<15%
  • Efficiency:>88%
  • IP Rating: IP22
  • Certificates: TUV CE RoHS ENEC CB
  • Warranty: 3/5Years

Optical

  • Light source brand: Bridgelux as standard, Osram available
  • Color rendering index:>90
  • Lumens:100lm-120lm/W output.
  • SDCM:<3
  • Lifetime:>50000Hrs
  • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
  • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
  • Emergency backup kits
  • 0-10V/ Phase triac dimming/DALI dimming
  • 3CCT color changing
  • Zigbee smart downlight

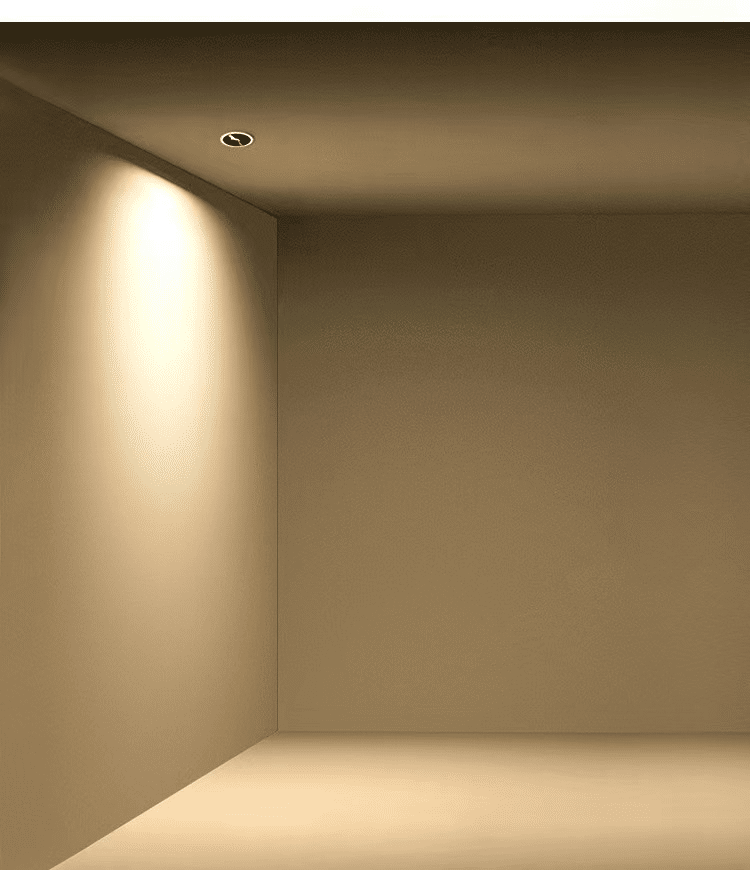

7W 36° Wall washer with 75mm cutout

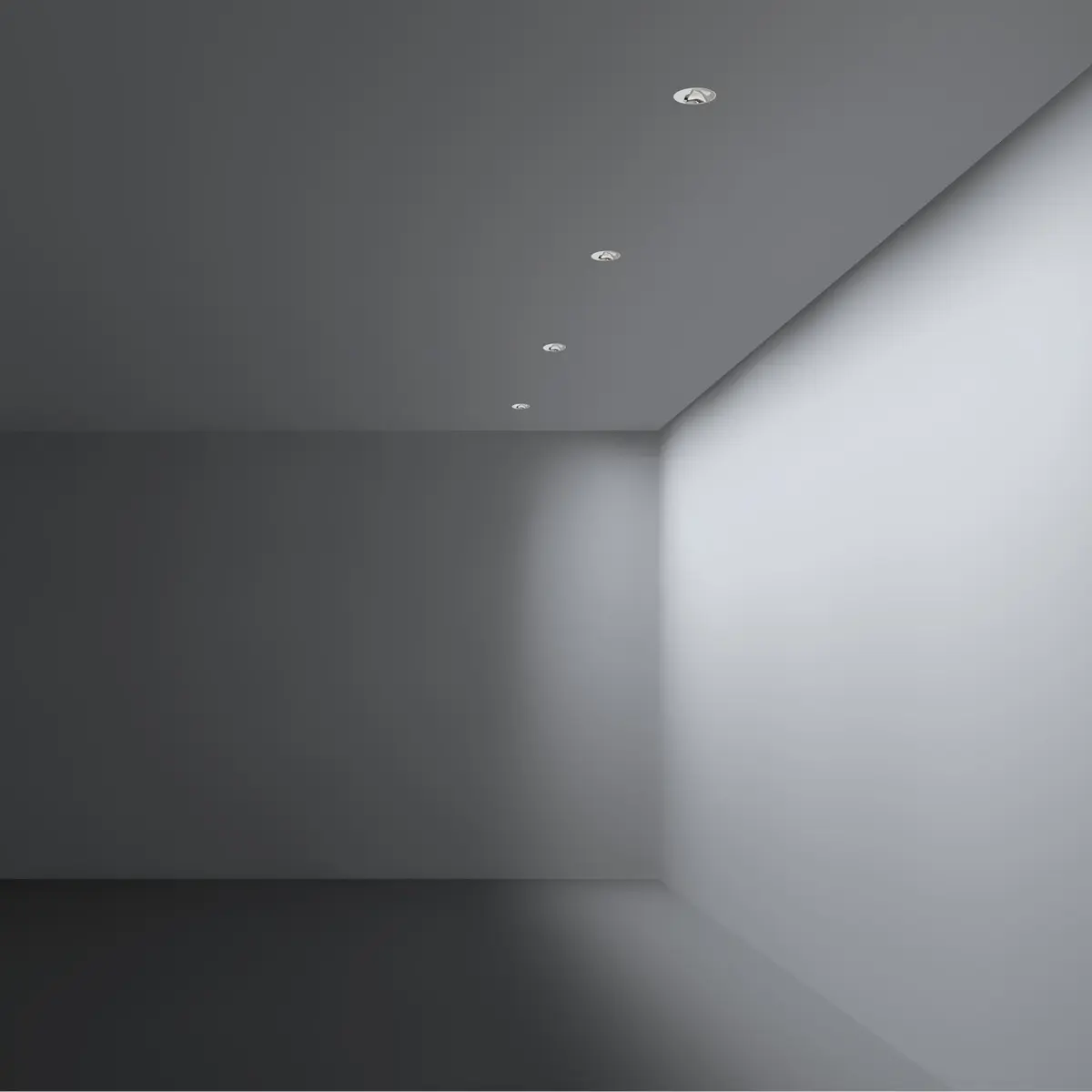

To achieve the ideal “hill” lighting effect, here are some suggestions:

  • Distance from Wall: Based on practical testing in an optical laboratory, it is recommended to install the lights at a wall distance of 15-20 cm to achieve a flawless hillock effect.
  • Distance Between Lights: Recommended to install the lights at a distance of 100-150 cm between them. A distance of 100-120 cm creates a connected hillock arc, while a distance of 120-150 cm results in the arcs intersecting lower down, and at 150 cm, the hillocks are not connected.
  • Corner Distance: It is recommended that the distance from the center of the spotlight’s cutout to the corner of the wall be greater than 100 cm.
  • Beam Angle: For wall-washing, the light beam should be directed straight without adjusting the angle, as adjusting the angle will affect the hillock effect. For general lighting (non-wall-washing), the beam angle can be adjusted to change the lighting area or provide direct illumination
