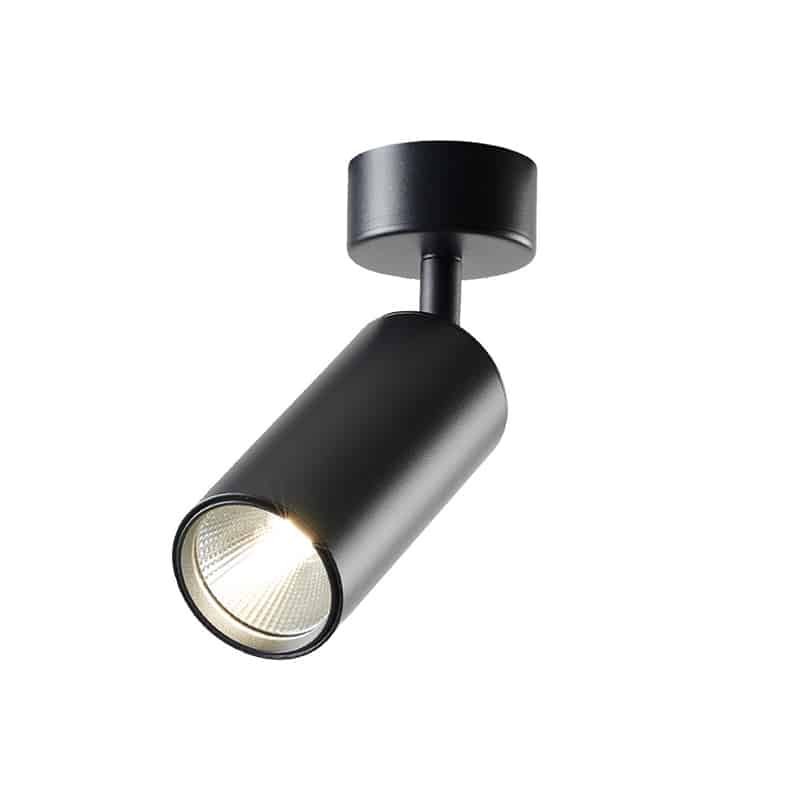

Fold Surface LED Downlights | Model: GR-DL-Z01

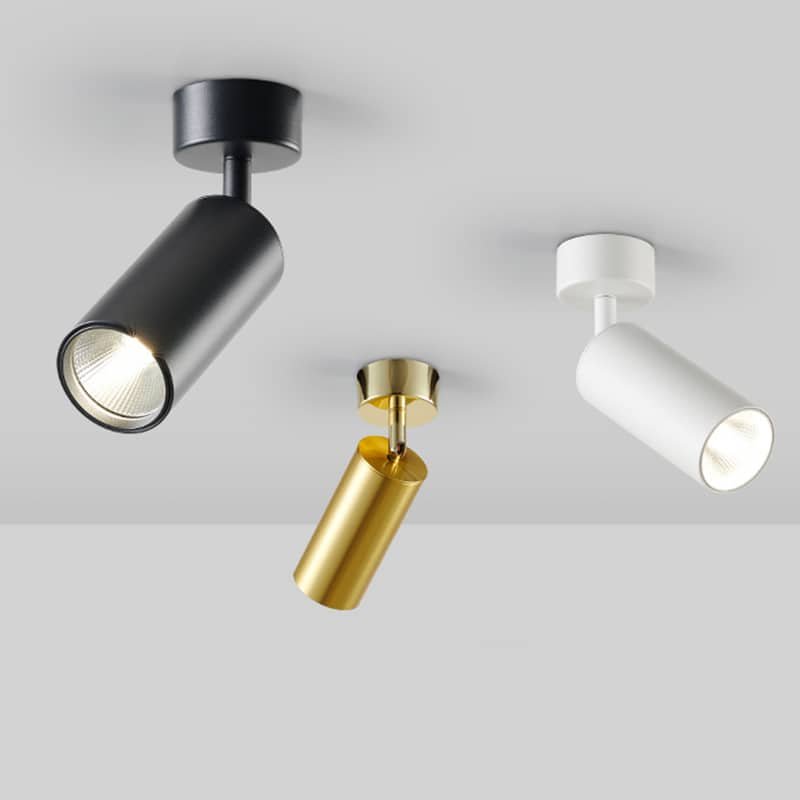

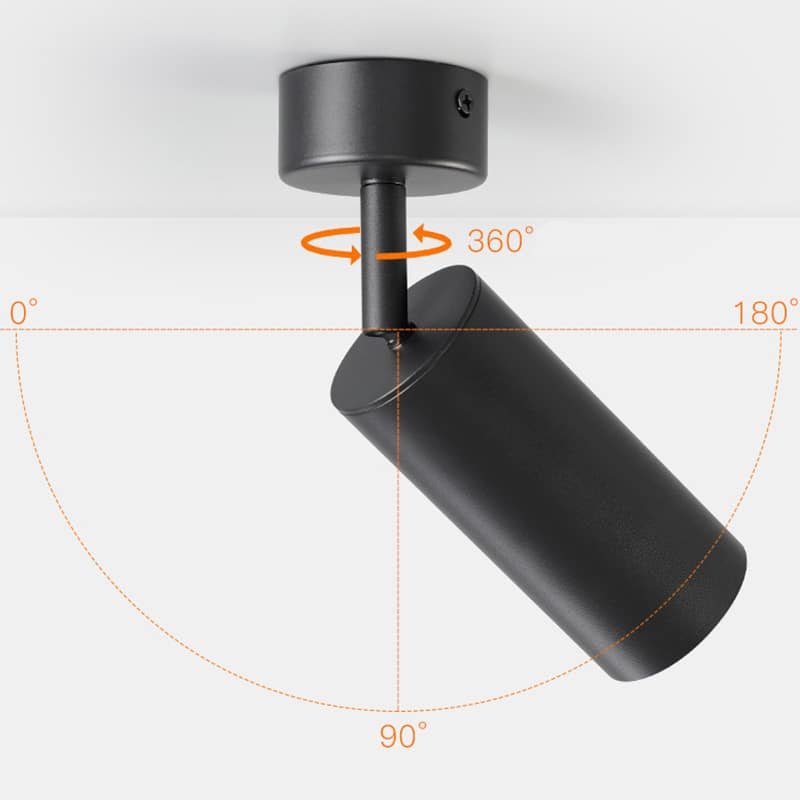

GR-DL-Z01 is a series of folding surface downlights, generally ceiling-mounted on the ceiling. The ceiling fittings can be separated from the lamp body so that the illumination angle of the lamp body can be adjusted as local lighting, which looks like a surface track spotlight. It can also be perfectly overlapped with the ceiling fittings to serve as cylinder downlight fixtures. The light source module can be adjusted by 90° vertically and rotated by 360° horizontally.

Material & Finished

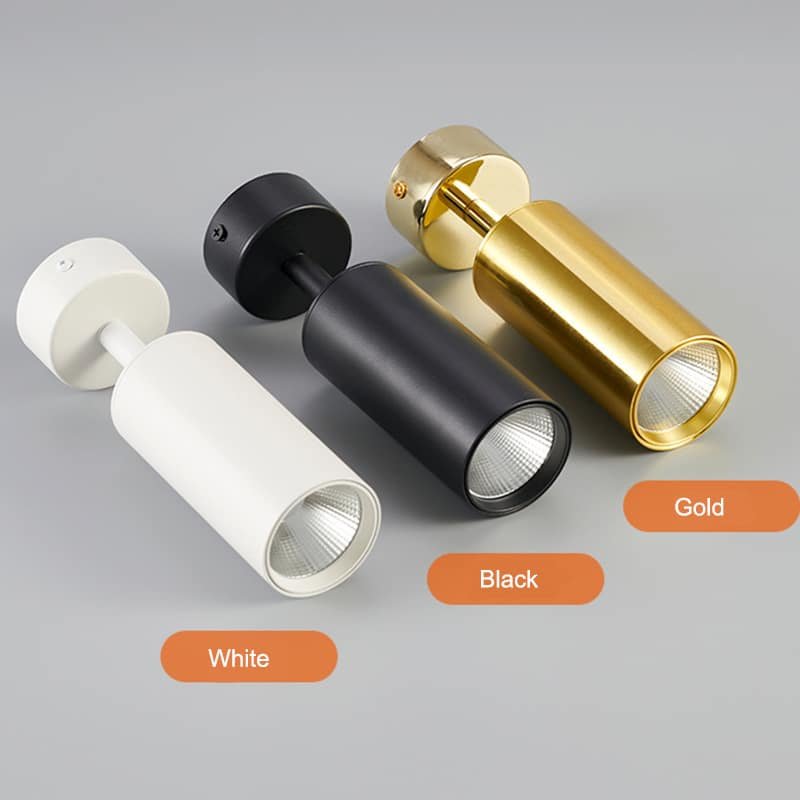

  • Heat sink: Aluminum body with high corrosion resistance and powdered painted. Matt white/black colors options, other RAL colors available on request.
  • Lens/diffuser: PMMA lens, non-yellowing.
  • Power supply: Indoor driver with plastic body, top quality components with free flicker. Efficiency from 82% to 90% depend on different wattages, with ripple current < 5%.
  • Light source: Bridgelux COB as standard, CREE/CITIZEN available if needed. All is RA90 at least, better to show real colors of objects.
  • Surface hardware: Plastic, white/black finished
  • Package: White/Brown neutral inner box as standard. It is ok to customize color boxes with LOGO for wholesaler, distributers.

Additional Options

  • Zigbee Smart spotlights.
  • PWM/0-10V/DALI Dimmable
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
  • Emergency battery

Electrical & Optical

  • Input voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
  • Power Factor:>0.5 or >0.9
  • CRI(Ra):>90 (>97 Max available)
  • Lumens:90lm-100lm/W output.
  • SDCM:<5(<3 available)
  • Efficiency:>86%
  • IP Rating: IP22 Indoor use
  • IK Rating: IK07
  • Color temperature: 3000K Warm white; 4500K Natural white, 6000K cool white.
  • Beam angle: 24°/36°
  • Surge protection:1KV-2KV
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3/5Years.

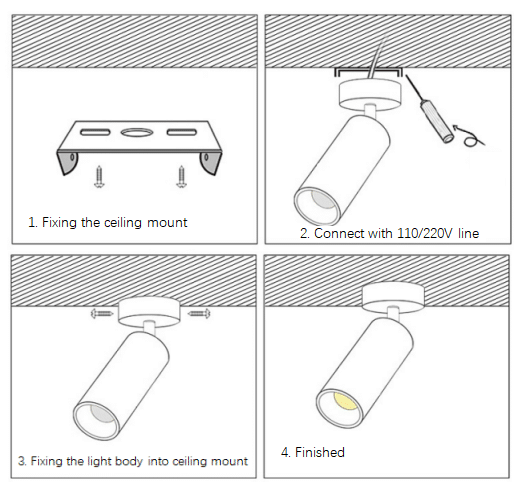

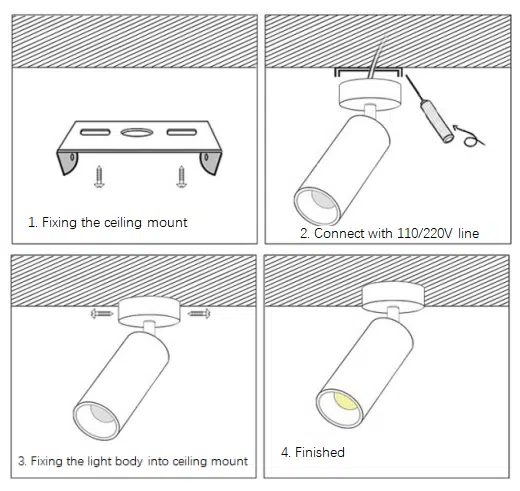

Installation and Mounting

Fix the plate to the ceiling with screws (not supplied). Connect the supply cable to the fast connector.

GRNLED offers the best price in the market.

Models and Details

Order modelWattageDimensionLumensColor temperatureBeam anglePower FactorLight SourceCRIInput voltageDATASHEET
GR-DL-10WZ0110W±5%Φ76*H162mm900-1000lm3000K,400K,6500K24°/36°>0.9COB>90110-120V/220-240VAC 50/60HzDownload
GR-DL-15WZ0115W±5%Φ76*H172mm1300-1500lm3000K,400K,6500K24°/36°>0.9COB>90110-120V/220-240VAC 50/60HzDownload
GR-DL-20WZ0120W±5%Φ90*H182mm1800-2000mm3000K,400K,6500K24°/36°>0.9COB>90110-120V/220-240VAC 50/60HzDownload
GR-DL-24WZ0125W±5%Φ90*H182mm2100-2400lm3000K,400K,6500K24°/36°>0.9COB>90110-120V/220-240VAC 50/60HzDownload
