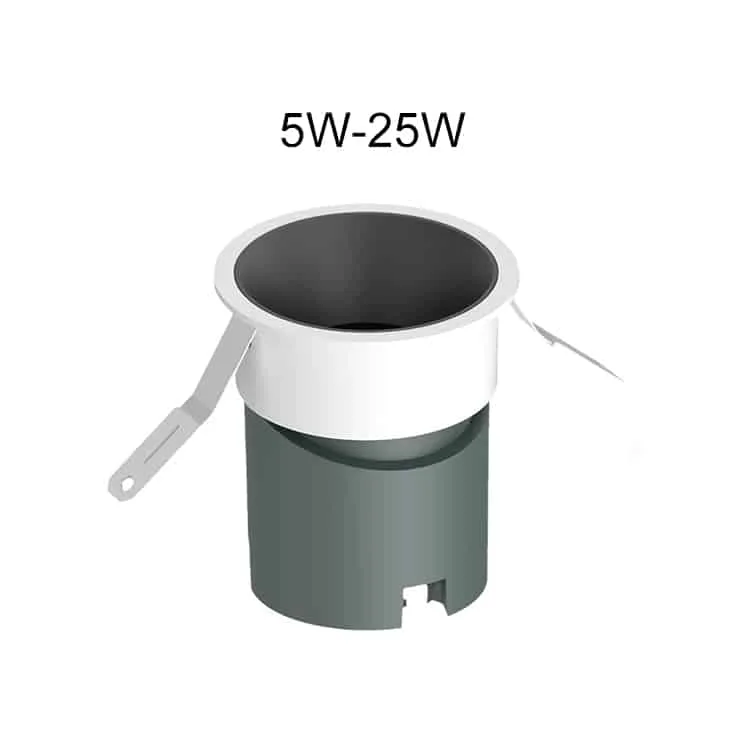

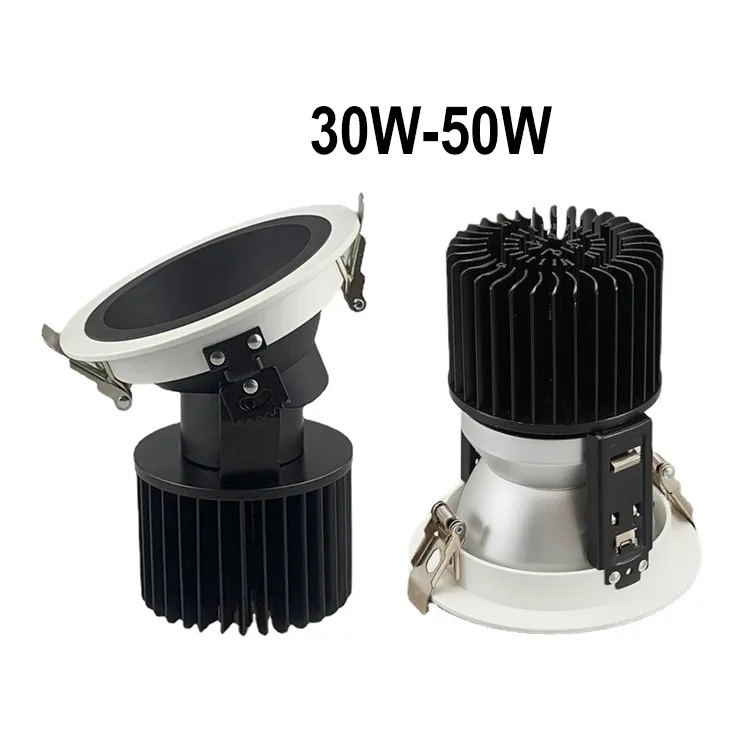

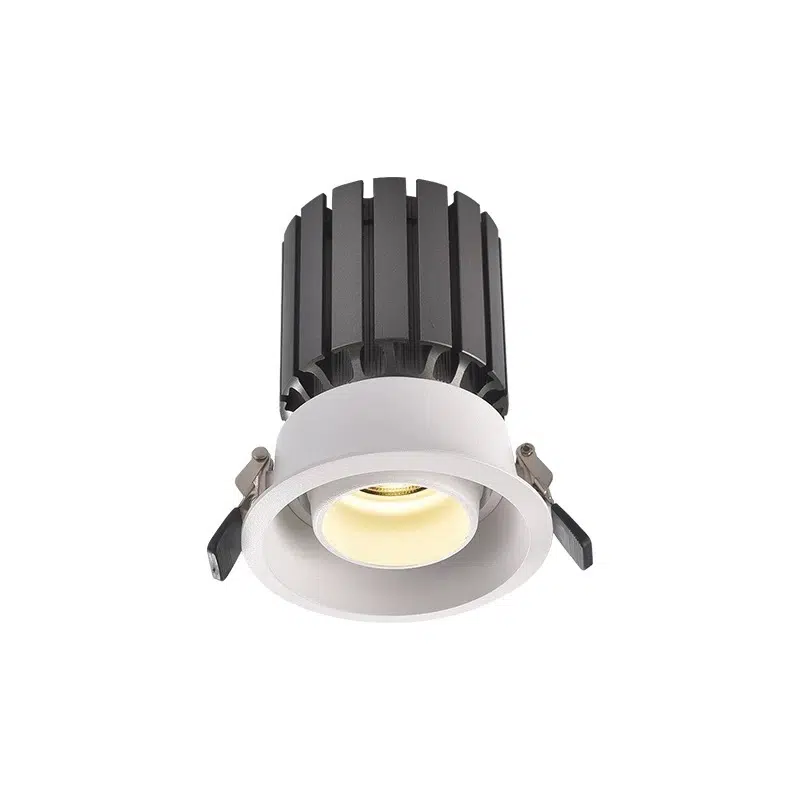

Recessed directional downlights | Model: GR-DL-G-03
GR-DL-G/03 Series is a top-quality recessed directional downlight, also called adjustable spotlight, it is available to adjust lighting direction as wall washer lights, including 7W 10W 15W 20W 30W 40W 50Wattage, and different reflector colors and types are optional. All with a deep reflector, with low glare value. It is the ideal choice to be hotel lighting, office lighting, supermarket lighting., etc.
Material and finished

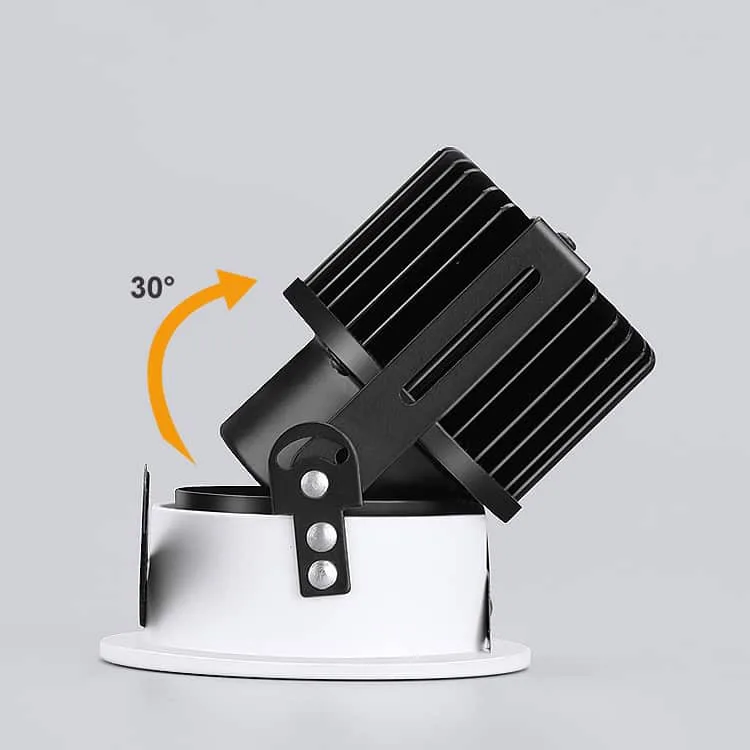

- Housing: Die-cast Aluminum heat sink, Black finished. The trim is aluminum, white finished, it is adjustable 30°.

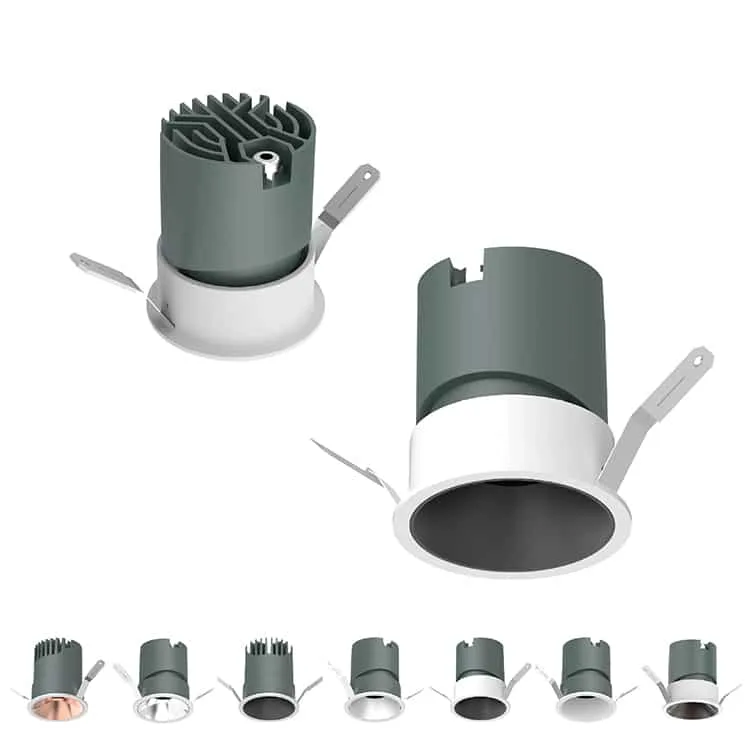

- The reflector: black/white/silver reflector color optional. and different reflector types include half-moon, small round, tilt reflectors available.
- Transformer: LiFud/Philips as standard.
- Led chips: CREE/Bridgelux COB chips
- Mounting Clips: Metal body, strong strength, easy to do the recessed installation
- Cables & wires: UL#22AWG electric cable, white/black optional.
Additional Options
- Zigbee/ WIFI /Bluetooth Mesh smart lighting by Phone APP, Google home, AMAZON Alexa.
- Dimming (PWM/0-10V/DALI Dimmable)
- Low voltage input voltage DC12V/DC24V/DC36V/DC48W
- Emergency backup (30% power with 1hours 2hours 3hours last)
Electrical & Optical
- Working voltage:100-265VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor: >0.9
- CRI:>90
- UGR:<17
- Lumens:90lm-100lm/W output.
- SDCM:<5
- Efficiency:>87%
- IP Grade: IP22 Indoor use
- Beam angle: 24°/36°
- Working temperature:-25℃/+55℃
- Working life:>50000Hrs
- Color temperature: 3000K warm white/ 4000K natural white/ 6500K Cool white.
- Compliance: CE RoHS Certified
- Warranty:2/3/5 Years on demands.
Installation and mounting
Open a hole on the ceiling plasterboard according to the dimension, connect the driver with 110V/220V electric wires, then push it into the hole.
GRNLED offers the best price in the market.
Models and Details
| Order model | Wattage | Dimension | Cut out | Lumens | Color temperature | UGR | CRI | Beam angle | Input voltage | DATASHEET |
| GR-DL-10WG/03 | 10W±5% | Φ90*H115mm | Φ75mm | 850-1000lm | 3000K,4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-15WG/03 | 15W±5% | Φ110*H115mm | Φ95mm | 1300-1500mm | 3000K,4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-20WG/03 | 20W±5% | Φ110*H115mm | Φ95mm | 1750-2000lm | 3000K,4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-30WG/03 | 30W±5% | Φ140*H160mm | Φ124mm | 2600-3000lm | 3000K,4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-40WG/03 | 40W±5% | Φ160*H160mm | Φ145mm | 3450-4000lm | 3000K,4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
| GR-DL-50WG/03 | 50W±5% | Φ180*H176mm | Φ165mm | 4500-5000lm | 3000K, 4000K,6500K | <17 | >90 | 24°/36° | 110-120VAC/220-240VAC 50/60Hz | Download |
