Led directional Ceiling spotlight 10W-25W

The directional spotlight is available to do 90° adjustable direction up and down and like the gimbal downlight with a rotation of 360°. When installed on the ceiling, different irradiation directions can be adjusted, both as downlight and accent lighting

  • Ref Model: GR-DL-I series
  • Wattage:10W 15W 20W 25W
  • UGR:<19
  • IP Grade: IP22
  • Beam angle: 24/36°

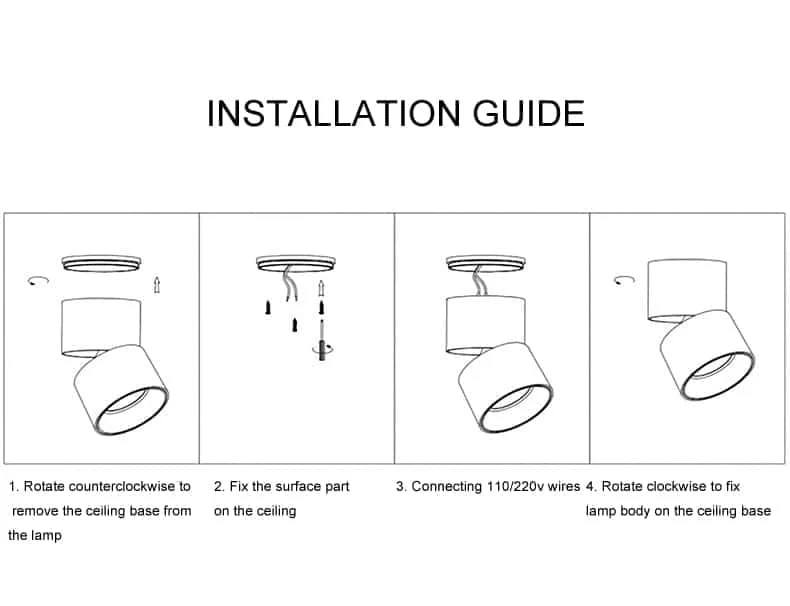

  • Installation: Surface mounted
  • Certificates: CE RoHS
  • Manufacturer warranty: 3/5 years
  • Origin: made in China
  • MOQ: 50pcs/Model
  • Payment term: 30% deposit advanced, 70% balance paid before sent out.
  • Lead time: 3-15 days according to order qty.
  • Dimmable: No

GRNLED offers the best price in the market.


Order ModelWattageDimensionLumensColor tempCRIIP RatingBeam angleInput voltageSpecification
GR-DL-10WI10W ± 5%Ø70*H100mm950-1100lm2700-6500K> 90IP2224/36°110/220-240VAC 50/60HzDownload
GR-DL-15WW15W ± 5%Ø90*H110mm1350-1600lm2700-6500K> 90IP2224/36°110/220-240VAC 50/60HzDownload
GR-DL-20WW20W ± 5%Ø110*H115mm1850-2200lm2700-6500K> 90IP2224/36°110/220-240VAC 50/60HzDownload
GR-DL-25WW25W ± 5%Ø110*H130mm2300-2600lm2700-6500K> 90IP2224/36°110/220-240VAC 50/60HzDownload

Materials & Finished

  • Body: Die-cast aluminum, white/ black finish.
  • Reflector: Polycarbonate, white/black finish.
  • Lens: PC Cover, high efficiency.
  • Surface mounted base: Metal.

Control gear/ Optical

  • Working voltage:110/220-240VAC 50/60Hz
  • Power Factor:>0.5 as standard, or >0.9 optional
  • THD:<15%
  • Efficiency:>88%
  • IP Rating: IP22
  • Lifetime:>50000Hrs
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:3/5 Years.

Optical

  • Led light source: Bridgelux COB
  • CRI:> 90
  • SMDC: <5
  • Lumens: 110-130lm/W
  • Color temperature: 3000-6500k
  • Phase triac dimmable
  • Low voltage AC/ DC12V/DC24V/DC36V/DC48W
  • Museums

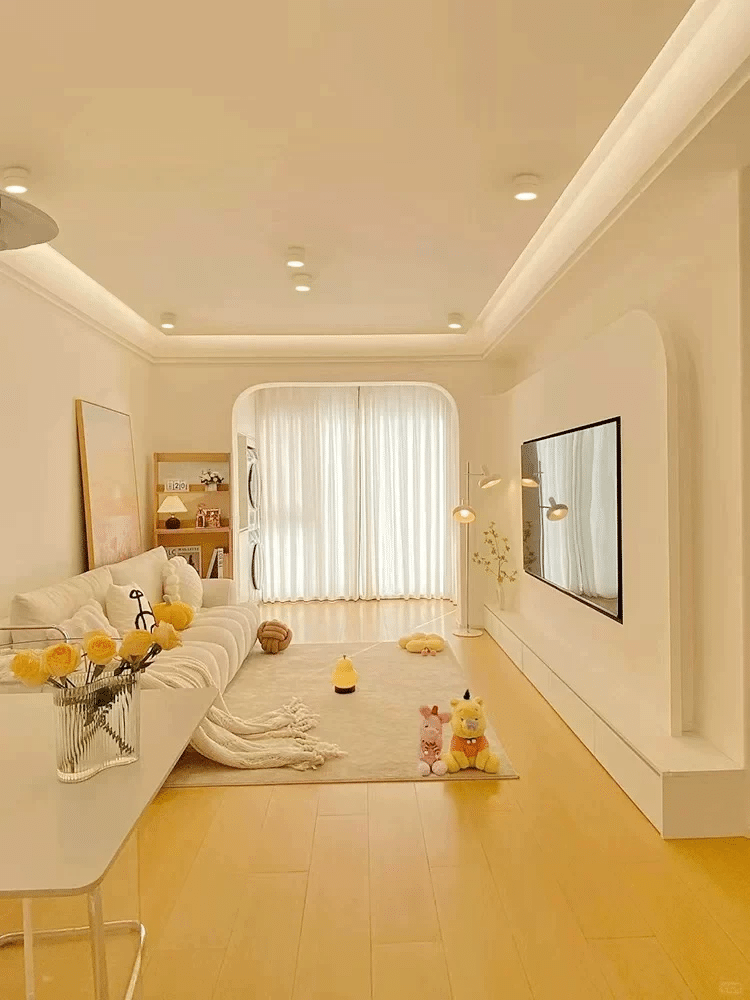

  • Living rooms
  • Offices

Q: What is a directional spotlight?

A:

Q: What is the difference between spotlight and directional light?

A:
