GU10 Downlights MR16 Led Module 5W 7W 9W 12W 15W

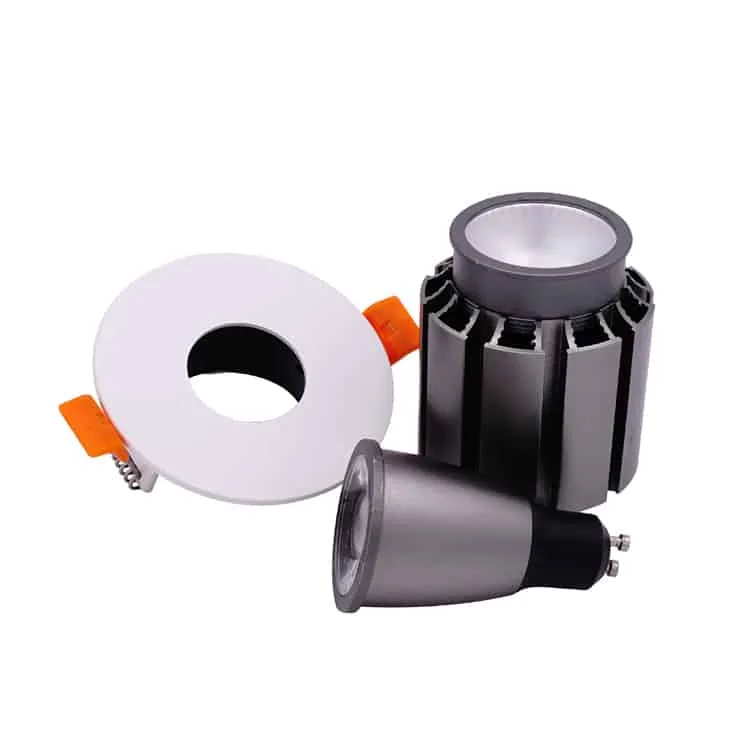

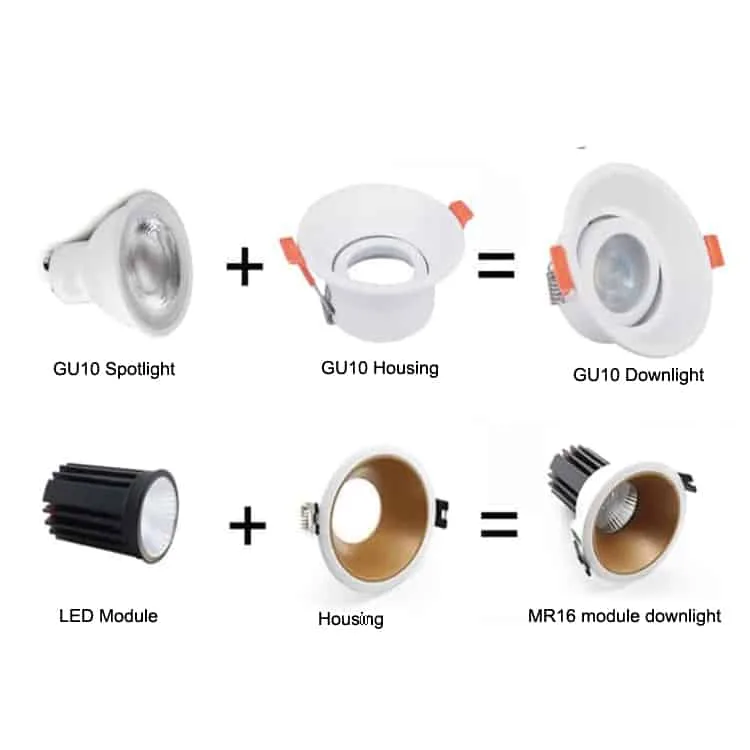

GR-DL-GU10 Series is a downlight fixture which is consist of GU10 spotlight or MR16 LED Module and round/square housing. Available 5W 7W 9W 12W 15W in wattages. The outcut hole for housing is about 75mm. It can be randomly matched according to different use environments or needs.
Feature & Benefits

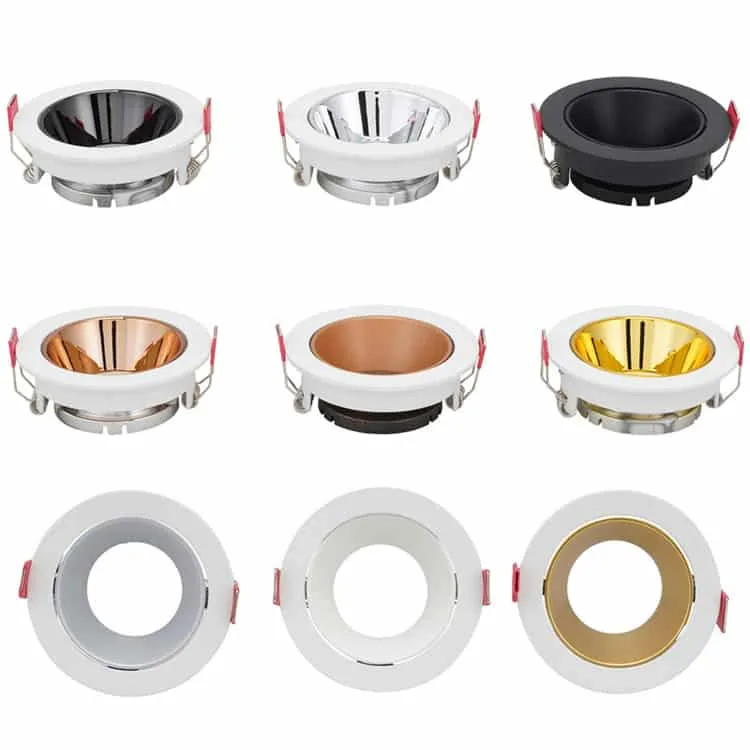

- Different GU10 downlight housing types are optional, round or square types. and the housing is both front and back available for gu10 spotlights.
- Working for GU10 Spotlights, MR16 LED module which is with an external driver.
- Different color options for reflectors.
- Reflectors: deep design with low glare. silver (Chrome) finished.
- Dimming: Yes. Triac/0-10V/DALI dimmable is available for the led module solution.
Application
commercial lighting/ residential lighting for hotel halls, Offices, Supermarkets, Hospitals, Schools, Shopping malls, bedrooms, kitchen rooms, etc.
Electrical & Optical
- Outcut hole:75-80mm
- Working voltage:220-265VAC 50/60Hz
- Power Factor:>0.5 OR >0.9
- CRI(Ra):>90
- Lumens:90lm-100lm/W output.
- SDCM:<5
- Efficiency:>88%
- UGR:<19 low glare
- IP Rated: IP22 indoor use
- IK Rating: IK08
- Color temperature: 3000K Warm white; 45000K Natural white, 6000K cool white.
- Beam angle: 24°/38° narrow distribution
- Lifetime:>50000Hrs
- Working temperature:-25℃/+55℃
- Compliance: CE RoHS Certified
- Warranty:2/3/5Years.
GRNLED offers the best price in the market. MOQ:200
