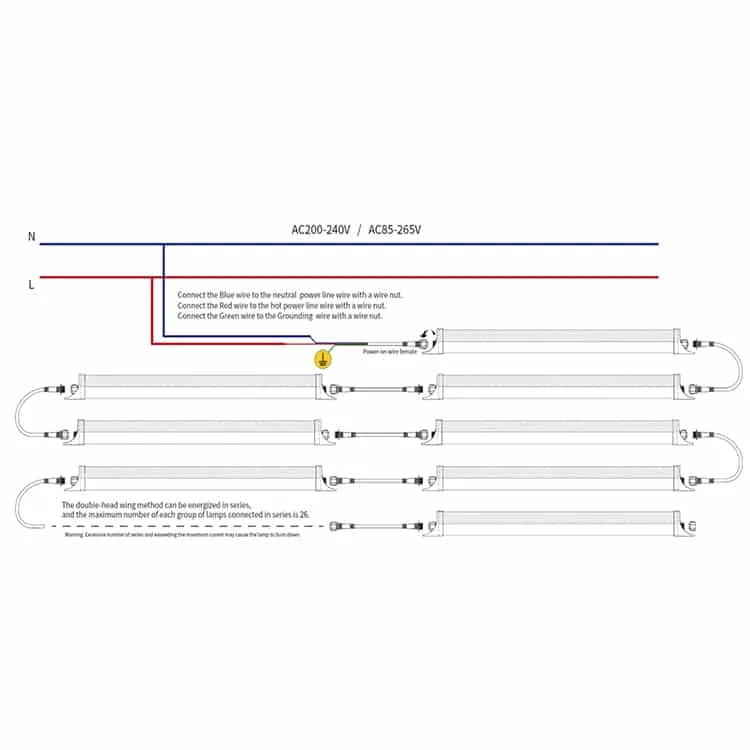

linkable wiring drawing

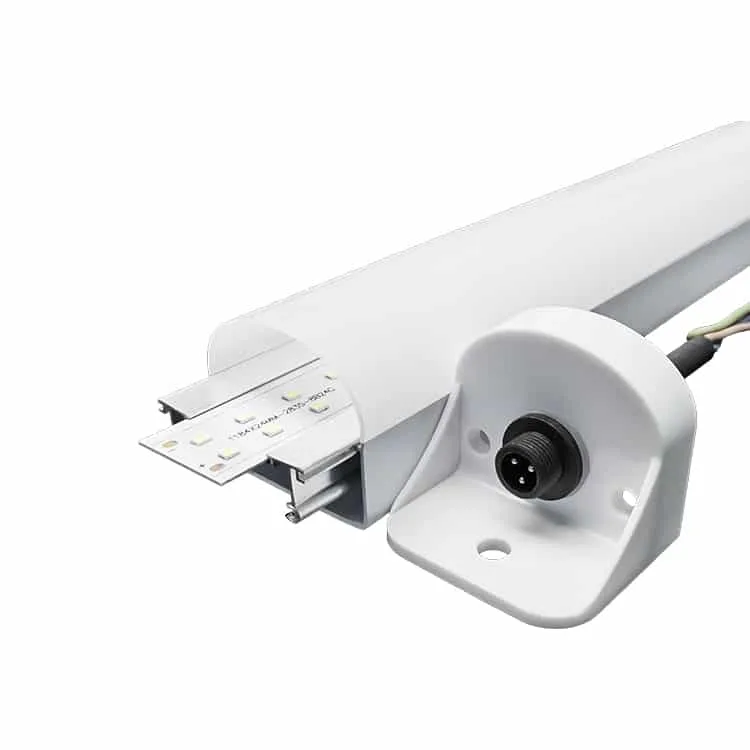

linkable led batten for warehouse

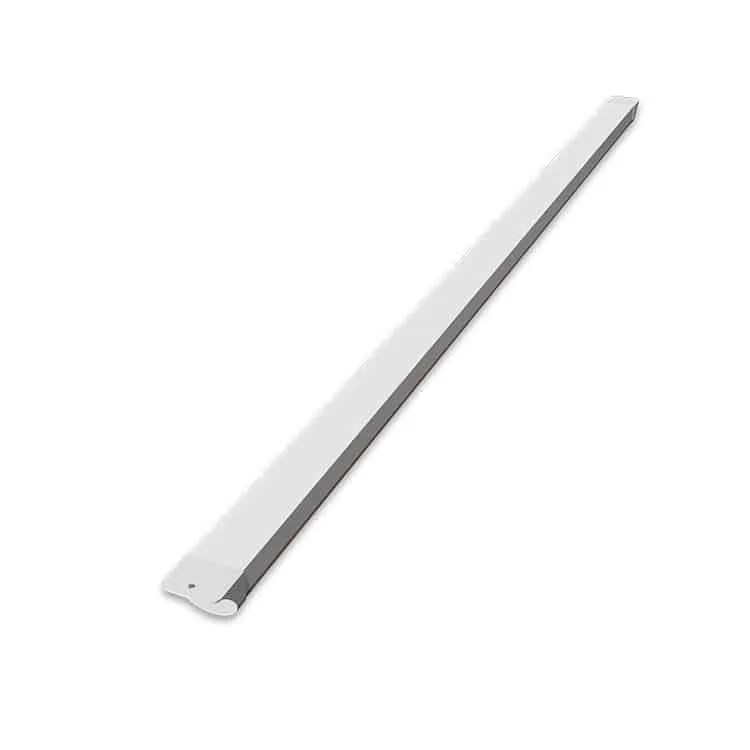

surface linkable garage lighting

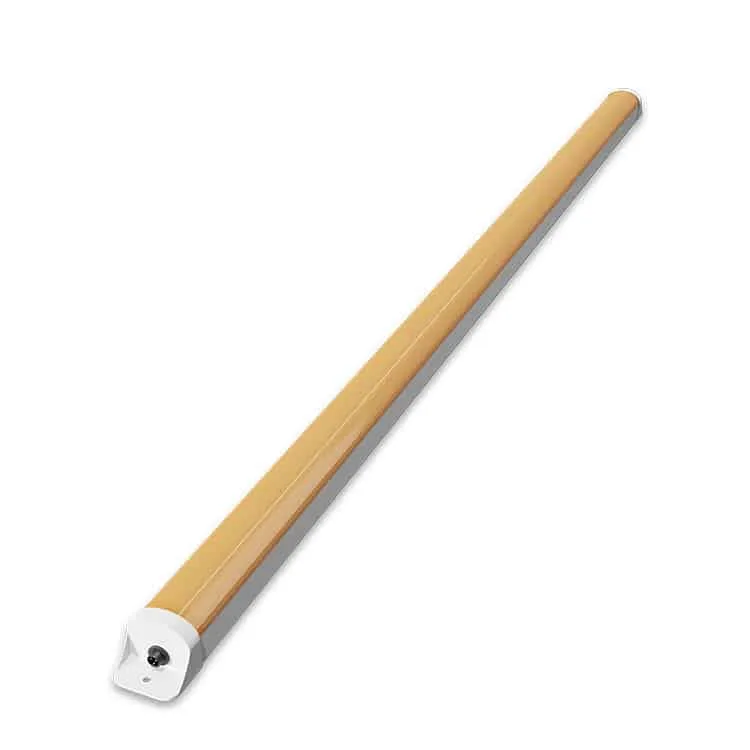

UV linkable led strip light
  • linkable led batten
  • linkable wiring drawing
  • linkable led batten for warehouse
  • surface linkable garage lighting
  • UV linkable led strip light

    • The GR-TP-U Series LED batten light is a flexible connection way design, and the end cap has a waterproof quick-connect connector, which works with both a linkable connection way and a single-end input connection way. Its structure is waterproof protection level, up to IP66 max. widely used for garages, shops, warehouses, and other commercial & industrial areas.

    • Ref Model: GR-TP-U
    • Length: 2ft (600mm), 3ft (900mm), 4ft (1200mm)
    • Wattages: 18W 28W 36W
    • Protection grade: IP65 Waterproof; IK08
    • Materials: PC Bottom+ Milky PC Cover
    • Luminaire lumens: 140lm/W
    • Installation mounted: Surface mounted/ wall mounted/ ceiling mounted /Suspended
    • Dimmable: No, but 0-10V / Triac dimmable / DALI dimmable is optional
    • Free flicker: Yes
    • Manufacture warranty: 3/5 years
    • Origin: Made in China
    • MOQ: 100pcs/model

    GRNLED offers the best price in the market.

    QUOTE
    Order modelWattageDimensionLumensColor temperatureIk ratingIP RateInstallationInput voltageDATASHEET
    GR-TP-2F2U18W(2ft) L600mm2500lm3000K,4000K,6500KIK08IP65Suspended/wall/Surface mounted100/200-240VAC 50/60HzDownload
    GR-TP-3F2U28W(3ft) L900mm3900lm3000K,4000K,6500KIK08IP65Suspended/wall/Surface mounted100/200-240VAC 50/60HzDownload
    GR-TP-4F2U36W(4ft) L1200mm5000lm3000K,4000K,6500KIK08IP65Suspended/wall/Surface mounted100/200-240VAC 50/60HzDownload

    Body & Finished

    • Housing: ABS materials as a standard, weatherproof, fireproof, flame retardant.
    • Cover: Frosted PC Cover shade as standard, Good toughness, no yellowing, strong flame retardancy.
    • Gland connector: M8-M10 waterproof gland.

    Control Gear/Led driver

    • Led driver brand: Linear strip constant current driver
    • Input voltage: 110/220-240VAC 50/60Hz
    • THD:<15%
    • Power factor: >0.9
    • Efficiency:>88%
    • IP Grade: IP20
    • Certificates: CE CB ENEC
    • Warranty: 3/5 years

    Optical

    • Led chips: Bridgelux SMD
    • Lumens:140-160lm/W
    • Color temperature: 3000K warm white; 4000K daylight; 6000-6500k cold white
    • LM80
    • SDCM:<5%
    • Steel ropes for suspension installation
    • Triac dimmable /0-10V dimming / DALI dimming optional.

    Just use screws to fix the light body at both sides on ceiling or wall,Please download the installation and wiring guide here if needed.

    • Shop lighting
    • Garage lighting
    • Warehouse lighting
