The Complete Guide to Magnetic Track Lighting

Magnetic track lighting is increasingly used in commercial projects such as offices, retail stores, and showrooms, especially in cases where flexibility, easy installation, and future adjustment are required.

In this guide, we will explain the magnetic track light’s working principle, how to choose the right system, avoid common problems, price difference and select suitable solutions for project applications. Let us delve in together.

What is Magnetic Track Lighting, and how does it work?

Magnetic track light system size

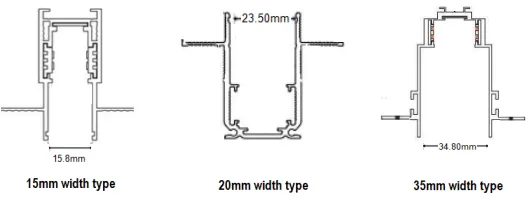

There are different dimensions for magnetic track lights, which are determined by the width of the magnetic track channels, mainly including 15mm, 20mm, and 35mm widths. Select the track width according to the installation height. The 20mm type is the most popular in the markets for residential lighting, such as living rooms, bedrooms, kitchen and dining rooms, or commercial lighting for shopping mall, office lights, etc. Moreover, magnetic track light rail lengths came in 1m, 2m, and 3m.

What are the components of the magnetic rail lighting system?

The entire magnetic lighting system, like traditional track lighting, consists of 3 parts – magnetic rails, magnetic lighting fixtures, and accessories. Each part has something to pay special attention to. Let’s go over the main points of each part in detail.

Magnetic Track

• In terms of size, the magnetic track is mainly divided into two types: 15 mm（M15）, 20mm (M20), and 35mm (M35) in width. The width of these two track strips determines the width of the corresponding magnetic lamp track head. That is, a 20mm wide track can only be installed with lamps with a 20mm wide track head, and 35mm is also the same.

• From installation, the magnetic rails include a recessed magnetic track, suspended magnet track, and surface-mounted magnetic rails.

Types of Magnetic Track Lights

The primary types of magnetic profile lights available in the market consist of grille spotlights, linear floodlights, adjustable folding spotlights, track spotlights, and pendant lights. Each light fixture features a modular design, allowing for easy addition, removal, and repositioning along the track as desired. Now, we are listing their feature as follows:

Accessories

The magnetic track lighting system includes a power input cable, a built-in driver(or external power supplies), an L-shaped connector, and adapters(horizontal and vertical connectors). You can download this PDF file to learn details about these accessories.

Where are the magnetic LED lights used?

These LED magnetic lights were mainly used in residential spaces such as kitchens, dining rooms, living rooms, and bedrooms in the past. Their flexible design allows for various layout combinations, creating a stylish and modern lighting effect.

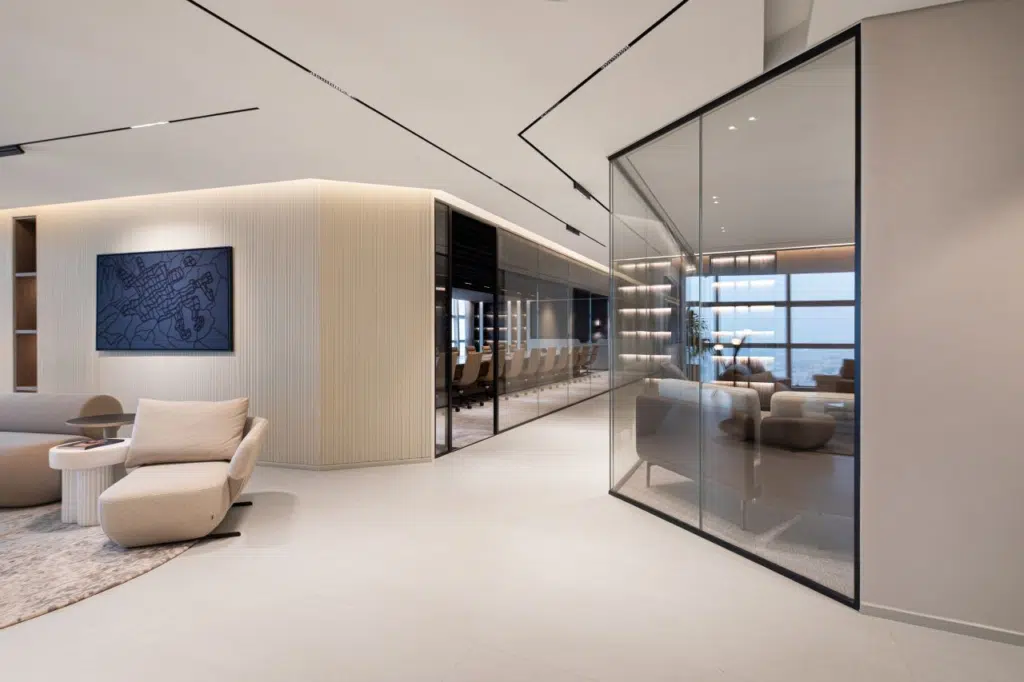

Nowadays, they are widely applied in commercial environments such as offices, supermarkets, and retail stores. When combined with LED panel lights and downlights, they help create lighting solutions that are both practical and atmospheric.

How to Choose Magnetic Track Lighting?

The best magnetic track lighting system should be easy to install, compatible with most light fixtures on the market, and use the same accessories as other standard track lighting systems.

There are many different parts for the whole magnetic track lighting system, so are you worried about not knowing how to choose them? Now, share the following buying guide:

Step 1: Confirm the magnetic track light design pattern for the space

There are about 4 design shapes for the whole lighting system: L shape, I shape, parallel lines Shape, and Square shape.

Square shape. It is suitable for living rooms and offices.

U Shape: Mainly used for the living room.

L Shape: Good for use in corridors, living rooms, and cloakrooms.

I Shape: For the living room, dining room, and kitchen.

Step 2. Choosing a suitable magnetic track rail.

As described above, there are 4 different magnetic track types.

1. Recessed magnetic track: This is suitable for new homes that are considering suspended ceilings but haven’t installed them yet. It is necessary to make grooves and pre-embed tracks and then press them into the ceiling.
2. Trimless magnetic rail: It is used in a room where the ceiling has been made, and the hole is directly fixed on the ceiling plasterboard.
3. Surface / Pendant magnet track: This is mainly used for places that are without false ceilings or not good for making plasterboard, such as supermarkets, offices, etc.

Step 3. Choosing magnetic LED lights.

Step 4. Choosing the accessories

After you confirm the design shape for the whole magnet track system, you will know which adapter or connectors you need to request as follows:

Step 5. Choosing a magnetic driver

There are two solutions for the whole system for driver choices.

1. 48V Built-in driver. It is good for integration with all magnet tracks, especially for suspension or surface-mounted tracks. Available 100W and 200W in power.
2. External driver. Mainly working on recessed installation. The external driver is much better than a built-in driver in terms of quality. Meanwell power supplies 100W,200W, and 350W, which are less than 15% in THD, are available. The external power supply is suitable for placing the air outlet of the air conditioner or the exclusive maintenance port, which is convenient for future maintenance, repair, or replacement.

Magnetic Track Light Installation

Installing magnetic track lighting is easy. You can install it by yourself, and there’s no wiring involved. Simply mount the track to your ceiling, attach the lights to their channel, mount the metal brackets through powerful magnets, aim them where you want them, plug them in, and turn them on!

Common Problems for Contractors Buying Magnetic Track Lights

Compatibility Issues Between Track and Fixtures

One of the most common problems is incompatibility between tracks and light fixtures.Different manufacturers use varying designs for copper contacts, spacing, and clip structures. Even if products look similar, fixtures may not fit properly.

Unstable Power and Voltage Drop

Although most systems are labeled as DC48V, actual performance may vary. Voltage drop can cause lights at the end of the track to appear dimmer. Overstated driver power may lead to overload, flickering, or system tripping

Poor Track Material and Conductivity

Low-quality tracks can lead to multiple issues over time:

• Thin metal structures may deform under heat
• Inferior copper strips can oxidize or cause poor electrical contact
• Arcing and localized overheating may occur

These problems affect both safety and long-term reliability.

Poor Light Quality

Some products claim high CRI (Ra90), but actual performance may be lower, resulting in poor color rendering—especially in retail environments. Inconsistent color temperature can also cause visible differences on the same track.

In addition, poor optical design may lead to high glare, uneven lighting, and dark spots, often resulting in project rejection or rework.

Installation and Structural Problems

• Uneven track joints affecting overall appearance
• Clips that are too loose (safety risk) or too tight (difficult maintenance)
• Poor coordination with ceilings, leading to cracking or misalignment

In addition, incorrect wiring or poor planning may damage the entire system.

Long-Term Reliability and Maintenance Risks

Over time, additional issues may appear:

• Flickering or buzzing due to poor drivers
• Magnetic clips losing strength, creating safety risks
• Copper oxidation leading to intermittent lighting

These problems increase maintenance costs significantly.

Lack of Certification and After-Sales Support

Some low-cost suppliers may lack proper certifications such as CE, FCC, or other required standards.

• Products may fail inspection or compliance checks
• No spare parts or technical support available
• Suppliers may not provide long-term service

This creates serious risks for project delivery and maintenance.

Choosing magnetic track lighting is not just about appearance or price. It is about ensuring compatibility, stability, safety, and long-term support.

FAQ about Magnetic Track Lights

Are your tracks compatible with other light fixtures or just the ones your company makes?

Yes, our magnetic track system is compatible with light fixtures from other suppliers, offering greater flexibility for your projects. We provide two track sizes: 20mm and 35mm. Each track is designed to match its corresponding fixtures — the 20mm track works with 20mm magnetic lights, while the 35mm track is compatible with 35mm fixtures.

What is the best magnetic track width (20mm vs 35mm)?

It depends on your project’s power needs, space and style. Simple put, 20mm is good for shallow ceilings, minimalist residential living room, bed room design. 35mm width track lights are idea for commercial usage where need higher power and brightness.

How far does the magnetic linear track need to be away from the wall?

Generally, we advise being away from the wall by about 40-60cm. Of course, you can do it according to the actual size of your house.

Can the magnetic LED lights be dimmed?

Yes, it can. We have 0- 10V dimmable, DALI Dimmable types, and smart dimmable magnetic track lights（WIFI, Bluetooth mesh, and Zigbee versions） available. The smart dimmable type 3CCT Color changing+ Dim brightness includes WIFI 2.4G, Bluetooth Mesh, and ZIGBEE, which all work with the TUYA APP, remote control, and a smart switch on/off by a smart hub (gateway).

Are there any disadvantages to using this type of lighting fixture?

One disadvantage of using magnetic track lighting is that it is expensive. Because of the materials used, it is over three times more costly to purchase magnetic track lighting when compared to other types.

Do they come in different colors?

You can find magnetic track lighting in various colors, including 3000K warm white, 4000K-4500K daylight, and 6000-6500 K cool white. These color temperatures will have different effects on residential rooms.

What’s more, there are also different colors for magnetic rail tracks; the main one is black, but the white magnetic track is also available. These two tracks’ colors will give a different performance in lighting decoration.

What is the magnetic track lighting price?

Different widths of luminaire fixtures will have different prices; the 20mm width will be cheaper than the 35mm width types. Each part will follow in price for reference:

Why Do Prices Vary So Much Among Magnetic Track Light Manufacturers?

1. Different raw materials

• Aluminum shell. The housing ( light body) includes different thicknesses; some are heavier, which provides better heat performance at a higher cost. Some suppliers use ultra-thin light bodies, which will be mostly fake wattages marked at 20W, but the actual wattage may be only 15W or even less.

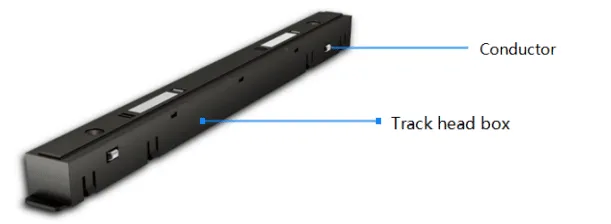

• Track head: The cheap conductor is aluminum, the better is copper; the cheap track head box is normal plastic, the better track head box is flame-retardant, which will be safer.

2. Different LED Driver solution

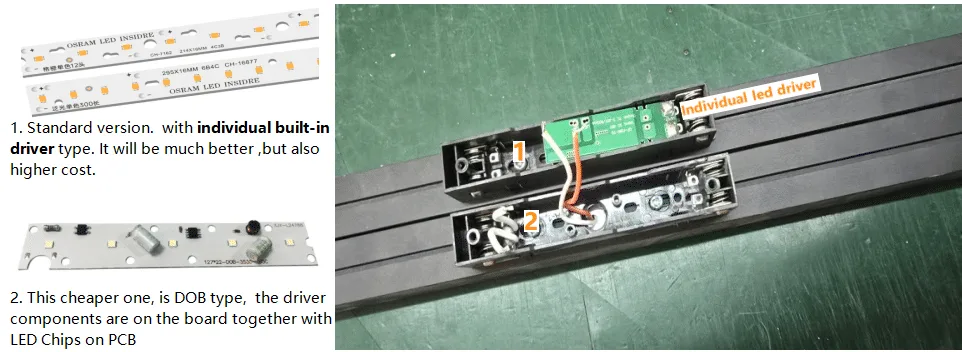

There are two types of LED driver solutions for magnetic lighting systems. The normal one is with an individual LED driver, which is much better with a higher cost; the other one is the DOB type. You can check the following drawings for their difference:

3. Different assembly processes and after-sales service

Many suppliers who only do cheap LED lights will not focus on the assembly process, such as not using thermal grease to secure the PCB, which will reduce the cooling effect. And they mostly also do not have any age test before sending out. All these details will have a serious effect on the quality.

4. Different from countries

The prices of producers or suppliers in different countries will be different. For example, the prices of Chinese manufacturers will be lower than the actual prices of LED magnetic track lights in Nigeria or the UAE. After all, the product supply chains in different countries are different, and in China, the raw material supply chain of products will be more complete, and the prices will be lower.
