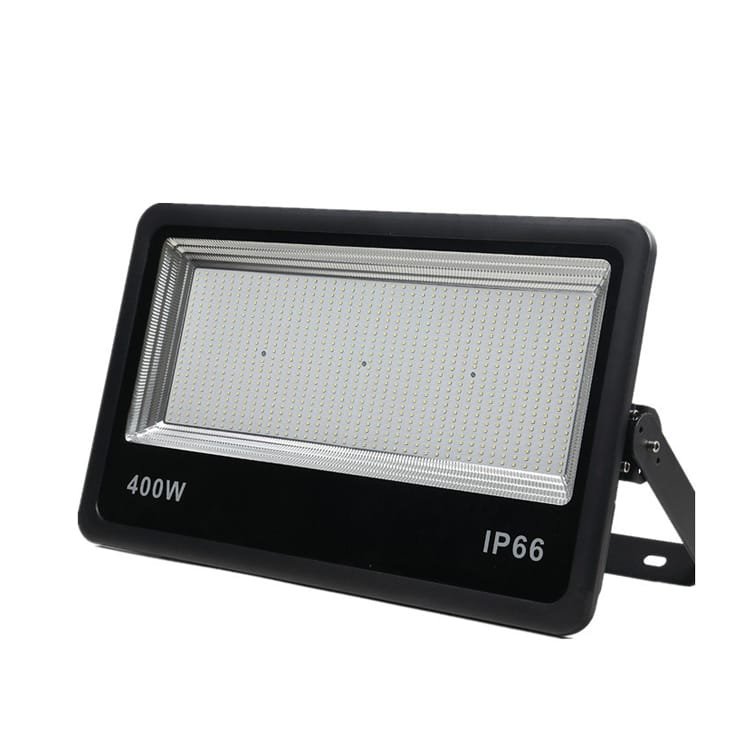

Wide angle flood light 20W-500W | Model: GR-FL-A

They are wide-angle flood lights with 120° distribution, are made of a large beam angle reflector and a die-cast aluminum body, high brightness LED chips (available for both SMD chips and COB floodlight), and toughed glass. Its protection grade is up to IP66. The wide distribution is very large, which is very suitable for empty places such as basketball courts, tennis courts, playgrounds, football fields, squares, parks, parking lots, etc.

  • Model: GR-FL-A Series
  • Wattage: 20W 30W 50W 100W 150W 200W 300W 400W 500W
  • LED chip type: SMD2835 or COB optional
  • Beam angle: 120° wide distribution
  • Control way: ON/OFF
  • Surge protection: 4-6KV
  • Working temperature: -25/+55℃
  • Storage temperature: -30/+60℃
  • Origin: Made in China
  • Certificates: CE RoHS
  • MOQ: 50pcs/Model

GRNLED offers the best price in the market—better quality but at a lower price.

Order modelWattageInput voltageDimensionLed LumensColor temperatureBeam angleCRIIP RatingIK RatingDATASHEET
GR-FL-20WA20W100-240VAC 50/60Hz146*126*37mm2000-2200lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-30WA30W100-240VAC 50/60Hz195*165*40mm3000-3300lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-50WA50W±5%100-240VAC 50/60Hz218*155*48mm5000-5500lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-100WA100W±5%100-240VAC 50/60Hz295*216*50mm10000-11000lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-150WA150W±5%100-240VAC 50/60Hz320*262*60mm15000-16500lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-200WA200W±5%100-240VAC 50/60Hz374*268*60mm20000-22000lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-300WA300W±5%100-240VAC 50/60Hz434*320*60mm30000-33000lm3000K, 4500K, 6500K120°>70IP66IK07Download
GR-FL-400WA400W±5%100-240VAC 50/60Hz495*373*60mm40000-44000lm3000K, 4500K, 6500K120°>70IP66Ik07Download
GR-FL-500WA500W±5%100-240VAC 50/60Hz651*400*70mm50000-55000lm3000K, 4500K, 6500K 120°>70IP66IK07Download

Body & Finished

  • Housing: Die-cast aluminum housing, matt white/black finish
  • Cover: High-strength tempered glass,2.5mm thickness can adapt to the harsh outdoor environment
  • Reflector: PMM silver reflector, Anti-UV, and High reflectivity
  • Screws: 201 or 304 Stainless Steel
  • Bracket: Metal body, Black powder coated. Rotation 180°
  • Cables & Wires: 0.75²*3 input cable, High and low-temperature resistance

Control Gear/Led Driver

  • Led driver type: Constant current driver as standard, famous brand driver such as Meanwell, Moso, Philips, Osram driver can be optional
  • Input voltage:100-240VAC 50/60Hz
  • PF:>0.95
  • THD:<15%
  • IP Grade: IP66 waterproof
  • Warranty: 2/3 years


  • LED chips: Bridgelux/Lumileds SMD2835 chips or bridgelux COB chips
  • Lumens: 120-140lm/W
  • CRI:>70
  • SDCM: <5
  • LM80
  • Photocell ( dusk to dawn)

This wide distribution led floodlight is mainly used for large spaces like backyards, gardens,and stadium fields.
