Industrial High Bay LED lights for warehouse/gym/garage

This industrial high bay LED lighting incorporates a copper heat conduction design, available in power options of 100W, 150W, 200W, and 250W. These lights integrate a copper conductor within the lamp’s radiator, ensuring full contact with the aluminum substrate of the light source. The luminaire’s structure is adaptable to various power supply schemes, accommodating both circular and strip-shaped street lamp drivers. This enhances customer flexibility and caters to diverse location requirements. Primarily used for industrial lighting, illuminating large spaces with high ceilings, such as warehouses, factories, gyms, garages, indoor stadium fields and industrial facilities

  • Ref Model: GR-HB-M Series
  • Wattages: 100W 150W 200W 250W
  • Brightness:110-130lm/W output
  • Aluminum reflector: 45°/60°/90°/120° optional
  • Control way: ON/OFF as standard, dimming version optional
  • Installation: Hook suspension mounted, or surface mounted by brackets
  • Color temp: 3000K/4500K/6500K
  • Working life:>50000Hrs
  • Manufacturer warranty: 5 years
  • Origin: Made in China
  • MOQ:20pcs/Model
  • Lead time: 5-15days according to quantities

GRNLED offers the best price in the market. Better quality but at a lower price.

Order modelWattageDimensionLumensColor temperatureInput voltageIP RatingCRIBeam angleTHDDATASHEET
GR-HB-100WM100W±5%φ280*H175mm12000-15000lm2700K-6500K100-277VAC 50/60HzIP65>8045°/60°/90°/120°<10%Download
GR-HB-150WM150W±5%φ340*H185mm18000-22000lm2700K-6500K100-277VAC 50/60HzIP65>8045°/60°/90°/120°<10%Download
GR-HB-200WM200W±5%φ400*H120mm24000-28000lm2700K-6500K100-277VAC 50/60HzIP65>8045°/60°/90°/120°<10%Download
GR-HB-250WM250W±5%φ400*H125mm27000-30000lm2700K-6500K100-277VAC 50/60HzIP65>8045°/60°/90°/120°<10%Download

Body & Finished

  • Housing Heat sink: Aluminum body, Matt black powder-coated.
  • Cover: High-strength PMMA lens, anti-UV.
  • Reflector: Aluminum, silver finished, 45°/60°/90°/120° optional
  • Cables & Wires: 0.75²-1.0²*3 input cable, High and low-temperature resistance, good insulation performance. It is ok to be with different types of plugs.

Control Gear/ Led driver

  • Brand: Moso brand driver as standard, Meanwell/ Philips/Osram as optional
  • Built-in surge protection: 6KV
  • Input voltage: 100/220-277VAC 50/60Hz
  • Power Factor: >0.95
  • THD: <10%
  • Efficiency: >91%
  • IP Grade: IP66 waterproof
  • Certificates: CE, CB, TUV, TUV, UL
  • Warranty: 5Years

Optical

  • Light source: Lumileds(Philips)/Bridgelux
  • LED Type: SMD3030/ SMD2835
  • Lumens:140-160lm/W
  • SDCM: <5
  • Color temp: 3000K, 4000-4500K; 5700-6500K
  • LM80

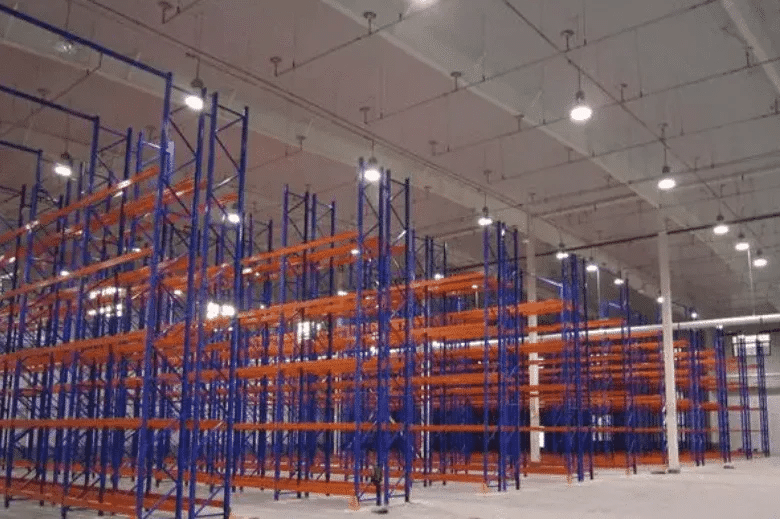

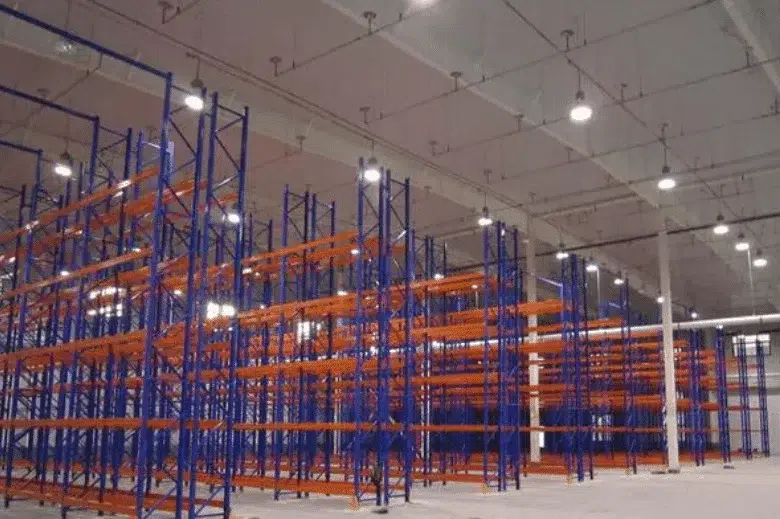

This high bay lighting mainly used for industrial and commercial areas such as warehouses, garages, and gyms.

Q: What is the best lighting for an industrial warehouse?

A: Industrial warehouses with different heights are suitable for different types of LED lighting fixtures.

For 4-6meter height. The IP65 surface mounted weatherproof luminaire will be the best choice. they include 2ft 3ft 4ft 5ft 8ft in length, and also can be suspension.

For above 6 meters, high bay LED lights such as round high bay lights or linear high bay LED lights are the best lighting for the warehouse.

Q: What is the best color light for a warehouse?

4000K daylight or 6000k cold white color temperature is the best for warehouse lighting. 4000K daylight is the closest to the sunlight which is suitable for working. And 6000K cold white looks cold. A cool color temperature can maintain amplitude and make people more energetic. Regarding the color temperature of LED lighting, you can check How to choose the color temperature of LED lights
