Highway Led Street Light 300W-100W | Model: GR-SL-D

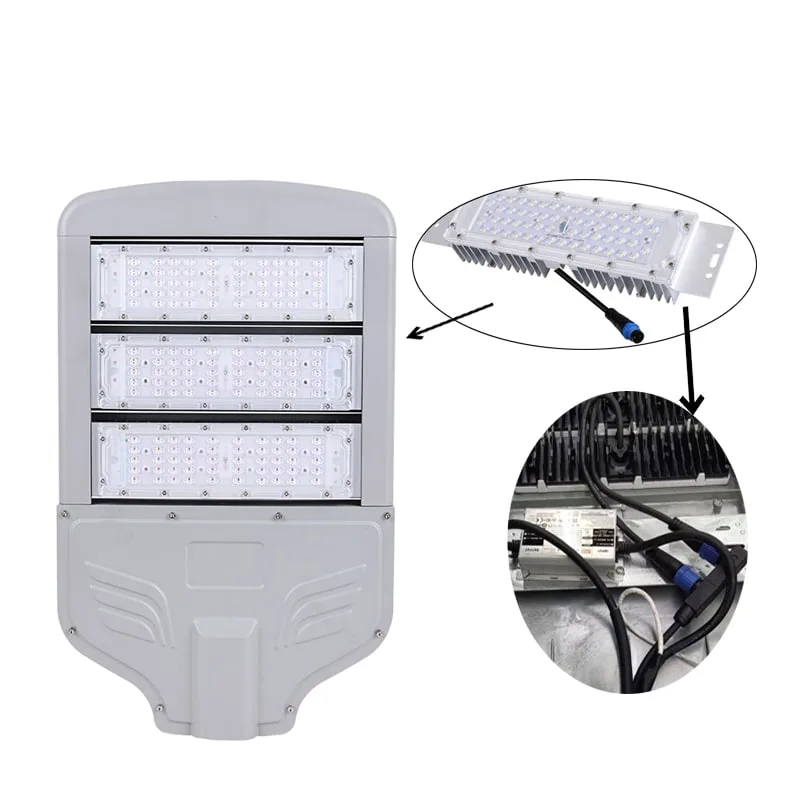

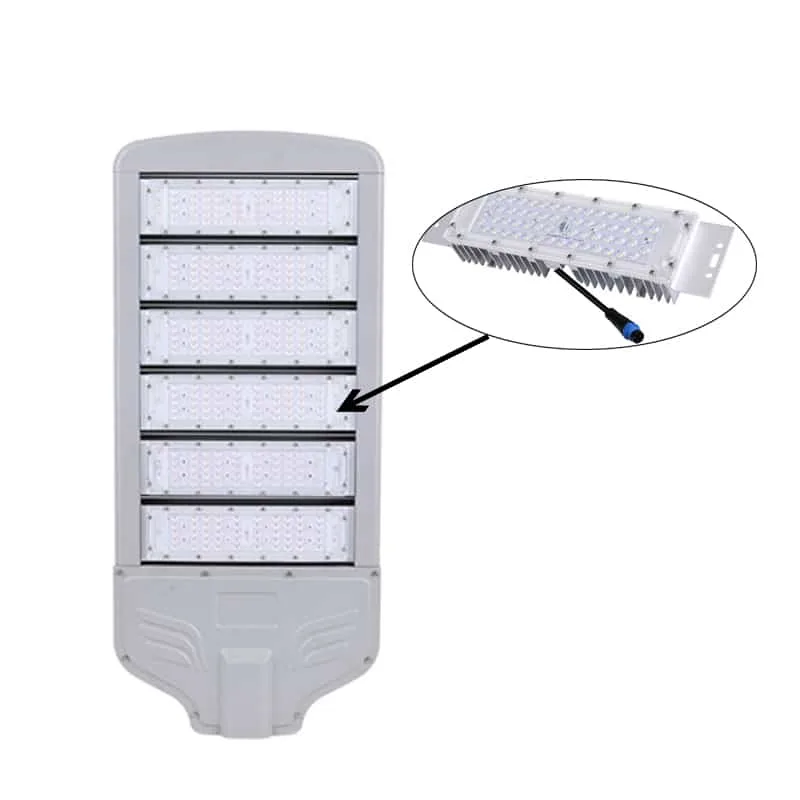

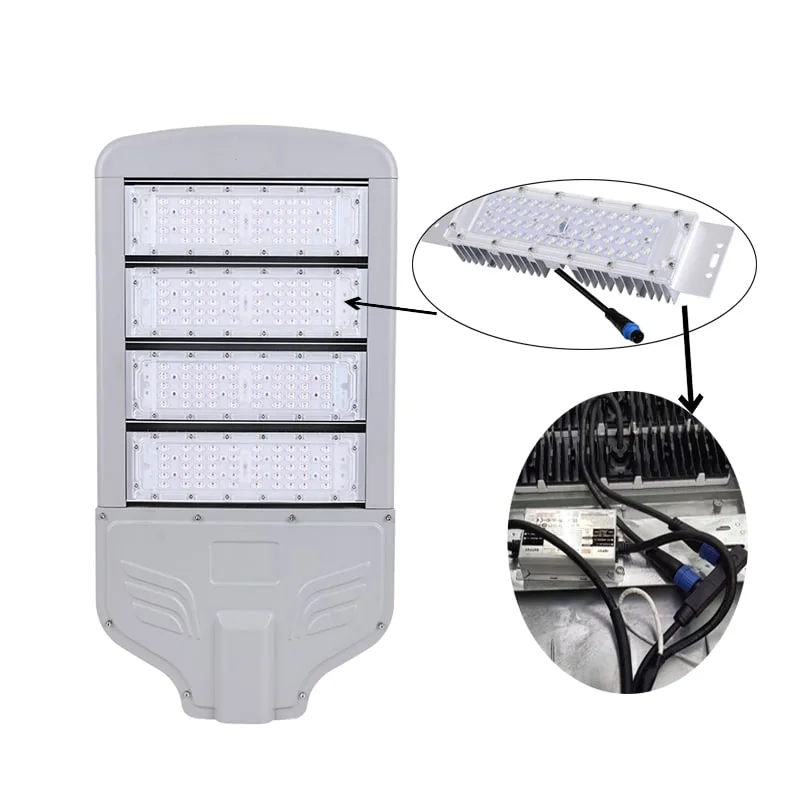

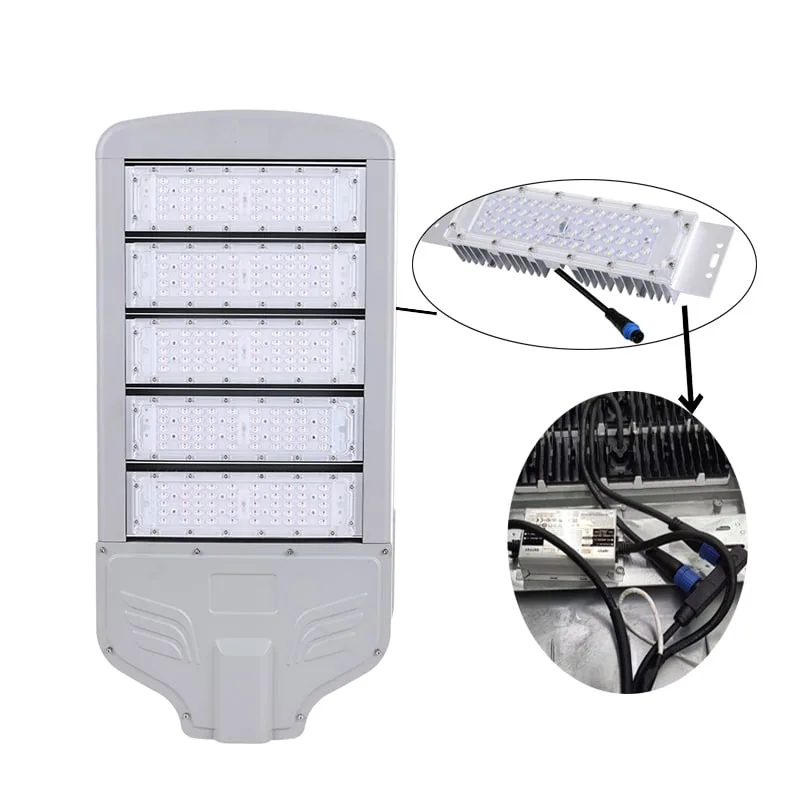

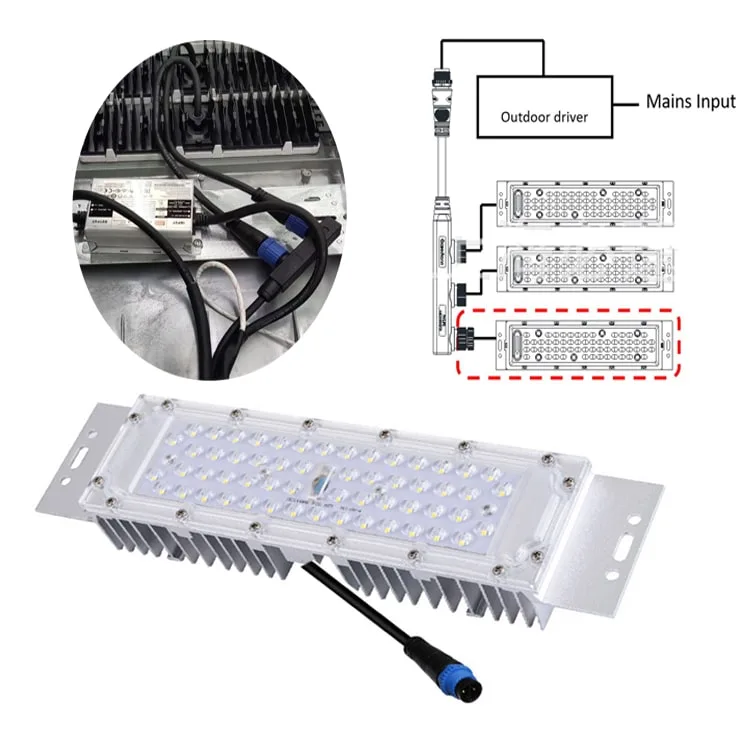

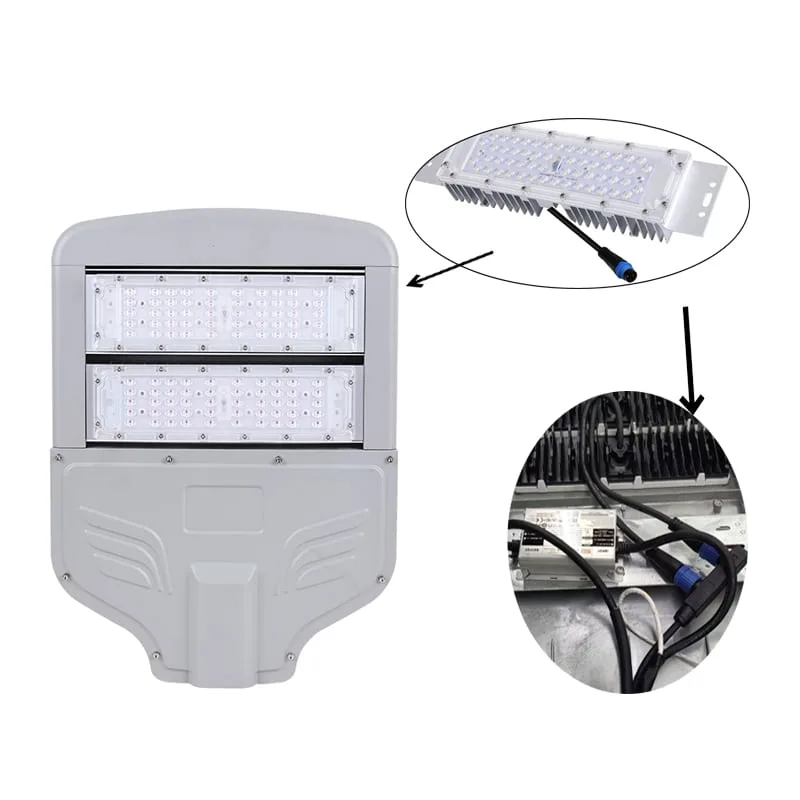

GR-SL-D series street light is consist of removable modular with fast connector, each module is seperately working, it is the fastest to do replacement or maintain if there is any wrong with one of modules. Its power can be 300Watt max with 33000-38000lm, very suitable to work on 12-14m-16m height poles on the highway or high mast.
Material and finished

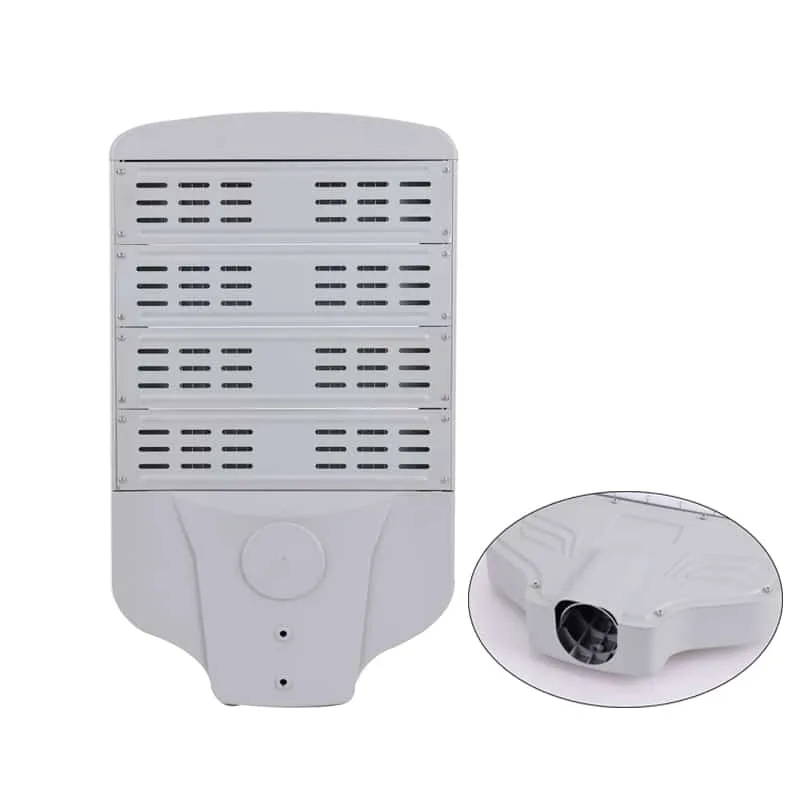

- Heat sink (housing): die-cast aluminum, powder coating texturized light grey as standard, it is ok to do other colors if needed.
- Lens/diffuser: Polycarbonate, Anti-UV. High light transmittance reaches more than 90%, strong sealing performance.
- Chips: Philips/Osram SMD3030 or 5050 led chips, high CRI, high lumens output, High uniformity, low light decline.
- Control gear: Isolated constant current driver, top performance such as Meanwell, DONE, MOSO, PHILIPS, SOSEN, high Power factor, low harmonics. Overvoltage protection, anti-surge setting.
- Screws: Stainless steel
- Cables & wires:0.75²*3 input cable, High and low- temperature resistance, good insulation performance.
Electrical & Optical
- Operating voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor:>0.95
- THD:<10%
- CRI:>80
- SDCM:<5
- Efficiency:>90%
- Surge protection:6KV-20KV
- Working temperature:-30℃/+55℃
- CE RoHS Certified
- Warranty:3/5 Years on demands.
Addition Options
- Time control
- Dimming (PWM/0-10V/DALI Dimmable)
- Photocell (dusk to dawn)
GRNLED offers the best price in the market. Better quality but a lower price.
Models and Details
| Order model | Wattage | Dimension | Led Lumens | Color temperature | Beam angle | CRI | IP Rating | IK Rating | Working life | Install hole | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GR-SL-100WD | 100W±5% | 442*330*80mm | 11000-14500lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 70*140° | >80 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-150WD | 150W±5% | 525*330*80mm | 16500-20000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 70*140° | >80 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-200WD | 200W±5% | 608*330*80mm | 22000-28000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 70*140° | >80 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-250WD | 250W±5% | 691*330*80mm | 27000-30000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 70*140° | >80 | IP65 | IK08 | >50000Hrs | φ60 | Download |
| GR-SL-300WD | 300W±5% | 774*330*80mm | 33000-41000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 70*140° | >80 | IP65 | IK08 | >50000Hrs | φ60 | Download |
*Order Model: GR-SL-300WD-01 = GR-SL-D Model for 300 Wattage.
