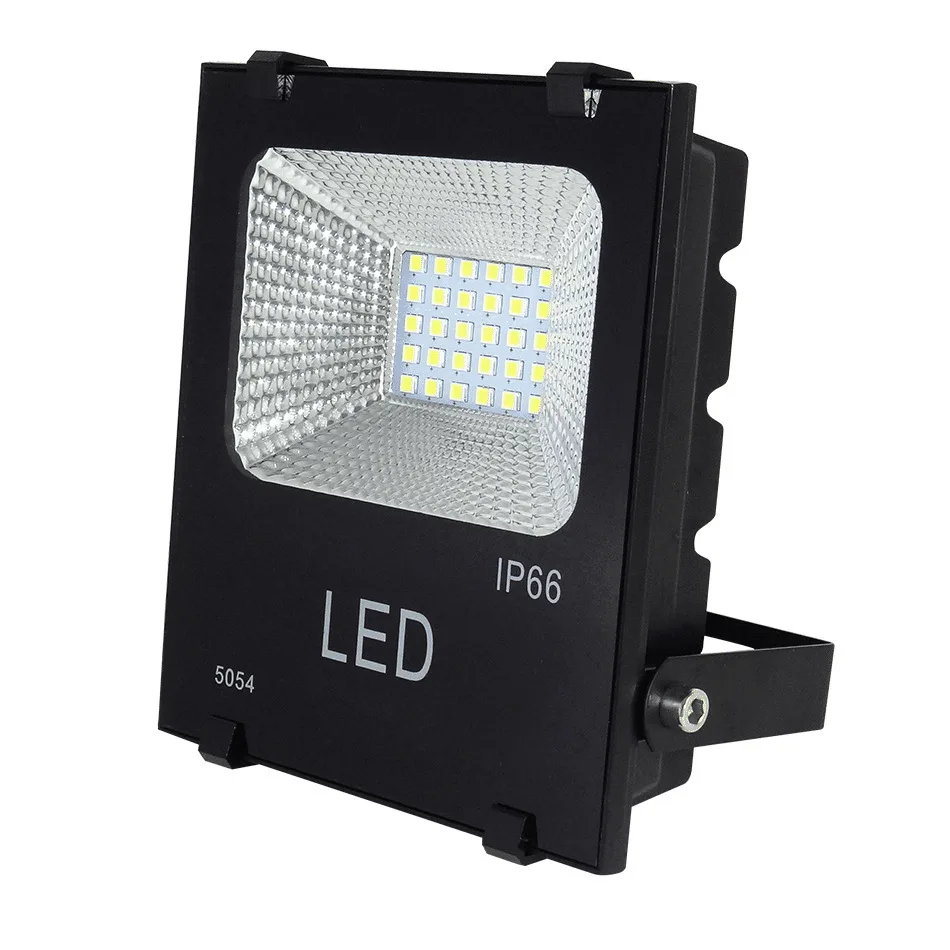

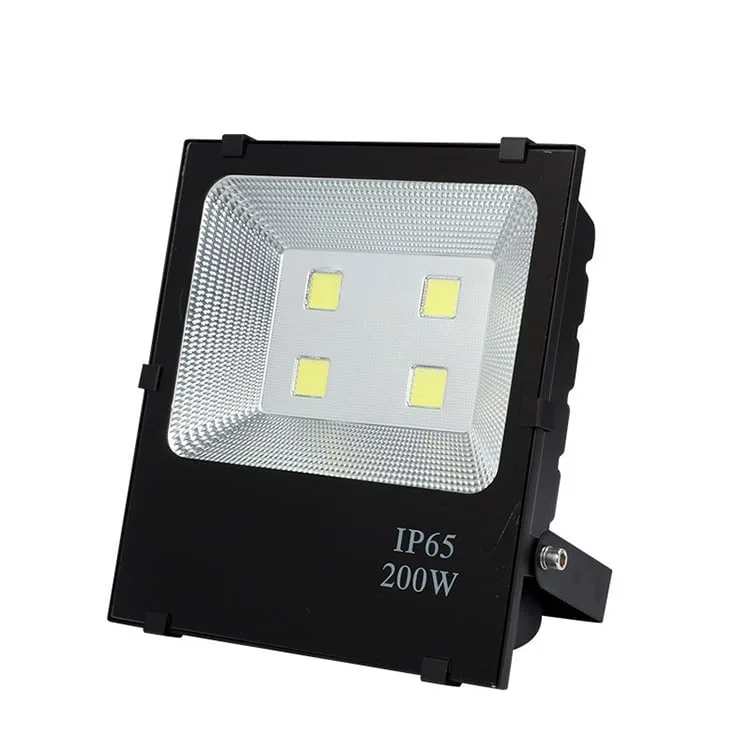

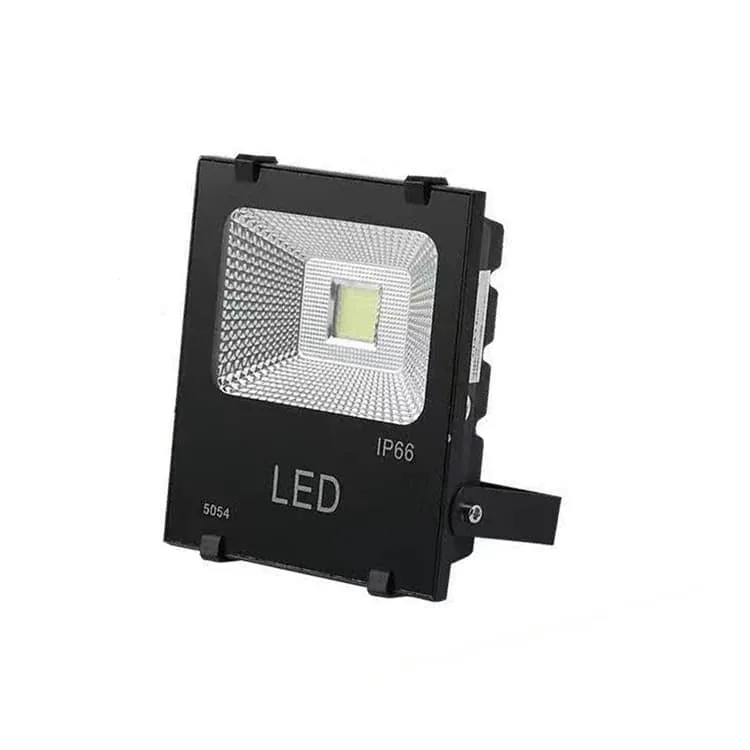

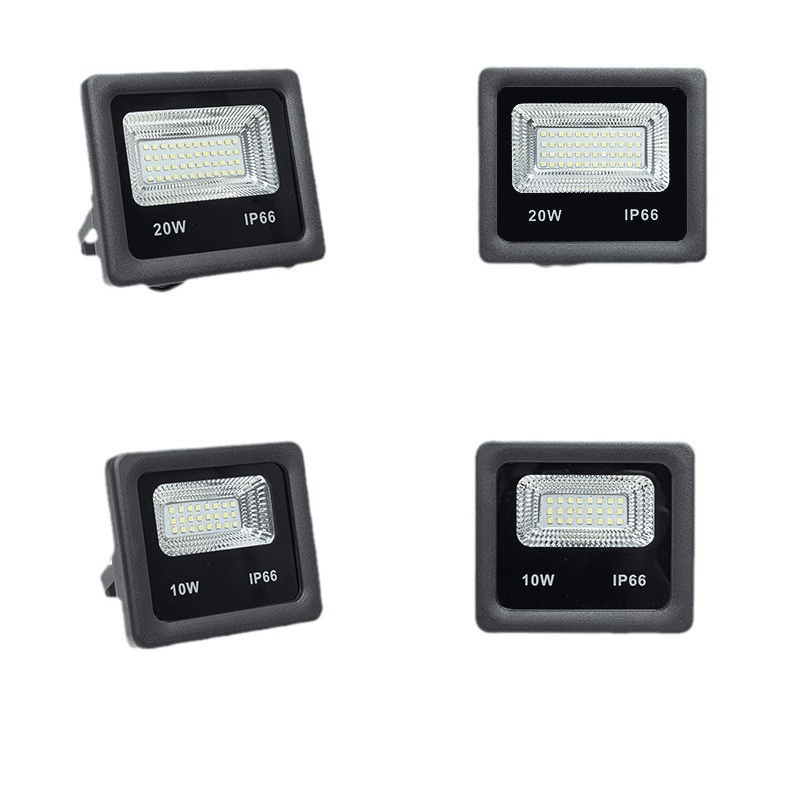

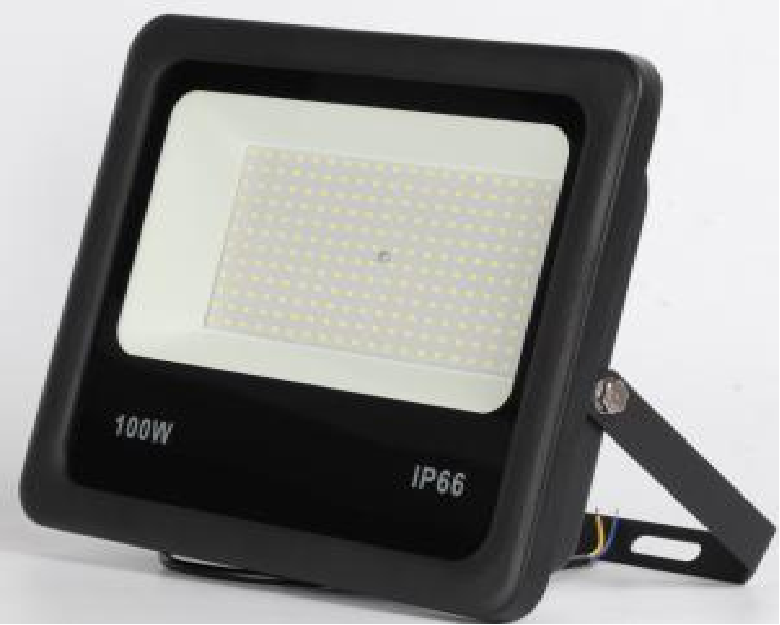

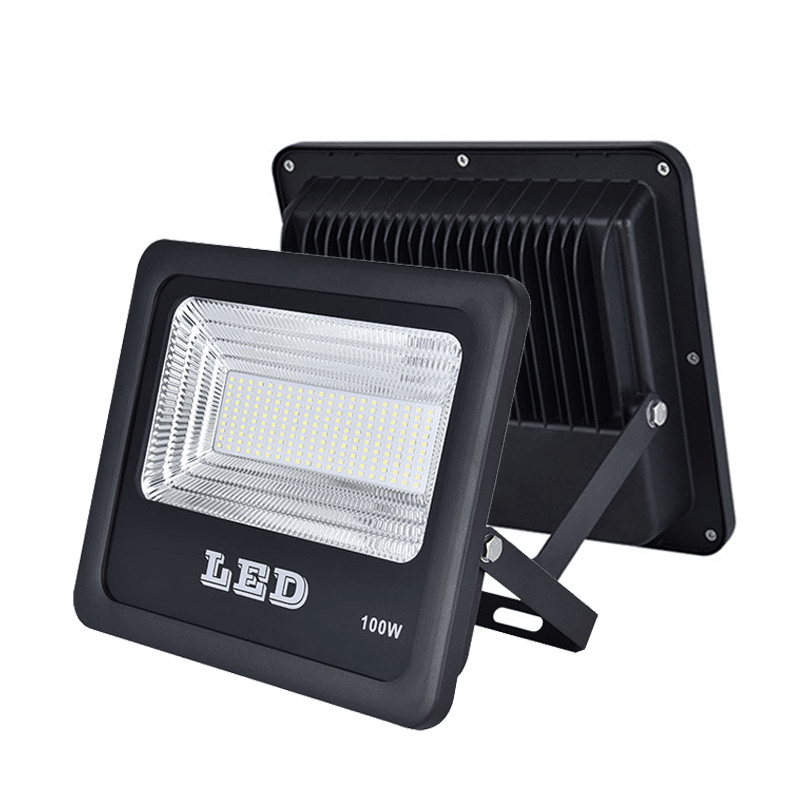

Outdoor SMD Led Floodlight | Model: GR-FL-P

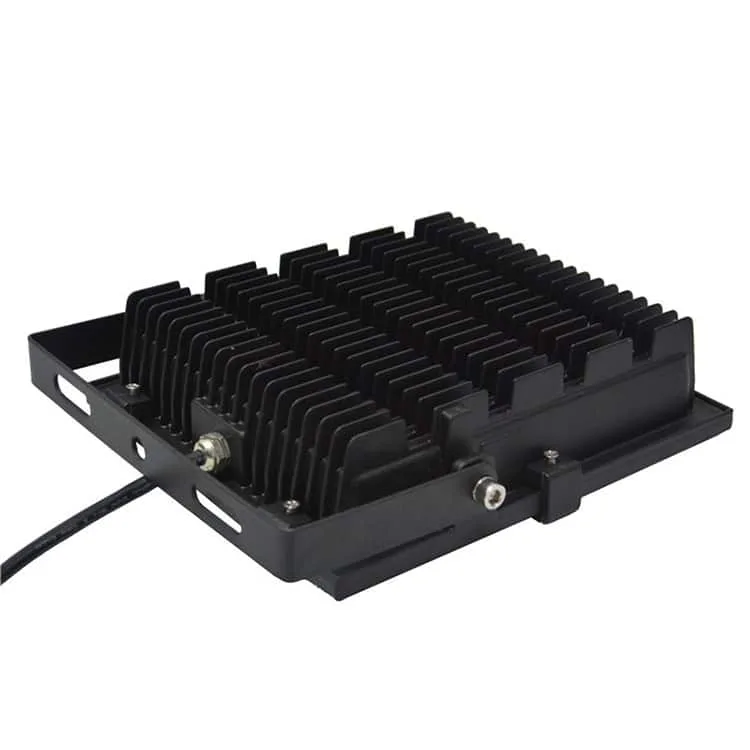

GR-FL-P series outdoor led floodlight is with SMD Chips, and a big reflector, wattage from 50W to 300W available. SMD led chips are scattered on the whole large area of PCB, which can maximize the heat dissipation effect of the flood light fixture. Providing long-life, energy-efficient lighting for outside large area zone. The die-cast aluminum housing and tempered glass covers make it work in harsh environments. Each fitting also includes both a trunnion-mount and a rotation mount to meet your mounting requirements.
Material and finished
- Housing: Die-cast aluminum body, durable black powder-coated finish
- Reflector: White plastic reflector cup using nanotechnology, Anti-UV.
- Cover: 3mm thickness Toughed glass, Anti-UV. High light transmittance reaches more than 90%, strong sealing performance.
- Chips: LUMILEDS/EPISTAR/ SAMSUNG SMD2835 chips, 0.5W/chips. High lumens output.
- Driver: Isolated constant current led driver, safe solution. Strong surge protection.
- Screws: Stainless steel

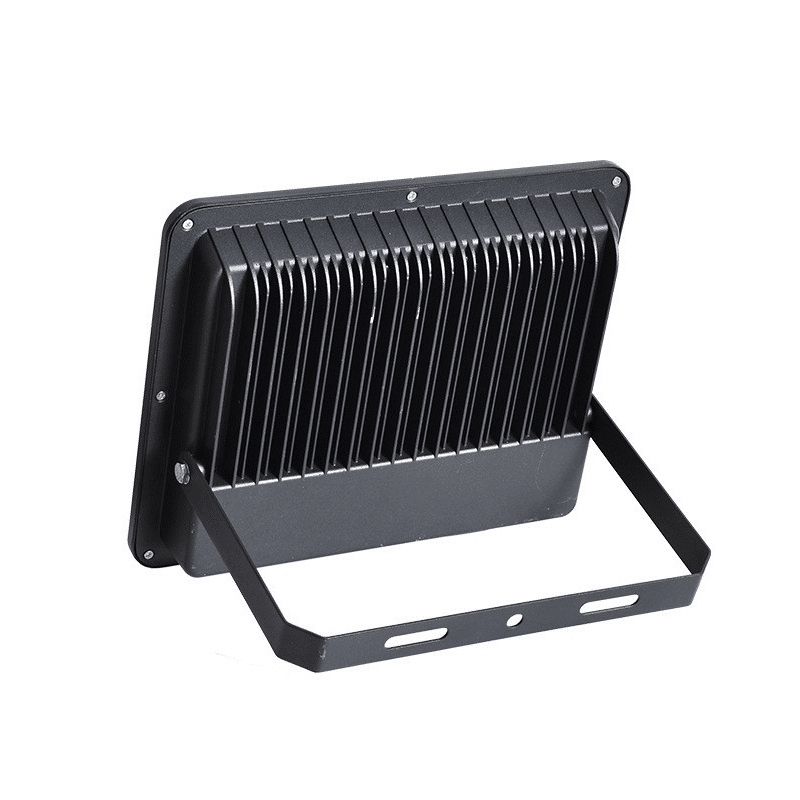

- Bracket: Metal, black powder-coated finished. 180° rotation.
- Cables: 0.75²*3 input cable, High and low- temperature resistance, good insulation performance, it is ok to do cable with Plug for UK or Australian market.
Additional Options
- Photocell (Dusk to dawn)/Time control
- Dimming (PWM/0-10V/DALI Dimmable)
- Low voltage input voltage DC12V/DC24V/DC36V/DC48V/60V
Electrical & Optical
- Input voltage: 100-240VAC 50/60Hz.
- Beam angle: 120° large distribution
- Color temperature: 3000K/4500K/6500K
- Power Factor: >0.9
- THD: <15%
- CRI: >80
- SDCM: <5
- Efficiency: >88%
- Surge protection: 4KV/6KV-10KV
- Working temperature: -30℃/+55℃
- CE RoHS Certified
- Warranty: 2/3/5 Years
Applications
- Construction site lighting
- Bridge Lighting
- Garden lighting
- Stadium lighting
GRNLED offers the best price in the market. Better quality but lower price.
Outdoor SMD LED Floodlight Models and Details
Order model | Wattage | Dimension | Led Lumens | Color temperature | Beam angle | CRI | IP Rating | IK Rating | Working life | DATASHEET |
---|---|---|---|---|---|---|---|---|---|---|
GR-FL-50WP | 50W±5% | 220*260*50mm | 5000-6000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 120° | >80 | IP65 | IK08 | >50000Hrs | Download |
GR-FL-100WP | 100W±5% | 270*310*60mm | 10000-12000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 120° | >80 | IP65 | IK08 | >50000Hrs | Download |
GR-FL-150WP | 150W±5% | 302*370*60mm | 15000-18000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 120° | >80 | IP65 | IK08 | >50000Hrs | Download |
GR-FL-200WP | 200W±5% | 302*370*60mm | 2000-24000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 120° | >80 | IP65 | IK08 | >50000Hrs | Download |
GR-FL-300WP | 300W±5% | 380*460*60mm | 30000-33000lm | 2700K-3000K WW, 4000K-4500K NW, 6000-6500K CW | 120° | >80 | IP65 | IK08 | >50000Hrs | Download |
*Order Model: GB-FL-50WP = GB-FL-P Model for 50 Wattage
