Integrated solar street light

Power: 30W 40W 60W 80W 100W 120W 150W optional, the other power such as 50W 200W 240W can be done as well if needed.
Lumens: 100lm/W output,high brightness.
Detective distance: 10-12meter
Detective beam angle: 120°
Controller: 12V 5A 8A 10A
LiFePO4 Battery: different capacity available
Pole height: 3m to 12meter
Working life: 50000Hrs
Pole diameter: 60-65mm
Duration: 3-5 rainy days
Warranty: 2-3Years

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

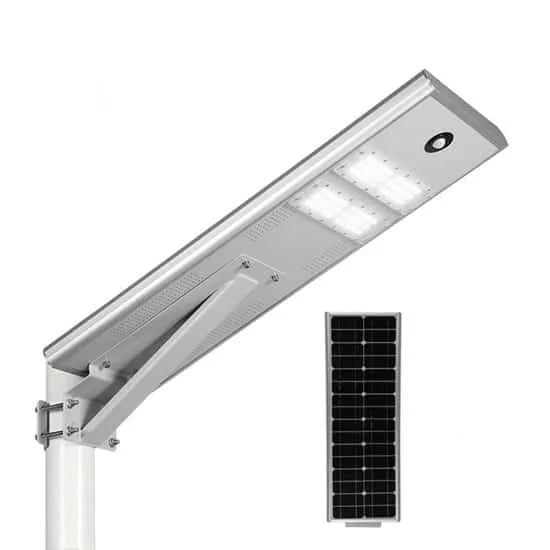

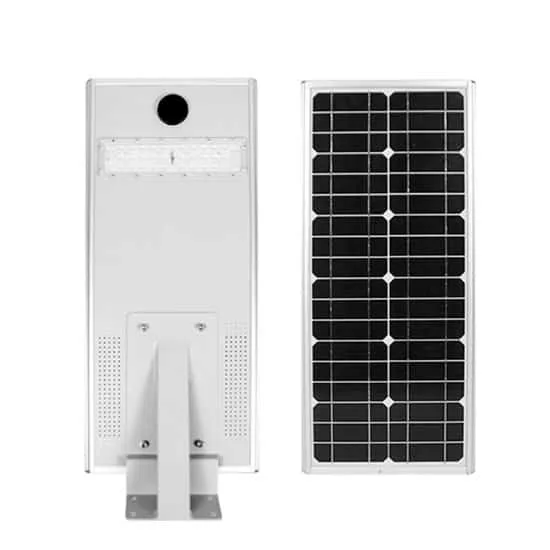

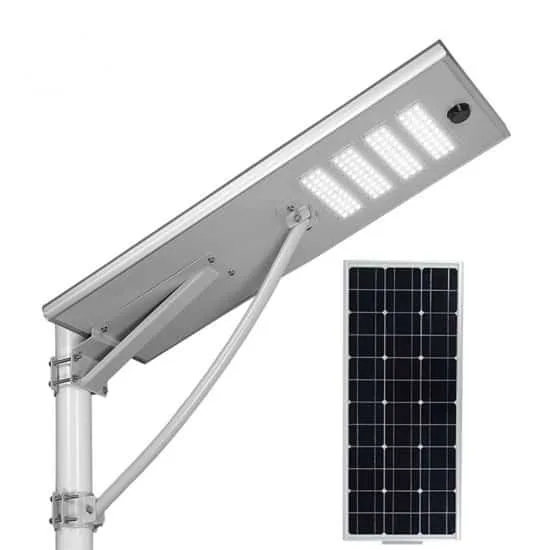

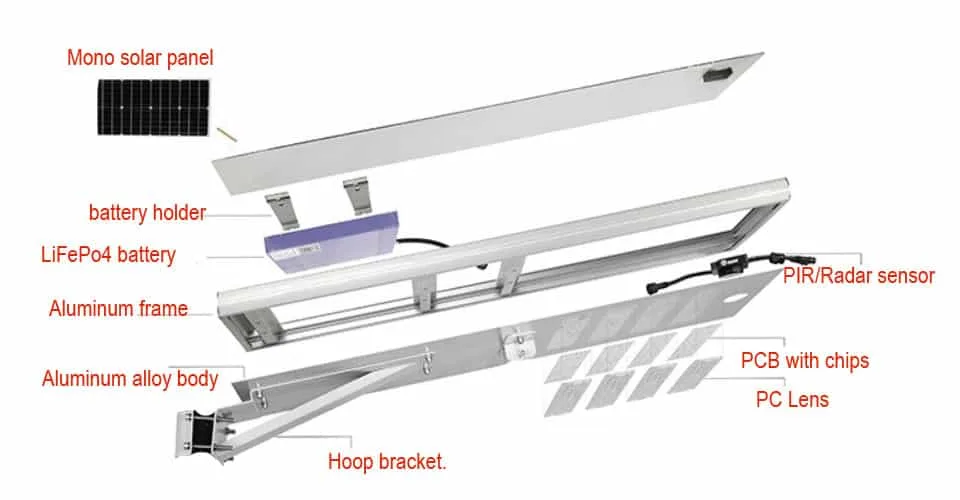

This integrated solar street light is an original model in design, that is using hoop installation with big size body and solar panel. The lumens output range from 2000lm to 15000lm, it will satisfy most outdoor projects and different height’s street light poles. The battery, solar controller, solar panel, led lights are all in one housing as a complete system, it is very easy to do installation and ship.

Parameter

Model	GR-SIS-3000F	GR-SIS-4000F	GR-SIS-6000F	GR-SIS-8000F	GR-SIS-10000F	GR-SIS-12000F	GR-SIS-15000F
lumens	3000lm	4000lm	6000lm	8000lm	10000lm	12000lm	15000lm
Equivalent	30W LED	40W LED	60W LED	80W LED	100W LED	120W LED	150W LED
LED QTY	144PCS	144PCS	180PCS	180PCS	240PCS	360PCS	360PCS
Install height	5-6meter	6-7meter	7-8meter	8meter	8-9meter	9-10meter	10-12meter
Dimension(mm)	1130300140	1130300140	1150385140	1150450140	1360450140	1360550140	1520550140
Mono Solar Panel	18V 50W	18V 60W	18V 80W	18V 100W	18V 120W	18V 140W	18V 160W
Solar controller	12V 5A	12V 5A	12V 8A	12V 8A	12V 8A	12V 8A	12V 8A or 10A
LiFePO4 Battery	12.8V 24AH	12.8V 30AH	12.8V 42AH	12.8V 48AH	12.8V 54AH	12.8V 60AH	12.8V 66AH

Duration	3-5 rainy days
Material	Die-Casting Aluminium
LED Chips	Philips smd3030 high brightness
CCT	3000K~6000K
CRI	>80
Beam angle	70*150degree
Charging time	6-8 hours
Discharging time	40 hours
Certificates	CE,RoHS,LVD EMC
Sensor type	PIR sensor or Radar sensor, Or time controller
Sensor distance	10-14meter
Install pole	60-65mm
Warranty	2-3Years
Remark	Standard working model: It will be full power for lighting when it sensor any movements, but it will be only 20%-30% of power once there is no movement, which will try best to save energy.

Feature of solar-powered street lights

Mono solar panel. It ensures maximum conversion of solar energy into electricity
Aluminum alloy body. Protection grade up to IP65 waterproof, it is still working well under hard environments.
Lithium iron phosphate battery. Long life (average life is more than 5 years, the battery can be replaced).
Philips or Bridgelux SMD LED Chips. Highest brightness with No light decay, no flicker, no radiation.
Intelligent light control plus intelligent human body induction control. Light control-when there is light during the day, the street light will not be triggered to light up. In the evening, the street lights start automatically. Human body induction-full light mode when there are people, all light sources work at full power, and power-saving mode when there are no people, and work at half power. It is more energy-efficient, user-friendly, and has a battery life of more than 40 hours(about 3-5 rainy days duration)
The detective distance for the sensor device is 14meter with an angle of 120°，so it is ok for this integrated solar lighting to be installed on the top of the 12meter pole.
MPPT Solar controller.

Options for integrated solar street light

This integrated solar-led street light can be the hybrid solution(When the battery power is sufficient, the street light is powered by the battery; when the battery power is low, the integrated solar street lamp will automatically switch to AC110V or 220VAC power supply).
Control models can be time controller options (Set the specific switch time of the integrated solar street lights).

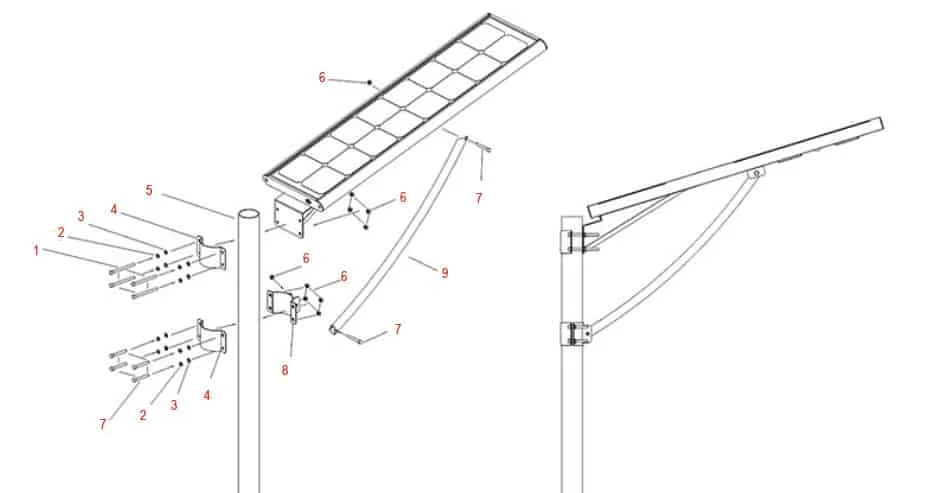

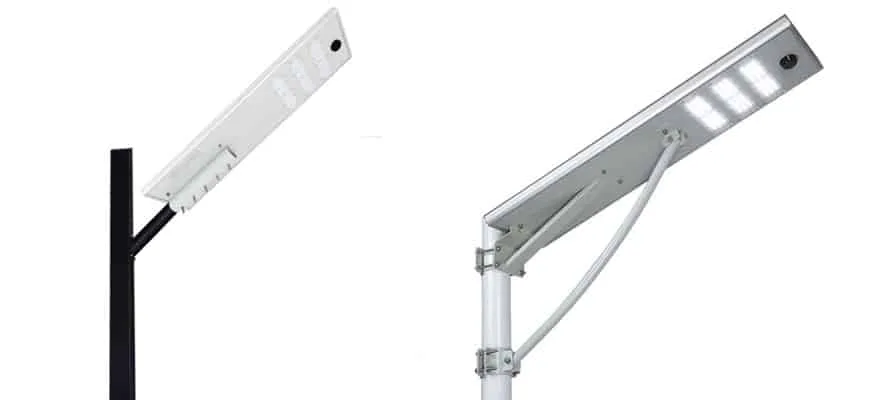

Different installation junctions options. The new junction can be for single-arm street light poles.
