Adjustable Solar Powered Street Lights

Adjustable solar-powered street lights all in one 20W-100W

LiFePO4 battery,2000times cycle.
Philips 3030 chips,100-110lm/W output.
Installation junction 90°rotation.
PIR/Radar sensor, sensor distance up to 12meter.
Mono solar panel, efficiency up to 21%.
MPPT solar controller option.
Working life up to 50000Hrs.
IP65 Waterproof.
Duration 3-5 rainy days.
No MOQ Limited.
Paypal/western union/Bank transfer for payment.

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

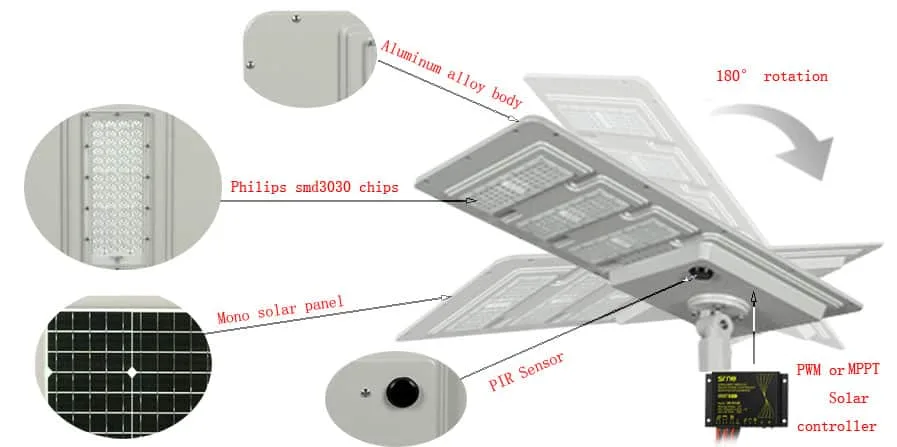

Adjustable solar-powered street lights are with 180°rotation junction, which means that you can adjust the beam angle (direction of light) according to the project’s requirements, what is more, it is a complete solar-powered street light system as the lithium battery，solar panel, controller, street light fixture, motion sensor all in one aluminum body, so it will save much more cost for shipping and installation. Its power range from 20W to 80W, widely used for garden, backyard, square, highway, road, etc, especially for the places where are full of sunshine such as Lebanon, Nigeria, and the Philippines, etc.

Parameter

Model	GR-SIS-2000A	GR-SIS-4000A	GR-SIS-6000A	GR-SIS-8000A	GR-SIS-10000A
Power	20W	40W	60W	80W	100W

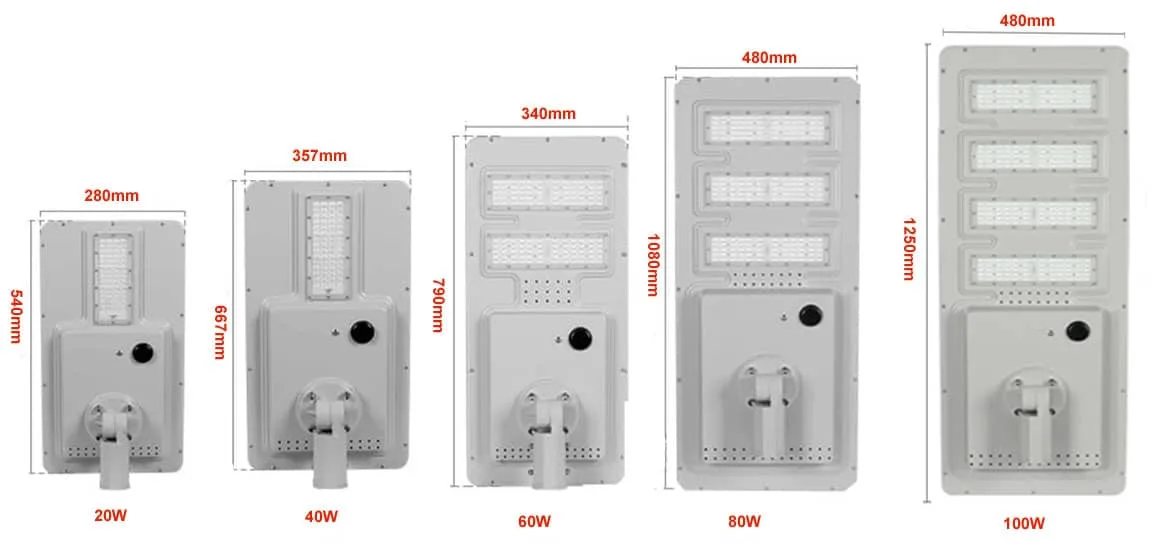

Dimension	54028075	66735775	79034075	1080480106	1250480106
Mono Solar Panel	18V 26W,	18V 45W	18V 55W	18V 86W	18V 86W
Solar controller	12V 5A	12V 5A	12V 8A	12V 8A	12V 8A
LiFoPO 4Battery	12.8V 18AH	12.8V 24AH	12.8V 36AH	12.8V 42AH	12.8V 42AH

Material	Die-Casting Aluminium
LED Chips	Philips smd3030 high brightness
CCT	3000K~6000K
Lumen	100 lm/w
Beam angle	70*150degree
Charging time	6-8 hours
Discharging time	30-36 hours
Certificates	CE,RoHS,LVD EMC
Sensor type	PIR sensor or Radar sensor
Sensor distance	8-12meter
Install pole	60-65mm
Install height	20W for 3-4meter; 40W for 5-6meter, 60W for 6-7meter; 80W for 7-8meter
Warranty	2 Years

Feature of solar-powered street lights

The integrated solar street light adopts a reasonable structure layout and integrates the complete set of elements of the solar street light system, which not only saves the production cost of the product but also reduces the installation cost in the project. At the same time, this solar street light uses an adjustable installation joint, which can be applied to different styles of street light poles, which greatly facilitates the adjustment of the illumination angle by the engineers.
The use of monocrystalline silicon solar panels increases the conversion efficiency of solar energy to 21%, which can maximize the use of solar energy. At the same time, the service life of monocrystalline silicon is at least 15 years.
The adjustable street lamp also uses a high-strength, anti-corrosion, anti-UV, anti-aging aluminum alloy shell, with a waterproof rubber ring, the protection level can reach IP66.
Use high-efficiency Philips 3030 lamp beads, ultra-high brightness.
As one of the core components of the solar street light controller, we can choose the MPPT solar controller to manage the entire street light system more efficiently. At the same time, the working mode and brightness duration of the street lamp can be set according to the needs of customers.
Highly sensitive PIR /radar motion sensor, the sensing distance is 8-12 meters.

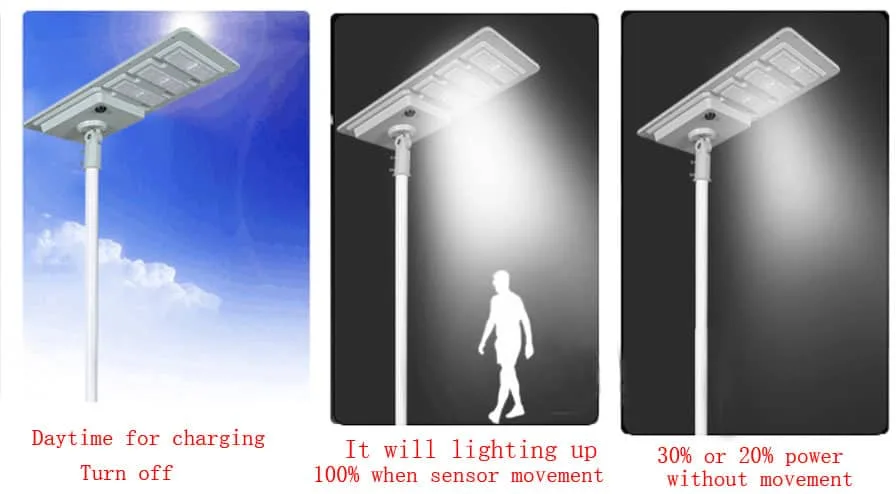

Working model for solar-powered street lights all in one

The solar street light is with PIR or radar sensor, in this case, the working model is very flexible.

It will start to turn on automatically at sunset, what is more, it will be full power for lighting when it sensor any movements, but it will be only 20%-30% of power once there is no movement, which will try best to save energy.
