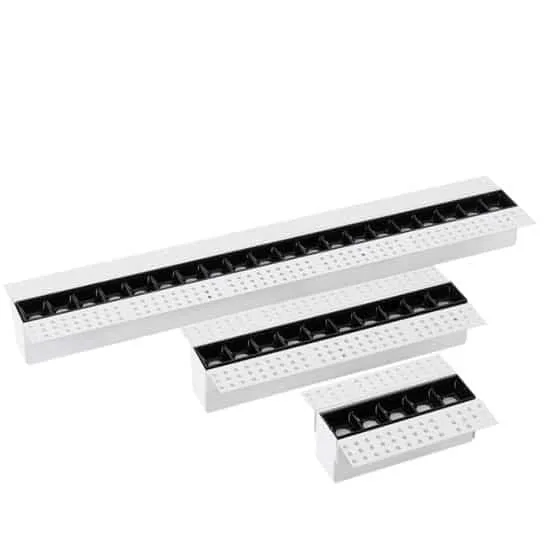

Recessed Trimless Linear Lighting

  • Power:5W 10W 20W
  • Voltage input:100-265VAC 50/60Hz
  • Efficiency:88%
  • Power factor:>0.6 or 0.9optional
  • Lumens:90lm/W output
  • Lifespan:50000Hrs
  • Color rendering index:>80
  • THD:<15%
  • Beam angle:15/30/45°

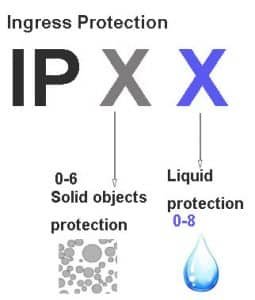

  • IP Grade: IP22 No waterproof indoor use only
  • Working temperature:-20/+45℃
  • Working humidity:10%-90%RH
  • Color temperature:3000K.4500k,6500K

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

This linear lighting is a timeless design, there will be no trim onto the ceiling after finished recessed installation. This is the best way to integrate lamps and walls. At the same time, the design of the reflector can achieve different light-emitting angle effects, which can not only be used as basic lighting but also can be used as accent lighting to achieve the effect of highlighting the characteristics of the illuminated object.

Parameter

ModelGR-LS-5WNGR-LS-10WNGR-LS-20WN
Power5W10W20W

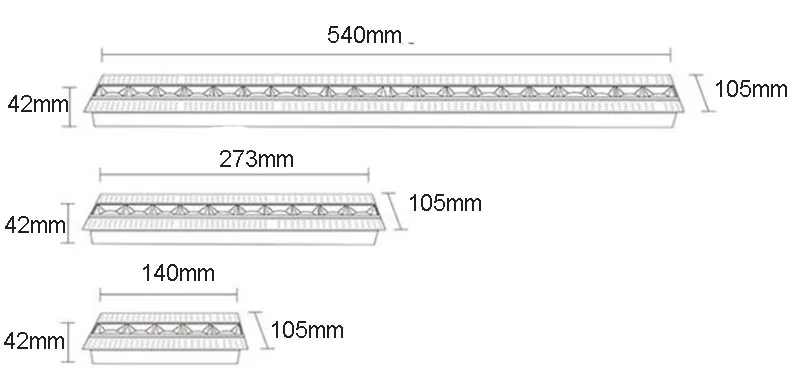

DimensionL140*W105*H42mmL273*W105*H42mmL540*W105*H42mm
LED ChipsOsram 3030 5pcsOsram 3030 10pcsOsram 3030 20pcs
Lumens430-460lm850-920lm1700-1900lm
CRI80
MaterialsAluminum+PC reflector
Beam agnle15/30/45°
Color temperature3000k warm white,4500K natural white;6500K cold white
Power factor>0.6
IP GradeIP22
Working life50000Hrs
Input voltage100-265VAC 50/60Hz.AC/DC12V/24V/36V/48V available
RemarkDimmable /Emergency backup available if needed.

Feature

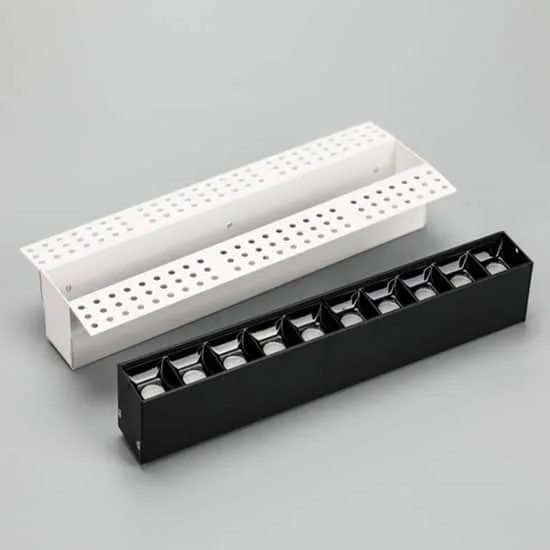

  • Frameless linear led lighting adopts high quality aluminum housing,different color painted,white/black optional.

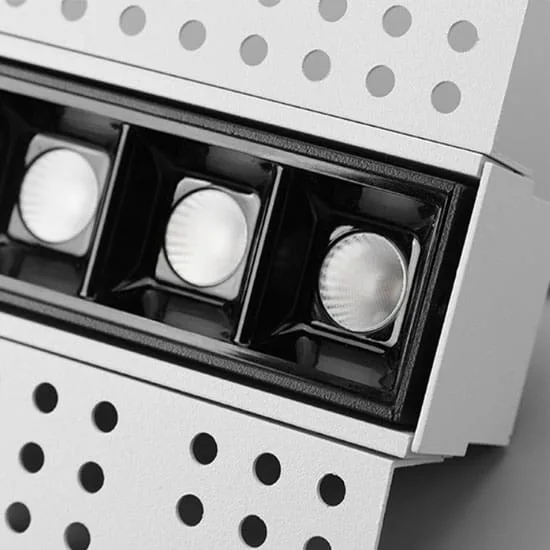

  • It is using Anti-glare reflectors,It can be lighting like spotlights, contrast between light and dark, and three-dimensional lighting effects
  • Osram SMD LED Chips,higher CRI,Higher lumens output,saving much more energy.
  • LiFud/Eagleries brand driver,No flicker,creating much better lighting performance,better to protect eyesight.
  • Dimmable solution available.triac dimmable,0-10v Dimmable,Dali dimmable options.
  • Lifespan more than 50000Hrs,we have tested it for 7years,our recessed linear lighting manufacturered in 2014 are still working well now.

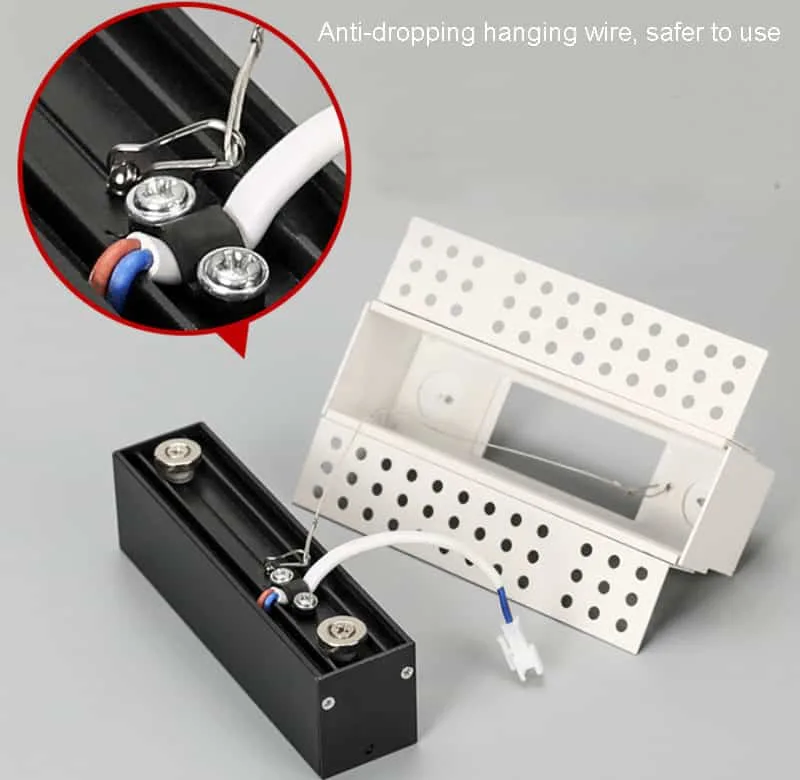

  • frameless linear led light with anti-dropping rope, it is safer to use.

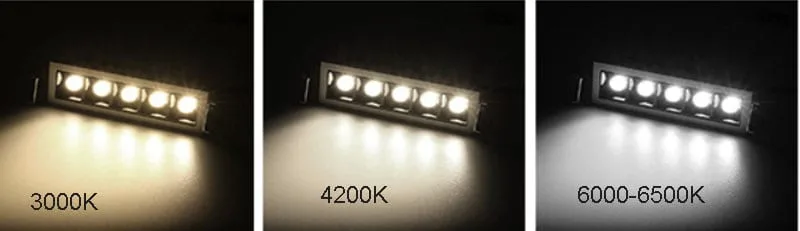

Color temperature

♦Below 3000K, the light color is reddish, yellow light/warm light, giving people a warm feeling: suitable for bedrooms, restaurants, etc., warm and romantic.
♦ Around 4000K-4500K. Under this hue, people have no obvious visual psychological effects. It is called “neutral” color temperature, because the light color closest to the sun is also called natural light. Suitable for kitchen, bathroom, office and so on.
♦More than 6000K, the light color is blue and white, giving people a cool feeling: suitable for halls, sports venues, etc., positive and motivated.

In a word, color temperature is that the lower the color temperature, the warmer the light color, the higher the color temperature, the closer it is to white, and the higher it is, the closer it is to blue-white. You can refer to this way to choose a suitable color temperature for it according to your projects

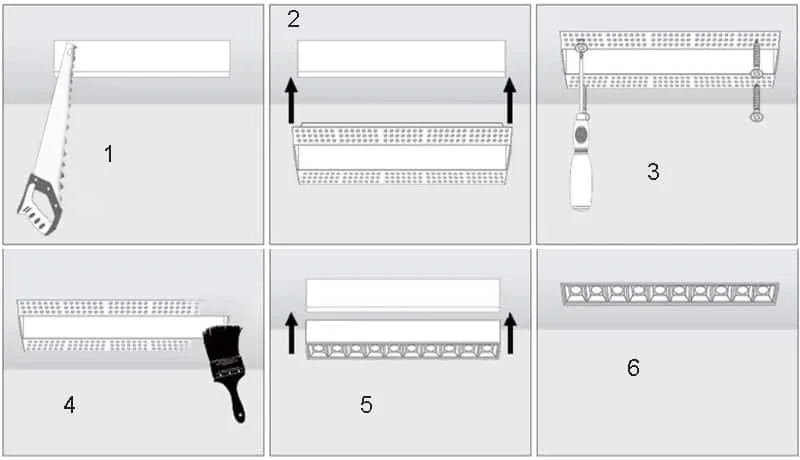

Installation

Step 1, Determine the position and size of the hole, and make the hole
Steps 2, After cleaning the dust around the lamp and the opening, put in the embedded parts
Steps 3,Using screws to fix embedded parts
Steps 4, paint the embedded parts several times with lime, it is integrated with the ceiling
Steps 5, after the lime is air-dried, install the lamp body
Steps 6, power on to test whether the lamp is working properly. finish installation
