Recessed Linear Spotlights Modern Anti-glare
- Power:6W 10W 20W 30W Option
- Input voltage:100-240VAC 50/60Hz or AC/DC12V 24V 36V 48V
- Efficiency:89%
- Power factor:0.6-0.9
- Lumens:90lm/W output
- Working life:50000Hrs
- Color rendering index:>80
- THD:<15%
- Beam angle:15/30/45°
- IP Grade: IP22 No waterproof indoor use only
- Working temperature:-20/+45℃
- Working humidity:10%-90%RH
- Color temperature:3000K warm white;4500K natural white;6500K cold white
You can make an inquiry about this product.
Your e-mail will not be leaked.
Description
These recessed linear spotlights are modern and stylish in design, with anti-glare performance, they can well shape the beauty of the space and blend perfectly with the building and improve the sense of spatial hierarchy. The advanced led technology will save much more energy.
Parameter
| Model | GR-LS-3*2W | GR-LS-5*2W | GR-LS-10*2W | GR-LS-15*2W |
| Power | 6W | 10W | 20W | 30W |
| Dimension | 106*46mm | 148*46mm | 280*46mm | 414*46mm |
| Outcut | 100*35mm | 138*35mm | 270*35mm | 400*35mm |
| LED Chips | Philips 3pcs | philips 5pcs | philips 10pcs | philips 15pcs |
| Lumens | 500-540lm | 850-900lm | 1700-1800lm | 2600-2700lm |
| Beam angle | 15/30/45° optional |
| Materials | Die-cast aluminum+PC reflector,white/black optional |
| PF | 0.6-0.9 available |
| Dimmable | No.but triac dimmable/0-10V/DALI dimmable can be available if needed |
| Working life | 50000Hrs |
| Remark | CE RoHS approval available.The other requirements like input voltage DC12V 24V,emergency kit can be customized |
Feature
- Recessed installation into the ceiling can be integrated with the building, does not occupy indoor space, and enhances the interior aesthetics
- Recessed linear ceiling lights use high-quality aluminum lamp body, black and white shell optional, anti-rust, no color fading, efficient heat dissipation
- Philips chips, high CRI, high luminous efficiency, more than 60% energy saving than traditional lamps. Mercury-free, non-toxic, can be recycled, which is conducive to environmental protection.

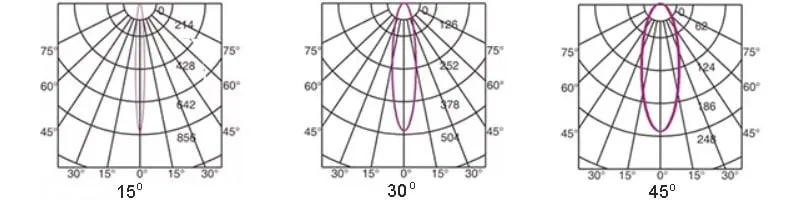

- The optical reflector, the light output angle is accurate, the light effect is not scattered, and the light effect is natural and comfortable. Beam angle 15/30/45 degrees optional
- The design of a hidden light source can achieve an anti-glare effect
- High-quality LED driver, no flicker, to ensure that the recessed linear downlight life is more than 5 years
- Triac dimmable/0-10V/DALI dimmable available.
- Emergency backup is available.

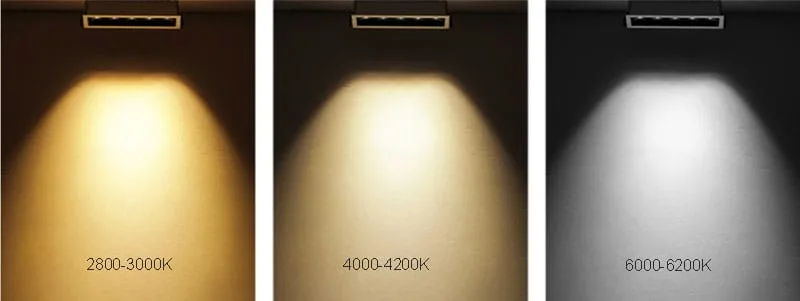

Color temperature
2800-3000K warm white (reddish white), it feels steady and warm.
4000-4500K Natural white (close to sunlight), it feels refreshing
5700-6500K cold white (white with blue), it feels cold

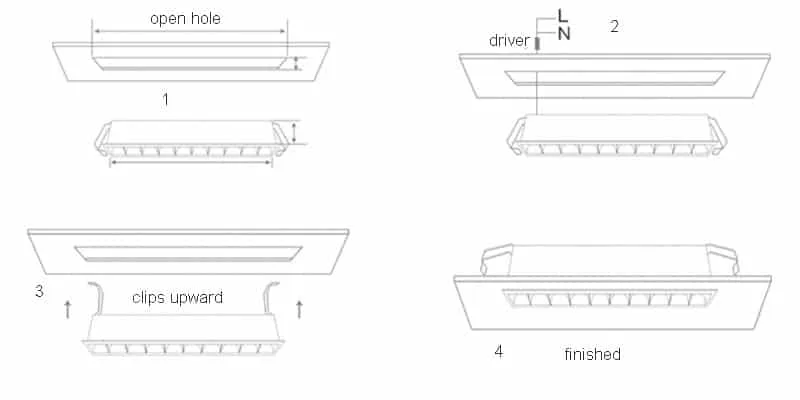

Installation
1.Turn off the switch.Take out recessed linear led lighting, open the hole onto the ceiling according to the opening size of the lamp
2. Connect the drive power with 100-240VAC 50/60Hz
3. Open the buckles on both sides of the lamp and install them upwards
4.Turn on the lights to check if it is working or not, then finished
