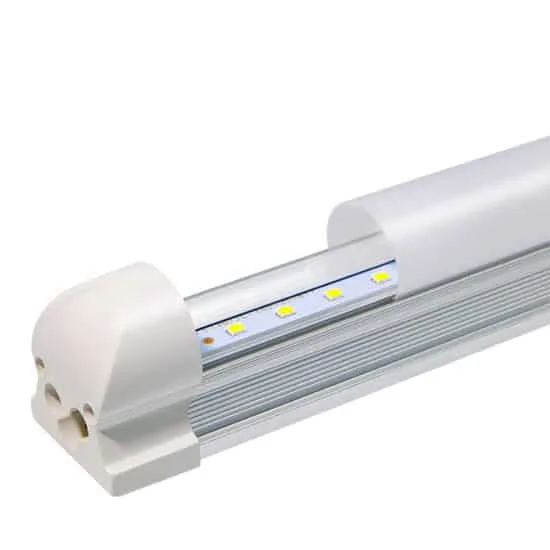

T8 LED Batten 2ft 3ft 4ft 5ft 8ft

  • Length:600mm 1200mm 1500mm 2400mm optional
  • Power:9W 18W 22W 36W Optional
  • Input voltage:100-265VAC 50/60Hz,AC/DC12V 24V 36V 48V can be customized
  • Efficicency:87%
  • Driver: Non-isolated driver CE EMC approval, Free flicker.
  • Power factor:>0.9
  • Color temperature:3000K-6500K
  • Beam angle:120°
  • Working life:50000Hrs
  • Package:25pcs/CTNS
  • MOQ:25PCS
  • Warranty:2-3Years

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

T8 LED batten is also called T8 integrated tube light. It is an upgraded version of the conventional LED t8 tube, an integrated bracket, which can be more quickly ceiling installation. At the same time, compared with the conventional LED tube, it saves the cost of the bracket.

Parameter

ModelGR-T8600-9WBGR-T81200-18WBGR-T81500-22WB
Power9W18W22W
DimensionL568*W30*H35mmL1178*W30*H35mmL1478*W30*H35mm
LED ChipsEpistar SMD2835 48PCSEpistar SMD2835 96PCSEpistar SMD2835 120PCS
Lumens900-1000lm1800-1900lm2200-2300lm
CRI80
MaterialsAluminum+PC Cover,frosted/clear cover option
Beam agnle120°
Color temperature3000k warm white,4500K natural white;6500K cold white
Power factor>0.9
IP GradeIP22
Working life50000Hrs
Input voltage100-240VAC 50/60Hz. DC12V 24V can be customized
RemarkThe other length like 8ft 2400mm can be customized according to requirements.

Light distribution curve

Feature

  • 1. Adopt the integrated design of lamp tube and bracket, no need to configure additional bracket during installation, reducing cost
  • 2. The shell adopts aluminum profile + PC cover structure, good heat dissipation performance, durable, suitable for large-scale engineering lighting
  • 3. Using a high-quality LEDdriver, integrated over-voltage protection, overload protection, short-circuit protection, anti-electromagnetic interference. Lamps are safer to use. And all t8 led batten light is free flicker which will create better lighting performance and protect eyesight.
  • 4. Using gold wire copper bracket LED chip, high brightness, good color rendering.

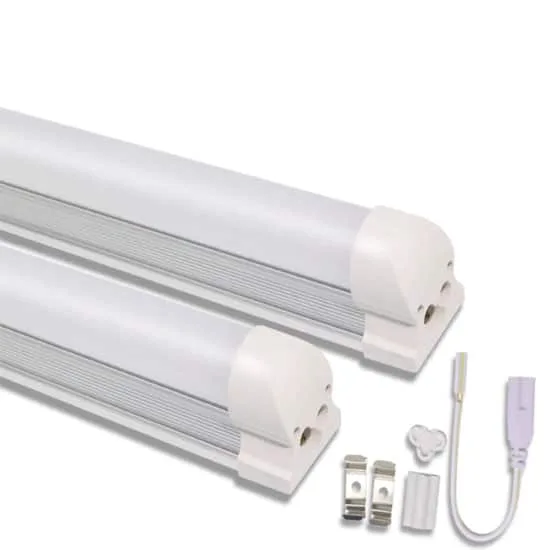

  • 5. Led tube batten comes with related series accessories, and the lights can be connected in series between the lights
  • Different length can be customized,600mm 900mm 1200mm 1500mm 2400mm etc.
  • Emergency kit available, with 30% power,1hours,2hours duration option
  • Comply with relevant international certificate standards, CE RoHS LVD EMC

Installation

1.Confirm the installation location of snaps

2.Using screws to fix snaps onto ceiling or wall

3.Put led batten t8 into snaps, then finished
