LED Batten Fittings

LED Batten fittings 2ft 4ft 5ft

Length: 600mm 1200mm 1500mm optional
Power: 18W 36W 44W Optional
Input voltage: 100-265VAC 50/60Hz,AC/DC12V 24V 36V 48V can be customized
Efficiency: 87%
Driver: Non-isolated driver CE EMC approval, Free flicker.
Power factor: >0.9
Color temperature:3000K-6500K
Beam angle: 120°
Working life:50000Hrs
Package: 25pcs/CTNS
Warranty: 2-3Years

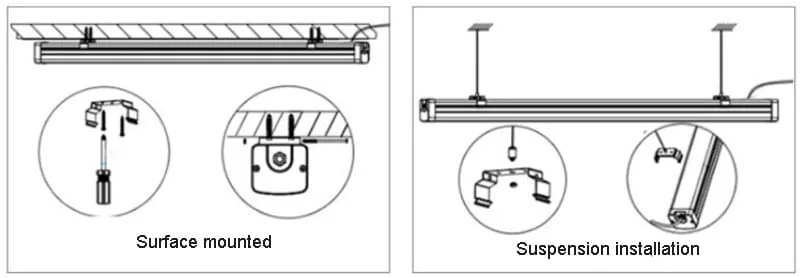

Surface/Suspension installation option

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

This LED Batten fittings are unique in led markets, it looks like tri-proof batten light in appearance, but its use method is similar to T8 LED batten, both can be used in seamless series, so it is widely used for various projects.

Parameter

Model	GR-T2060-18WB	GR-T20120-36WB	GR-T20150-44WB
Power	18W	36W	44W
Dimension	L568W53H48mm	L1178W53H48mm	L1478W53H48mm
LED Chips	Epistar SMD2835 96PCS	Epistar SMD2835 192PCS	Epistar SMD2835 240PCS
Lumens	1800-1900lm	3600-3800lm	4400-4500lm

CRI	80
Materials	Aluminum+PC Cover,frosted/clear cover option
Beam agnle	120°
Color temperature	3000k warm white,4500K natural white;6500K cold white
Power factor	>0.9
IP Grade	IP22
Working life	50000Hrs
Input voltage	100-240VAC 50/60Hz. DC12V 24V can be customized
Remark	The other length like 8ft 2400mm can be customized according to requirements.

Feature

♦Use high-quality aluminum, good heat dissipation performance, not easy to rust
♦PC Cover, high light transmittance, large light-emitting area, not easy to yellow
♦High-brightness LED chips, stable quality, high brightness, low light decay, 1% luminous decay value in 3000 hours

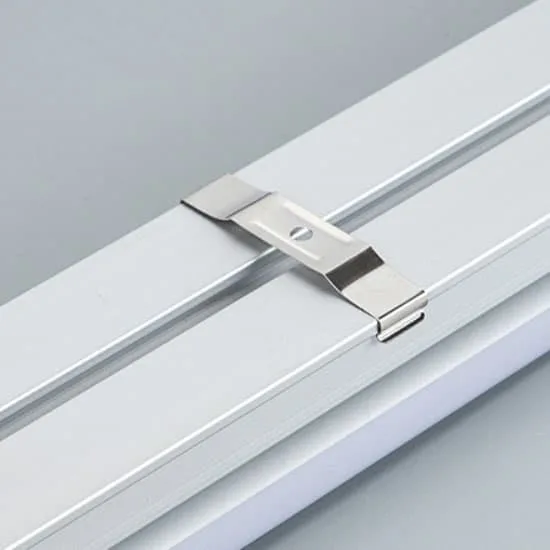

♦Ceiling installation, hanging installation optional
♦High efficiency and energy saving
♦ Healthy light does not produce radiation
♦Environmental protection, good for recycling and utilization
♦ High light efficiency, low heat
♦High safety factor, low voltage and current required, low heat generation, no safety hazards, and can be used in dangerous places such as mines
