Backlit LED panel lights 600×600 1200×600 1200×300
The backlit LED panel lights are without LGP, only including the metal bottom and PS cover, then it will be never yellow changing issues. The standard size includes 600x600mm, 1200x300mm, 300x300mm, 600x300mm, and 1200x600mm which are including EU standard, and USA standard, available to custom LED panel light in size for this backlit version. Widely used for office lighting, commercial lighting., etc.
GRNLED offers the best price in the market.
| Order Model | Wattage | Dimension | Lumens | CRI(Ra) | Power factor | UGR | Color Temperature | Input voltage | Datasheet |
| GR-PL3030-18WD | 18W±5% | 295*295*32mm | 1800-2200lm | >80 | >0.5 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL6030-24WD | 24W±5% | 595*295*32mm | 2400-2900lm | >80 | >0.5 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL6060-36WD | 36W±5% | 595*595*32mm | 3600-4400lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL6060-40WD | 40W±5% | 595*595*32mm(standard) 603*603*32mm(USA) 620*620*32mm(Germany) | 4000-4800lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL6060-48WD | 48W±5% | 595*595*32mm | 4800-5900lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL-6060-60WD | 60W±5% | 595*595*32mm | 6000-7200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |

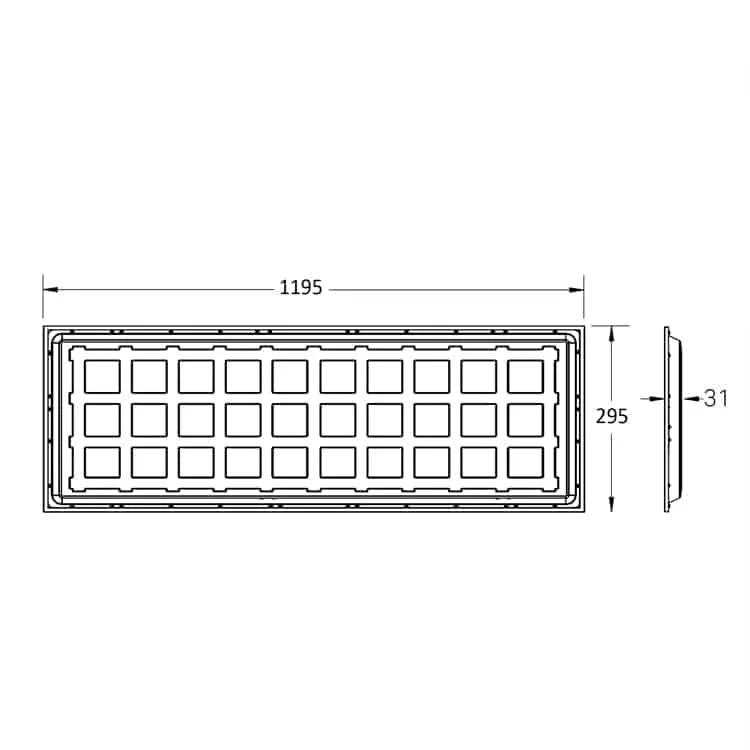

| GR-PL12030-40WD | 40W±5% | 1195*295*32mm(standard) 1213*301*32mm(USA) | 4000-4800lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL12060-50WD | 50W±5% | 1195*295*32mm(standard) 1213*603*32mm(USA) | 5000-6000lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL12060-60WD | 60W±5% | 1195*295*32mm(standard) | 6000-7200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
| GR-PL12060-72WD | 72W±5% | 1195*295*32mm(standard) | 7200-8200lm | >80 | >0.9 | <20 | 3000K4000K6500K | 110/220-277VAC 50/60Hz | Download |
Material & Finished
- Heat sink (Housing): Metal bottom, 2.5mm thickness-3mm thickness, white finished.
- Frame: Square-shaped aluminum trim, strip/flat type, white finished as standard, black/silver option.
- Diffuser/cover: Polystyrene PS Cover, 1.0mm thickness, High-temperature resistance, no yellowing, high light transmittance.
- Lens: High temperature resistant optical lens, uniform light emission
- PCB: High thermal conductivity aluminum substrate
- Light source: Bridgelux/Samsung SMD LED Chips, 100lm-120lm/W output.
- Transformer: Non-dimmable external isolated driver, Over-voltage, over-temperature, anti-surge protection.
Photometric Data
- Input voltage:110/220-265VAC 50/60Hz
- Power Factor:>0.9
- LED Chips: SMD2835
- Color rendering index:>80 or >90
- Lumens:100lm-120lm/W
- THD:<15%
- Surge protection:1-2KV
- SDCM:<5
- Efficiency:>89%
- Beam angle: 120° wide
- Color temperature: 3000K/4000K/6500K
- Selecting TRIAC/0-10V/DALI dimmable driver to be dimmable led panel lights.
- Emergency backup (30% power with 1hrs 2hrs or 3Hours duration)
- Edge-lit 600×600 panel light
- Recessed installation is A standard version, just put it onto the ceiling, easy to install.
- Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.
- Surface-mounted installation is ok with extra surface frame fitting.
- Clip installation with springs is available, tell our sales if you request this.
Commercial lighting projects, including offices, meeting rooms, supermarkets, schools, and hospitals
Q: How many watts is a 600×600 LED panel?
A: The standard watts for a 600×600 LED panel are 40W and 48W. But 32W, 40W, and 60W are commonly used too.
Q: What is the size of a 600×600 LED panel?
600×600 LED panel lights are called 2×2 LED panel lights too. The actual size used in different countries is a little different.
The actual size of American LED panel light: 603x603cm
Actual size of LED panel lights in Germany: 620x620cm
Actual size of Korean LED panel: 640x640cm
The actual size of LED panels in other countries: is 595x595cm, because LED panels are used most in other countries, and the Chinese panel lights size is 595x595cm too, so it is also called 600×600 for convenience
Q: What is a backlit LED panel?
A: LED chips of LED-backlit panel light emit light through lens scattering and back cover reflection from the lighting surface of the luminaire. You can see the lighting principle from the picture:
The advantages of back-lit panel lights are relatively simple technology and process. They benefit from semi-automated production lines, which result in lower labor costs. They can achieve sufficient brightness and high light efficiency, up to 135lm/w. They generally do not get yellow, and they are more cost-effective compared to edge-lit panel lights.
However, their disadvantage lies in the relatively thicker lamp body, (8-12mm), which may be less sophisticated than edge-lit ultra-thin panel lights. Additionally, the packaging volume and shipping costs may increase. Due to their hollow structure, they have higher transportation requirements compared to edge-lit panel lights.
Q: What is the main disadvantage of the LED backlit panel?
A: All LED panel lights only can be used for suspended ceilings. So I think this is the main disadvantage.
Q: What is the main advantage of the LED backlit panel?
A: Cheap price and uniform low-glare illumination are the top advantages for backlit panels compared with other lighting fixtures.
