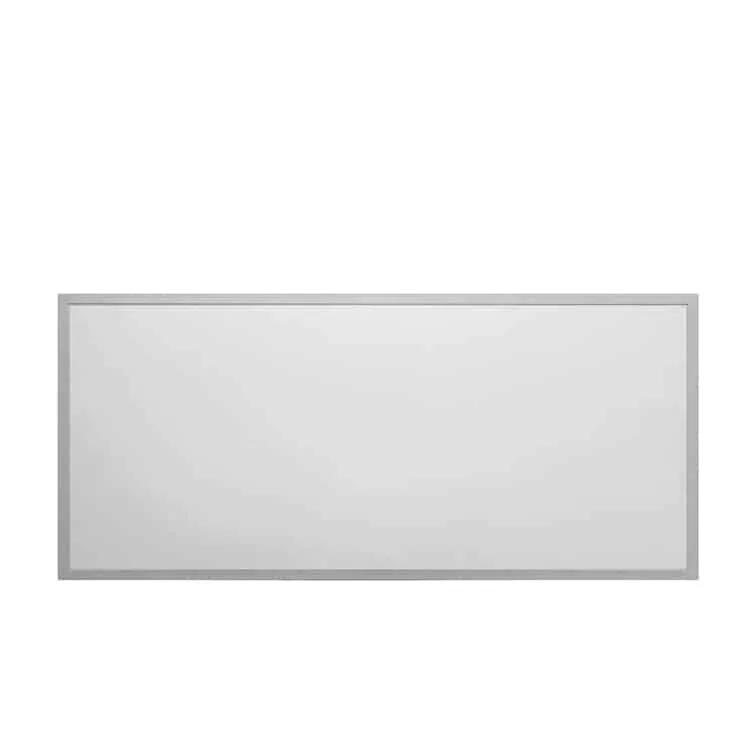

Suspended ceiling lights 1200×600 Backlit Panel | GR-PL12060-D

GR-PL12060-D series is a large led panel light with back-lit design and specialized optics to create uniform and anti-glare light. Suspended ceiling lights can be conveniently installed on various types of ceilings, whether it’s a false ceiling or not, they can be installed with suspension cables, rods, or other hanging fixtures to accommodate different installation needs. And it is easier to maintain compared to recessed led ceiling panel light. This 1200×600 panel light comes in 50W 60W 80W 96Watt, widely used for large spaces in commercial areas and industrial areas.Moreover, it is perfect product to replace the traditional grille lamp panel.

  • IP Rating: IP22
  • Power: 50W 60W 80W 96Watt
  • Thickness: 32mm
  • MOQ: 50pcs
  • Sample: contact to get
  • Delivery: 3-15days
  • Working temperature:-25℃/+55℃
  • Lifetime: 50000hrs
  • Warranty: 3/5 years
  • Certificate: CE RoHS
  • Payment: Paypal, T/T

GRNLED offers the best price in the market.


Order ModelWattageDimensionLumensCRI(Ra)PFUGRColor TemperatureInput voltageDownload
GR-PL12060-50WD50W±5%1195*595*32mm6000-6200lm>80>0.9<203000K4000K6500K100-240VAC 50/60HzDownload
GR-PL6060-60WD60W±5%1195*595*32mm6600-7200lm>80>0.9<203000K4000K6500K100-240VAC 50/60HzDownload
GR-PL-6060-80WD80W±5%1195*595*32mm7500-8000lm>80>0.9<203000K4000K6500K100-240VAC 50/60HzDownload
GR-PL12060-96WD96W±5%1195*595*32mm8300-9000lm>80>0.9<203000K4000K6500K100-240VAC 50/60HzDownload

Material & Finished

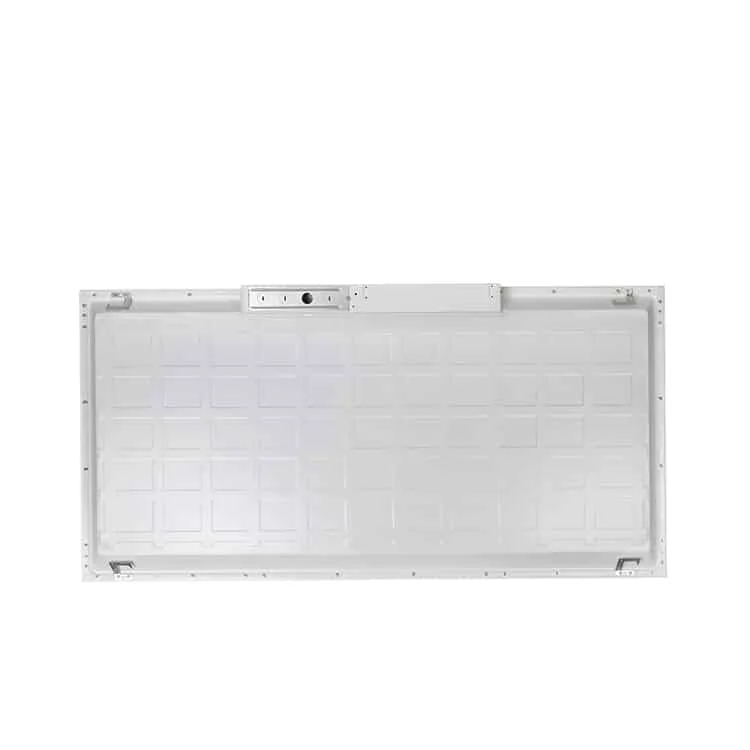

  • 3mm thickness metal bottom, top performance for heat
  • Durable, powder-coated white frame with seamless bezel

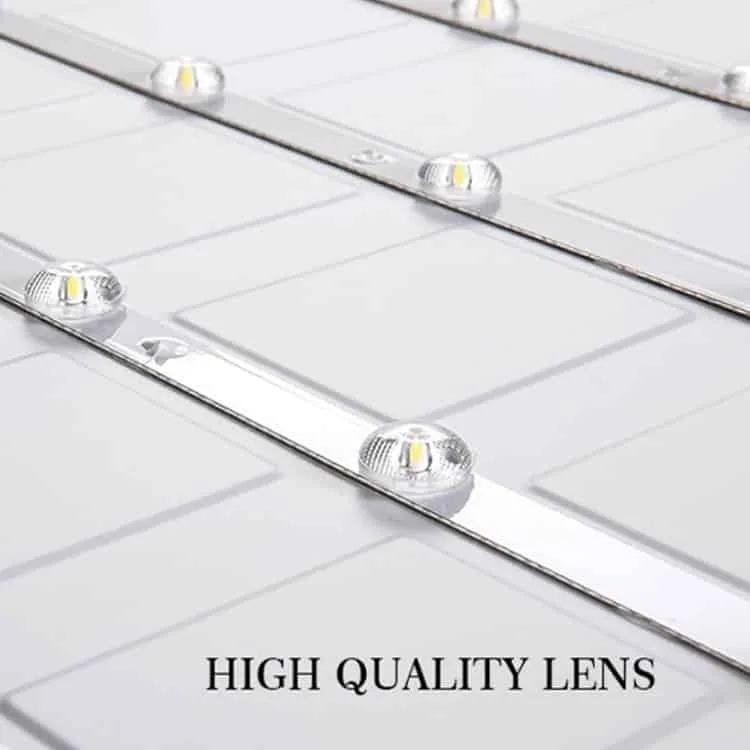

  • Light source: Brand bridgelux, philips smd2835
  • Driver: LiFud or Eaglerise

Photometric Data:

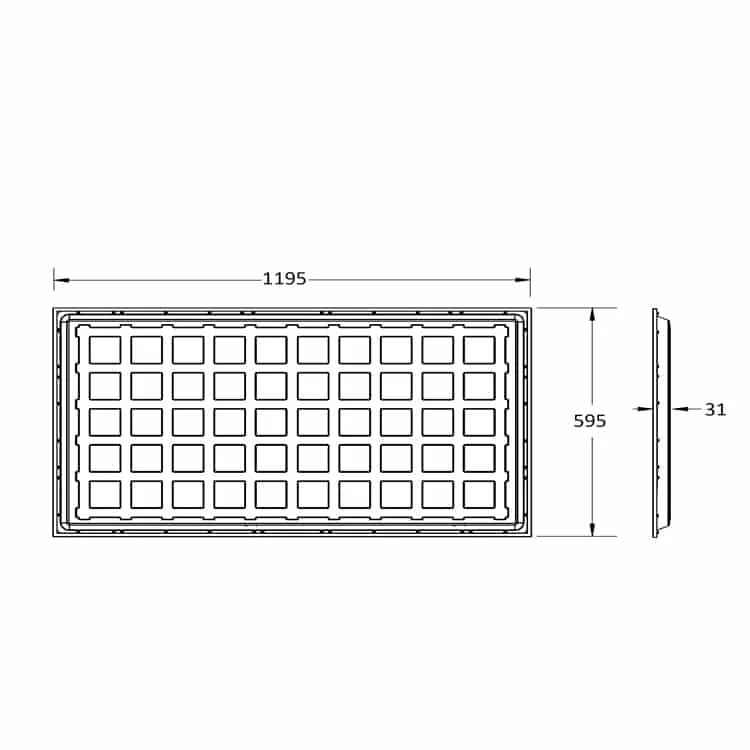

  • Dimension: L1195*W595*H32mm
  • Input voltage:100-265VAC 50/60Hz
  • Power Factor:>0.9
  • Color rendering index:>80
  • Lumens:100lm/W
  • THD:<15%
  • Surge protection:1-2KV
  • Efficiency:>88%
  • IP Rating: IP22 Indoor use
  • Beam angle: 120° wide
  • Color temperature: 3000K/4000K/6500K
  • Working temperature:-25℃/+55℃
  • Lifetime:>50000Hrs
  • Compliance: CE RoHS Certified
  • Manufacturer Warranty:2/3/5Years.
  • PWM/0-10V/DALI dimmable
  • Emergency kits (9-12W with 1hrs 2hrs or 3Hours duration)
  • Edge-lit
  • Recessed installation is a standard version, just put it onto grid-ceiling, easy installation.
  • Suspension installation is available, but the steel ropes for hanging need to be ordered additionally.
  • Surface-mounted installation is ok with extra surface frame fitting.

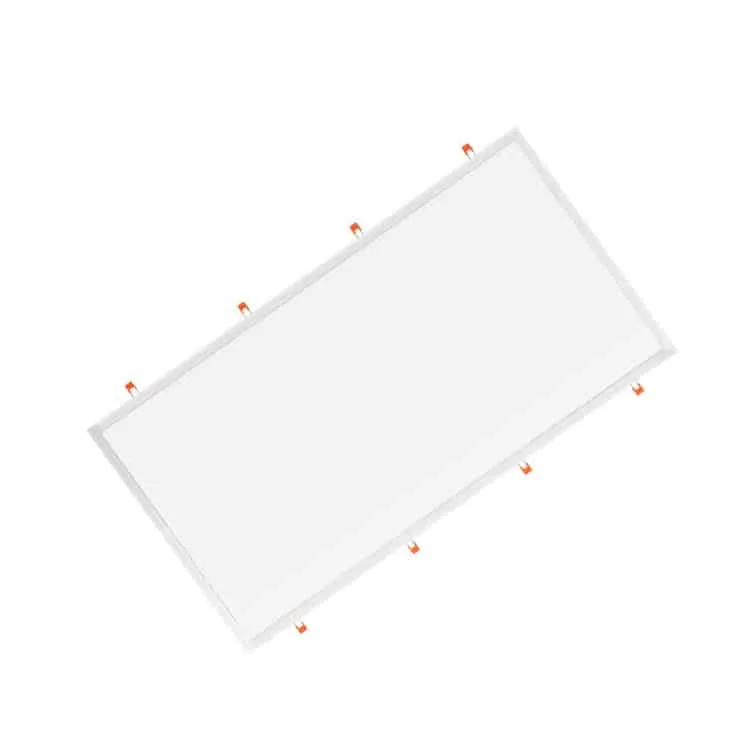

  • Clip installation with springs available, just tells our sales if you request this.

Commerical or Industrial areas like Office, School, Hospital, Hotel, Meeting room, Home, Showroom, Supermarket, Airport, Railway station. Ideal replacement for fluorescent fixtures and tubes. 50w is equal to 200w traditional tubes.

Q: What is the difference between a drop ceiling and a suspended ceiling?

A: “Drop ceiling” and “suspended ceiling” refer to the same type of secondary ceiling system. Both terms describe a secondary ceiling installed below the main structural ceiling, creating a gap between the two layers. “Drop ceiling” is commonly used in North America, while “suspended ceiling” is widely called in other parts of the world.

Backlit LED light panel
