Backlit LED Light Panel | Model: GR-PL6030-20WD

GR-PL6030-20WD is flat panel light using back-lit LED technology and specialized optics to create beautiful, high-quality and versatile products. This LED panel light is equipped with white aluminum trim and frosted lenses, lumens can be up to 100lm/W, it is a good solution to do replacement of traditional fluorescent tube light fitting 600x300mm, or for the new building.

Specification

  • Order Model: GR-PL6030-20WD
  • Shape: Rectangle
  • Technology: Back-lit
  • Materials: White Aluminum trim+ diffuser plate

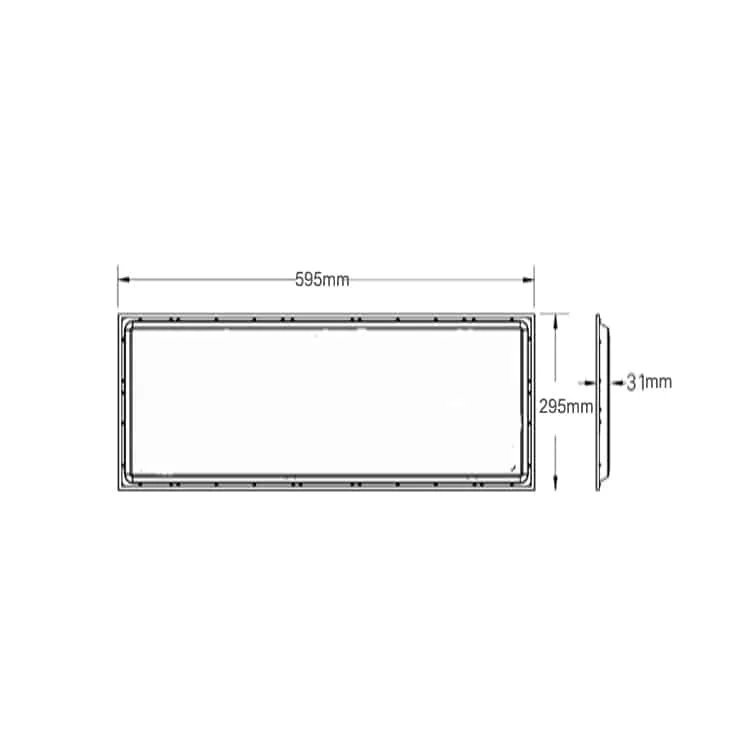

  • Dimension: L595*W295*H32mm
  • Wattage:20W
  • Input voltage:100-265VAC 50/60Hz/ 220-240VAC
  • Power Factor:>0.9
  • CRI(Ra):>85
  • Lumens:2000-2200lm
  • SDCM:<5
  • UGR:<20
  • Control gear: External driver included
  • Dimmable: Available
  • Efficiency:>87%
  • IP Protection: IP22 indoor
  • Color light: 3000K Warm white; 4500K Daylight, 6000K-6500K cool white.
  • Beam Spread: 120° large distribution
  • Lifetime:>50000Hrs
  • Installation: Embedded, Surface mount, suspension installation
  • Working temperature:-25℃/+55℃
  • Compliance: CE RoHS Certified
  • Warranty:2/3/5Years.

Additional Options

  • TRIAC/0-10V/DALI dimmable
  • Emergency backup (5 with 1hrs 2hrs or 3Hours duration)

Application

Residential or commercial lighting for Kitchen, offices, exhibition halls, hospitals, schools.

Installation & Mounting

Use in recessed, surface or, suspended applications (additional accessories kits needed)
