Trimless Adjustable Spotlight |Stretchable|Round/Twin heads

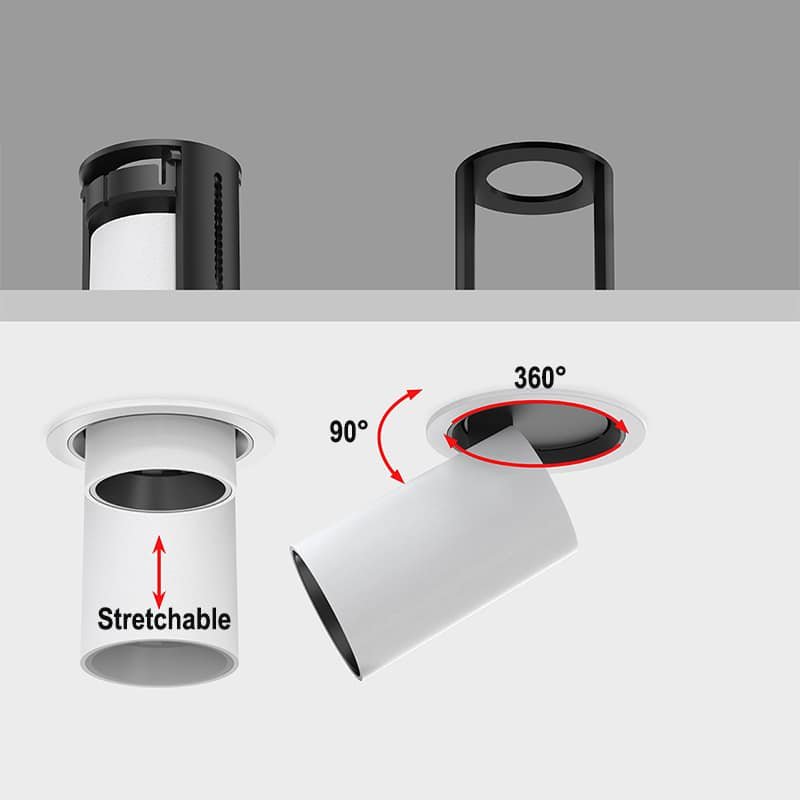

This recessed trimless spotlight is designed to be stretchable, adjustable & gimbal, up down 90° adjustable direction, and 360° rotation. It is flexible to be used for luxury commercial lighting for hotels, supermarkets, shopping malls, offices, etc.
- Shape: round and rectangular
- UGR:<19 anti-glare
- Control way: ON/OFF, dimmable available if needed
- Working life: >50000Hrs
- Manufacturer warranty: 3/5 years
- Beam angle: 15/24/36/55°
- Input voltage: 110/220-240VAC 50/60Hz
- Power factor: >0.5 as standard, 0.9 options
- THD:<15%
- IP rating: IP20
- Material: Die-cast aluminum body
- LED chips: Bridgelux/Osram COB
- CRI:>90
- SDCM:< 5 or 3
- Color temperature: 2700K-3000K/4000k-4500K/5700-6000K
| Image | Ref Number | Wattage | Dimension | Cut out | Luminous flux | Download |
|---|---|---|---|---|---|---|
|
| GR-DLG-7WR-1 | 7W±5% | Ø45*H98mm | Ø45mm | 630-700lm | Datasheet |
|
| GR-DLG-10WR-1 | 10W±5% | Ø55*H103mm | Ø55mm | 900-1100lm | Datasheet |
|
| GR-DLG-15WR-1 | 15W±5% | Ø75*H122mm | Ø75mm | 1350-1500lm | Datasheet |
|
| GR-DLG-25WR-1 | 25W±5% | Ø95*H145mm | Ø95mm | 2350-2500mm | Datasheet |
|
| GR-DLG-2x7WR-1 | 2*7W±5% | L105*W45*H98mm | L105*W45mm | 1250-1400lm | Datasheet |
|
| GR-DLG-2x10WR-1 | 2*10W±5% | L125*W55*H103mm | L125*W55mm | 1800-2000lm | Datasheet |
|
| GR-DLG-2x15WR-1 | 2*15W±5% | L165*W75*H122mm | L165*W75mm | 2700-3000lm | Datasheet |
|
| GR-DLG-2x25WR-1 | 2*25W±5% | L210*W95*H145mm | L210*W95mm | 4500-5000lm | Datasheet |
- Zigbee smart controller for Phone APP, Google Home, and AMAZON Alexa.
- Phase dimming /0-10V/DALI Dimmable
- Low voltage DC12V/DC24V/DC36V/DC48V/60V
- Emergency battery backup.
installed into a wide range of ceiling types including thicknesses from 1mm to 35mm. Just open a bigger hole than the diameter of the light body.

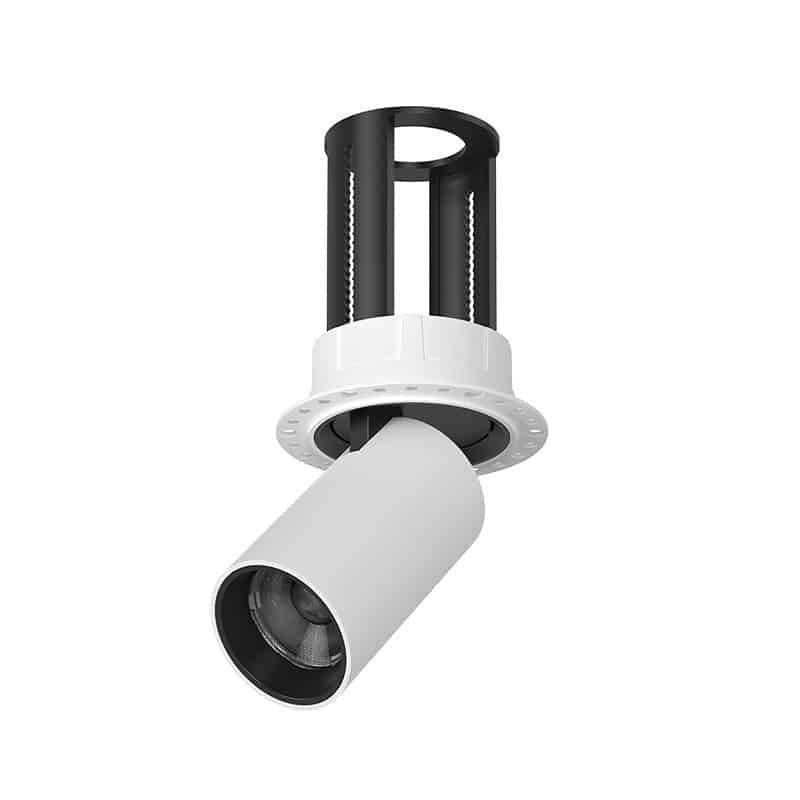

The plaster in downlights installation step is as follows:
