IP65 Trimless Soffit Downlight 7W-20W|Adjustable,Deep

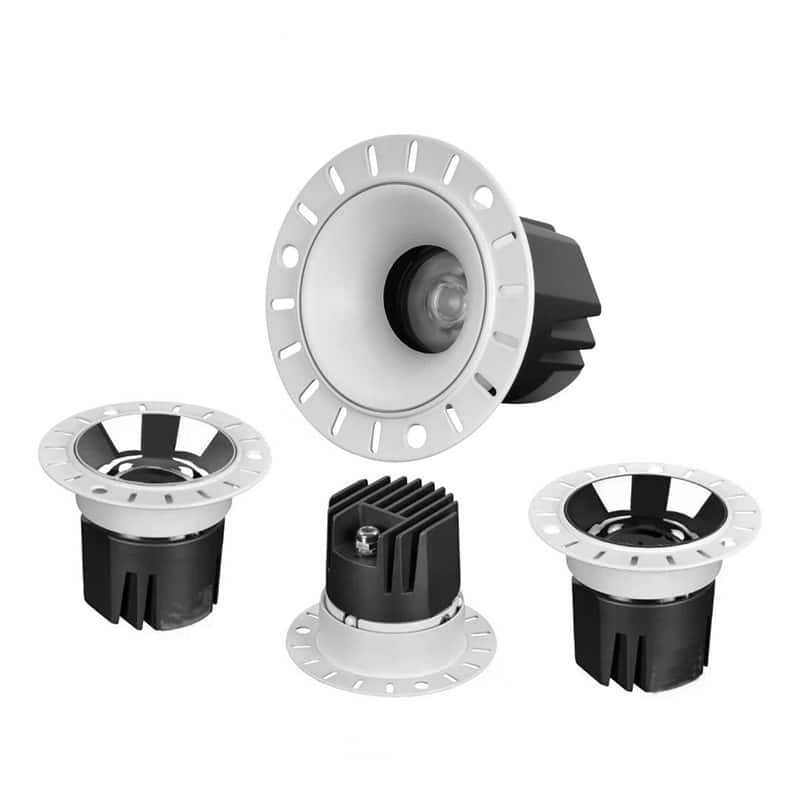

GR-DL-G-2 series IP65 trimless soffit downlight features a deep reflector for anti-glare illumination, and is adjustable by 25° for wall washer performance. Its rimless design allows it to blend seamlessly into any concrete or wood ceiling. This wet rated trimless downlight is ideal for covered porch soffits, bathroom ceilings, kitchen sink areas, and entrance lighting in residential and commercial projects.
- Input voltage: 110/220-240VAC 50/60Hz
- Beam angle: 15/24/36/60°
- LED driver: included Eagleries driver
- SDCM: <5 or 3
- Surge protection:1-2KV
- Working life:>50000Hrs
- Certificates: CE RoHS
- Warranty: 3 /5 years
- THD:<15%
- PF: 0.5 as standard, >0.9 options
- LED chips: COB type
- CRI: 90
- Color temperature: 2700K-3000K/4000K-4500K/5500-6000K
- IP rating: IP65 weatherproof
- Material: Die-cast aluminium body + PC reflector

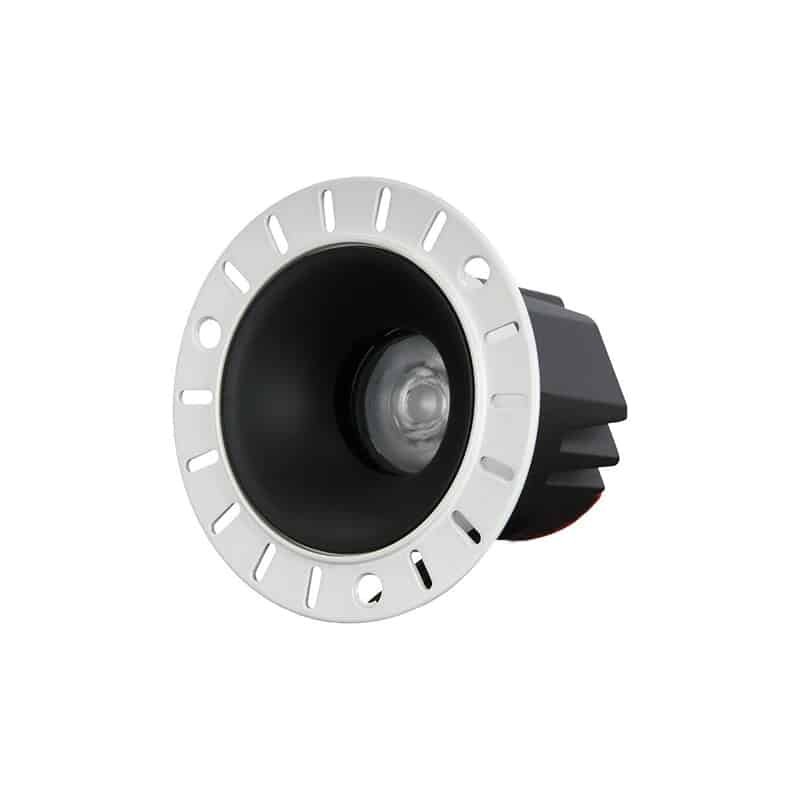

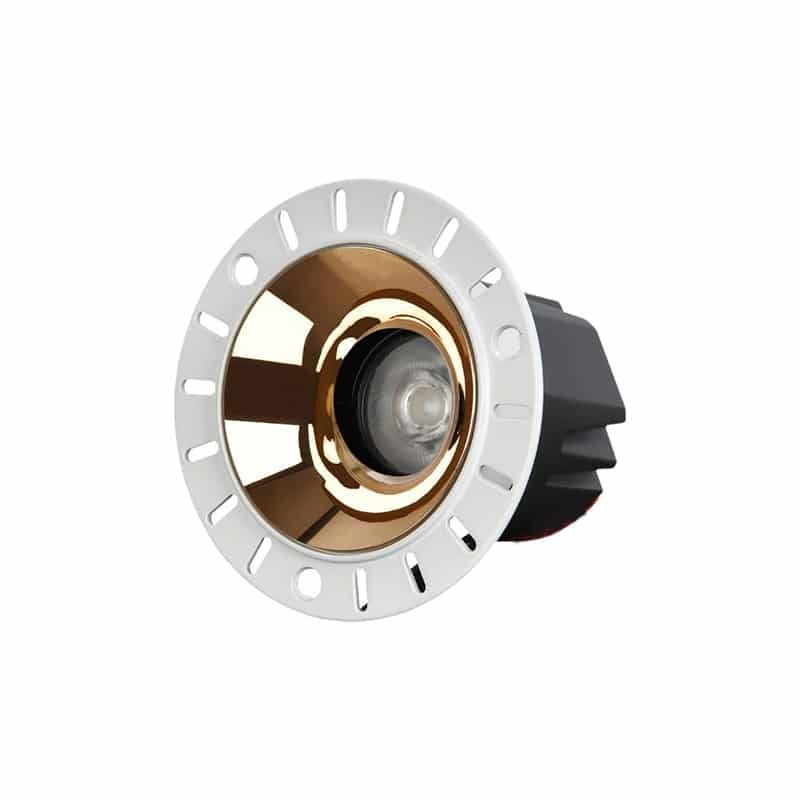

- Reflector color: Matt white, matt black, shining silver, gun black and gold reflector options
| Ref Number | Wattage | Dimension | Opening Size | Luminous flux | Download |
|---|---|---|---|---|---|
| GR-DL-7WG-2 | 7W±5% | Ø81*H69mm | Φ55mm | 650-750lm | Datasheet |
| GR-DL-10WG-2 | 10W±5% | Ø101*H74mm | Φ75mm | 900-1100lm | Datasheet |
| GR-DL-12WG-2 | 12W±5% | Ø101*H89mm | Φ75mm | 1100-1300lm | Datasheet |
| GR-DL-15WG-2 | 15W±5% | Ø130*H83mm | Φ95mm | 1400-1600lm | Datasheet |
| GR-DL-20WG-2 | 20W±5% | Ø130*H83mm | Φ95mm | 1900-2100lm | Datasheet |
- Low voltage input ( DC12V/24V/36V/48V)
- Emergency battery backup kit
- Triac/0-10V dimmable / DALI dimmable
Wet areas projects such as bathrooms, kitchen sink zones, covered porch soffit lighting, and entryways etc
Q: Why is this round IP65 trimless downlight good for soffit eaves?
A: Round soffit lights have no fixed orientation, which makes installation much more forgiving on uneven or angled eave ceilings. Square trimless downlights are preferred for modern linear grid designs where precise alignment is achievable.
Q: What wattage is recommended for soffit lighting?
A: 8-12W is the most common selection for residential villa soffits, delivering balanced brightness without harsh glare. 15W -20W is suitable for large commercial covered eaves.
Q: What is a trimless downlight?

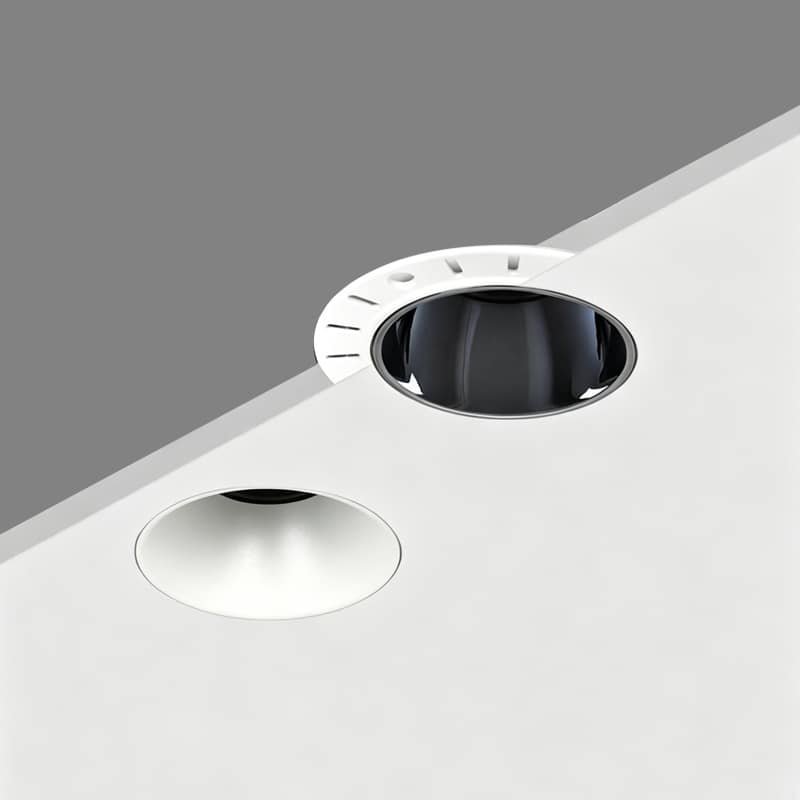

A: LED trimless downlights are modern, recessed lighting fixtures that seamlessly integrate into ceilings, creating a clean, uncluttered appearance without visible trims. It is beautiful and simple, and there is an effect of seeing the light but not the lamp.
The installation of borderless downlights or spotlights is a little complicated. First, use a sinker hole opener to open the hole, so that it is not easy to crack. When opening the light hole, control the thickness of the sinker. Whether the outer edge of the embedded part is flush with the gypsum board ceiling.
