Linear Lighting Modern Suspension

  • Beam angle 30/45° like spotlights in lighting performance
  • Dimension:L1065*W33*H60mm
  • Input voltage:100-265VAC 50/60Hz.
  • Efficiency:89%
  • Power:40W
  • LED Chip qty:40pcs
  • Lumens:3600-4000lm
  • Power factor:0.9
  • Working life:50000Hrs
  • CRI:80
  • IP Grade: IP22 indoor use

You can make an inquiry about this product.
Your e-mail will not be leaked.

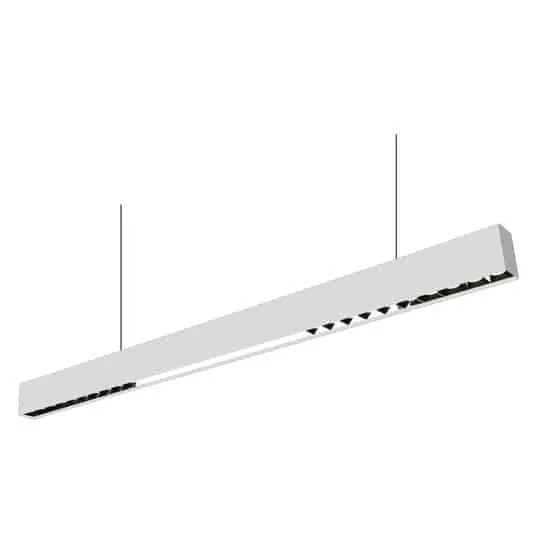

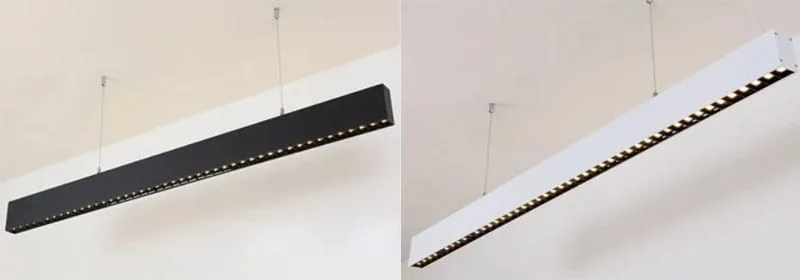

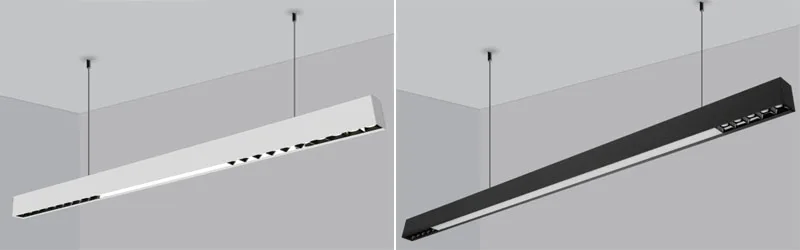

This linear lighting is the latest modern lamps in office lighting and home lighting. It is composed of some groups of modules, each module with 5Watt, and each led chip has a reflector to better achieve the focus of the light. It is ok to do both suspension installation and recessed installation.


NameLED Linear lighting
LED ChipsOsram 3030
LED QTY40pcs or Osram3030+Epistar SMD2835
Color temperature3000K Warm white,4000-4500k natural white,6000-6500k cold white
MaterialsAluminum+PC Cover.White/Black housing option
Beam angle30/45°+120°
IP GradeIP22 Indoor use only
DriverLiFud,GS,DONE,Boke,Philips option,free flicker
Power factor>0.9
Working life50000Hrs
CertificatesCE RoHS LVD EMC
InstallationSuspension installation;Surface mounted installation option


1.The high-quality aluminum material is used as the lamp body, and the outer shell is treated with high-temperature baking varnish and frosting, which has good corrosion resistance, rust-proof and color-fading, efficient heat dissipation, and durability. The shell is available in black and white.
2. The light source is modularized to facilitate the maintenance of linear led lighting, and you can compose different lighting combinations.
3. Using Osram led chips, high CRI, high brightness, uniform light emission, small color tolerance
4. Using an optical lens to better realize the illumination of light. 30/45 degree luminous angle optional to meet different needs, or 30/45°+120°.
5.LiFud, Philips, DONE brand driver option, all of the led linear lightings are top quality, free flicker, 50000Hrs lifetime, ensuring the quality of led light.
6. Working temperature -30/+45℃, can adapt to the working environment in most parts of the world.
7.All led chips are hidden inside the reflector of the lamp body to achieve an anti-glare effect.
