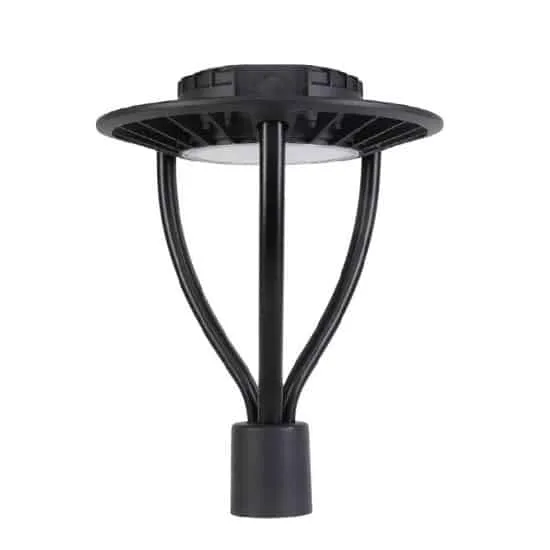

Post top lights photocell 30W to 150W

  • Power:30W 50W 70W 100W 120W 150W
  • Input voltage:100-240VAC 50/60Hz or 12VDC,DC24V
  • Efficiency:89%
  • Power factor:0.9
  • Lumens:100-120lm/W output
  • Working life:50000Hrs
  • Color rendering index:>80
  • THD:<15%
  • Beam angle:120°
  • IP Grade: IP65 Waterproof
  • Working temperature:-20/+45℃
  • Working humidity:10%-90%RH
  • Color temperature:3000K-6500K
  • Surge protection:4-6KV

You can make an inquiry about this product.
Your e-mail will not be leaked.

Our post-top lights are with high lumens led chips and top quality led driver, lifespan more than 5Years at least. The power consumption range from 30W to 150Watt, it is ok to be a garden landscape pole lights, also can be used for trunk road.

Parameter

ModelGR-TY-30WGR-TY-50WGR-TY-70WGR-TY-100WGR-TY-120WGR-TY-150W
Power30W50W70W100W120W150W
Installation height3-5meter5-6meter6-7meter8-9meter9-10meter10meter-12meter
LED Chips2835 120pcs2835 120pcs3030 120pcs3030 120pcs3030 120pcs3030 150pcs
Lumens4000-5000lm5500-6000lm7700-8700lm11000-12000lm12000lm15000-16000lm
Dimension∅380*H563mm
Joint diameter∅60-65mm
Input voltage100-240VAC 50/60HZ, or AC/DC12V 24V/36/48V input
MaterialsDie-cast aluminum+PC Lens
Beam angle120°
IP GradeIP65 Waterproof
Color temp3000K warm white,6000-6500K cold white,
Working life50000Hrs
PhotocellPhotocell can be available if needed
RemarkCE RoHS Can be approval.3Years guarantees

Feature

  1. One-piece die-casting heat dissipation, the heat dissipation material uses ADC12 aluminum, the heat dissipation is uniform, and the temperature rises only reaches 35 degrees;
  2. The spraying process is used on the surface to ensure that the LED Post top lights will never corrode or rust in harsh environments such as humidity and high temperature;
  3. Using lumileds3030 chips,100-120lm/W output.
  4. The lamp body comes with a waterproof hat, and the protection level is IP66, which can meet the needs of different scenarios;
  5. High CRI, high light efficiency, more energy-saving, and more durable;
  6. LED Post lights to adopt constant current and constant voltage control, suitable for wide voltage (AC 90V~277/305V), without fear of voltage instability.
  7. Surge protection up to 4KV-6KV,

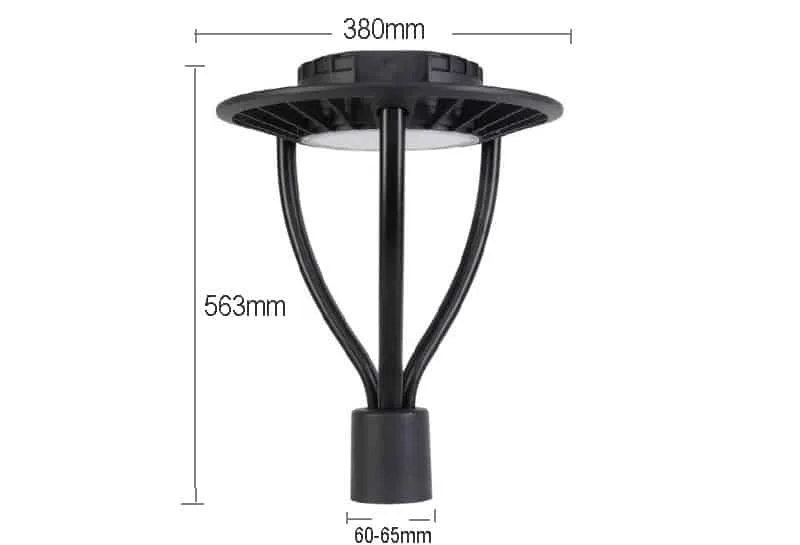

Dimension
