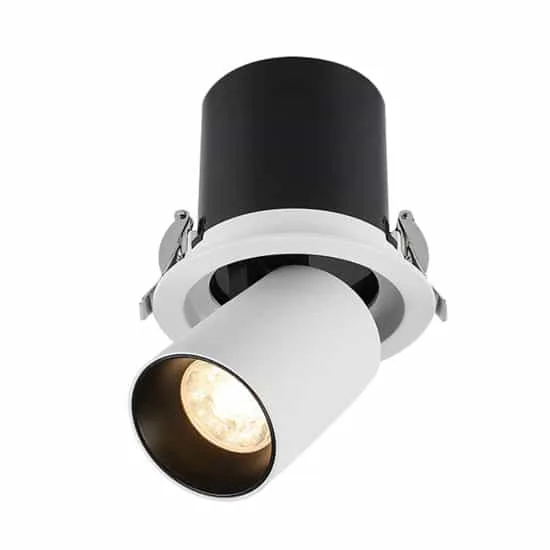

Adjustable Downlights

Adjustable Downlights Pull Out Single Double Head

Single head/double heads optional
Power:7W 15W 20W 25W 40W 50W Optional
Input voltage:100-265VAC 50/60Hz
Efficicency:89%
THD<15%
Power factor:06.-0.9
Color temperature:3000K-6500K
Beam angle:12/24/38°
Working life:50000Hrs
Warranty:2-5Years
CE RoHS LVD EMC
An emergency kit with 90minutes,120minutes available
Triac/0-10V/DALI Dimmable available

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

Description

These adjustable downlights can be with black or white powder-coated, and round or square optional, available to be the single head or double heads. It is the latest design in 2020, looks like a recessed track light, widely used for a commercial building, clothes stores, kitchen, living room. It is ok to be main led lights, or as accent lighting such as wall washer lights.

Parameter

Model	GR-PL-7WS	GR-PL-15WS	GR-PL-20WS	GR-PL-25WS	GR-PL-7×2	GR-PL-15×2	GR-PL-20×2	GR-PL-25×2
Power	7W	15W	20W	25W	7W*2	15W*2	20W*2	25W*2
Dimension	∅90*80mm	∅115*105mm	∅135*125mm	∅165*165mm	∅90*170mm	∅115*210mm	∅140*250mm	∅160*303mm
Outcut	∅75*75mm	∅95*95mm	∅115*115mm	∅145*145mm	∅75*155mm	∅95*190mm	∅120*230mm	∅145*280mm

LED Chips	CREE/Bridgelux COB
Input voltage	100-240VAC 50/60HZ; DC12V 24V 36V 48V available
CRI	90
Color tempearture	3000K Warm white;4000-4500K natural white;6000-6500k cold white
Materials	Die-cast aluminum, white finished
IP Grade	IP22 Indoor use
Beam angle	12/24/38°
Remark	CE RoHS LVD EMC can be approval. 2-5Years warranty

Feature

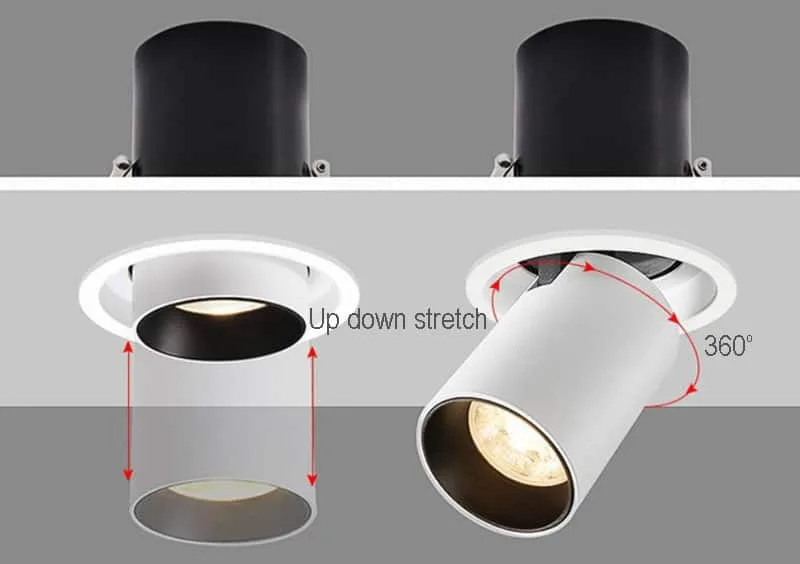

1 Rotate around 360°, stretch up and down, can be used as spotlights or cylinder downlights.

2.Die-cast aluminum housing, white/black finished, Anti-glare design
3. CREE COB LED chips, high luminous efficiency, low luminous decay, CRI90, increase the texture of the space lighting effect.
4. Famous constant current power supply, Philips, LiFud, Eagles, DONE, CE RoHS LVD EMC approval, no flicker.
5. The life span is as long as 50000Hrs, no need to replace the gimbal downlights for at least 5 years. Save energy and money.
6.Different color temperature option,3000K Warm white,4000-4500k natural white,6000-6500K cold white.

Installation steps

Step 1:Take out adjustable downlights and accessories. And cut off all of the power before install any led lights.
Step 2:Open hole onto ceiling according to the dimension of downlights.
Step 3:Connecting the wires of a led driver with 220V/110VAC Wires. Then testing if it is working.
Step 4:Upward the clips, then put downlights into the hole. Then finished installation.
