Surface Mounted Cylinder Spotlight 10W-30W

cylinder spotlights
surface ceiling spotlights
surface cylinder spotlights
surface mounted cylinder spotlights
  • cylinder spotlights
  • surface ceiling spotlights
  • surface cylinder spotlights
  • surface mounted cylinder spotlights

    • These surface cylinder spotlights can be mounted directly on the ceiling or wall, or suspended with rope or rods. The black or white finish is optional. They are widely used for commercial and residential lighting, among other applications.

    • Color finished: Matt white or Matt black
    • Certificates: CE RoHS
    • Warranty: 3/5 years
    • Beam angle: 60°
    • Material: Die-cast aluminum body + PC cover
    • IP rating: IP20 indoor use ( IP44 for front)
    • LED driver: Eagleries/LiFud/DONE/BOKE options. free flicker
    • Power factor:>0.5 or 0.8
    • THD:<15%
    • LED chips: Bridgelux or Osram COB with CRI90, SDCM:<5
    • Color temperature: 2700K-3000K /4000-4500k/ 5700k-6000k
    • Working life:>50000Hrs
    • Input voltage: 110/220V-240VAC 50/60Hz
    Get a Quote

    Ref NumberWattageDimensionLuminous FluxDownload
    GR-FM-10WB10W±5%Φ75*H130mm900-1000lmDatasheet
    GR-FM-12WB12W±5%Φ75*H130mm1100-1250lmDatasheet
    GR-FM-15WB15W±5%Φ95*H150mm1300-1600lmDatasheet
    GR-FM-20WB18W±5%Φ115*H160mm1800-2100mmDatasheet
    GR-FM-30WB30W±5%Φ140*H160mm2700-3200lmDatasheet

    • Triac dimmable ( phase dimming)-0/10V dimmable, or DALI dimmable
    • Suspended installation

    Fix the plate to the ceiling with screws (not supplied). Connect the supply cable to the fast connector.

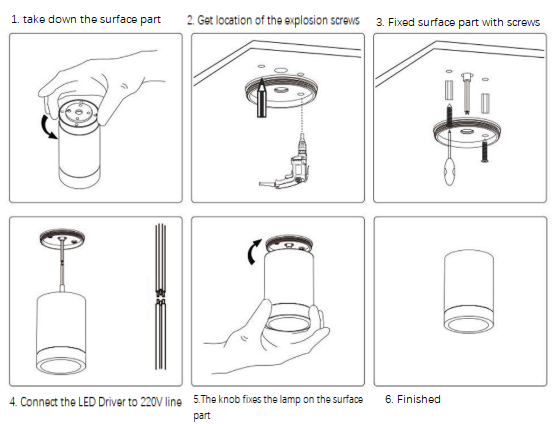

    The installation step drawing is as follows:
