Recessed wall light square waterproof 3W
- Input voltage:100-240VAC 50/60Hz.DC12V 24V also can be customized
- LED Driver: DONE Brand constant current driver, perfect quality.Free flicker
- LED Chips: Bridgelux COB;80lm/W.CRI80
- Materials: Die-Aluminum, white/black/grey housing optional
- IP Grade: IP65 Waterproof
- Color temperature:3000K Warm white;4000-4500k natural white,6000-6500K cold white.
- Working life:50000Hrs.The lifespan duration 5-10years at least.
- Triac dimmable/0-10V/DALI dimmable available if needed.
- Working temperature:-25℃~50℃,10%~90% R.H.
- Warranty:2-3Years
You can make an inquiry about this product.
Your e-mail will not be leaked.
Description

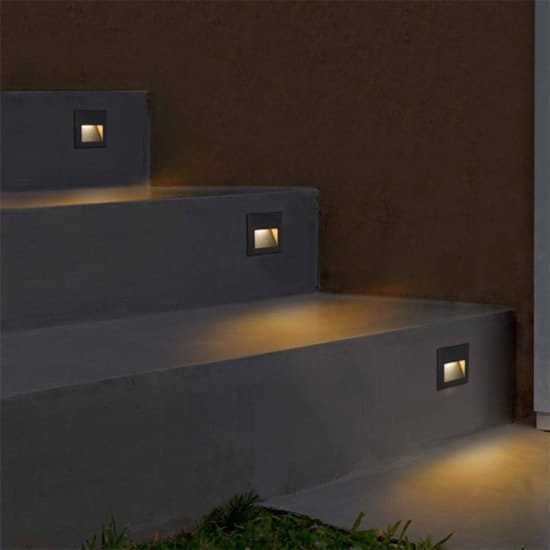

This recessed wall light is waterproof and square design, mainly installed at the corner of a wall or outdoor stairway. The embedded installation method can well integrate the lamp with the building wall. The white or black finished is better for working with different projects.
Parameter
| Model | GR-WML-3WQ |
| Power | 3W |
| Input voltage | 100-240VAC 50/60Hz.DC12V 24V 36V 48V available |
| LED Chips | Epistar |
| Lumens | 240lm |
| Color temperature | 3000K Warm white,4500K natural white,6500k cold white |
| CRI | >80 |
| Materials | Die-cast aluminum |
| IP Grade | IP65 Waterproof |
| Beam angle | 90°adjustable beam angle |
| Power factor | 0.6 |
| Working life | 50000Hrs |
| Certificates | Can be CE RoHS LVD EMC Approval |
Feature
- Select high-quality aluminum materials, all-in-one molding. The outdoor wall light shell is anodized, does not fade, corrosion, and cracks. Beautiful, stylish, high-end atmosphere
- Use high-end LED chips. The luminous source is hidden deep in the lamp body, which makes the light more concentrated and dazzling.
- Professional waterproof technology. Lamps are safer to use outdoors and are not afraid of wind and rain erosion. Lighting more at ease.
- The input voltage is optional. Low voltage led recessed wall luminaires with 12V 24V 48V can be customized. Meet the different engineering needs of different customers.
- Different color temperature options,3000-3200K warm white,4000-4500k natural white;6000-6500k cold white. it is ok to customized red light, yellow light, Blue light, green light if needed.

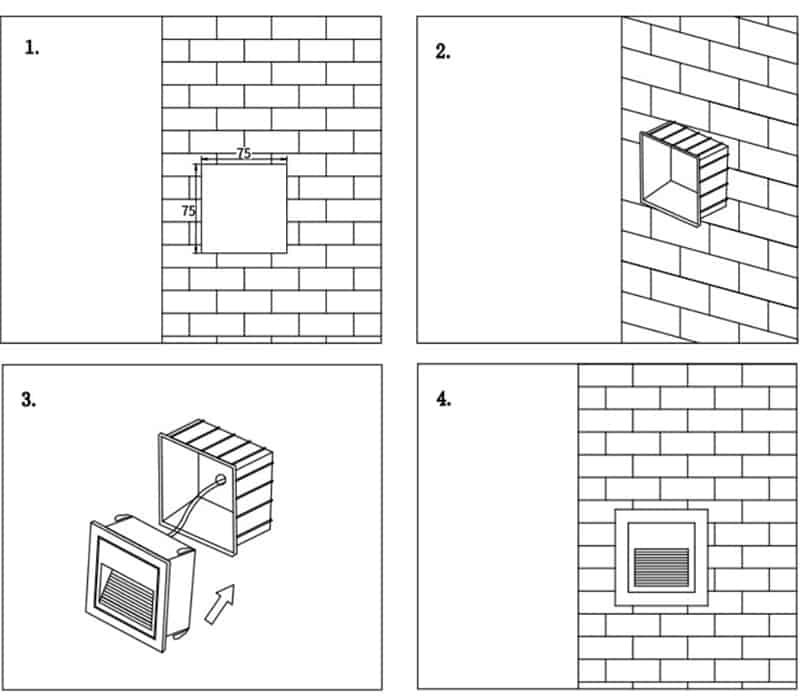

Installation for led recessed wall lights
- Open a hole on the wall, the hole size should be 75mm in diameter.
- Take out the bottom box of recessed wall lights, put it into the hole.
- Connect the led driver wires with 220VAC wires, then pull them into the bottom box.
- Turn on to check if it is working or not. then finished.
- Attention: Please cut off the electricity of 220VAC or switch before you install it.
