Trimless Square Downlights Single/Double/GR-DL-V-01

adjustable trimless spotlights
frameless square downlights
recessed square downlights
square trimless downlights
  • adjustable trimless spotlights
  • frameless square downlights
  • recessed square downlights
  • square trimless downlights

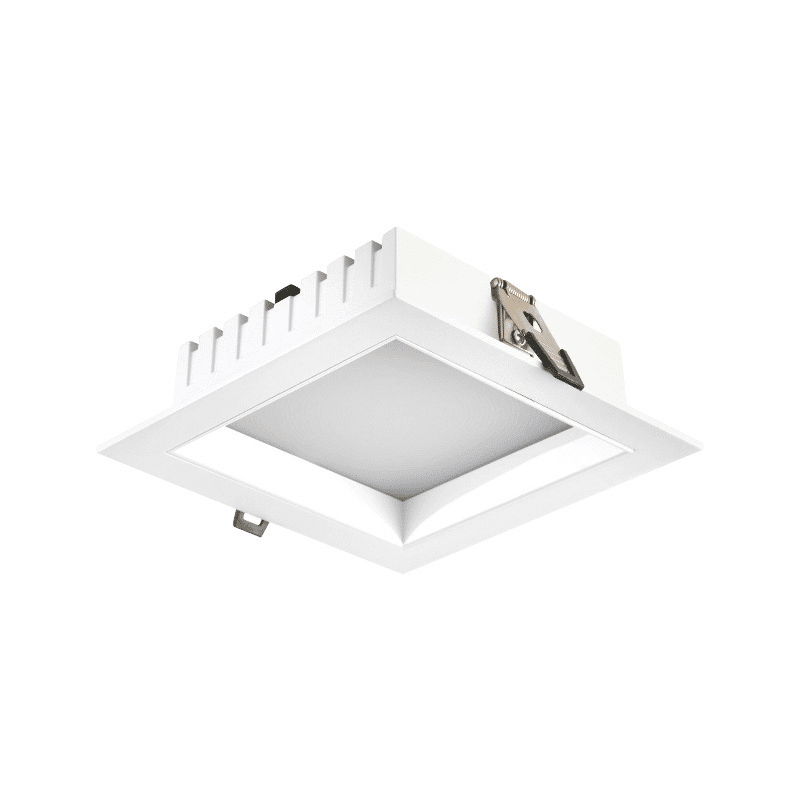

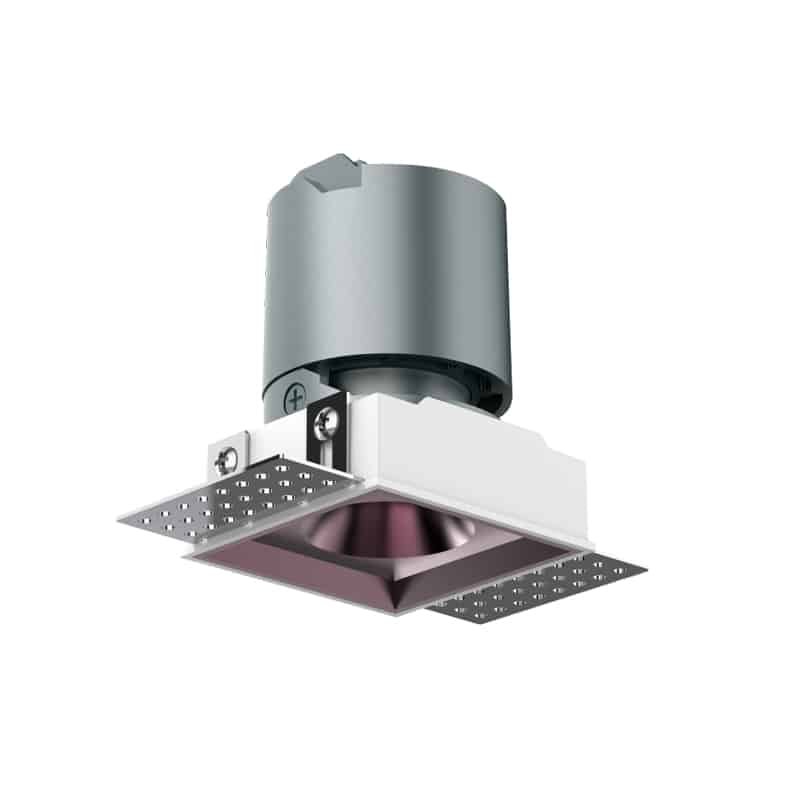

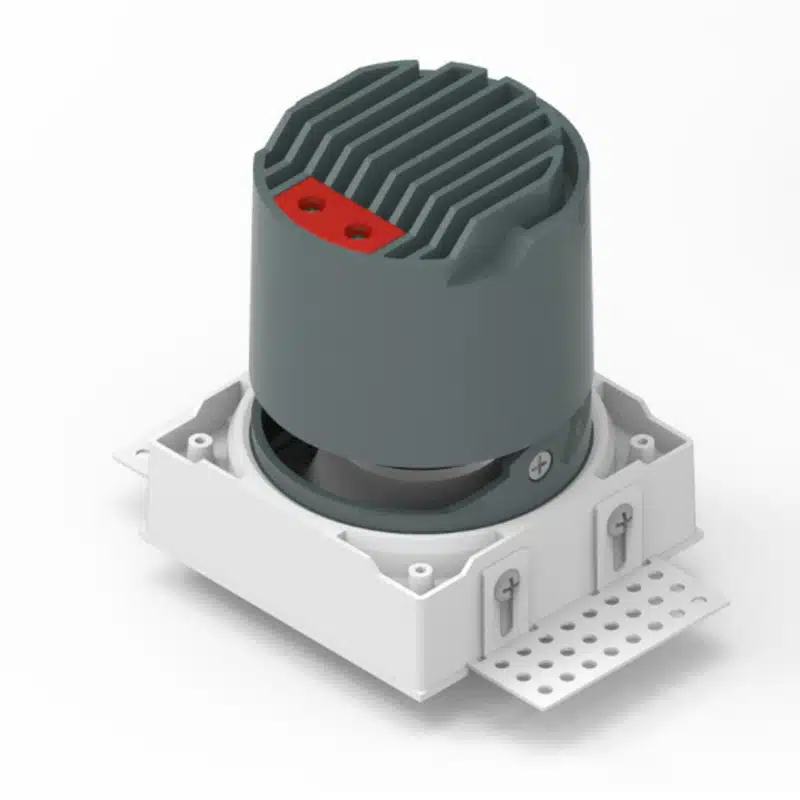

    • These square recessed downlights are trimless designs with single and double heads on the base of recessed square spotlights . It is an adjustable 30° direction design, the reflectors can be matt black, white, matt silver, gun black, or gold options. They are widely used for different commercial lighting projects that pursue individuality,minimalism, or industrial style.

    • Shape: Square and rectangle
    • Installation: recessed mounted ceiling
    • Lumens: 90-110lm/W
    • UGR:<17 anti-glare
    • Control way: ON/OFF, dimmable available if needed
    • Working life:>50000Hrs
    • Manufacturer warranty: 3/5 years
    • Trade term: Ex-work, FOB, or CIF
    • Payment terms: Bank transfer, Paypal, Western Union
    • Origin: Made in China
    • Lead time: 3-15 days after finished deposits
    • MOQ: 30pcs/ model

    GRNLED offers the best price in the market.

    QUOTE
    ImageOrder modelWattageDimensionCut outLumensColor temperatureBeam anglePower FactorInput voltageDATASHEET
    square trimless downlights GR-DL-7WV-017W±5%LW65*H85mmW55*L58mm650-770lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    square trimless downlights GR-DL-10WV-0110W±5%LW85*H85mmW75*L78mm900-1100lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    square trimless downlights GR-DL-12WV-0112W±5%LW85*H85mmW75*L75mm1100-1200lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    square trimless downlights GR-DL-15WV-0115W±5%LW105*H124mmW95*L98mm1350-1500mm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    square trimless downlights GR-DL-20WV-0120W±5%LW105*H134mmW95*L98mm1800-2000lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload

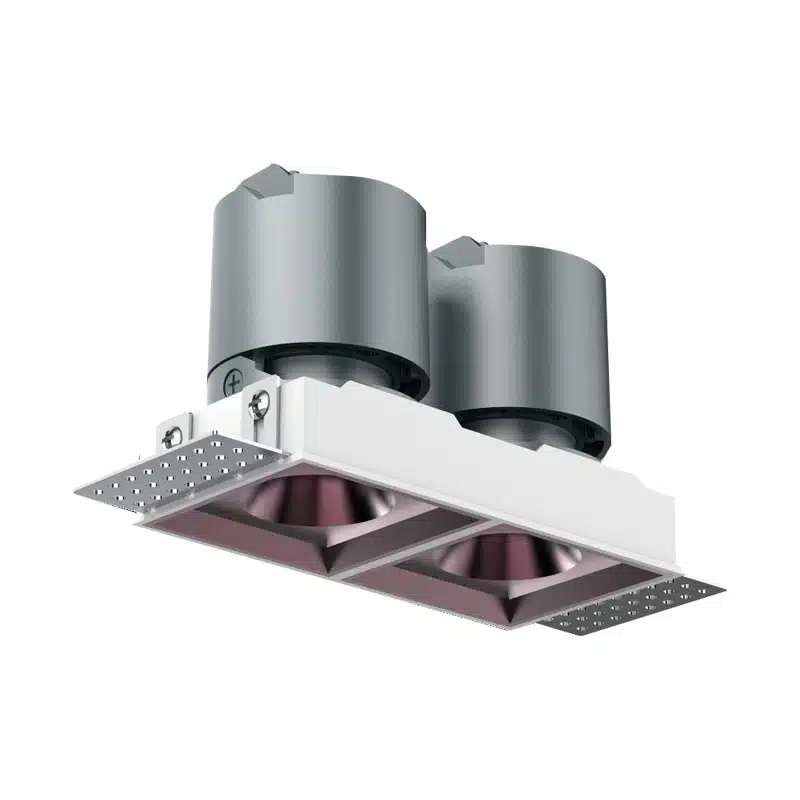

    double squre trimless downlight GR-DL-2x7WV2X7W115*65mm105*58mm1200-1400lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    double squre trimless downlight GR-DL-2x10WV2X10W155*85mm145*78mm1800-2000lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    double squre trimless downlight GR-DL-2x12WV2X12W155*85mm145*78mm2200-2400lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    double squre trimless downlight GR-DL-2x15WV2X15W195*105mm185*98mm2700-3000lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload
    double squre trimless downlight GR-DL-2x20WV2X20W195*105mm185*98mm3800-4200lm3000K,4000K,6500K15/24/36/55°>0.5 or 0.9220-240VAC 50/60HzDownload

    Body & Finished

    • Heat sink: die-cast aluminum body, black powder-coated.
    • Reflector: PMMA, different color options
    • Trimless hardware: metal with a hole, easy to fix by screws.

    Control Gear/Led driver

    • Control Gear brand: LiFud/Eagleries as standard, Osram/Philips drivers are optional.
    • Input voltage: 220-240VAC 50/60Hz
    • THD:<10%
    • Power Factor: 0.5 as standard, >0.9 PF optional.
    • Efficiency:>85%
    • Certificates: CE TUV CB, ENEC
    • Warranty: 3/5 years

    Optical

    • Led chips brand: Bridgelux /Osram / Citizen
    • Lumens: 120-140lm/W
    • CRI:>90
    • Color temp: 3000K warm white, 4000-4500k cold white, 5700-6200k cold white
    • LM80
    • Lifetime: >100000hrs
    • Zigbee smart controller for Phone APP, Google Home, and AMAZON Alexa.
    • Phase dimming /0-10V/DALI Dimmable
    • Low voltage DC12V/DC24V/DC36V/DC48V/60V
    • Emergency battery backup.

    installed into a wide range of ceiling types including thicknesses from 1mm to 35mm. Just open a bigger hole than the diameter of the light body.

    The plaster in downlights installation step is as follows:
