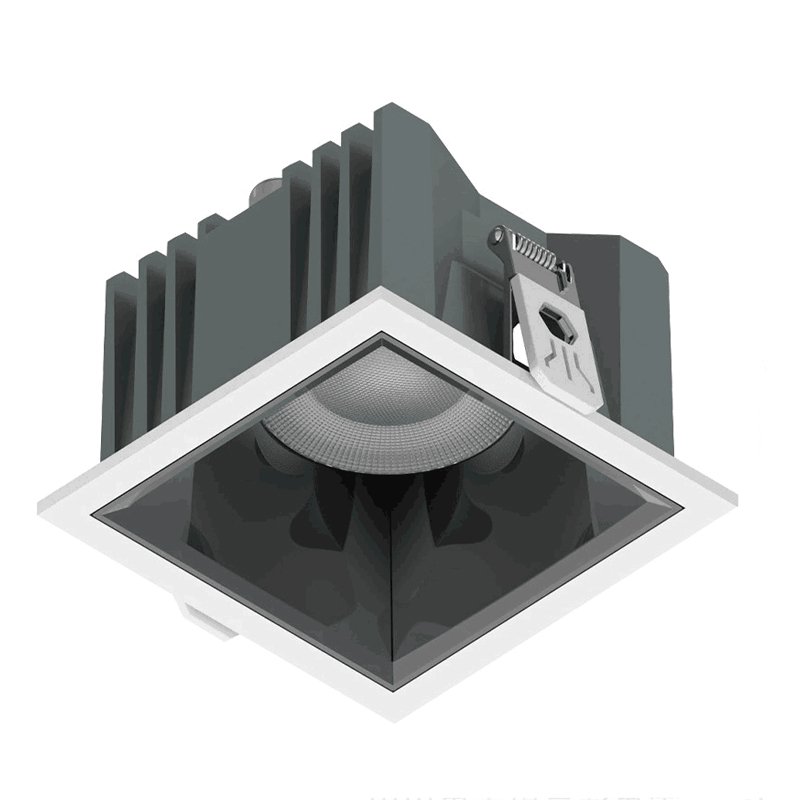

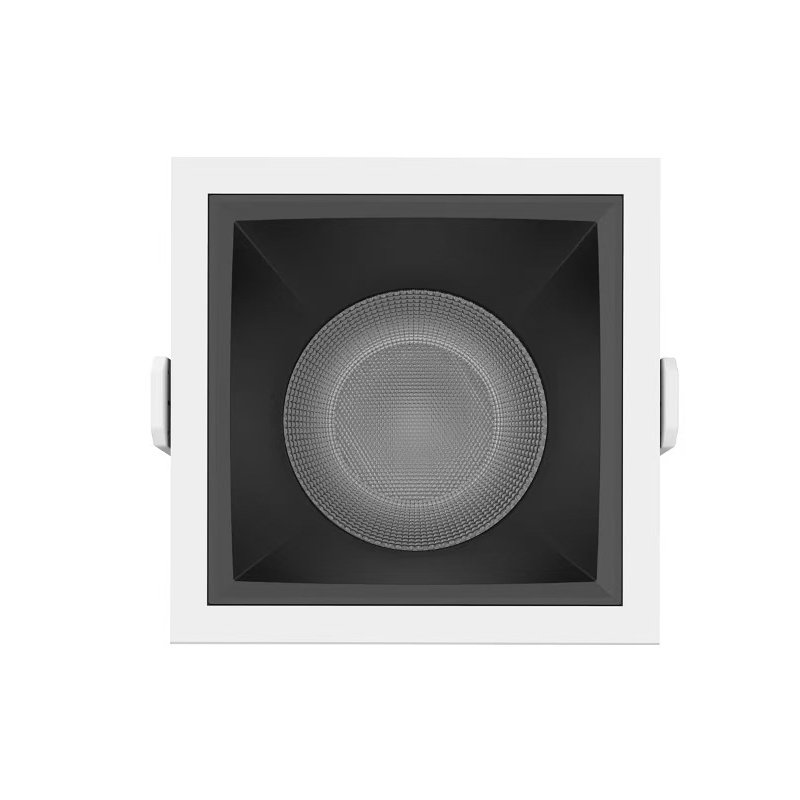

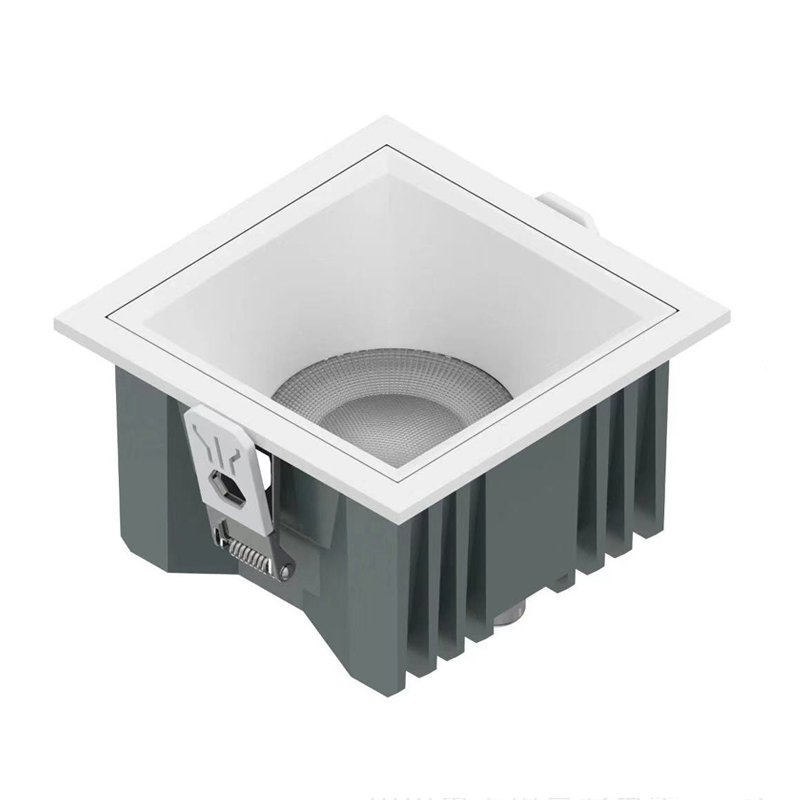

Square Recessed Waterproof LED Downlight IP65 | Model: GR-DL-W-7

waterproof square led downlight
IP65 square downlight
Recessed square waterproof downlights
square waterproof downlights
  • waterproof square led downlight
  • IP65 square downlight
  • Recessed square waterproof downlights
  • square waterproof downlights

    • These recessed LED downlights are designed with a square shape, and with a waterproof structure to IP65 waterproof performance. Deep reflectors with a low glare, UGR< 17, Available in white, black, silver, and gold for reflectors selection, It is widely used for moisture areas like bathrooms, wash rooms, balconies, etc.

    • Mounting: Recessed
    • Cut out: 75mm, 95mm, 125mm options
    • Shape: Square
    • Light source: 24°/36° for COB; 55° for SMD sources.
    • Control way: ON/OFF, dimmable/ CCT selectable options
    • IP Rate: IP65 waterproof
    • Working temp: -30/+60℃
    • Manufacturer warranty: 3/5 years
    • Certificates: CE RoHS LVD EMC
    • Origin: Made in China
    • MOQ: 50PCS/ model

    Black finished can be customized

    QUOTE
    Order ModelWattageDimensionCut outLumensColor temperatureBeam angleUGRCRIInput voltageDatasheet
    GR-DL-12WW-712W ±5%LW90*H60mm75*75mm1200-1300lm2700-6500K24/36/60°<17>90110/220-240VAC 50/60HzDownload
    GR-DL-15WW-7 (75)15W ±5%LW90*H60mm75*75mm1500-1600lm2700-6500K24/36/60°<17>90110/220-240VAC 50/60HzDownload
    GR-DL-15WW-7 (95)15W ±5%LW110*H70mm95*95mm1500-1700lm2700-6500K24/36/60°<17>90110/220-240VAC 50/60HzDownload
    GR-DL-20WW-7(95)20W ±5%LW110*H70mm95*95mm2000-2400lm2700-6500K24/36/60°<17>90110/220-240VAC 50/60HzDownload
    GR-DL-20WW-7(125)20W ±5%LW145*H75mm125*125mm2000-2400lm2700-6500K24/36/60°<17>90110/220-240VAC 50/60HzDownload
    GR-DL-25WW-725W±5%LW145*H75mm125*125mm2500-3000lm2700-6500k24/36/60°<17>90220-240VAC 50/60HzDownload
    GR-DL-30WW-730W±%LW145*H75mm125*125mm3000-3600lm2700-6500k24/36/60°<17>90220-240VAC 50/60HzDownlaod

    Materials & Finished

    • Body: aluminum body, matt green grey finished.
    • Cover: PMMA lens materials.
    • Springs/Clips: Steel, high strength to fix onto the ceiling.

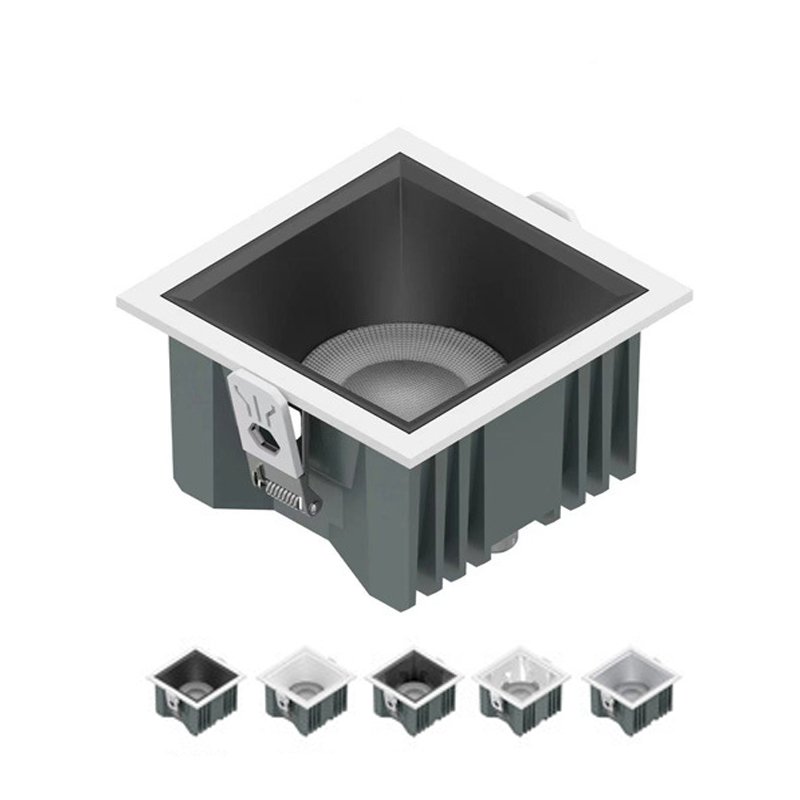

    • Reflector: PMMA, White/black as standard, silver, gold, silver chrome, black chrome options.
    • Cable gland: stainess steel, IP65 waterproof level.

    Control Gear / Led driver

    • Driver brand: Eagleries as standard, BOKE/LiFud/Guanx/Osram/Philips are optional.
    • Input voltage: 220-240VAC 50/60Hz
    • Output Voltage: 36VDC
    • Power factor:>0.5 or 0.9
    • Free flicker: Yes
    • THD:<15%
    • Efficiency:>87%
    • IP Rating: IP22
    • Certificates: BIS CE RoHS ENEC CB
    • Warranty: 3/5Years

    Optical

    • Light source brand: Bridgelux as standard, Osram/Citizen available
    • Color rendering index:>90
    • Lumens:120lm-140lm/W output.
    • SDCM:<5 or <3
    • Beam angle: 55° /24/36° options
    • Lifetime:>50000Hrs
    • Low glare value: UGR<17
    • Color temperature:2700-2900K; 3000-3200K; 4000-4500K; 5700-6000K; 6000-6500K
    • Lumens maintenance: 99.9%@1000hrs/ 99%@3000hrs /98%@10000hrs. (LM80).
    • Emergency battery packs. ( emergency kits for 1-3Hours for 2-5Watt)
    • 0-10V/Triac/DALI dimmable options

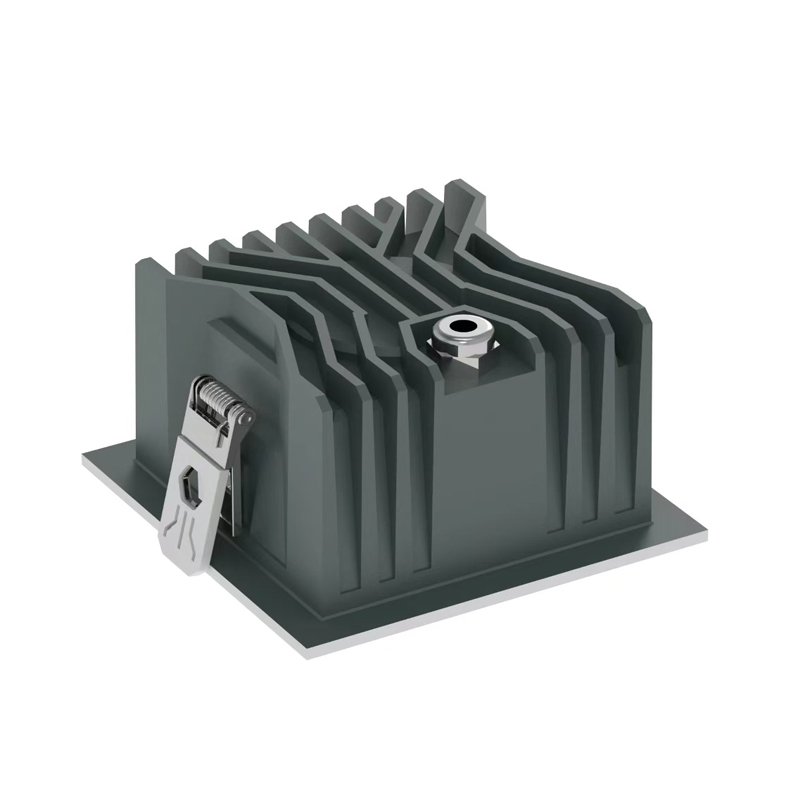

    Quick tool-free installation design, the downlighter has a strong fixing bracket, which can be quickly installed on a 1-40mm thick ceiling. Check the installation drawing here, please.

    • Commercial lighting: Hotels, offices, shopping malls, schools, hospitals, supermarkets.
    • Residential lighting: balcony, washing room, tolits, bathroom, Living room, bedroom, kitchen room, etc..
