White/Black Recessed Square LED Downlight 3-8inch | Model: GR-DL-B-08

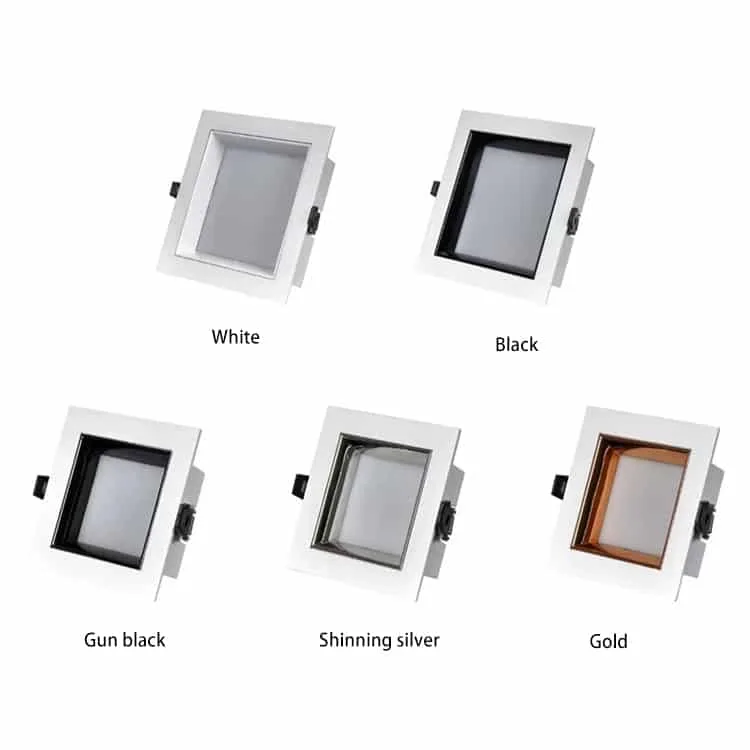

This square LED downlight includes both a white frame and black housings, a deep design with different reflector color options like white/black/gun black/ Chrome(shining silver and gold. The protection level can be IP44. Dimension ranges from 3 inches to 8 inches. Black recessed downlights can create a calm,professional or mysterious atmosphere.They are suitable for commercial spaces such as bars, cafes,exhibition halls,and high-end retail stores. Different color housing offer you flexibility for different fitout styles.
GRNLED offers the best price in the market.
Order model | Wattage | Dimension | Cutout | Lumens | Color temperature | Power Factor | CRI | IP Grade | Input voltage | Datasheet |
GR-DL-9WB-08 | 9W±5% | L100*W100*H43mm | 75*75mm | 900-1000lm | 3000K,4000K,6500K | >0.5 | >90 | IP44 | 110V/220-240VAC 50/60Hz | Download |
GR-DL-12WB-08 | 12W±5% | L120*W120*H43mm | 95*95mm | 1100-1300lm | 3000K,4000K,6500K | >0.5 | >90 | IP44 | 110V/220-240VAC 50/60Hz | Download |
GR-DL-15WB-08 | 15W±5% | L150*W150*H43mm | 125*125mm | 1300-1600mm | 3000K,4000K,6500K | >0.5 | >90 | IP44 | 110V/220-240VAC 50/60Hz | Download |
GR-DL-20WB-08 | 20W±5% | L175*W175*H45mm | 155*155mm | 1800-2100lm | 3000K,4000K,6500K | >0.5 | >90 | IP44 | 110V/220-240VAC 50/60Hz | Download |
GR-DL-25WB-08 | 25W±5% | L197*W197*H50mm | 175*175mm | 2300-2500lm | 3000K,4000K,6500K | >0.9 | >90 | IP44 | 110V/220-240VAC 50/60Hz | Download |
GR-DL-35WB-08 | 35W±5% | L230*W230*H55mm | 200*200mm | 3300-3600lm | 3000K,4000K,6500K | >0.9 | >90 | IP44 | 110V/220-240VAC 50/60H | Download |
Body & Finished
- Housing Material: Aluminum body with high corrosion resistance and powdered paint.
- Housing color: Matte white is a standard, the black colors are optional.
- Reflector: Polycarbonate, matt white/ black as standard, the chrome, gold, and gun black reflector colors are optional
- Cover: Polycarbonate, frosted finish.
Control Gear / Led driver
- Led driver brand: Eagleries /DONE/ Suncom brand.
- Input voltage: 110/220V-240VAC 50/60Hz
- Free flicker: Yes
- PF:>0.5 as standard, >0.9 optional
- Surge protection:1KV
- THD:<15%
- Efficiency: >83%
- IP Grade: IP22
- Certificates: TUV, CE CB, ENEC
- Warranty: 3/5 years
Optical
- Light source brand: Bridgelux
- CRI:>90
- Color temperature: 3000-6500k
- SDCM:<5
- Lifetime:>100000Hrs
- LM80
