Swivel Adjustable Ceiling Spot Light 7W-20W

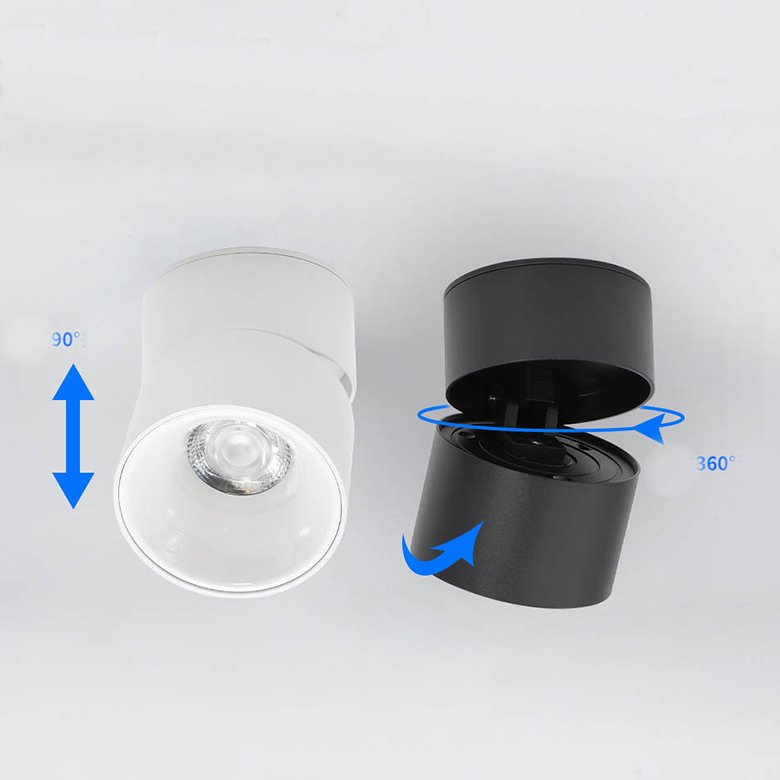

This adjustable Swivel spotlight features a stylish cylindrical design, perfect for homes, offices, and retail spaces. This compact, surface-mounted fixture offers a 24-degree beam angle, 355-degree rotation, and 80-degree tilt for precise illumination. Available in black and white, it supports non-dimming, trailing-edge dimming, and DALI dimming for added versatility. Enhance your space with this stylish, adjustable LED light.
GRNLED offers the best price in the market.
| Order model | Wattage | Dimension | Lumens | Color temperature | Beam angle | Power Factor | Light Source | CRI | Input voltage | Datasheet |
| GR-DL-7WZ-3 | 7W±5% | Φ60*H80mm | 600-700lm | 3000K,4000K,6500K | 15°/24° | >0.5 | COB | >90 | 220-240VAC 50/60Hz | Download |
| GR-DL-10WZ-3 | 10W±5% | Φ75*H95mm | 800-1000lm | 3000K,4000K,6500K | 15°/24° | >0.5 | COB | >90 | 220-240VAC 50/60Hz | Download |
| GR-DL-15WZ-3 | 15W±5% | Φ87*H100mm | 1200-1500mm | 3000K,4000K,6500K | 15°/24° | >0.5 | COB | >90 | 220-240VAC 50/60Hz | Download |
| GR-DL-20WZ-3 | 20W±5% | Φ110*H120mm | 1700-2000lm | 3000K,4000K,6500K | 15°/24° | >0.5 | COB | >90 | 220-240VAC 50/60Hz | Download |
Body & Finished
- Housing material: Die-cast aluminum body

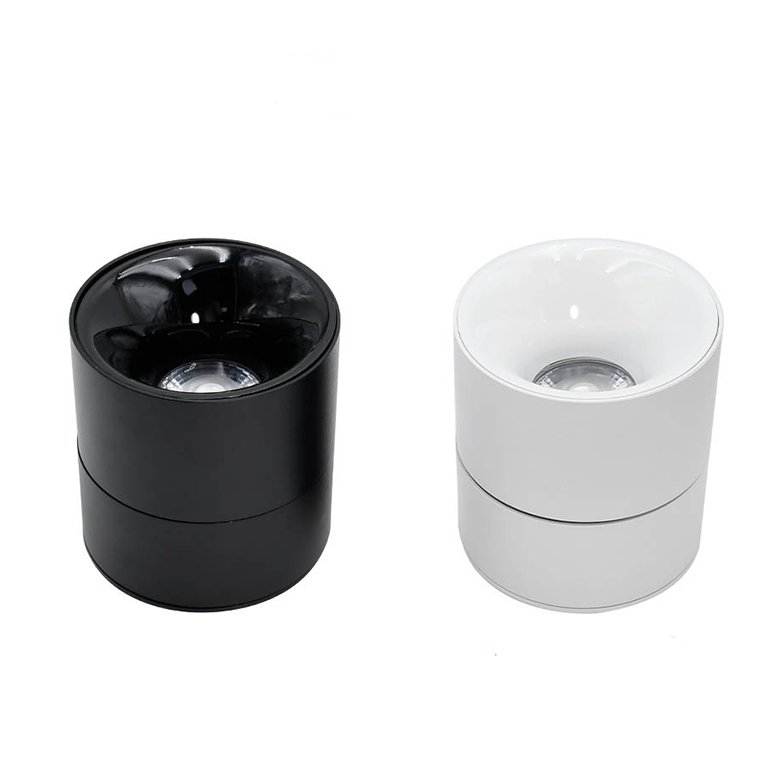

- Housing color: Matt black, matt white
- Lens/diffuser: PMMA lens, non-yellowing.
- Surface hardware: Plastic, white/black finished. It is adjustable.
Control Gear/led driver
- Brand: DNF/Eagleries brand as a standard
- Led driver type: Isolated driver
- Input voltage: 110/220-240vac 50/60Hz
- Power factor: >0.5, or 0.9
- THD:<20%
- Efficiency: >82%
- IP rate: IP20
- Warranty: 3/5 years
Optical
- Led chip brand: Bridgelux COB as a standard, Osram COB is optional
- CRI: >90
- Lumens:110-130lm/W
- Color temperature: 3000K, 4000-4500K, 6000-6500K
- LM80
- Triac dimmable ( phase dimming)
Fix the plate to the ceiling with screws (not supplied). Connect the supply cable to the fast connector.
Installation steps are as follows:
