Adjustable Commercial Spotlights 12W-40W | Model: GR-DL-G-8

commercial recessed spotlight
  • commercial recessed spotlight

    • This is a recessed high-end commercial spotlight, available with 30° adjustment & 360° rotation. The heat sink is die-cast aluminum, and heavy, very good in heat performance, the chips are Bridgelux or OSRAM COB, and famous LED driver brand such as BOKE, LiFud, Eagleries, and Philips.etc. Widely used for commercial areas.

    • Ref model: GR-DL-G-8
    • Wattage: 12W -40Watt
    • Cut out: 75mm, 95mm, 115mm, 120mm
    • Adjustable: yes
    • Reflecotr: matt black/white, gund black, silver, gold options
    • Beam angle: 15/24/36° options
    • UGR:<15 anti glare
    • Free flicker: Yes
    • Certificates: CE RoHS
    • Origin: Made in China
    • MOQ: 50PCS/ model.
    • Working life:>50000Hrs
    • Warranty: 3/5 Years

    GRNLED offers the best price in the market.

    QUOTE
    Order ModelWattageDimensionCut outLumensColor temperatureUGRCRIBeam angleInput voltageSpecification
    GR-DL-15WG-812W-15W±5%Φ82*H95mmΦ75mm1200-1500lm3000K/4000K/6000K<15>9215/24/36°110/220-240VAC 50/60HzDownload
    GR-DL-25WG-820W-25W±5%Φ104*H120mmΦ95mm2200-2500lm3000K/4000K/6000K<15>9215/24/36°110/220-240VAC 50/60HzDownload
    GR-DL-30WG-830W±5%Φ120*H125mmΦ105-110mm2700-3000lm3000K/4000K/6000K<15>9215/24/36°110/220-240VAC 50/60HzDownload
    GR-DL-35WG-835W±5%Φ130*H132mmΦ115-120mm3200-3500lm3000K/4000K/6000K<15>9215/24/36°110/220-240VAC 50/60HzDownload
    GR-DL-40WG-840W±5%Φ130*H132mmΦ115-120mm3600-4000lm3000K/4000K/6000K<15>9215/24/36°110/220-240VAC 50/60HzDownload

    Materials & Finished

    • Outer trim: Die-cast Aluminum, white finished as standard, black finished options
    • Heat sink: aluminum, black finished, 30° adjustable direction & 360° rotation.

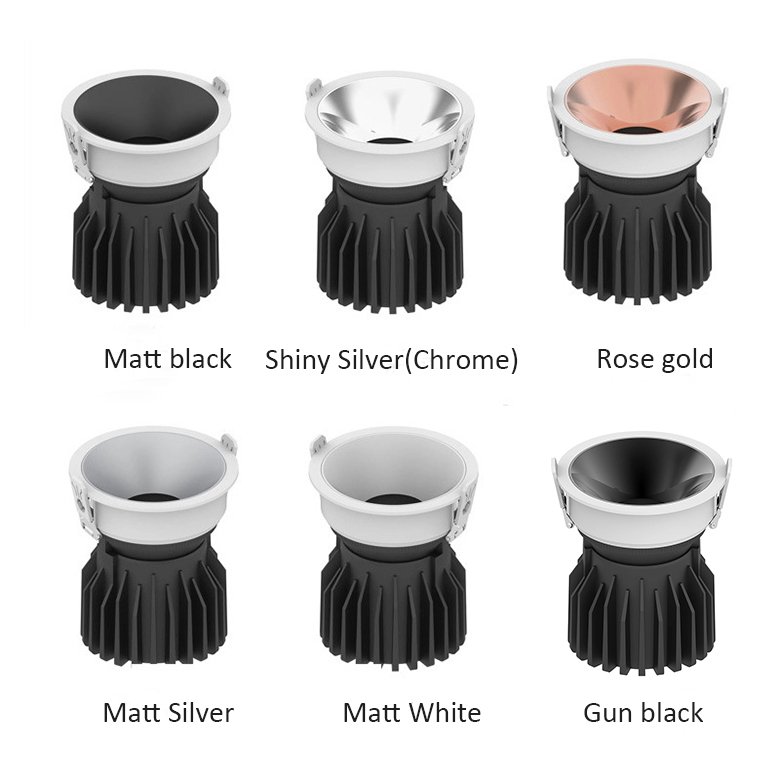

    • The reflector: black/white/silver/rose gold/gun black reflectors color optional.
    • Mounting Clips: Metal body, strong strength, easy to do the recessed installation

    Control gear/driver

    • Led driver brand: LiFud/Eagleries/BOKE brand as a standard; Osram/ Philips optional.
    • Input voltage:110/220V-240VAC 50/60Hz
    • THD:<15%
    • PF:0.5-0.9
    • Surge protection:1-2KV
    • IP rate: IP20
    • Efficiency:>85%
    • Working life: 50000Hrs
    • Certificates: CE RoHS TUV CB ENEC
    • Warranty: 3/5Years

    Optical

    • LED Chips brand: Bridgelux COB as a standard, Osram COB optional
    • Lumens: 120-150lm/W output
    • CRI:>92
    • SDCM:<5 or <3
    • Color temp:2700-3000k, 4000-4500k, 6000-6500k
    • Phase dimming; 0/1-10V, DALI Dimmable
    • Low voltage input voltage DC12V/DC24V/DC36V/DC48W
    • Emergency backup (30% power with 1hours 2hours 3hours last)

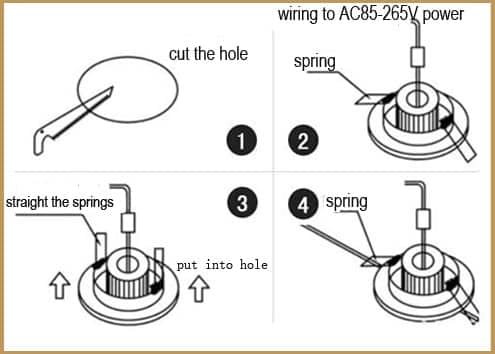

    recessed downlight installation
    • Hotels
    • Shopping malls
    • Museums
    • Offices
