Adjustable Spotlights 7W-35W|Anti Glare,UGR<19 | Model: GR-DL-A-9

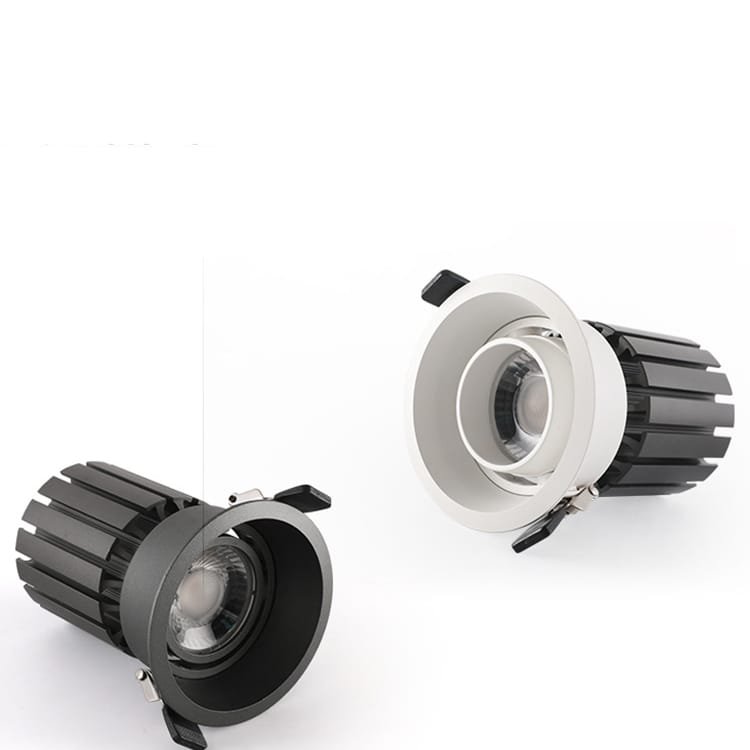

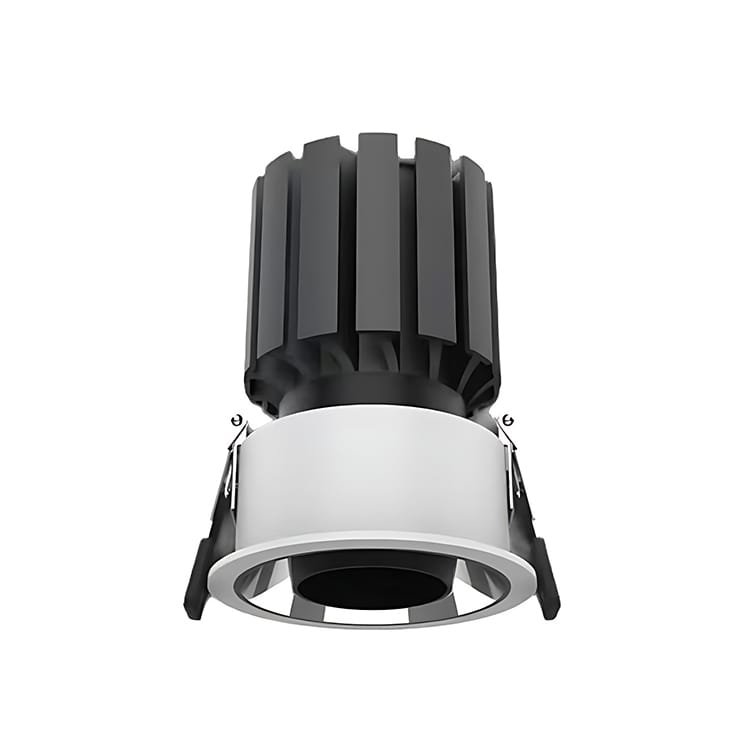

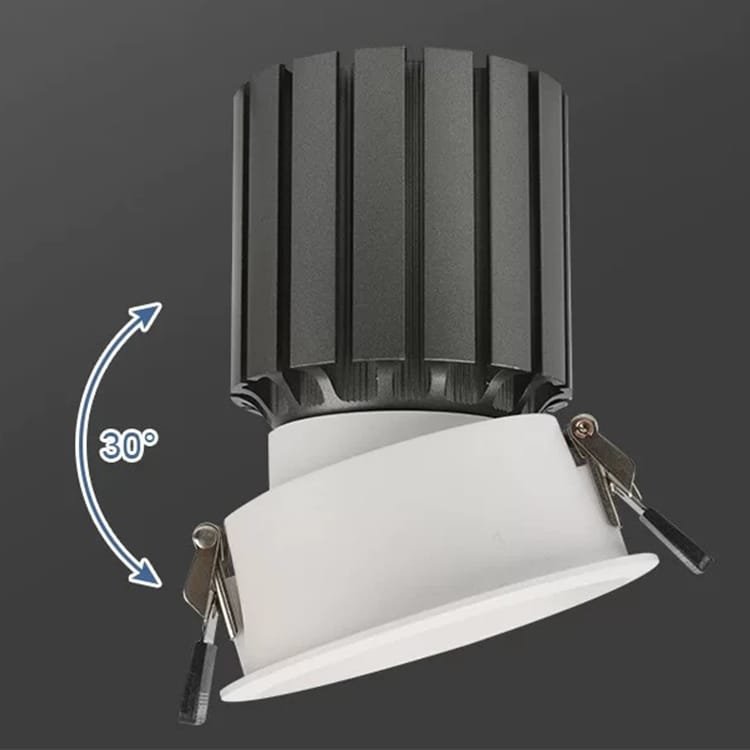

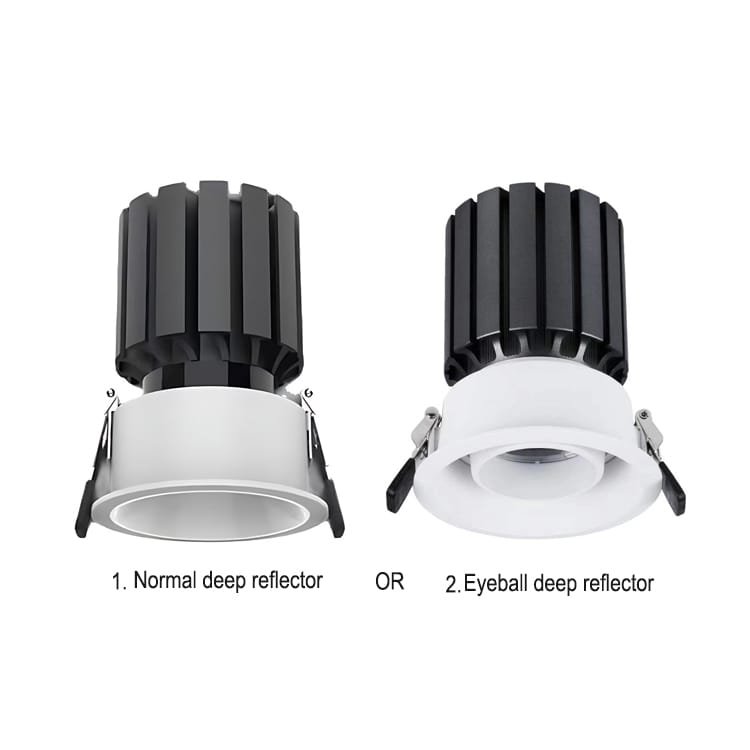

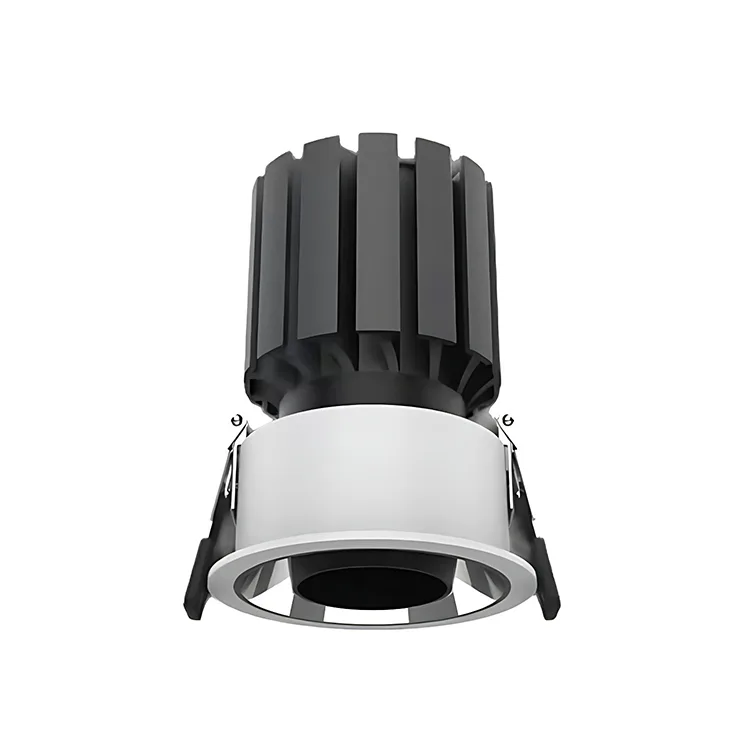

This recessed adjustable spotlight is the latest design: small size yet high power, such as 83mm diameter with a 75mm cutout at 20W, and a 95mm cutout at 35W Max. What is more, it includes two different reflector designs: one is a normal deep reflector, and the other is an eyeball reflector. They are all available in an adjustable direction of 30°, and the reflector colors include black, white, silver, gun black, and rose gold. They are widely used for hotel lighting, shopping mall lighting, etc.

  • Adjustable: yes
  • different reflectors optional ( white/black/silver)
  • Free flicker driver
  • Certificates: CE RoHS
  • Input voltage: 110/220-240VAC 50/60Hz
  • LED chips: COB
  • CRI:>92
  • PF: >0.5 or >0.9
  • IP rating: IP22 indoor use
  • Working life:>50000Hrs
  • Color temperature: 2800k-3000K/ 4000K-4500K/ 5700K-6000K
  • Materials: Die-cast aluminum body + Plastic reflector and eyeball part
  • Reflector: White/Black/ Shining silver options

Ref NumberWattageDimensionCutoutLuminous fluxDatasheet
GR-DL-15WA-9 (55)9W-15W±5%Φ63*H85mmΦ55mm900-1400lmDownload
GR-DL-12WA-9 (75)9W-12W±5%Φ83*H83mmΦ75mm900-1200lmDownload
GR-DL-20WA-9(75)15W-20W±5%Φ83*H110mmΦ75mm1500-2000lmDownload
GR-DL-30WA-9(75)25W-30W±5%Φ83*H124mmΦ75mm2500-3000lmDownload
GR-DL35WA-9(95)30W-35W±5%Φ108*124mmΦ95mm3000-3500lmDownload

  • Phase dimming; 0/1-10V, DALI Dimmable
  • Low voltage input voltage DC12V/DC24V/DC36V/DC48W
  • Emergency backup (30% power with 1hours 2hours 3hours last)
