Swivel Adjustable Recessed Spotlight 7W-35W | Black/White

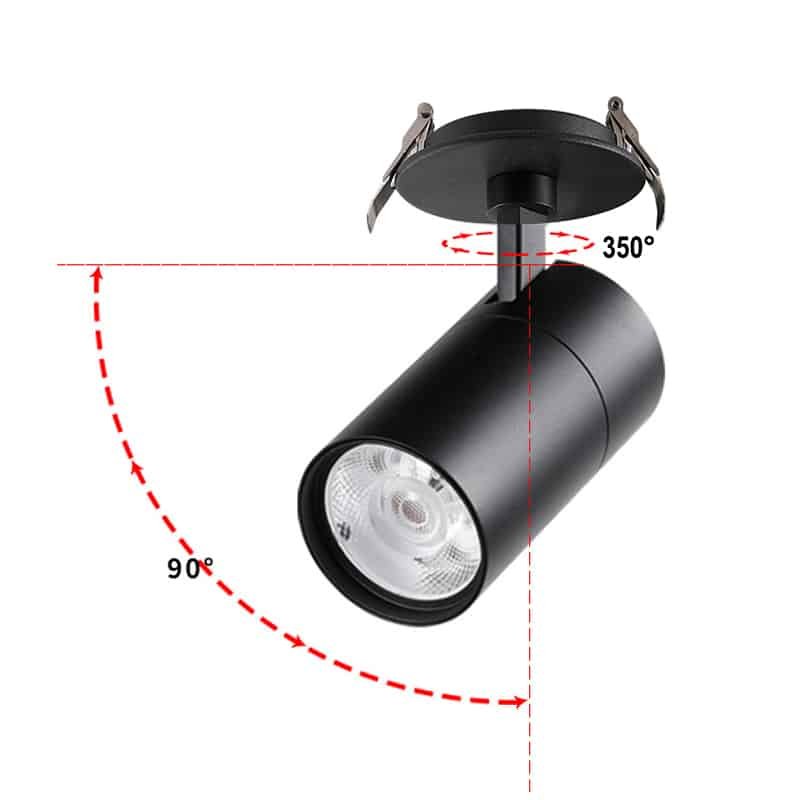

This recessed spotlight is adjustable 90° up and down and has a 350° swivel design. The direction of illumination can be easily changed. The finished color includes matte white and matte black. Widely used for office lighting, museum lighting, hotel lighting, and living room lighting etc.
- Materials: Die-cast aluminum body + Lens
- Finished: Matt black, Matt white
- Beam angle: 15/24/36°
- Free flicker: Yes
- Input voltage: 220-240VAC 50/60Hz
- Power factor: 0.5 as standard, >0.9 options
- THD:<15%
- Surge protection: 1KV, 2.5KV options
- IP rating: IP20 indoor use
- CRI:>90
- SDCM:<5 or 3
- Color temperature: 2700K-3000K/4000K-4500K/5500K-6000K
- Warranty: 3/5 years
- Certificates: CE RoHS
| Ref Number | Wattage | Dimension | Cut out | Luminous flux | Download |
|---|---|---|---|---|---|
| GR-DL-7WG-7 | 7W±5% | Φ50*L100mm | Φ75mm | 600-700lm | Datasheet |
| GR-DL-10WG-7 | 10W±5% | Φ50*L100mm | Φ75mm | 900-1000lm | Datasheet |
| GR-DL-15WG-7 | 15W±5% | Φ60*L135mm | Φ75mm | 1300-1500mm | Datasheet |
| GR-DL-20WG-7 | 20W±5% | Φ60*L135mm | Φ75mm | 1800-2000lm | Datasheet |
| GR-DL-30WG-7 | 30W±5% | Φ80*L150mm | Φ75mm | 2700-3000lm | Datasheet |
| GR-DL-35WG-7 | 35W±5% | Φ80*L170mm | Φ75mm | 3300-3500lm | Datasheet |
- Dimming ( Triac dimmable/ 0-10V dimmable/ DALI dimmable options)
- Emergency backup kits

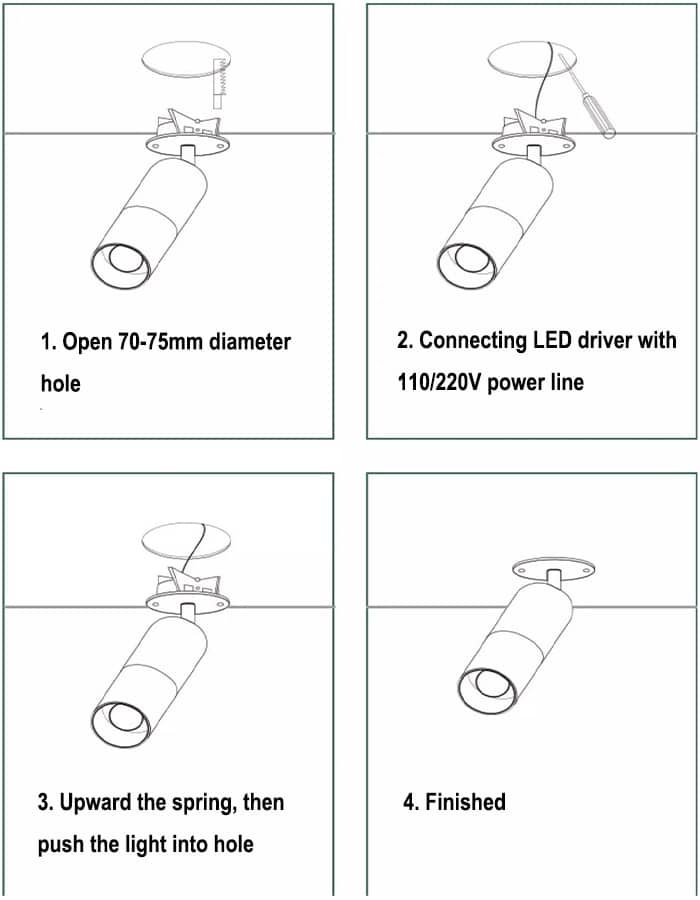

Easy to do recessed mounted like the following drawing:
