Led UFO High Bay Lights 100W 150W 200W 240W

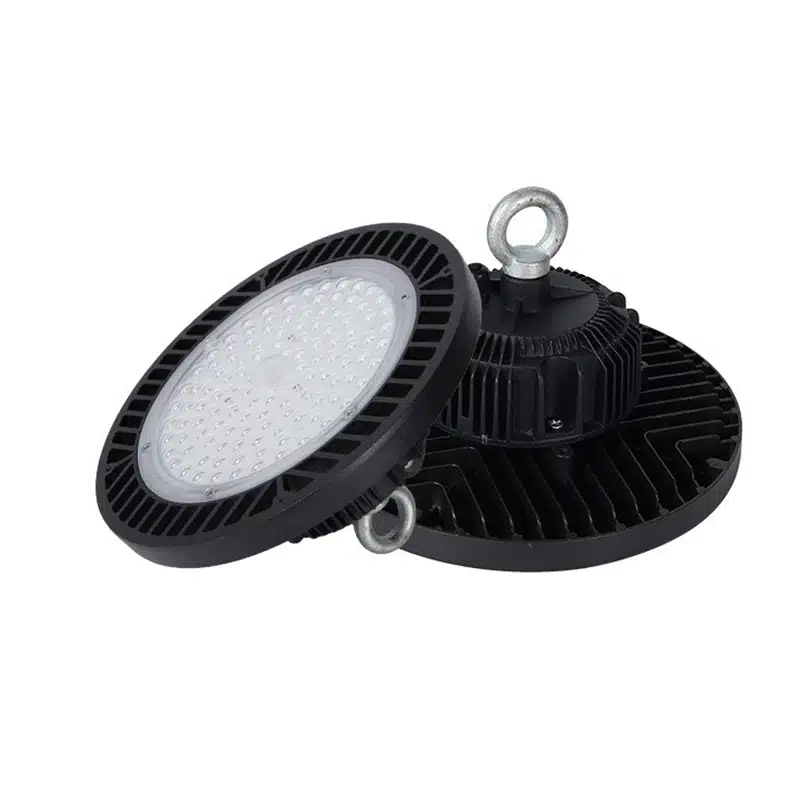

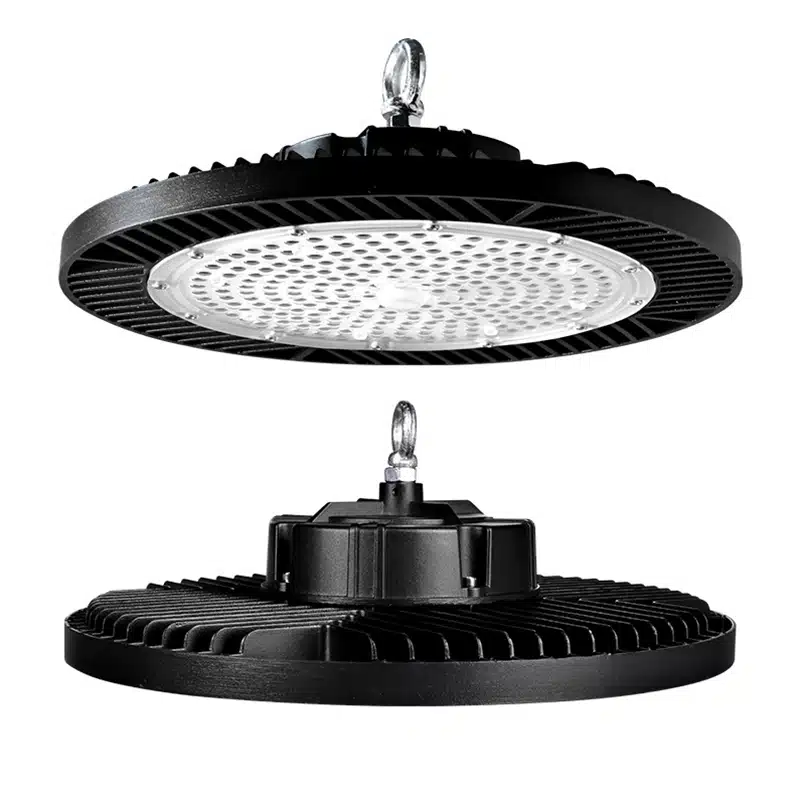

This high bay LED light is designed in a UFO shape, it comes in 100W 150W 200W, and 240W. There are two covers optional- toughed glass cover type with 120°, and PC lens cover for 60/90° beam angle.
GRNLED offers the best price in the market—better quality but at a lower price.
| Order Model | Wattage | Dimension | G.W(KG) | Lumens | Color temperature | Beam angle | IK Rating | Equivalent | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| GR-HB-100WA | 100W±5% | φ280*H175mm | 3.2KG | 12000-15000lm | 3000K-6500K | 60°/90°/120° | IK08 | 250Watt Metal Halide | Download |
| GR-HB-150WA | 150W±5% | φ340*H185mm | 4.5KG | 18000-22000lm | 3000K-6500K | 60°/90°/120° | IK08 | 400Watt Metal Halide | Download |
| GR-HB-200WA | 200W±5% | φ400*H120mm | 6KG | 24000-28000lm | 3000K-6500K | 60°/90°/120° | IK08 | 750Watt Metal Halide | Download |
| GR-HB-240WA | 240W±5% | φ400*H125mm | 6.3KG | 27000-30000lm | 3000K-6500K | 60°/90°/120° | IK08 | 1000Watt Metal Halide | Download |
Housing & Finished
- Body: Die-cast aluminum
- Color: Black finish
- Cover: PMMA Lens cover, Anti-UV, 60°/90°/120° optional, the glass cover optional
- Hook: Metal
- Bracket: Metal
Control Gear/ LED Driver
- Brand: MOSO brand driver as standard, Philips/Meanwell optional
- Input voltage:100-277VAC 50/60Hz
- THD:<10%
- Built-in surge protection: 6KV
- PF: >0.95
- Efficiency:>90%
- IP rate: IP66 waterproof
- Working life: 50000Hrs
- Warranty: 5Years
- Certificates: CE CB TUV ENEC
Optical
- Led chip brand: Lumileds
- Chip type: SMD2835 /3030
- Lumens: 140-180lm/W
- SDCM:<5
- Color temperature: 3000K warm white; 4000-4500k daylight, 6000-6500k cold white
- LM80
- Emergency backup (1hrs,2hrs duration)
- Dimming (PWM/0-10V/DALI dimmable)

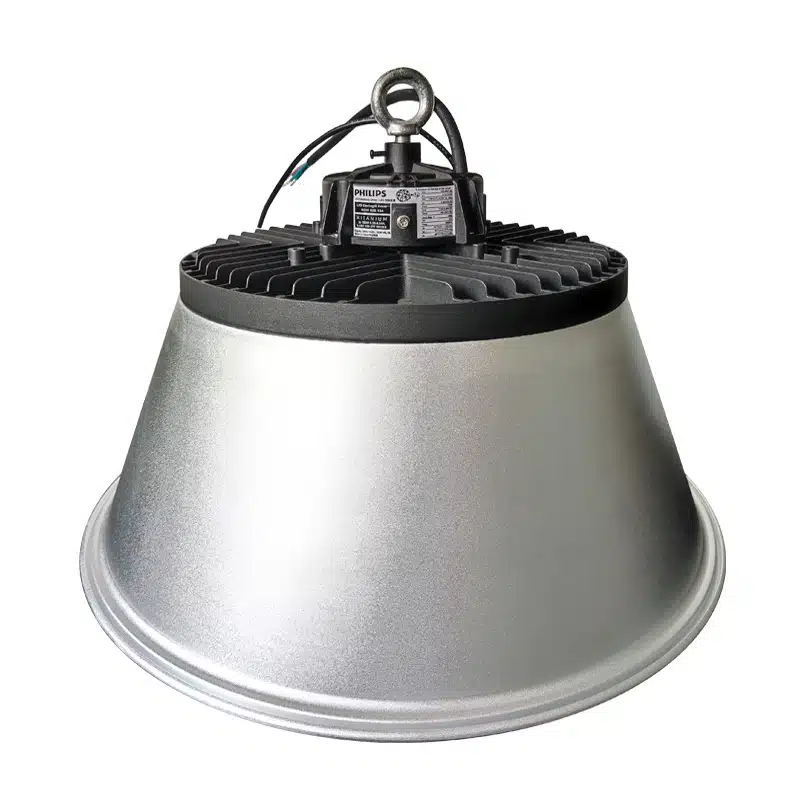

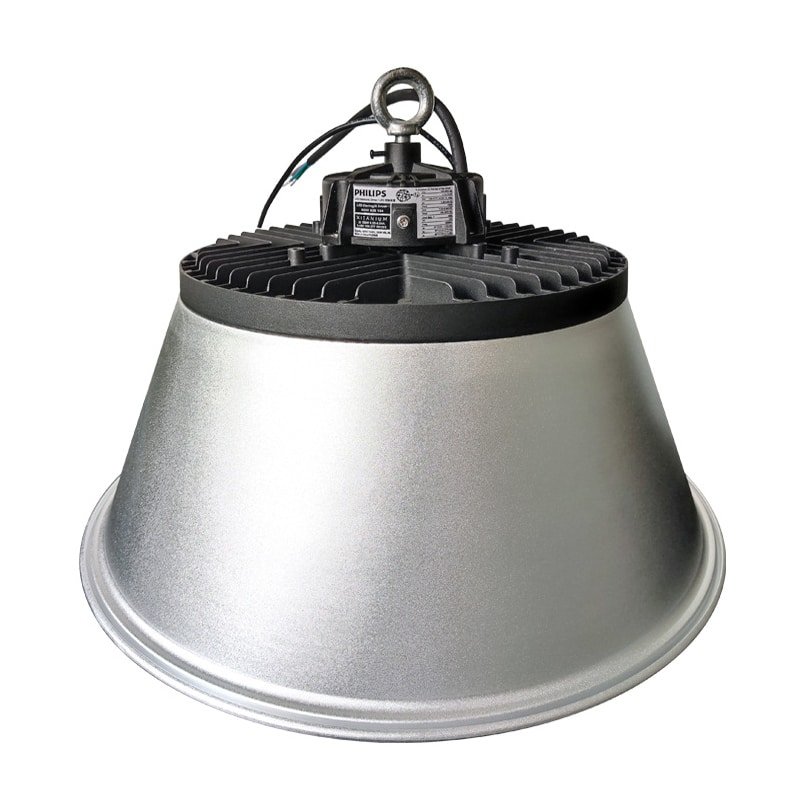

- Aluminum reflectors
There are two different installation ways for UFO high bay LED lights as follows
UFO high bay LED light is a high-efficiency indoor LED lamp that can be widely used in industrial plants, production workshops, supermarkets, sports and entertainment venues, warehouses, etc.
Q: How far apart should UFO LED high bay lights be?
A: It is decided by the installation height, details are as follows:
- A gap of 12 feet in between High Bay LED lights is recommended for lights at a height of 15 feet.
- For lights at 20 feet above the ground, there should be a 15 feet gap between them.
- If the lights are 30 feet high then there should be a 20 to 25 feet gap in between.
Know more about how to choose the right led high bay light
Q: How many lumens do I need high bay?
| Ceiling Height | UFO-led light lumen |
| 10-15ft | 10000-15000lm |
| 15-20ft | 16000-20000lm |
| 25-35ft | 33000-40000lm |
Q: What is ufo led lights?
A: UFO LED lights are circular high bay lights designed for industrial and commercial spaces with high ceilings. Known for their energy efficiency and modern design, they provide powerful and focused illumination, making them popular in warehouses, factories, and large retail areas
